Plug Connector Tube OD 3/16″ Inch Plug In Tube Fitting

$0.57

”

WIC Valve PPG Series Plug Connector Push In Fitting provides a easy and quick tubing connections with no special tools required.

“

In stock

SKU: PPG-T3/16 Categories: ,
Wisdom International Corporation WIC Valve
Wisdom International Corporation WIC Valve
PLUG CONNECTOR Fitting

Description

”

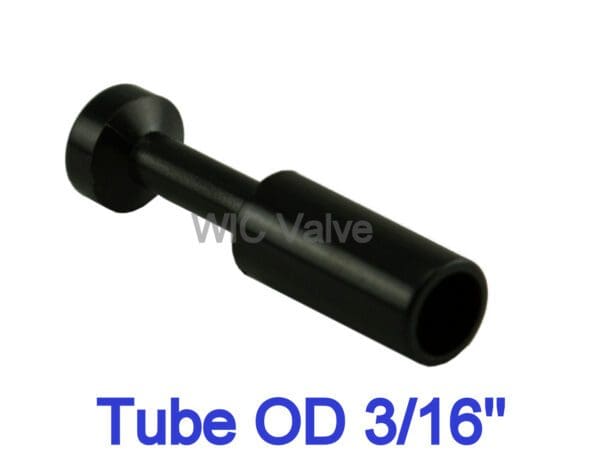

Composite Plug Connector Push In To Connect Fitting Tube OD 3/16″” Inch

WIC Valve PPG Series plug connector composite push in to connect fitting provides a easy and quick tubing connections with no special tools required. WIC Valve fitting is compatible with SMC and Festo Fittings. High quality, easy to install.



PPG Series Plug Connector Specifications
Operating Pressure 0 – 150 PSI 0 – 990 kpa
Vacuum 0 – 29.5 in Hg 750 mm Hg
Operating Temperature 0 – 60 °C 32 to 140°F
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene.



Material of Construction
Plastic Body PBT (Polybutylene terephthalate)



PPG Series Plug Connector
Part No. Tube OD (Inch) Price
PPG-T1/8 1/8″” $0.55
PPG-T5/32 5/32″” $0.56
PPG-T3/16 3/16″” $0.57
PPG-T1/4 1/4″” $0.58
PPG-5/16 5/16″” $0.63
PPG-T3/8 3/8″” $0.67
PPG-T1/2 1/2″” $0.71


How to install the tubing into fitting?
Fitting Installation and Removal Guide:

To install the tubing into fitting

1) Cut the tubing square ensure the outside diameter is free of score marks and no burrs.

2) Simply push tubing past the O-ring to the internal tube dead stop by hand.

3) Pull the tubing back gently to ensure it is secure for leakproof connections.



To remove the tubing from fitting

1) Press evenly on both sides of the release button against fitting body, keep the release button (collet) depressed and held in this position

2) Pull the tubing to slide out.



Tubing Size Tolerance Requirements:

Polyurethane Tubing: specified fitting size ± 0.004” max. (± 0.1 mm max.)
Polyethylene Tubing: specified fitting size ± 0.006” max. (± 0.15 mm max.)
Polypropylene Tubing: specified fitting size ± 0.004” max. (± 0.1 mm max.)
Nylon Tubing:: specified fitting size ± 0.004” max. (± 0.1 mm max.)
Pre-Grooved Metal Tubing:: specified fitting size ± 0.004” max. (± 0.1 mm max.)

“

Additional information

Weight 0.03 lbs
Dimensions 1.00 × 0.05 × 0.20 in
