1/2″ Bulkhead Union Pneumatic Quick Release Push In Fitting

$3.30

In stock

Description

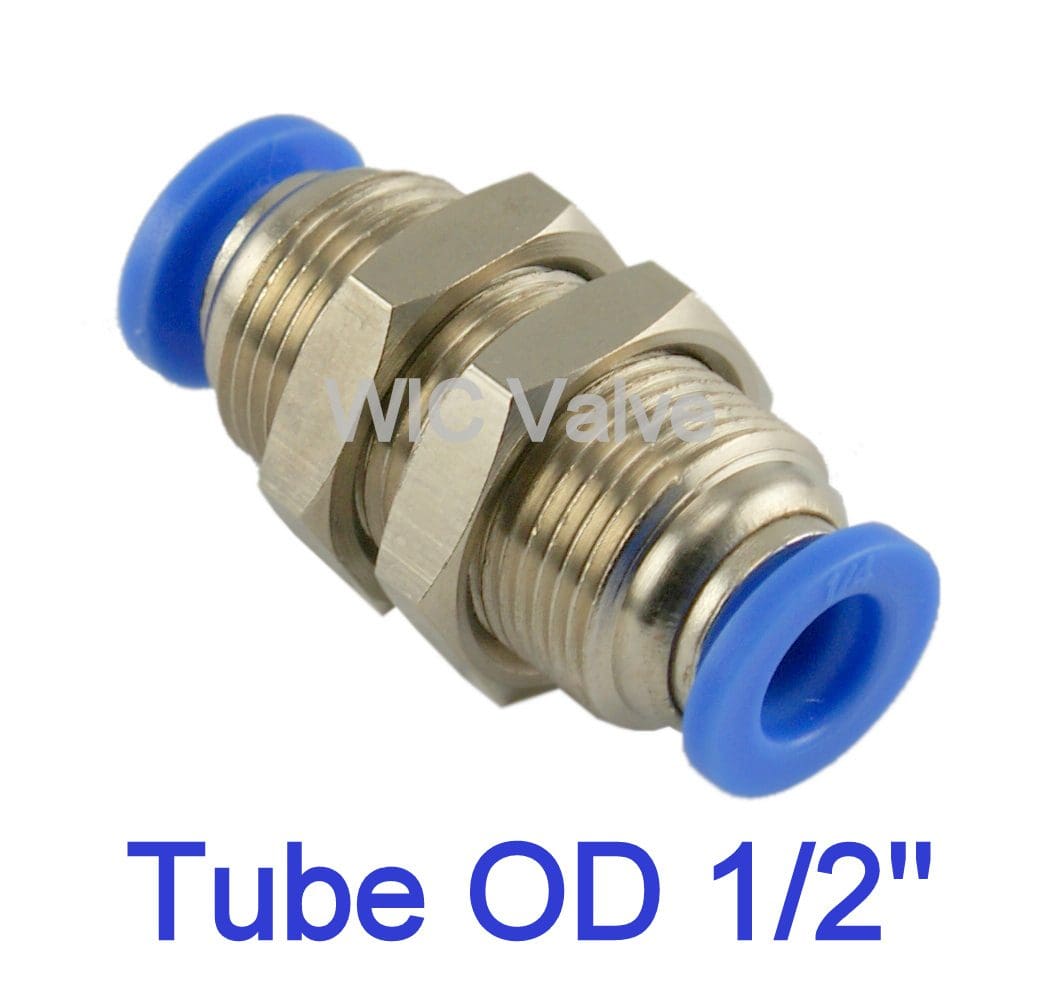

Bulkhead Union Tube OD 1/2″ Quick Release One Touch Push In To Connect Fitting



WIC Valve PBU Series composite bulkhead union one touch push in fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required.  Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow. The strong nickel-plated brass threaded bodies ensure anti-corrosion.



Bulkhead Union Air Fitting Specifications
Operating Pressure 0 – 150 PSI 0 – 990 kpa
Vacuum 0 – 29.5 in Hg 750 mm Hg
Operating Temperature 0 – 60 °C 32 to 140°F
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene.



Material of Construction
Plastic Body PBT (Polybutylene terephthalate)
Metal Body Nickel Plated Brass
Release Button POM (Poly oxy methylene copolymer)
Grip Ring Stainless Steel
Thread Sealant Teflon
O-ring NBR (Buna-N)



Schematic of Composite Push In Fitting Construction:

Pneumatic Push In Fitting Construction

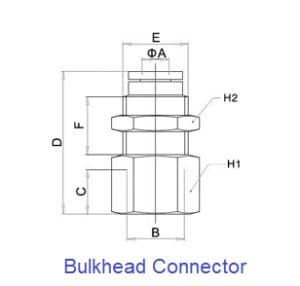

WIC Valve Bulkhead Union Connector Dimensions:

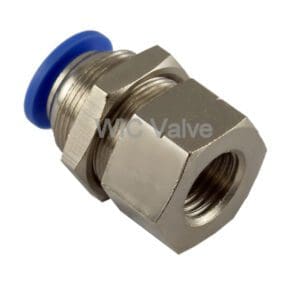

Bulkhead Connector Push In Fitting

Bulkhead Union Push In Fitting
Part No. Tube OD A D H T Price
PBU-T1/8 T1/8″ Ø1/8″ 1.37 0.55 0.46 $2.18
PBU-T1/4 T1/4″ Ø1/4″ 1.42 0.67 0.54 $2.18
PBU-T3/8 T3/8″ Ø3/8″ 1.72 0.94 0.77 $3.20
PBU-T1/2 T1/2″ Ø1/2″ 1.77 1.02 0.86 $3.30



Fitting Installation and Removal Guide:

How to install the tubing into fitting:

1) Cut the tubing square ensure the outside diameter is free of score marks and no burrs.

2) Simply push tubing past the O-ring to the internal tube dead stop by hand.

3) Pull the tubing back gently to ensure it is secure for leakproof connections.

How to remove the tubing from fitting

1) Press evenly on both sides of the release button against fitting body, keep the release button (collet) depressed and held in this position

2) Pull the tubing to slide out.

Additional information

Weight 0.10 lbs
Dimensions 2.00 × 1.00 × 0.50 in
