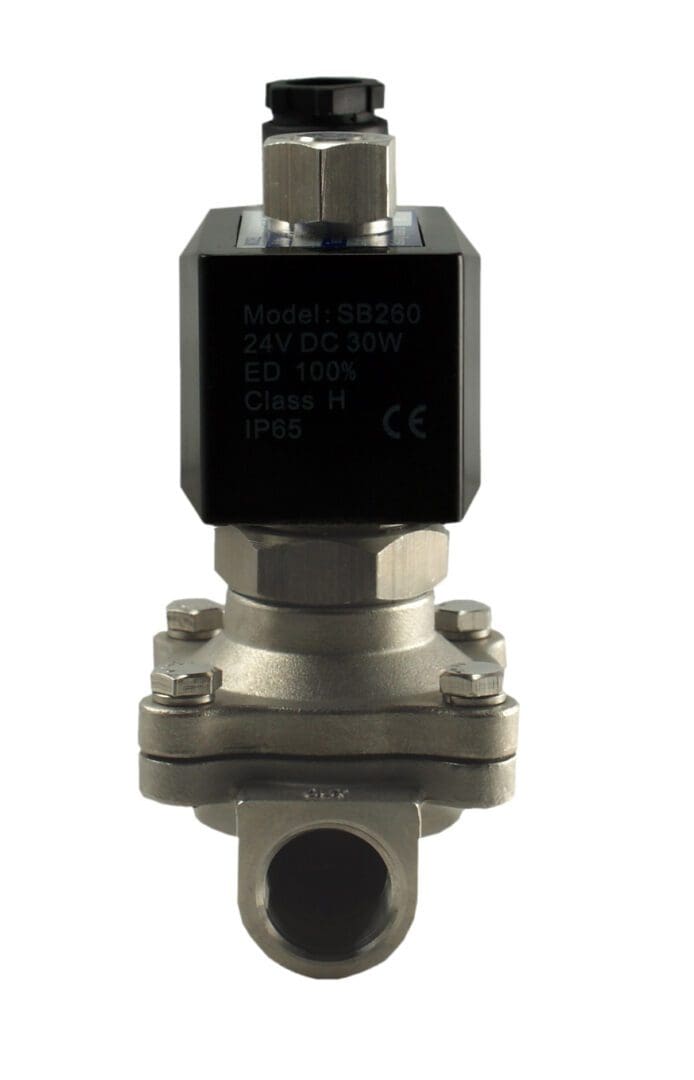

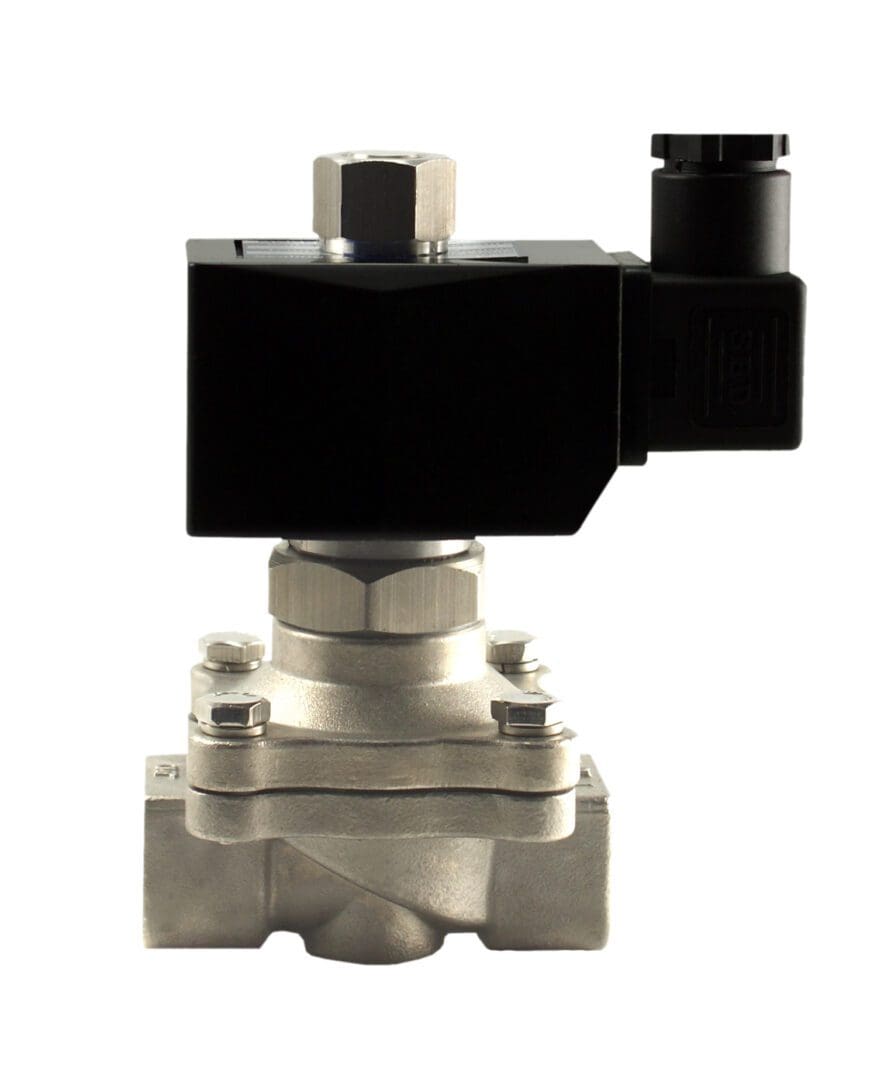

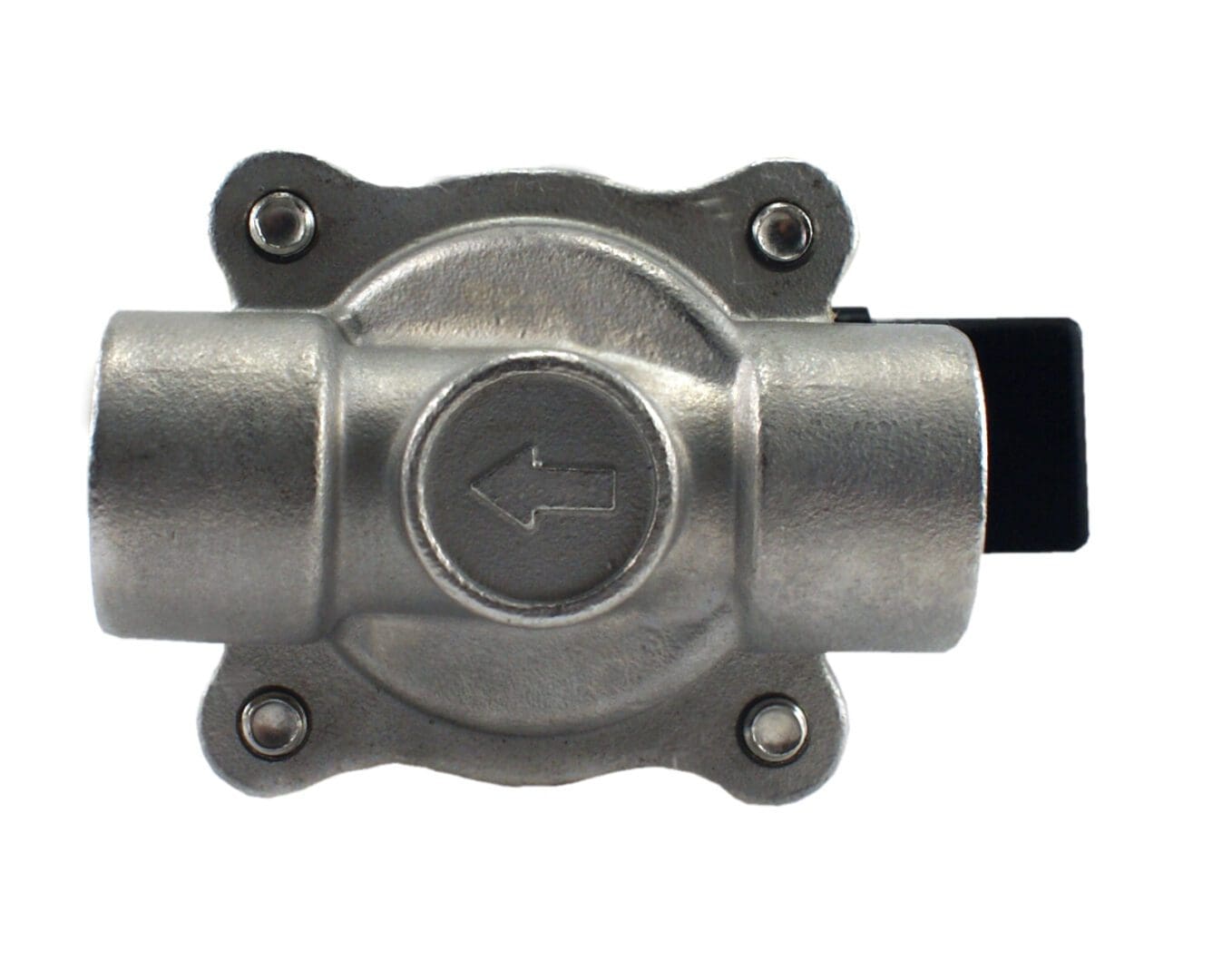

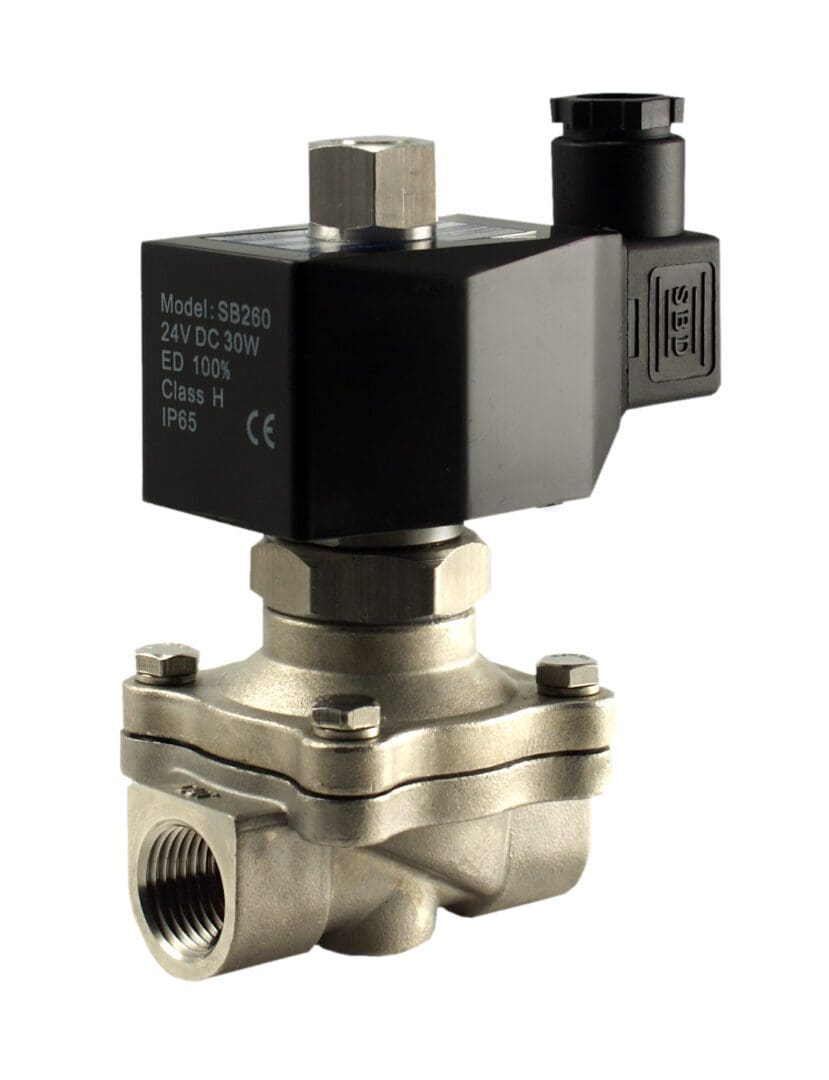

3/8″ Normally Open Stainless Zero Differential Solenoid Valve

$99.35

Description

3/8″ Inch Normally Open Stainless Steel Electric Solenoid ValveĀ



WIC Valve 2SOW Series 2-way normally open general purpose solenoid process valve is to control On/Off of air, inert gas, liquid, water and vacuum. This industrial solenoid valve has one 3/8″ inch inlet and one 3/8″ inch outlet port. Valve stays open when the coil is de-energized, and it closes when energized.Ā Ā 2SOW Series solenoid valve is a Zero differential solenoid valve, it can be operated at 0 PSI (Vacuum) and mounted at any position.Ā  This industrial stainless steel process valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.



2SOW Series Normally Open Stainless Steel Electric Solenoid Valve Specification:

Valve Type: 2 Way Normally Open (Valve closes with energized)

Service Media: Air, Gas, Liquid, Vacuum, Water

Operation Model: Direct Lift Diaphragm

Flow Model: Uni-Directional

Body Material: Stainless Steel

Seal Material: Viton on Diaphragm & Plunger Tip

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC – 30W ; AC -50Hz 28VA / 60Hz 25VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: Vacuum 0 PSI to 90 PSI with AC Coil / Vacuum 0 PSI to 80 PSI with DC Coil

Operating Temperature: -15 to 120 Ā°C

Port Size: 3/8″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

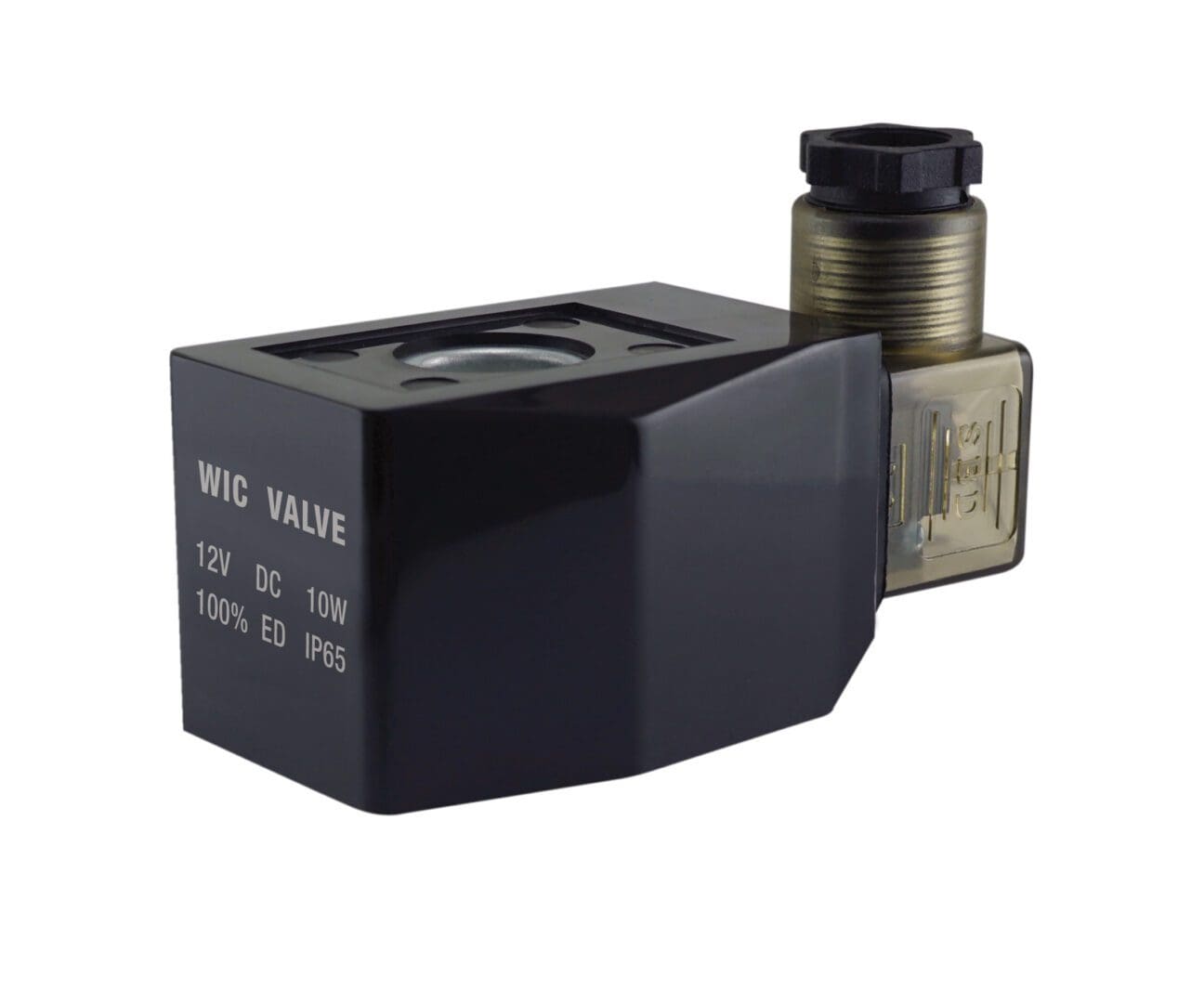

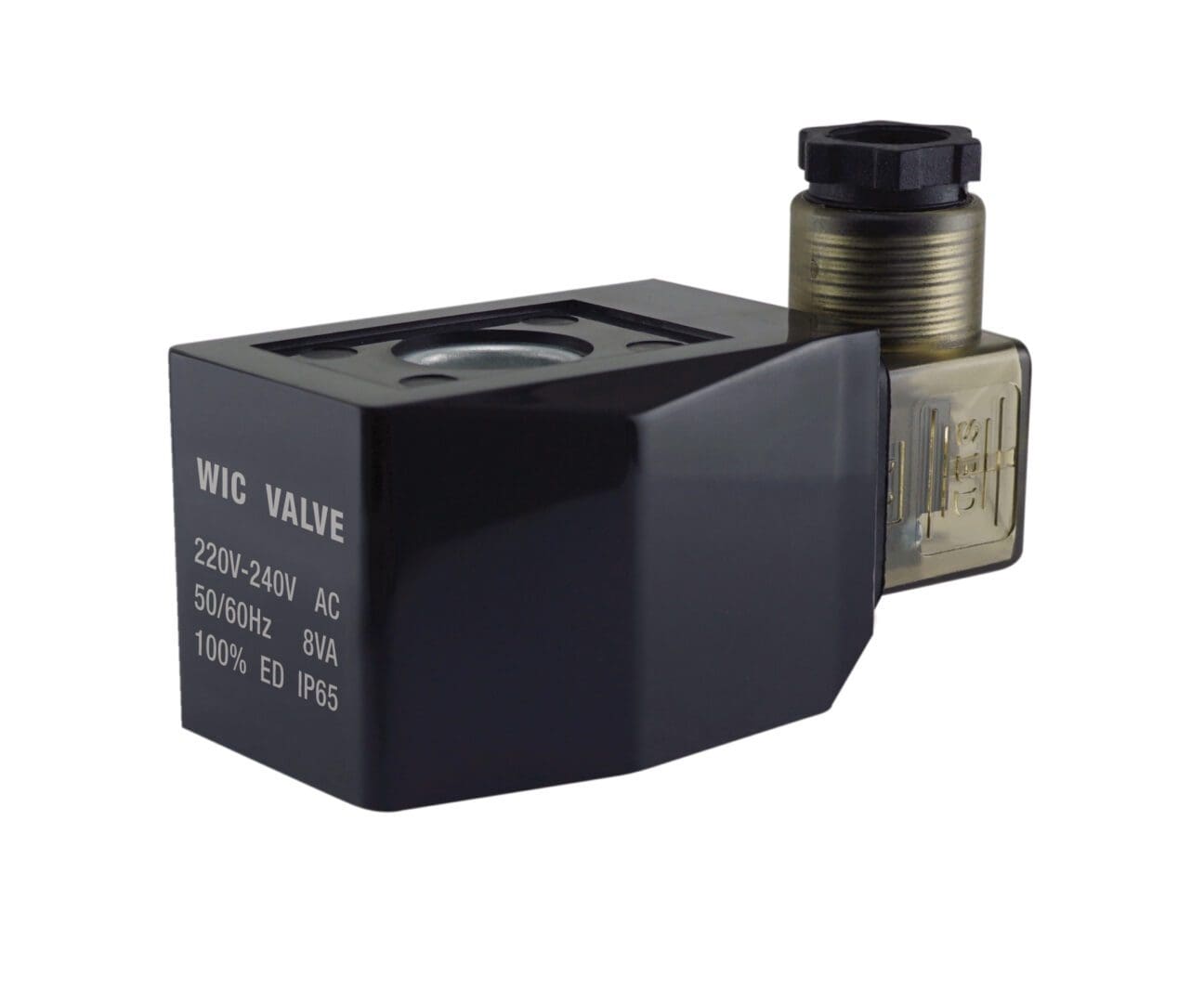

Low Power Consumption Coil:Ā UpgradeĀ OptionalĀ 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current:Ā 24V DC – 50W, 110V AC – 50/60HzĀ 85VA, 220V AC – 50/60HzĀ 154VA

Low Power Coil Certification:Ā CE Certification DC Coil

Operating Temperature:Ā -15 to 80 Ā°C (5 to 176 Ā°F) with Low Power Consumption Coil

Voltage Tolerances: DC: +10% ā€“5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Coil Connector with LED Indicator

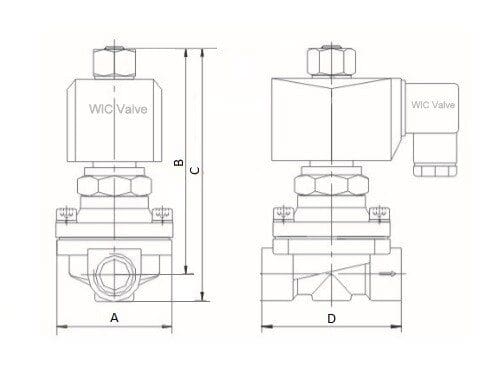

2SOW Series Normally Open Stainless Steel Solenoid Valve Dimensions (Unit=mm):

ModelĀ  Port (NPT) Flow Rate (Cv) Orifice SizeĀ  A B C D
2SOW-3/8-D-V 3/8″ 4.8 16 56 118 131 68
2SOW-1/2-D-V 1/2″ 4.8 16 56 118 131 68
2SOW-3/4-D-V 3/4″ 7.6 20 56 123 140 73
2SOW-1-D-V 1″ 12 25 74 147 168 100
2SOW-1 1/4-D-V 1-1/4″ 24 35 85 160 185 110
2SOW-1 1/2-D-V 1-1/2″ 29 40 90 165 193 120
2SOW-2-D-V 2″ 48 50 115 176 210 155

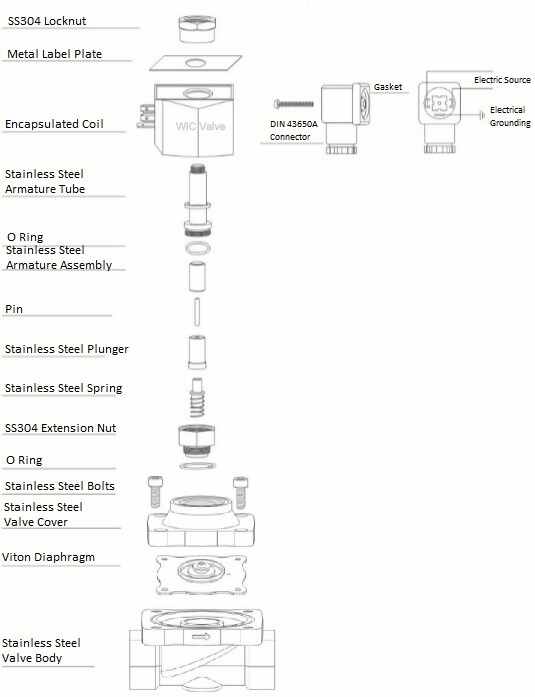

2SOW Series Normally Open Stainless Steel Electric Solenoid Valve Component Drawing:

Additional information

Weight 1.80 lbs
Dimensions 6.00 × 4.00 × 4.00 in
Coil Voltage

12V DC, 24V DC, 24V AC, 110V AC, 220V AC
