Description

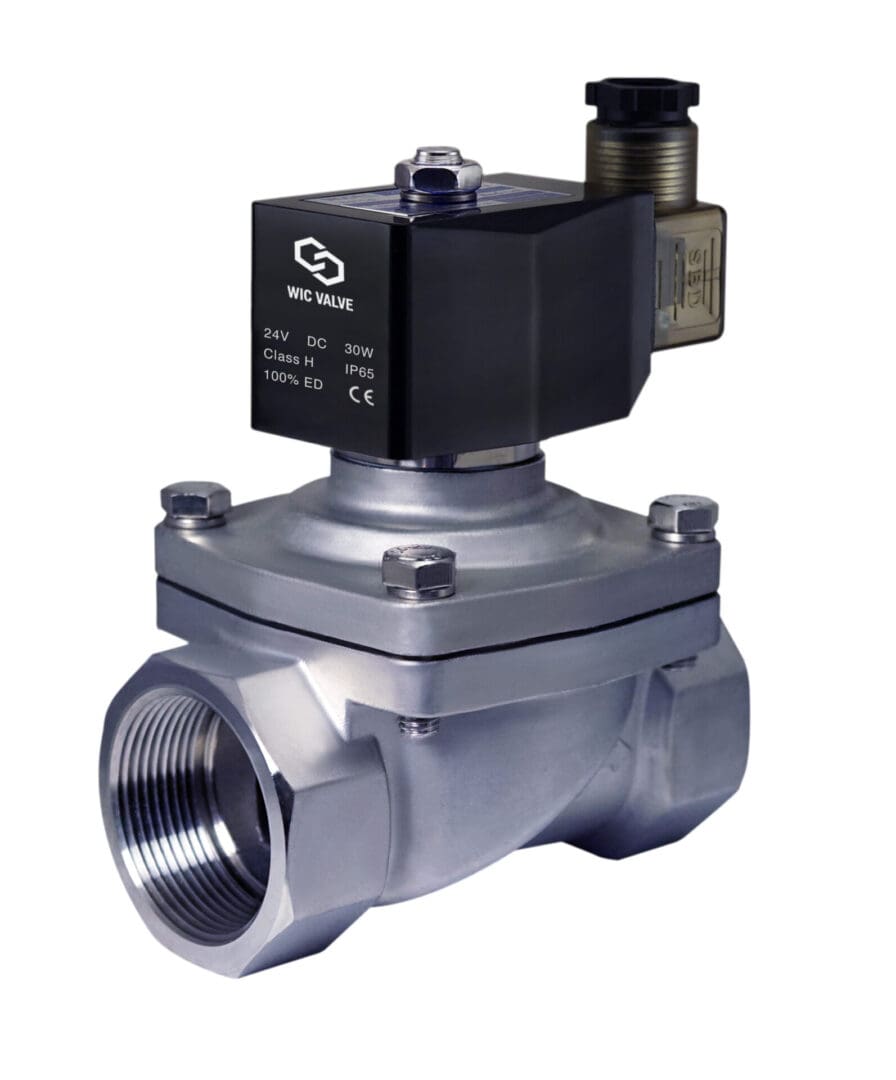

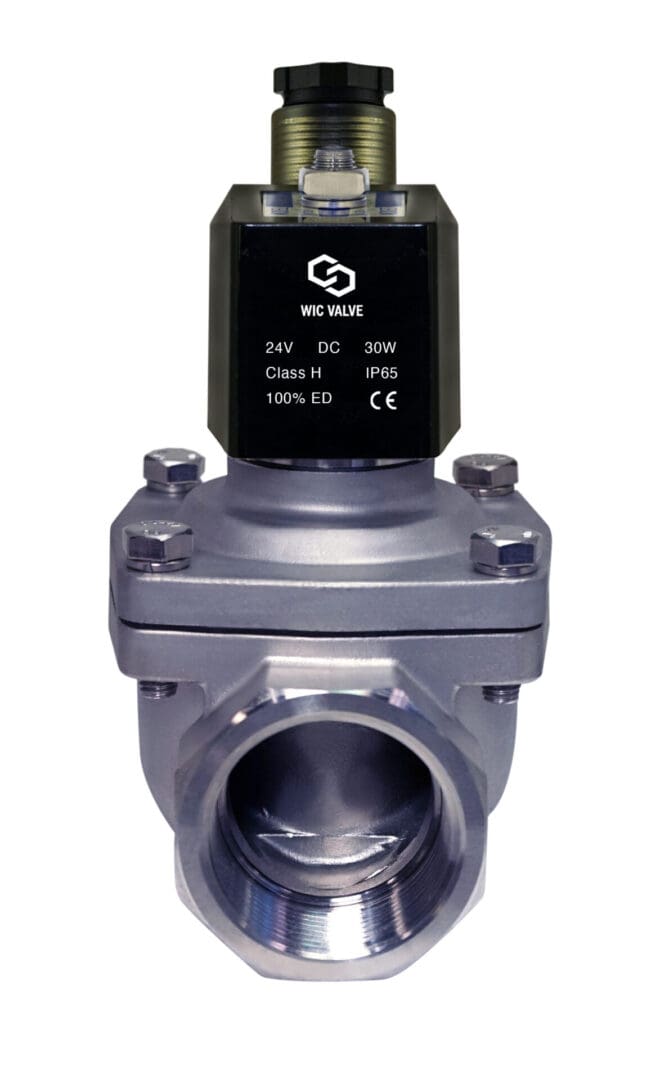

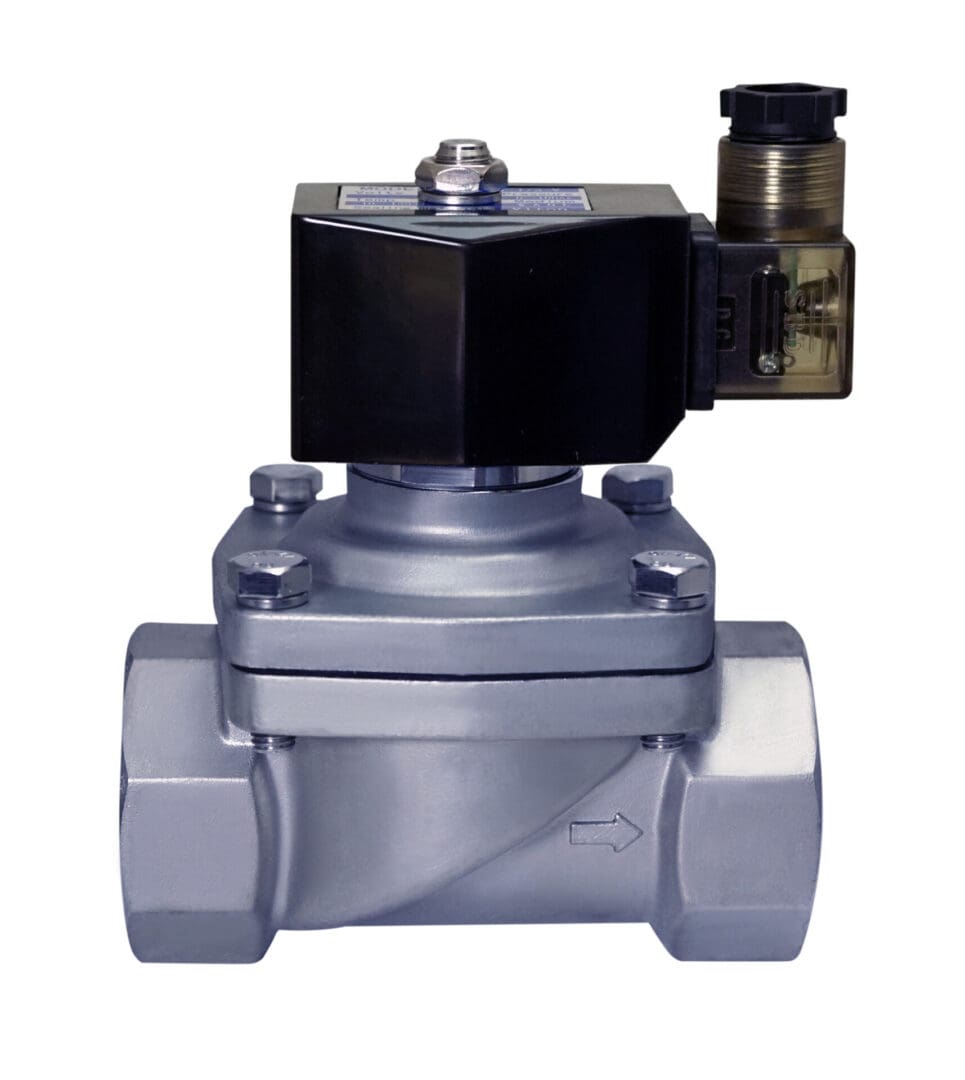

1.25″ Inch Stainless Steel Zero Differential Electric Solenoid Valve Normally Closed
WIC Valve 2SCW series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid and vacuum. This stainless steel electric solenoid valve has one 1.25″ inch NPT inlet and one 1.25″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2SCW Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. 2SCW series general purpose electric solenoid valve is a zero differential valve which can be operated at 0 PSI (Vacuum) and it can be mounted in any position.
2SCW Series Stainless Steel Electric Solenoid Valve Specification:
Model Number: 2SCW-1 1/4-D-V
Valve Type:Ā 2 Way NormallyĀ Closed (Valve opens with energized)
Service Media: Air, Gas, Liquid, Vacuum
Operation Model: Direct Lift Diaphragm
Flow Model: Uni-Directional

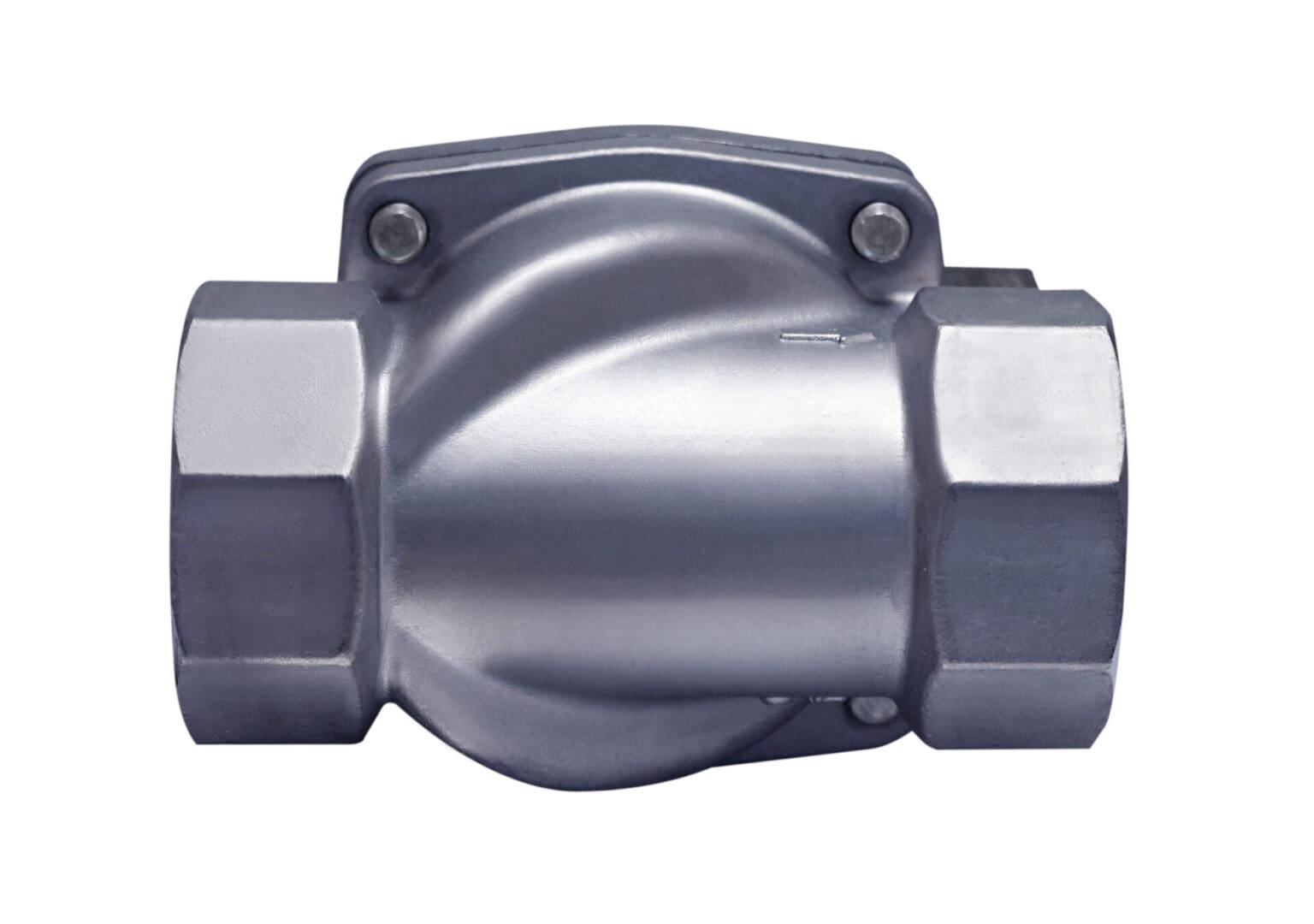

Body Material:Ā Stainless Steel
Seal Material: Viton on Diaphragm & Plunger Tip
Armature Tube Material: Stainless Steel
Spring & Plunger Material: Stainless Steel
Coil Certification: CE Certification
Coil Power: DC: 30W / AC: 50/60Hz 28VA
Coil Class: H Class IP 65
Coil Duty: 100% ED (Continuous Duty)
Operating Pressure: Vacuum toĀ 150 PSI – AC Coil / Vacuum toĀ 100 PSI –Ā DC Coil
Operating Temperature: -15 to 120 Ā°C (5 to 248 Ā°F)
Port Size:Ā 1-1/4″ Inch NPT Female Port
Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

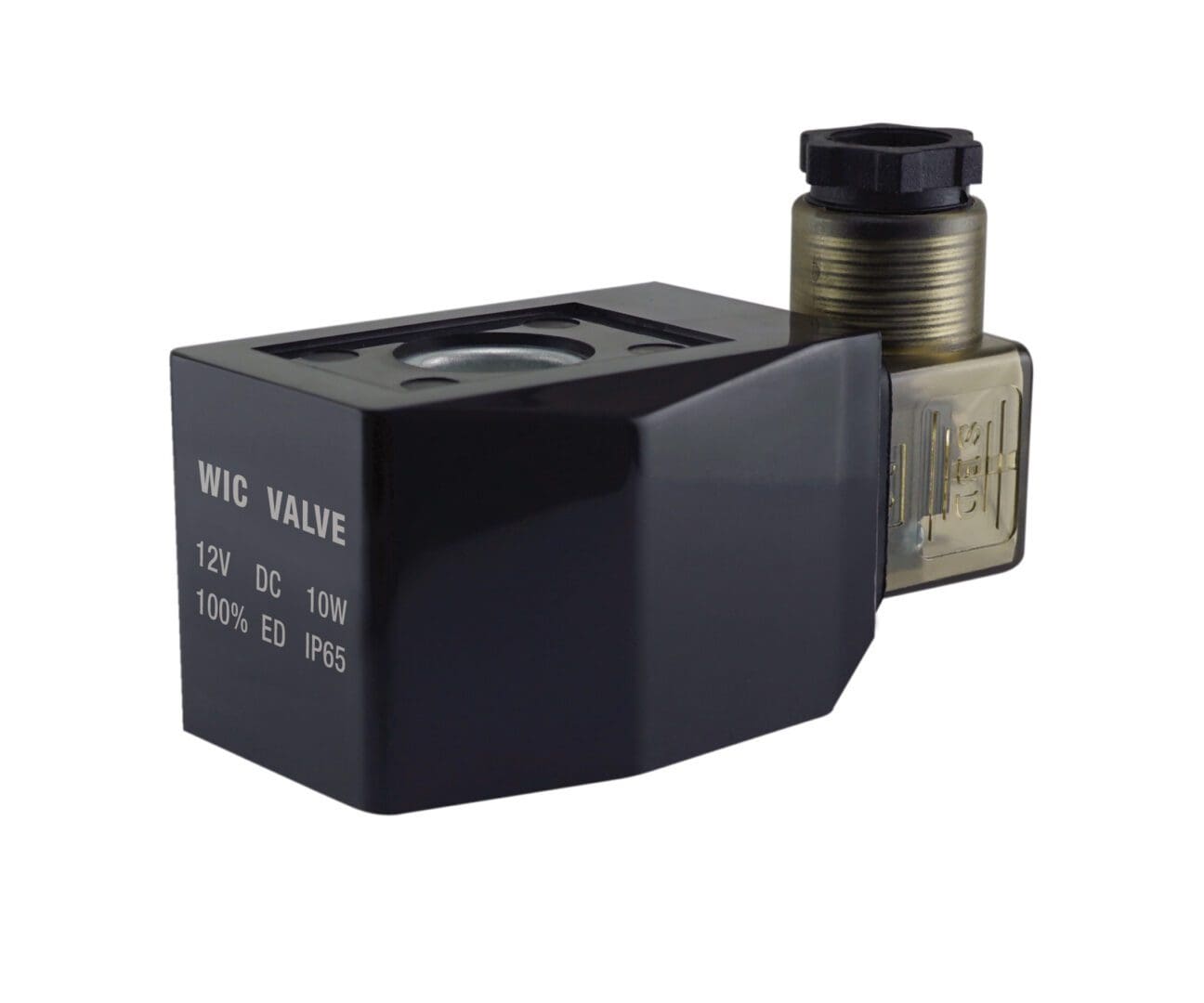

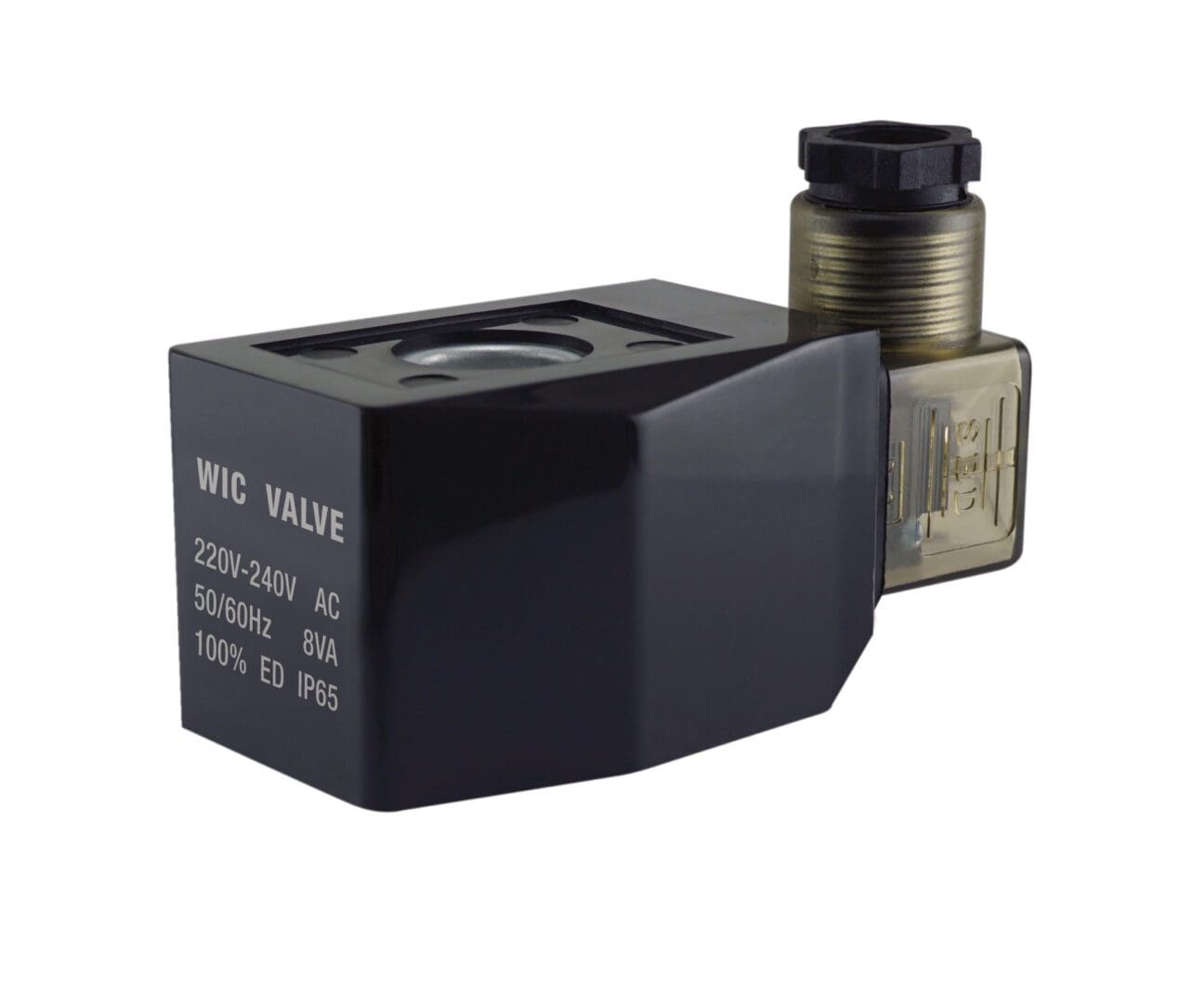

Low Power Consumption Coil:Ā UpgradeĀ OptionalĀ 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA
Low Power Consumption Coil Inrush Current:Ā 24V DC – 50W, 110V AC – 50/60HzĀ 85VA, 220V AC – 50/60HzĀ 154VA
Low Power Coil Certification:Ā CE Certification DC Coil
Operating Temperature:Ā -15 to 80 Ā°C (5 to 176 Ā°F) With Low Power Consumption Coil
Voltage Tolerances: DC: +10% ā5% ; AC: +10% -15%
Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator
2SCW Series Stainless Steel Electric Solenoid Valve Dimensions (Unit=mm):
ModelĀ | Port (NPT) | Flow Rate (Cv) | Orifice SizeĀ | A | B | C | D | Weight (lbs) |
2SCW-3/8-D-V | 3/8″ | 4.8 | 16 | 56 | 104 | 117 | 68 | 1.8 |
2SCW-1/2-D-V | 1/2″ | 4.8 | 16 | 56 | 104 | 117 | 68 | 1.8 |
2SCW-3/4-D-V | 3/4″ | 7.6 | 20 | 56 | 106 | 123 | 73 | 1.8 |
2SCW-1-D-V | 1″ | 12 | 25 | 74 | 114 | 135 | 100 | 3.2 |
2SCW-1 1/4-D-V | 1-1/4″ | 24 | 35 | 85 | 129 | 154 | 110 | 5.7 |
2SCW-1 1/2-D-V | 1-1/2″ | 29 | 40 | 90 | 134 | 162 | 120 | 5.7 |
2SCW-2-D-V | 2″ | 48 | 50 | 115 | 151 | 185 | 155 | 9.9 |
2SCW Series Stainless Steel Electric Solenoid Valve Component Drawing:
DIN 43650A Connector Components:
How to connect DIN connector with wire?
To connect the wire to DIN connector is simple and easy, shown below is the 4 easy steps:
1. Remove the Philip screw from the plastic housing protector.
2. Unplug the plastic housing from the DIN coil.
3. Remove the terminal block from the plastic housing.Ā Use the Philip screw to push the terminal block out from the plastic housing.
4. On the back of the terminal block, it makes 1, 2 and Ground. For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required.
What is Cv ?
Cv = Flow coefficient or flow capacity rating of valve. The flow coefficient Cv is the volume (in US gallons) of water at 60Ā°F that will flow per minute through a valve with a pressure drop of 1 psi across the valve.
Mathematically the flow coefficient can be expressed as:
where:
Cv = Flow coefficient or flow capacity rating of valve.
F = Rate of flow (US gallons per minute).
SG = Specific gravity of fluid (Water = 1).
ĪP = Pressure drop across valve (psi).
What is Coil with DIN Connector?
Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2SCW series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.
What is ED 100% Coil Duty?
ED 100% indicates suitability of the coil to operate in ācontinuous serviceā, in other words it is good for constantly energised.
Additional information
Weight | 6.00 lbs |
---|---|
Dimensions | 8.00 × 8.00 × 5.00 in |
Coil Voltage | 12V DC, 24V DC, 24V AC, 110V AC, 220V AC |
