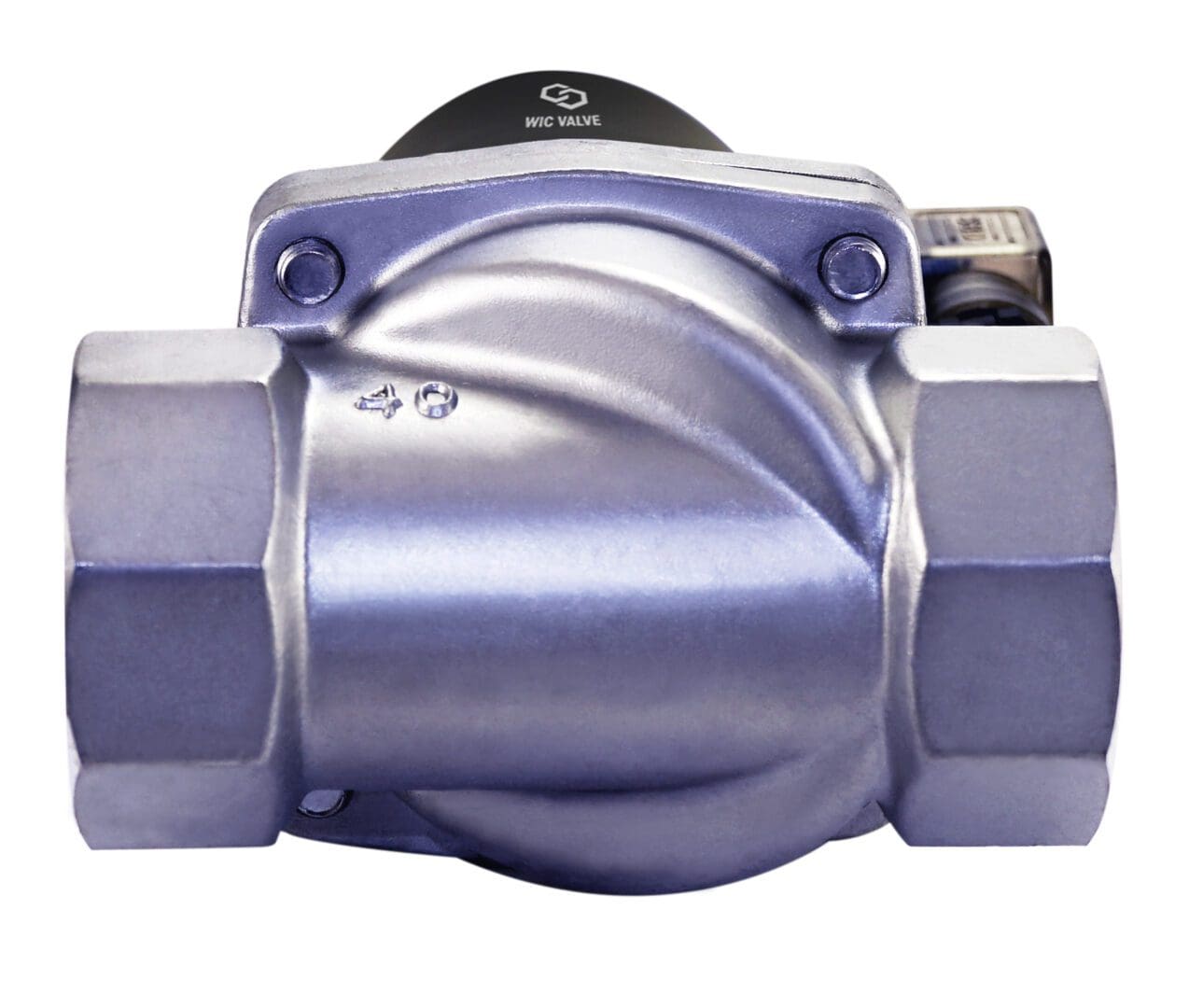

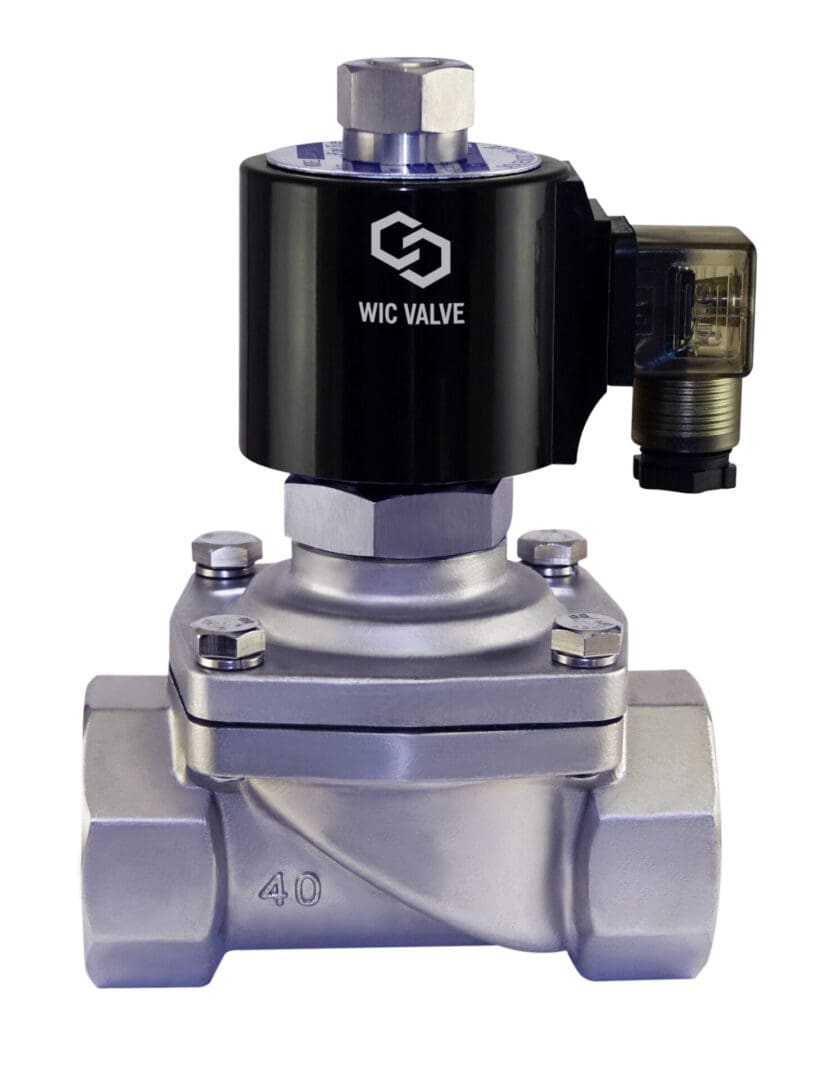

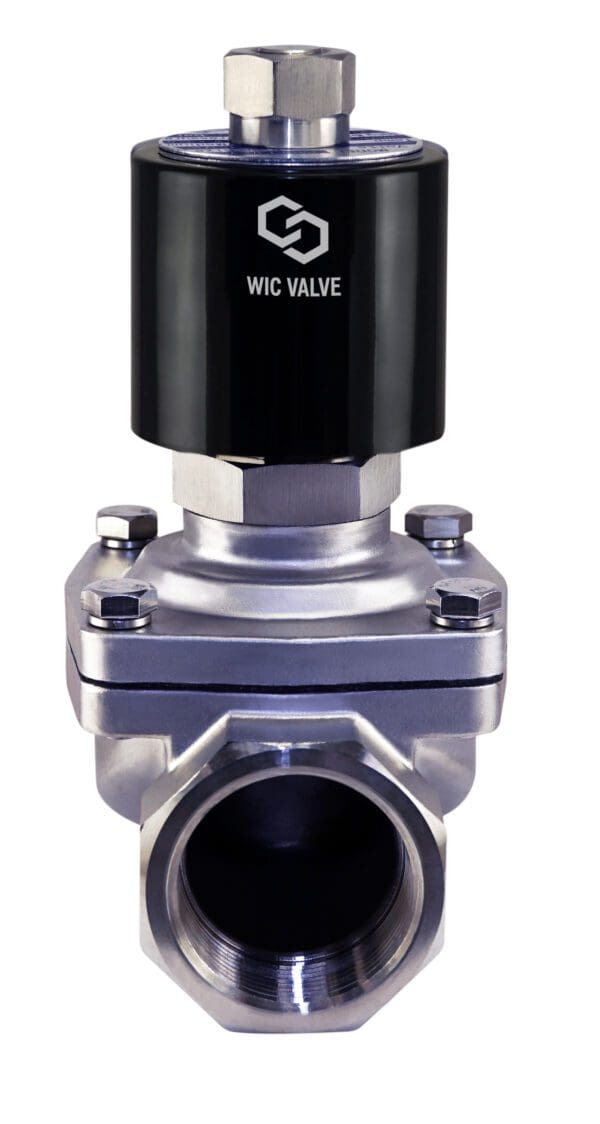

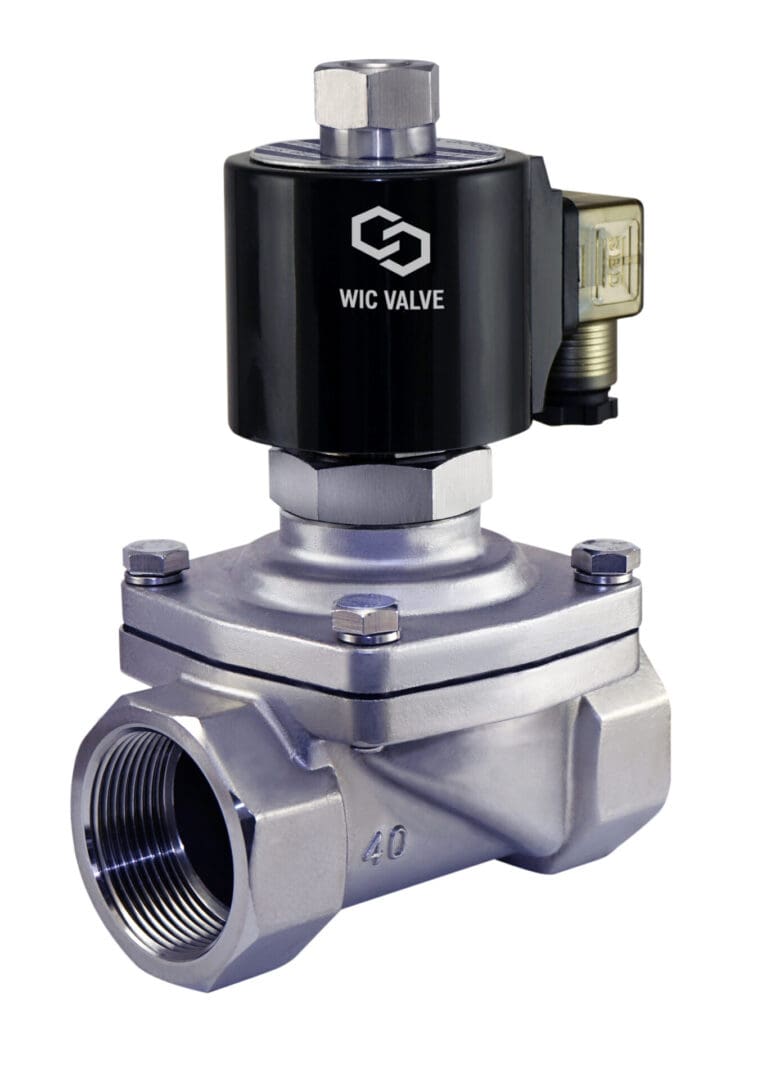

1.25″ Inch Normally Open Electric Solenoid Process Valve

WIC Valve 2SOW Series 2-way normally open electric solenoid process valve is to control On/Off of air, inert gas, liquid, water and vacuum. This industrial electric solenoid valve has one 1-1/4″ inch NPT inlet and one 1-1/4″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized.  2SOW Series solenoid valve is a Zero differential solenoid valve, it can be operated at 0 PSI (Vacuum) and mounted at any position.  2SOW Series process stainless steel solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.



2SOW Series 1.25″” Inch Normally Open Electric Water Solenoid Valve Specification:

Valve Type: 2 Way Normally Open (Valve closes with energized)

Service Media: Air, Gas, Liquid, Vacuum, Water

Operation Model: Direct Lift Diaphragm

Flow Model: Uni-Directional

Body Material: Stainless Steel Valve Body

Seal Material: Viton on Diaphragm & Plunger Tip

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC -40W ; AC – 50/60Hz 35VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: Vacuum 0 PSI to 90 PSI with AC Coil / Vacuum 0 PSI to 80 PSI with DC Coil

Operating Temperature: -15 to 120 °C

Port Size: 1-1/4″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Low Power Consumption Coil: Upgrade Optional: 24V DC – 8W, 24V AC – 7VA, 110V AC – 7VA, 220V AC – 9VA

Low Power Consumption Inrush Current: 24V DC – 75W, 24V AC – 121VA, 110V AC – 50/60Hz 82VA, 220V AC – 50/60Hz 170VA

Low Power Coil Certification: CE Certification DC Coil

Operating Temperature: -15 to 80 °C (5 to 176 °F) With Low Power Consumption Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator

2SOW Series Normally Open Stainless Steel Zero Differential Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D
2SOW-3/8-D-V	3/8″	4.8	16	56	118	131	68
2SOW-1/2-D-V	1/2″	4.8	16	56	118	131	68
2SOW-3/4-D-V	3/4″	7.6	20	56	123	140	73
2SOW-1-D-V	1″	12	25	74	147	168	100
2SOW-1 1/4-D-V	1-1/4″	24	35	85	160	185	110
2SOW-1 1/2-D-V	1-1/2″	29	40	90	165	193	120
2SOW-2-D-V	2″	48	50	115	176	210	155



2SOW Series Normally Open Stainless Steel Electric Solenoid Valve Component Drawing:
