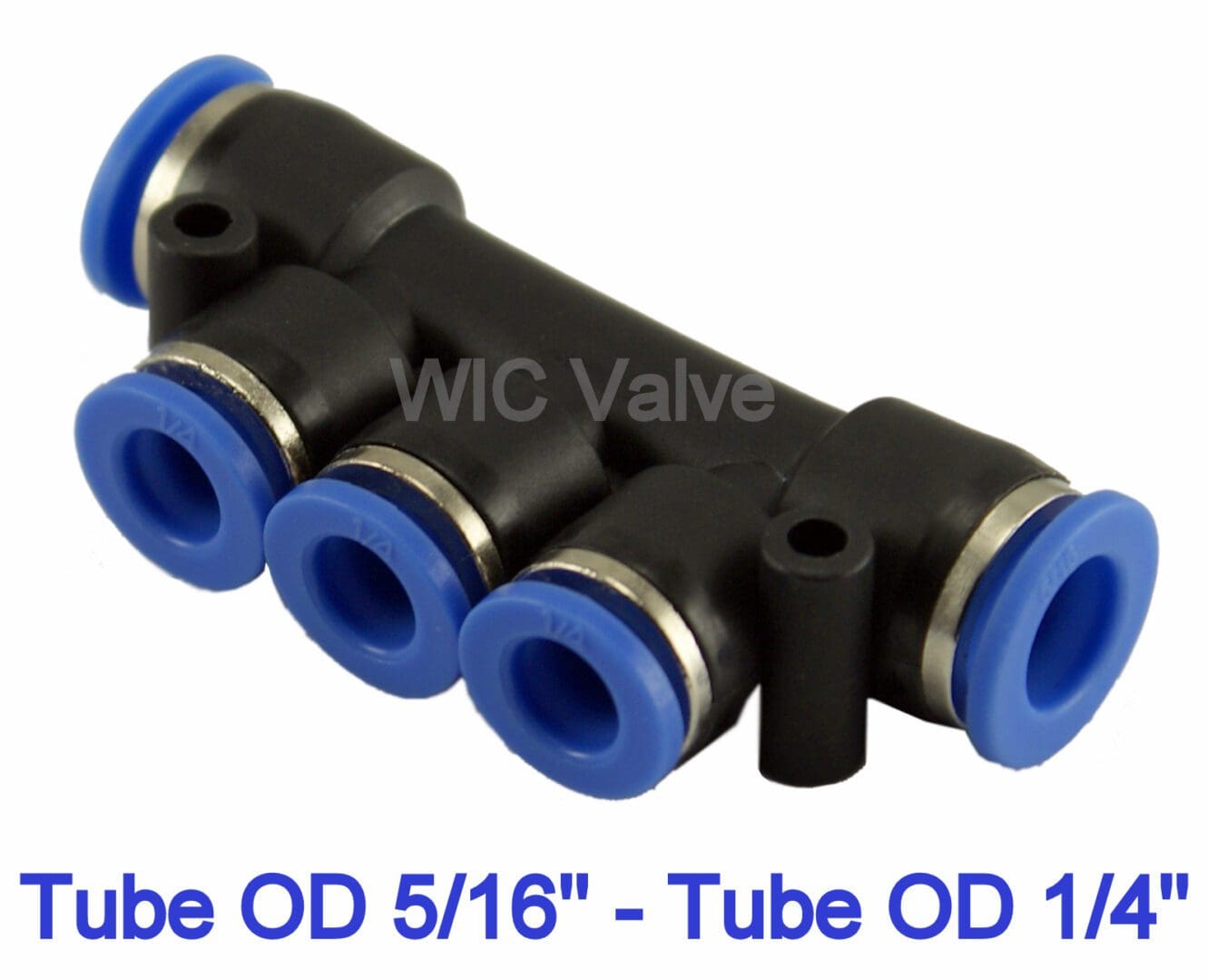

Composite Manifold Union Connector Tube OD 5/16″ To 1/4″ Quick Release One Touch Push In To Connect Air Fitting
WIC Valve PMU Series pneumatic manifold union one touch push in to connect fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required. Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow.
| WIC Valve PMU Series Manifold Union Fitting Specifications | ||
| Operating Pressure | 0 – 150 PSI | 0 – 990 kpa |
| Vacuum | 0 – 29.5 in Hg | 750 mm Hg |
| Operating Temperature | 0 – 60 °C | 32 to 140°F |
| Elbows | Swivel (rotate 360°) | |
| Application | Air | |
| Recommended Tubing Material | Polyurethane, Nylon, Polyethylene, and Polypropylene. |
| Material of Construction | |
| Plastic Body | PBT (Polybutylene terephthalate) |
| Metal Body | Nickel Plated Brass |
| Release Button | POM (Poly oxy methylene copolymer) |
| Grip Ring | Stainless Steel |
| Thread Sealant | Teflon |
| O-ring | NBR (Buna-N) |
Schematic of Composite Push In Fitting Construction:
WIC Valve PMU Series Manifold Union Fitting:
| Manifold Union Push In Fitting | |||
| Part No. | Tube OD | Tube OD | Price |
| PMU-T5/32-T1/8 | 5/32″ | 1/8″ | $3.98 |
| PMU-T1/4-T5/32 | 1/4″ | 5/32″ | $3.98 |
| PMU-T5/16-T5/32 | 5/16″ | 5/32″ | $4.05 |
| PMU-T5/16-T1/4 | 5/16″ | 1/4″ | $4.13 |
| PMU-T3/8-T1/4 | 3/8″ | 1/4″ | $5.77 |
Fitting Installation and Removal Guide:
To install the tubing into fitting
1) Cut the tubing square ensure the outside diameter is free of score marks and no burrs.
2) Simply push tubing past the O-ring to the internal tube dead stop by hand.
3) Pull the tubing back gently to ensure it is secure for leakproof connections.
To remove the tubing from fitting
1) Press evenly on both sides of the release button against fitting body, keep the release button (collet) depressed and held in this position
2) Pull the tubing to slide out.
Additional information
| Weight | 0.07 lbs |
|---|---|
| Dimensions | 1.00 × 0.50 × 0.20 in |
