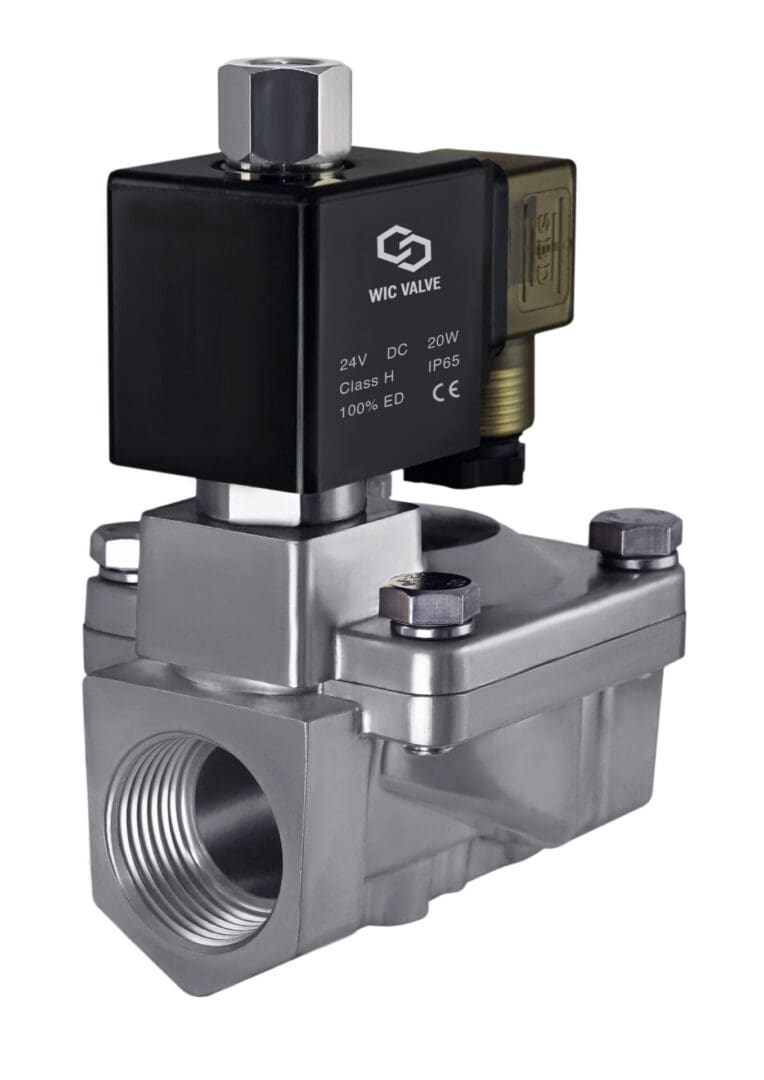

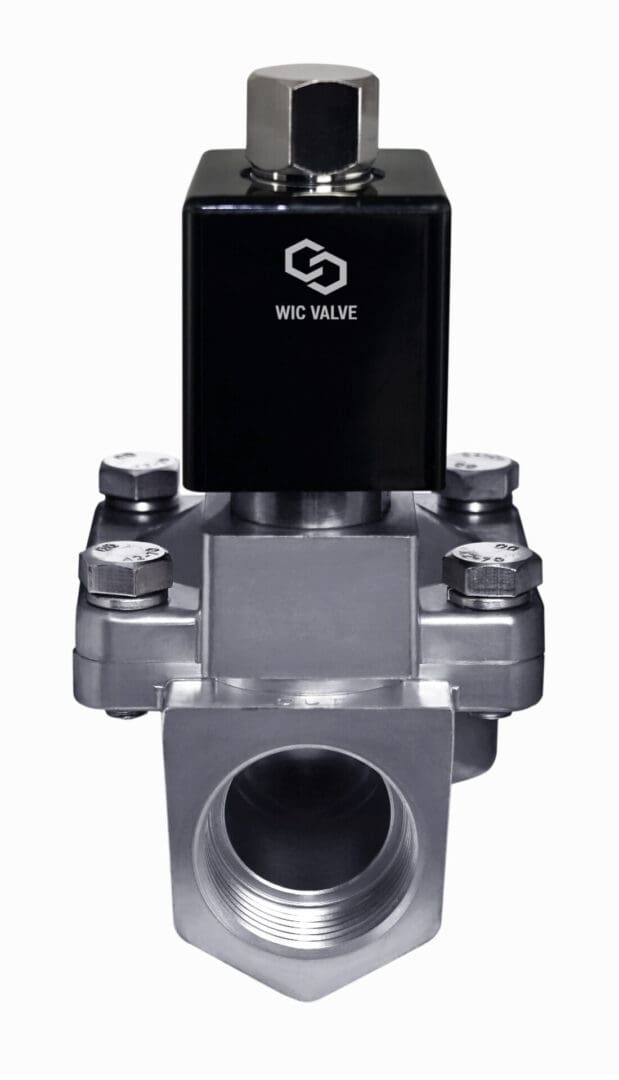

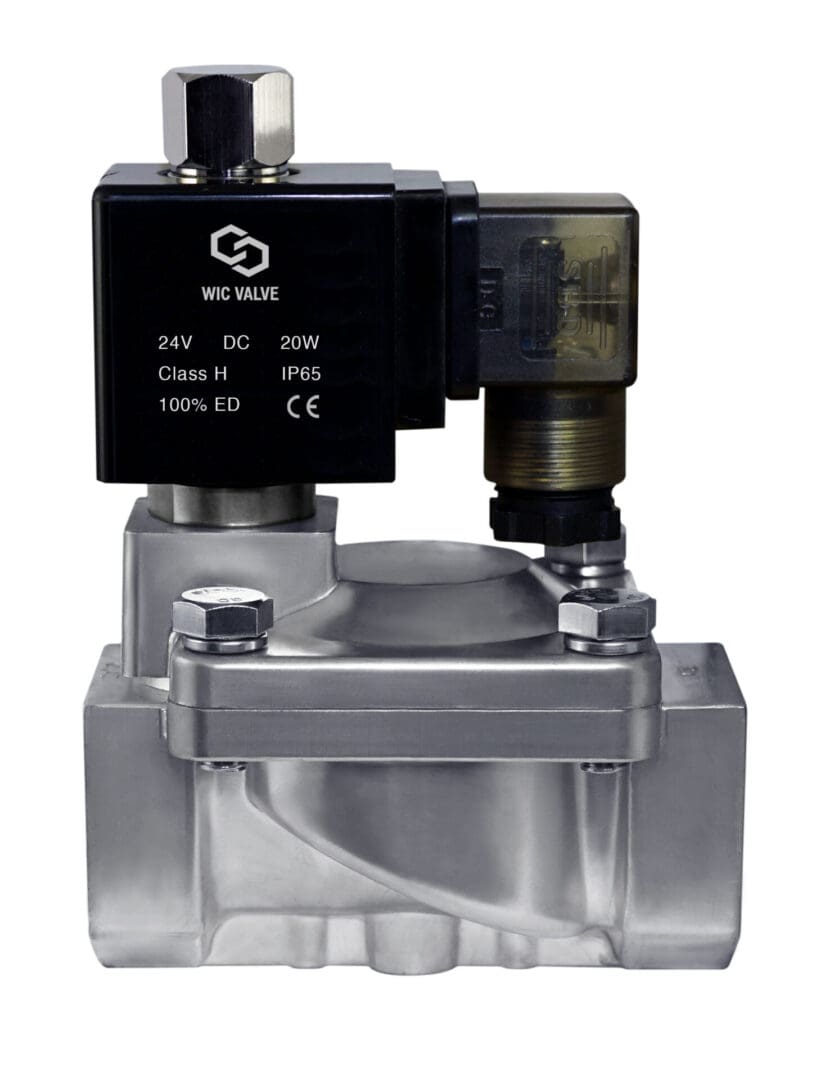

3/8″ Normally Open SS316 Stainless High Pressure Electric Valve



WIC Valve 2SOR Series 2-way normally open general purpose process solenoid valve is to control On/Off of air, inert gas, liquid. This industrial solenoid valve has one 3/8″ inch NPT inlet and one 3/8″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized.  2SOR Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  Valve can be mounted in any position.



2SOR Series Normally Open High Pressure Electric Solenoid Process Valve Specification:

Model Number: 2SOR-3/8-D-V

Valve Type: 2 Way Normally Open (Valve closes with energized)

Service Media: Air, Gas, Liquid, Water

Operation Model: Pilot Diaphragm

Flow Model: Uni-Directional

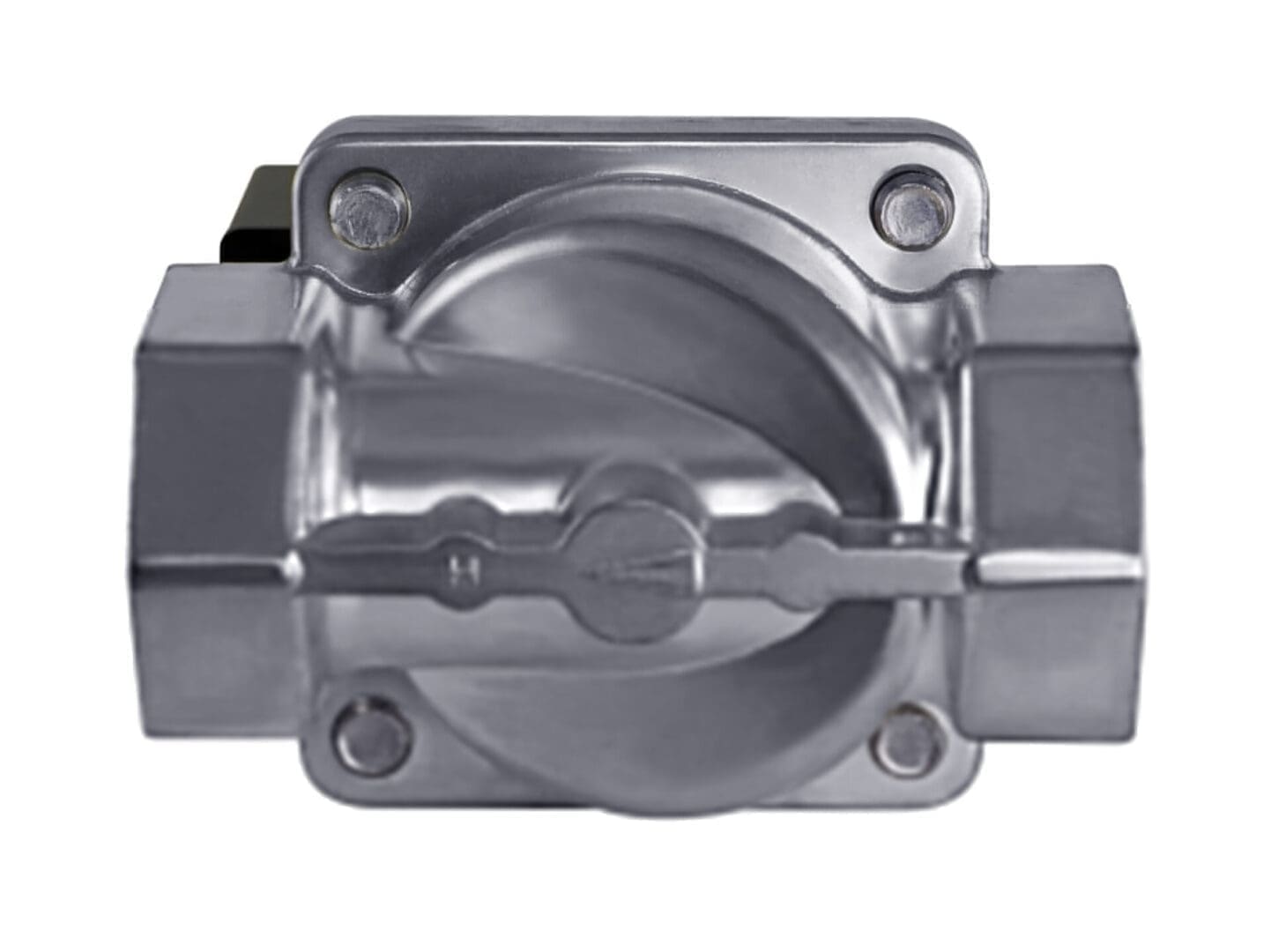

Body Material: SS316 Stainless Steel

Seal Material: Viton Diaphragm & Plunger Tip

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA

Insulation Class: H Class

Ingress Protection: IP65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 4.5 PSI to 188 PSI

Operating Temperature: -15 to 120 °C (5 to 248 °F)

Port Size:  3/8″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

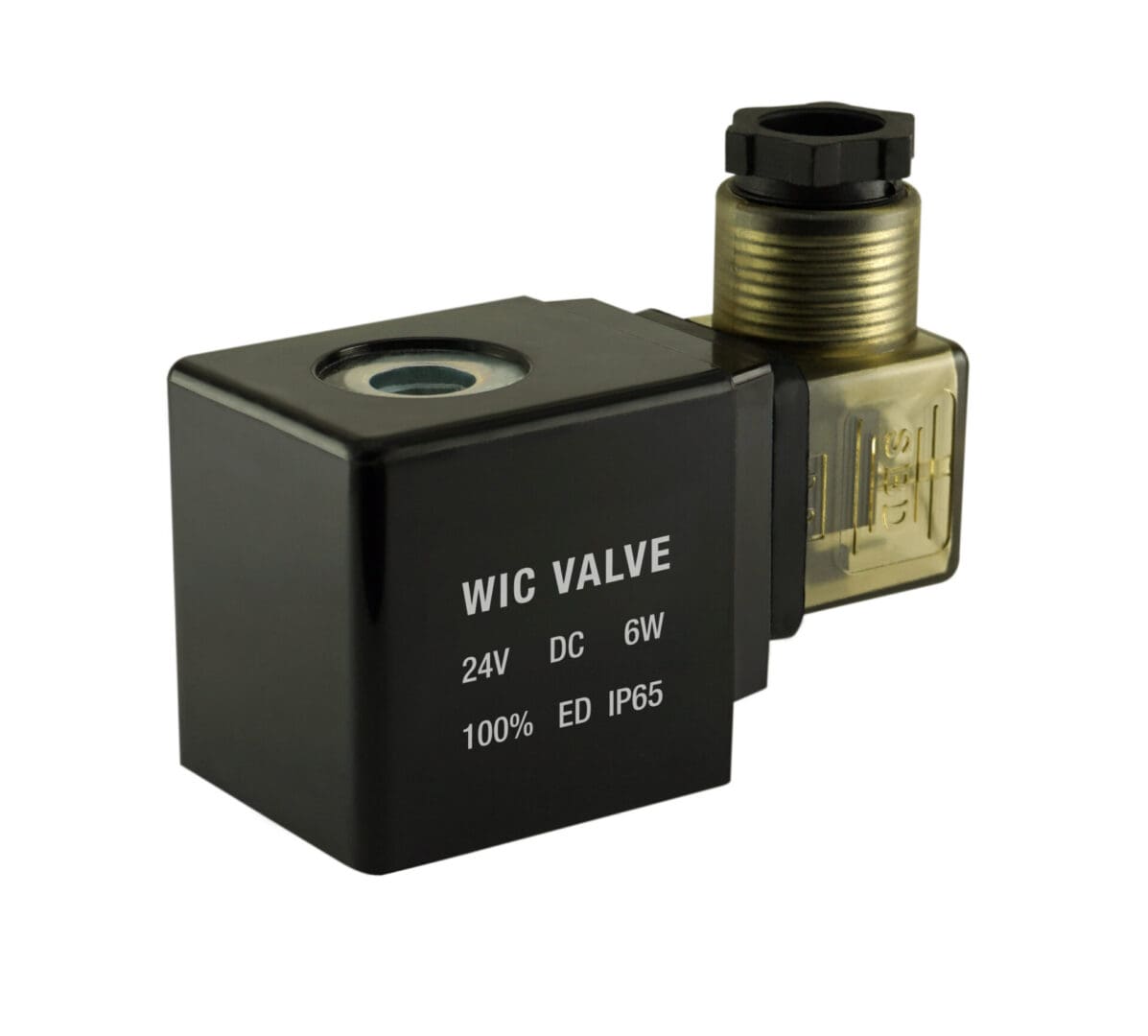

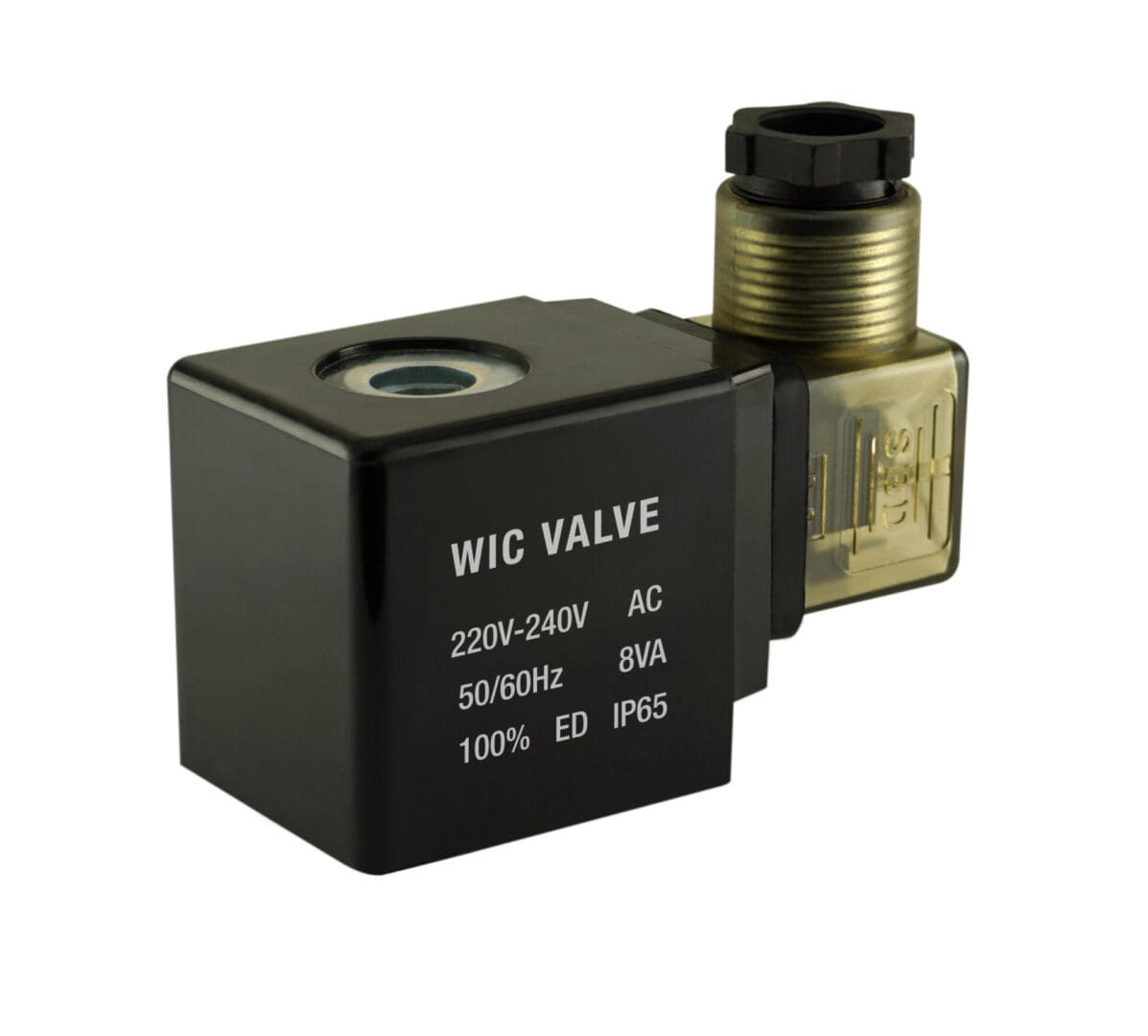

Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA

Low Power Coil Certification: CE Certification DC Coil

Operating Temperature: -15 to 80 °C (5 to 176 °F) With Low Power Consumption Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator



2SOR Series S316 High Pressure Normally Open Electric Process Valve Dimensions (Unit=mm)
