3/4" Inch Brass High Pressure Electric Steam Solenoid Valve

Description
Additional information

Description

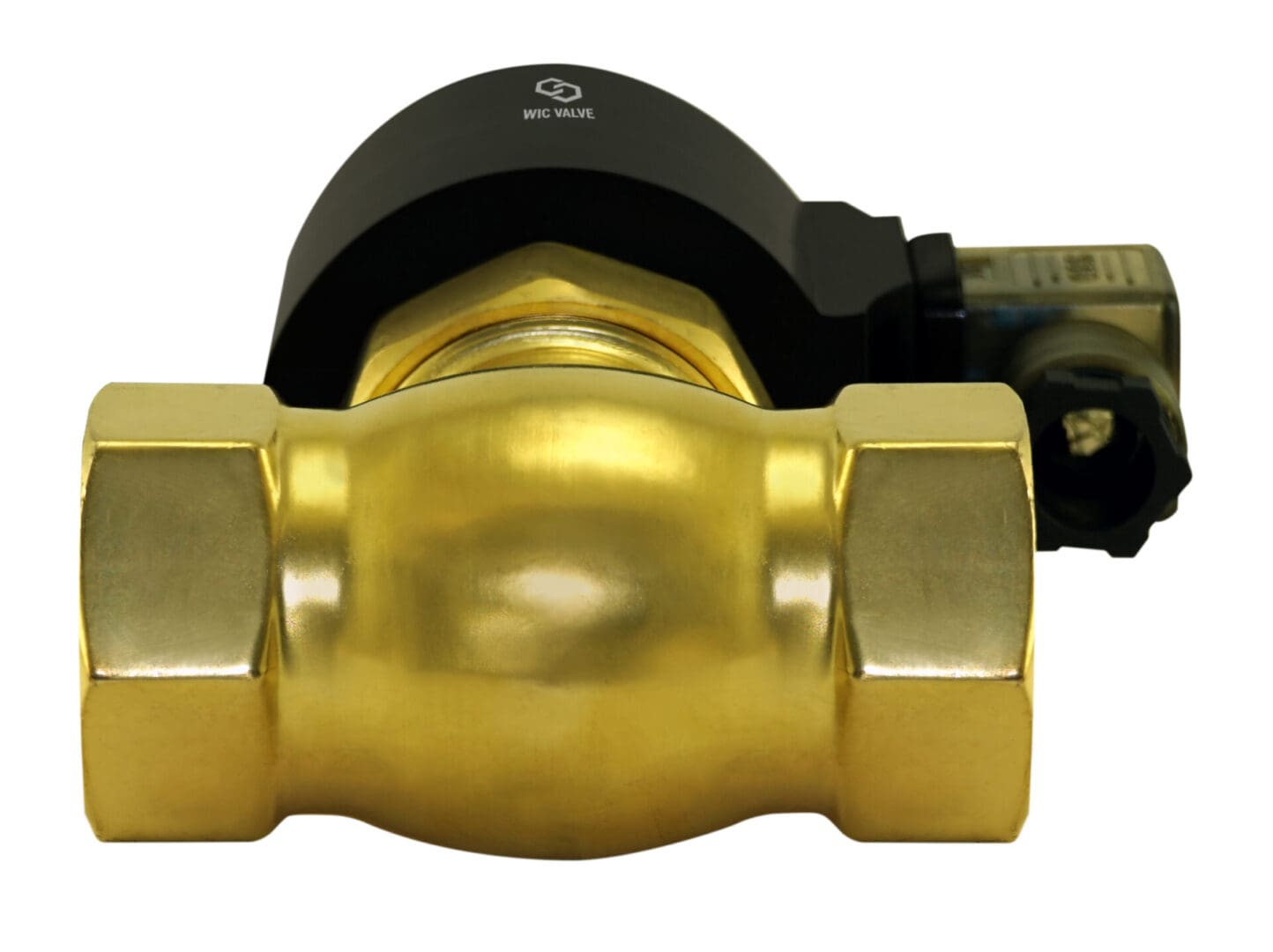

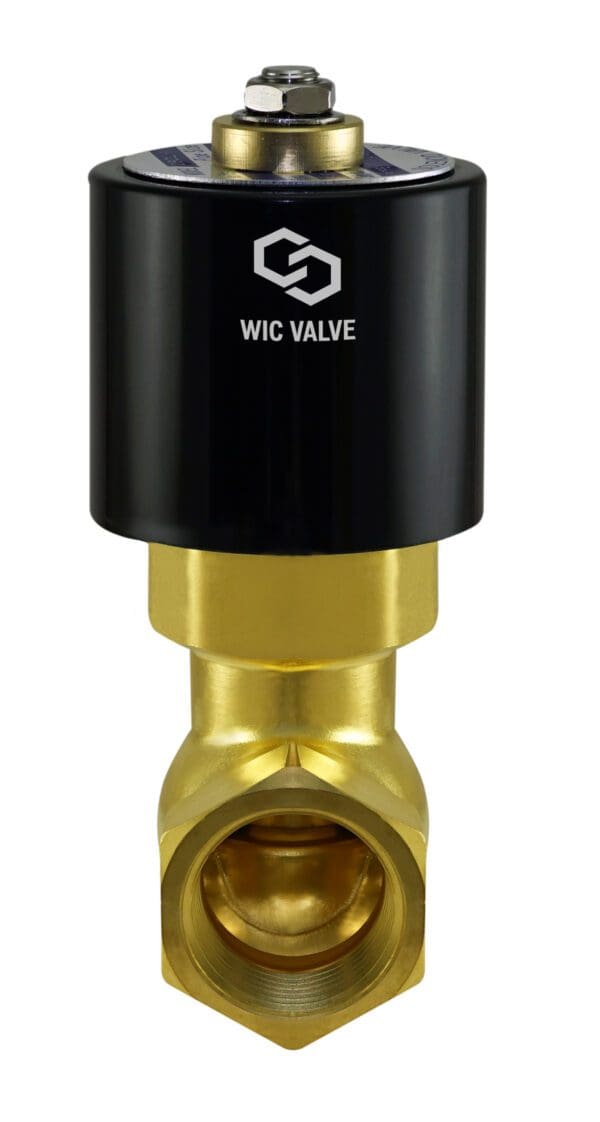

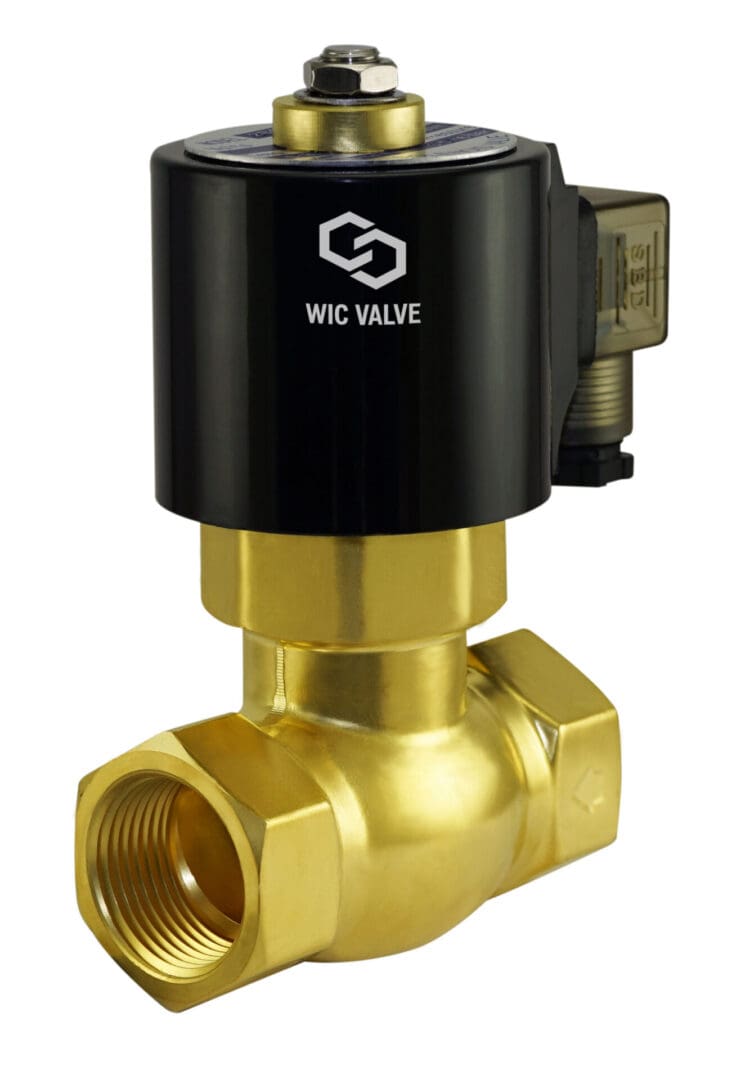

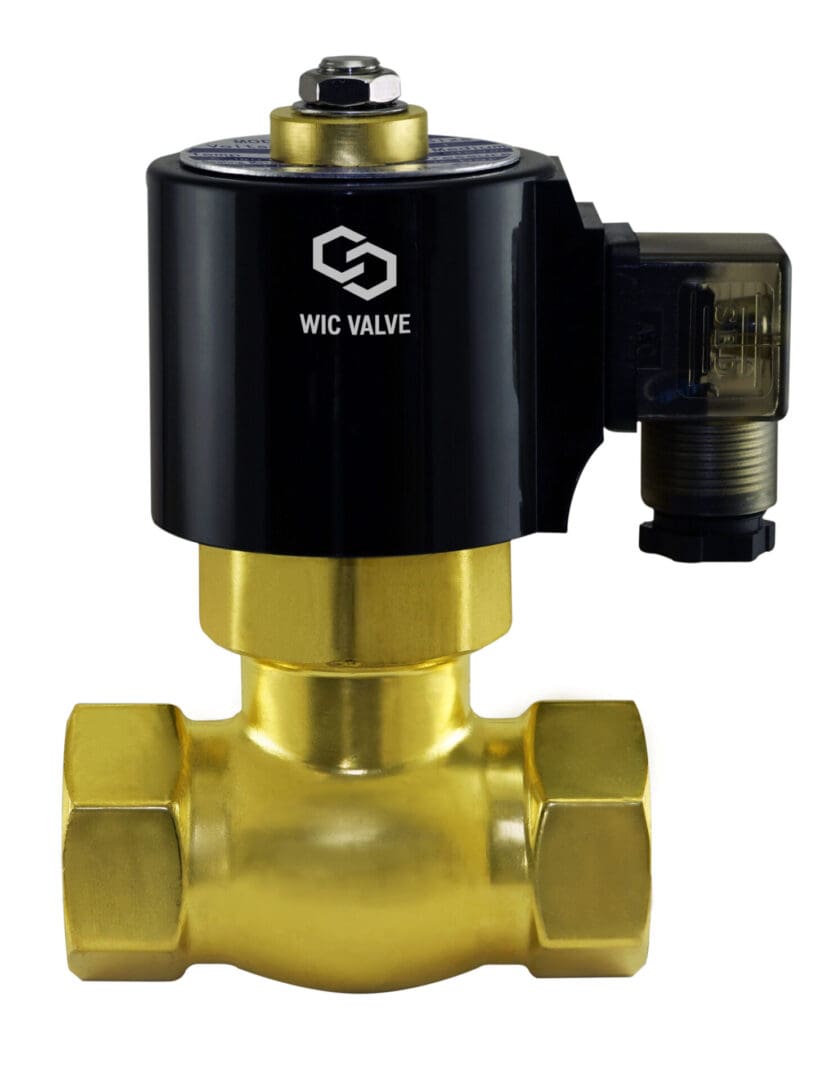

3/4″ Inch Industrial High Pressure Brass Electric Solenoid Steam Valve Teflon Seal Normally Closed

WIC Valve 2BCL Series 2-way normally closed electric solenoid steam valve is to control On/Off of air, inert gas, liquid and steam. This brass electric solenoid steam valve has one 3/4″ inch NPT inlet and one 3/4″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2BCL Series solenoid valve is a high pressure pilot piston solenoid valve, it requires a minimum of 7 PSI to operate. 2BCL Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. To ensure optimum flow performance, valve should be mounted in vertical position with the coil vertical and inlet/outlet ports horizontal.

2BCL Series Brass High Pressure Electric Solenoid Steam Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Hot Water, Steam

Operation Model: Pilot Piston

Flow Model: Uni-Directional

Body Material: Brass

Seal Material: Teflon (PTFE)

Armature Tube Material: Stainless Steel

Coil Certifiaction: CE Certification

Coil Power: DC: 30-40W, AC: 35VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 7 to 230 PSI

Operating Temperature: -5 to 180°C or 23 to 356 °F

Port Size: 3/4″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Coil Connector with LED Indicator

2BCL Series High Pressure Electric Solenoid Steam Valve Dimensions:

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D
2BCL-1/2-D	1/2″	4.8	17	69	42	146	82
2BCL-3/4-D	3/4″	4.8	17	69	42	146	82
2BCL-1-D	1″	12	20	69	52	162	90
2BCL-1 1/4-D	1-1/4″	24	22	69	74	185	110
2BCL-1 1/2-D	1-1/2″	29	22	69	74	185	110
2BCL-2-D	2″	48	48	69	86	195	120

2BCL Series Brass Steam Solenoid Valve Component Drawing:

Valve Frequently Asked Questions:

What is IP65?

Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures – IP Code), specifying the environmental protection the enclosure provides.

The IP rating normally has two (or three) numbers:

1) Protection from solid objects or materials

2) Protection from liquids (water)

3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)

IP First number – Protection against solid objects

0	No special protection
1	Protected against solid objects over 50 mm, e.g. accidental touch by persons hands.
2	Protected against solid objects over 12 mm, e.g. persons fingers.
3	Protected against solid objects over 2.5 mm (tools and wires).
4	Protected against solid objects over 1 mm (tools, wires, and small wires).
5	Protected against dust limited ingress (no harmful deposit).
6	Totally protected against dust.

IP Second number – Protection against liquids

0	No protection.
1	Protection against vertically falling drops of water e.g. condensation.
2	Protection against direct sprays of water up to 15^o from the vertical.
3	Protected against direct sprays of water up to 60^o from the vertical.
4	Protection against water sprayed from all directions – limited ingress permitted.
5	Protected against low pressure jets of water from all directions – limited ingress.
6	Protected against temporary flooding of water, e.g. for use on ship decks – limited ingress permitted.
7	Protected against the effect of immersion between 15 cm and 1 m.
8	Protects against long periods of immersion under pressure.
