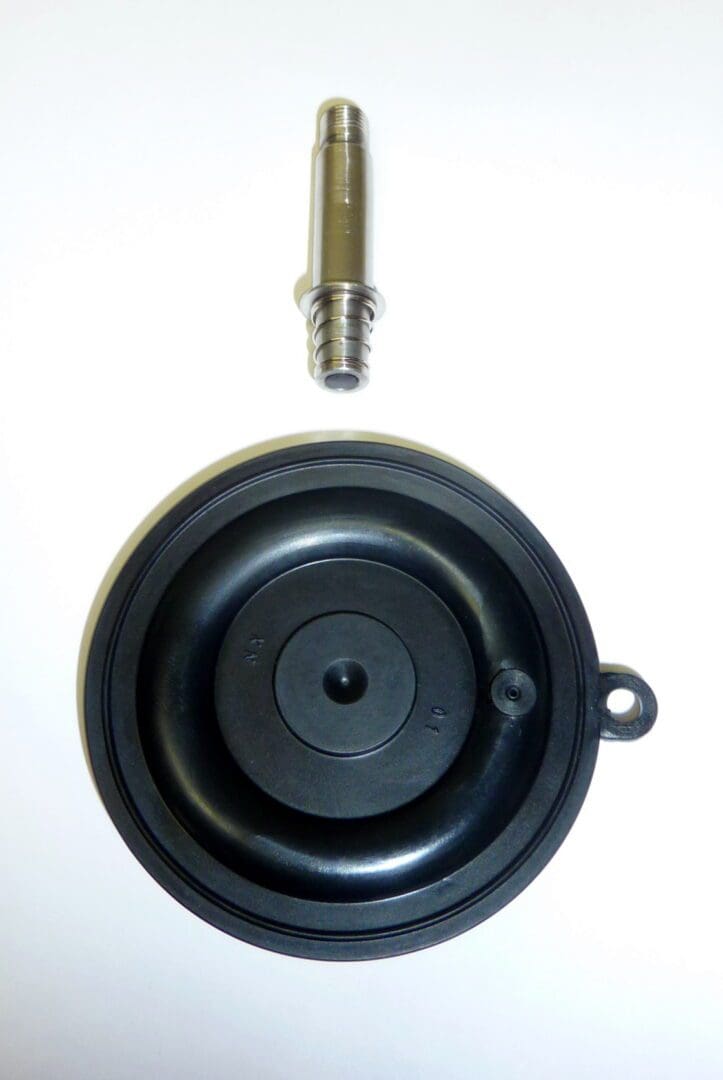

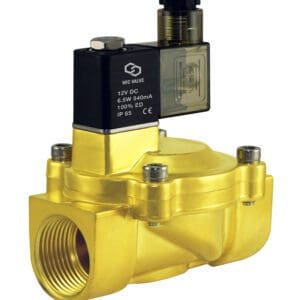

3/4″ 2BCV Series Electric Solenoid Valve Diaphragm Rebuild Kit

2BCV Series Solenoid Valve Armature Tube Rebuild Kit Specification:

Model Number: 2BCV-3/4-AT KIT

Operation Model: Pilot Lift Diaphragm

Seal Material: NBR (Buna N)

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

How to connect DIN connector with wire?

1. Remove the Philip screw from the plastic housing protector.

2. Unplug the plastic housing from the DIN coil.

3. Remove the terminal block from the plastic housing.

4. On the back of the terminal block, it makes 1, 2 and Ground. For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required.

What is ED 100% Coil Duty?

ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.
