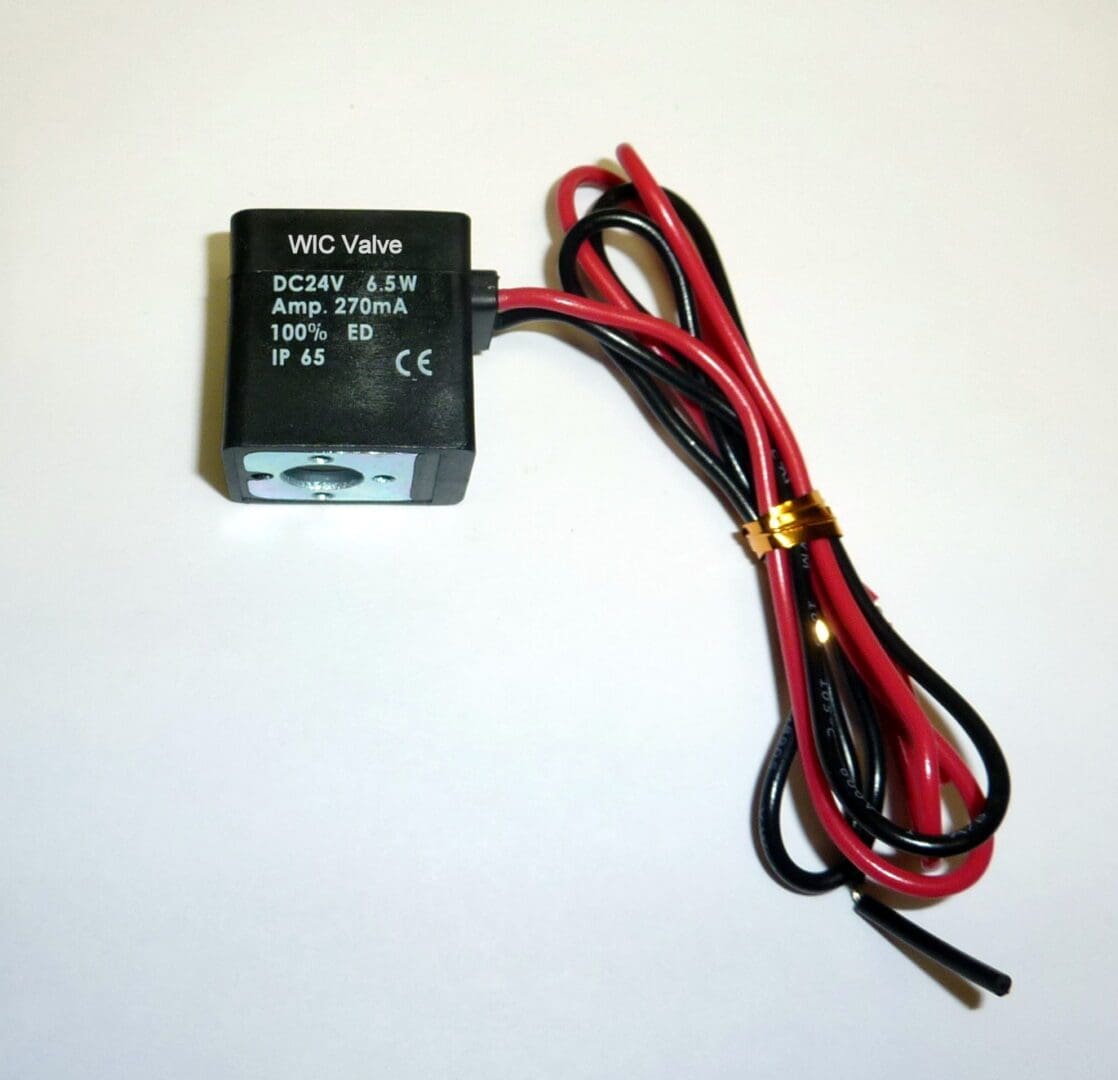

2K Series 24V DC Solenoid Valve Coil Grommet With Lead Wire
$7.99
”
WIC Valve 2K Series 24 Volt DC Solenoid Coil Class H IP 65 Continuous duty coil.
“
Description
”
WIC Valve 2K Series 24V DC Electric Solenoid Valve Grommet Coil with Lead Wire
2K Series Electric Solenoid Valve Coil Specification:
Model Number: 2K-24VDC-G
Coil Power: 6.5W
Coil Class: IP 65 (CE Certification)
Coil Duty: 100% ED (Continuous Duty)
Coil Voltage: 24V DC
Electrical Connection: Grommet with Lead Wire
WIC Valve 2K Series Coil Dimensions:
What is IP65?
Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures – IP Code), specifying the environmental protection the enclosure provides.
The IP rating normally has two (or three) numbers:
1) Protection from solid objects or materials
2) Protection from liquids (water)
3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)
IP First number – Protection against solid objects
| 0 | No special protection |
| 1 | Protected against solid objects over 50 mm, e.g. accidental touch by persons hands. |
| 2 | Protected against solid objects over 12 mm, e.g. persons fingers. |
| 3 | Protected against solid objects over 2.5 mm (tools and wires). |
| 4 | Protected against solid objects over 1 mm (tools, wires, and small wires). |
| 5 | Protected against dust limited ingress (no harmful deposit). |
| 6 | Totally protected against dust. |
IP Second number – Protection against liquids
| 0 | No protection. |
| 1 | Protection against vertically falling drops of water e.g. condensation. |
| 2 | Protection against direct sprays of water up to 15o from the vertical. |
| 3 | Protected against direct sprays of water up to 60o from the vertical. |
| 4 | Protection against water sprayed from all directions – limited ingress permitted. |
| 5 | Protected against low pressure jets of water from all directions – limited ingress. |
| 6 | Protected against temporary flooding of water, e.g. for use on ship decks – limited ingress permitted. |
| 7 | Protected against the effect of immersion between 15 cm and 1 m. |
| 8 | Protects against long periods of immersion under pressure. |
“
Additional information
| Weight | 0.60 lbs |
|---|---|
| Dimensions | 1.00 × 1.00 × 1.00 in |
