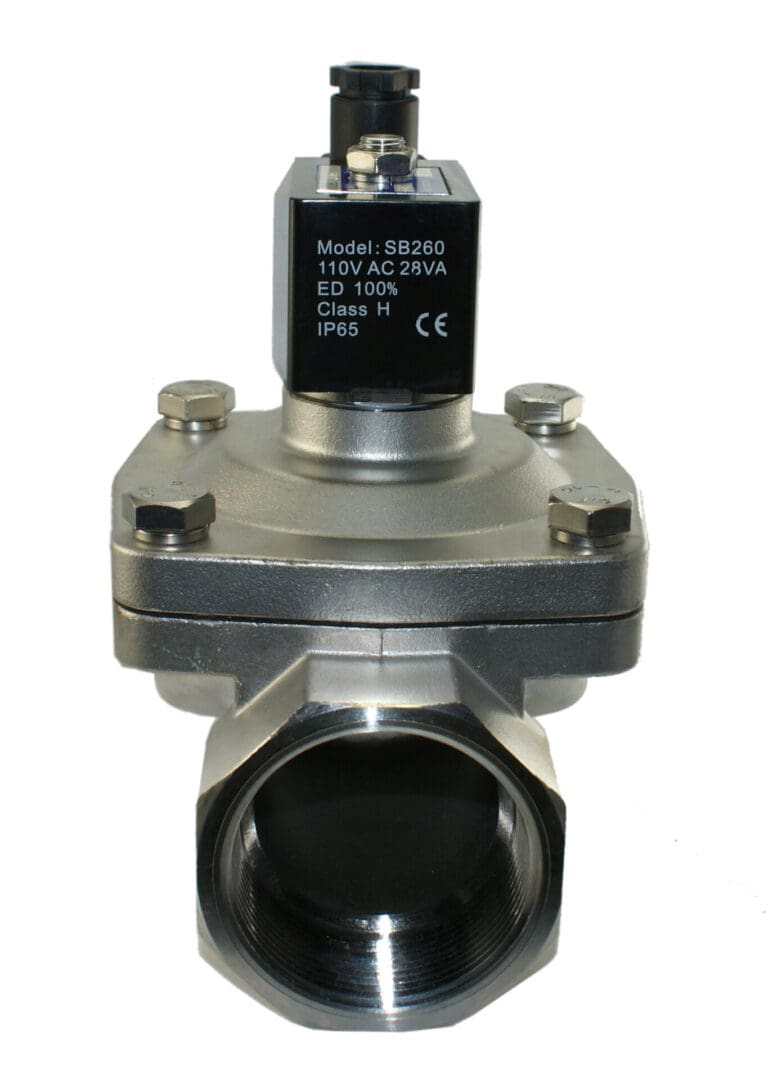

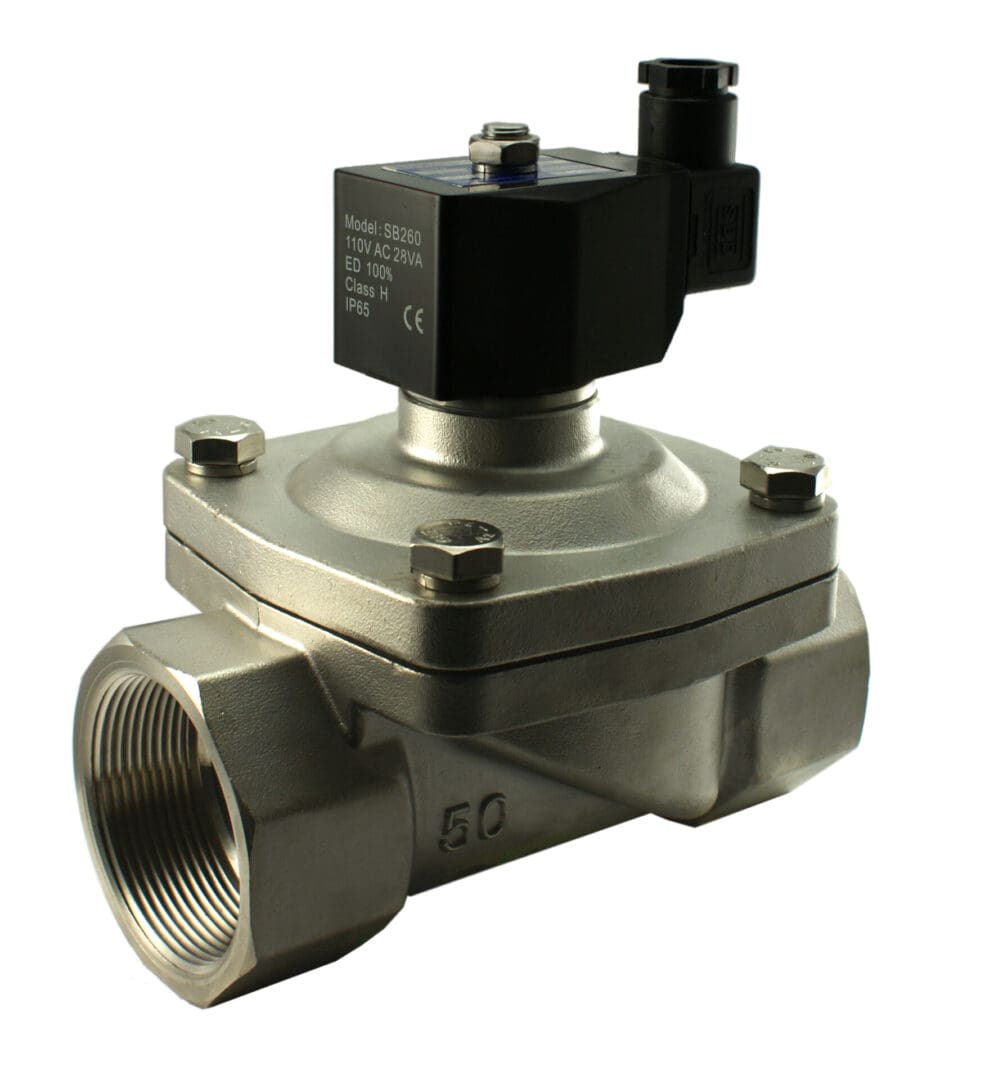

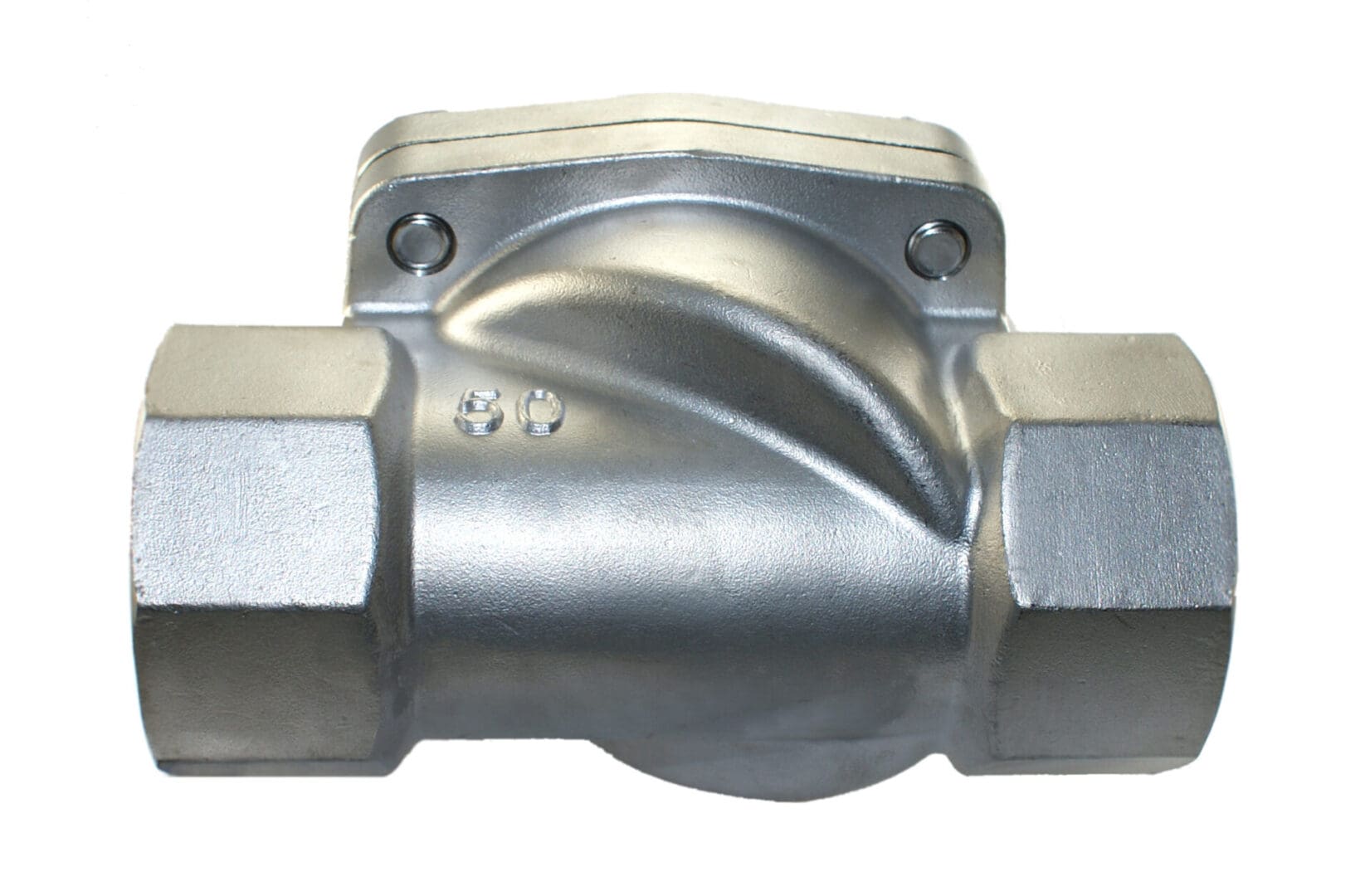

2″ Inch Stainless Zero Differential Electric Solenoid Valve

WIC Valve 2SCW series 2 way normally closed general purpose solenoid valve is to control On/Off of air, inert gas, liquid, and vacuum. This industrial electric solenoid valve has one 2″ inch NPT inlet and one 2″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2SCW Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. 2SCW Series solenoid valve is a zero differential valve which can be operated at 0 PSI (Vacuum), no minimum pressure is required and it can be mounted in any position.



2SCW Series Stainless Steel Electric Solenoid Process Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Vacuum

Operation Model: Direct Lift Diaphragm

Flow Model: Uni-Directional

Body Material: Stainless Steel

Seal Material: Viton on Diaphragm and Plunger Tip

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC: 30W / AC: 50/60Hz 28VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: Vacuum to 150 PSI – AC Coil / Vacuum to 100 PSI – DC Coil

Operating Temperature: -15 to 120 °C (5 to 248 °F)

Port Size:  2″ NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

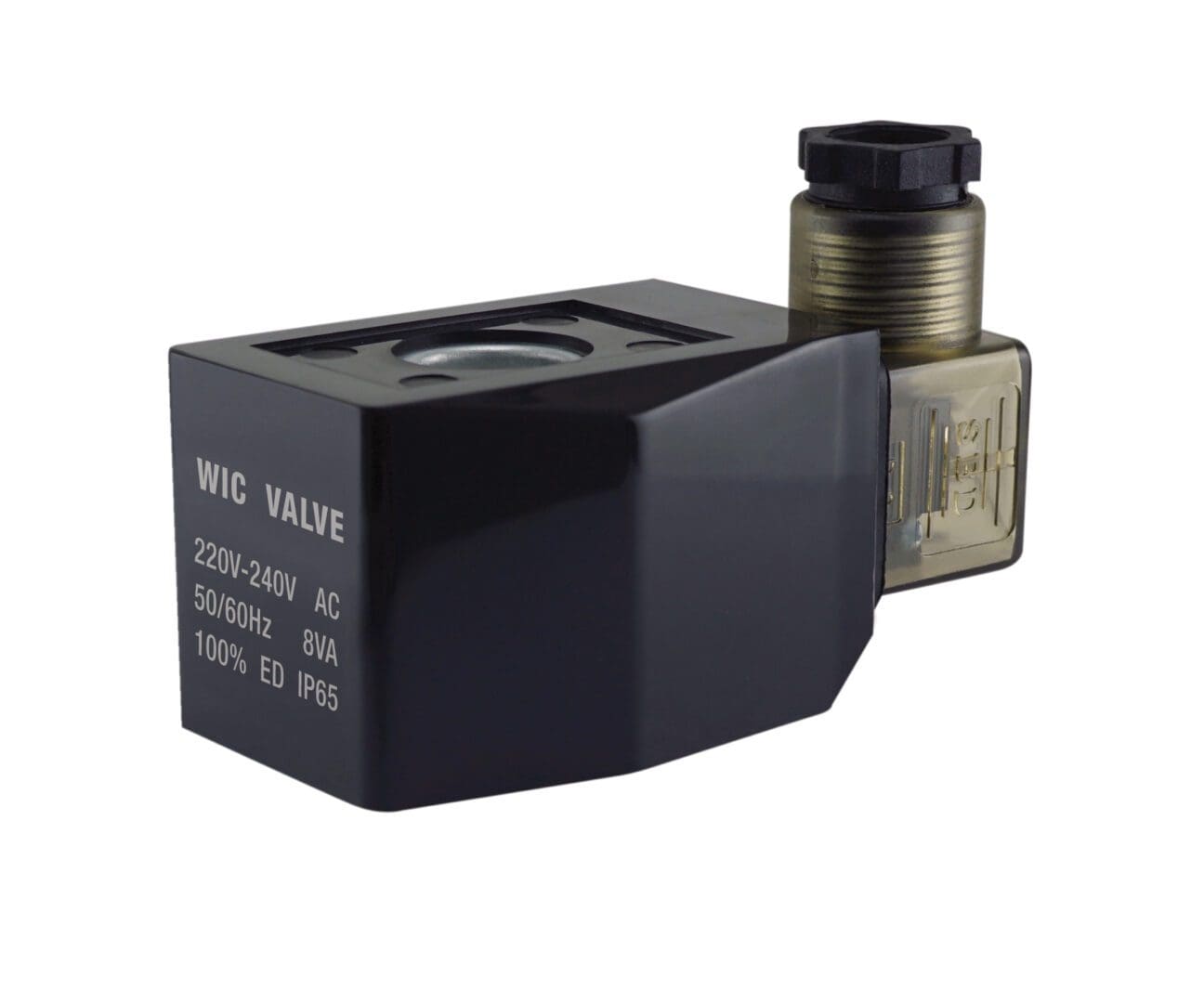

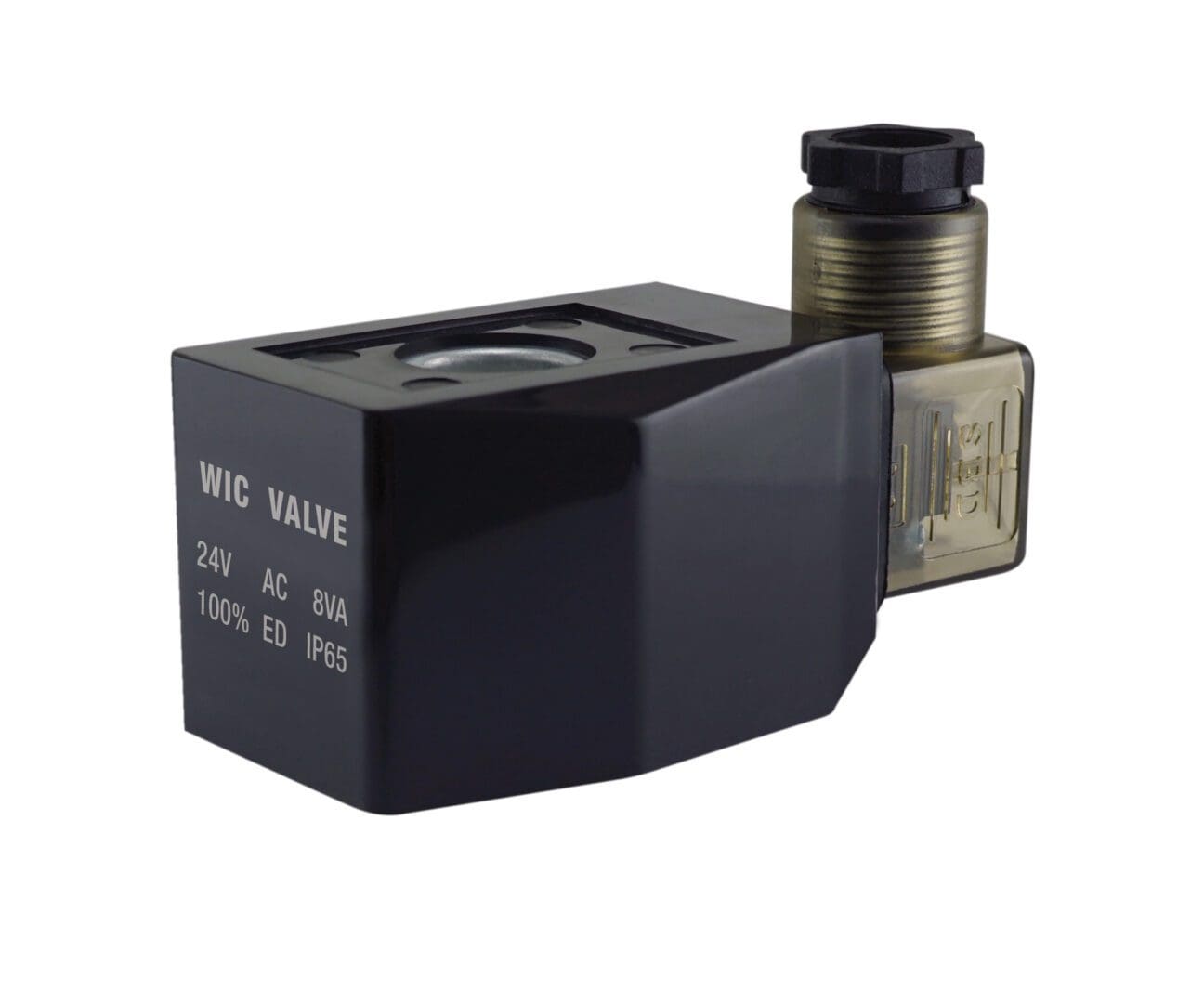

Low Power Consumption Coil: Upgrade Optional 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 50W, 110V AC – 50/60Hz 85VA, 220V AC – 50/60Hz 154VA

Low Power Coil Certification: CE Certification DC Coil

Operating Temperature: -15 to 80 °C (5 to 176 °F) With Low Power Consumption Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator



2SCW Series Stainless Steel Electric Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D	Weight (lbs)
2SCW-3/8-D-V	3/8″	4.8	16	56	104	117	68	1.8
2SCW-1/2-D-V	1/2″	4.8	16	56	104	117	68	1.8
2SCW-3/4-D_V	3/4″	7.6	20	56	106	123	73	1.8
2SCW-1-D-V	1″	12	25	74	114	135	100	3.2
2SCW-1 1/4-D-V	1-1/4″	24	35	85	129	154	110	5.7
2SCW-1 1/2-D-V	1-1/2″	29	40	90	134	162	120	5.7
2SCW-2-D-V	2″	48	50	115	151	185	155	9.9



2SCW Series Stainless Steel Electric Solenoid Valve Component Drawing:



DIN 43650A Connector:

DIN 43650A Connector Components:

How to connect DIN connector with wire?

To connect the wire to DIN connector is simple and easy, shown below is the 4 easy steps:

1. Remove the Philip screw from the plastic housing protector.

2. Unplug the plastic housing from the DIN coil.

3. Remove the terminal block from the plastic housing.  Use the Philip screw to push the terminal block out from the plastic housing.?

4. On the back of the terminal block, it makes 1, 2 and Ground. For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required.





What is Cv ?

Cv = Flow coefficient or flow capacity rating of valve. The flow coefficient C_v is the volume (in US gallons) of water at 60°F that will flow per minute through a valve with a pressure drop of 1 psi across the valve.

Mathematically the flow coefficient can be expressed as:

where:
C_v = Flow coefficient or flow capacity rating of valve.
F = Rate of flow (US gallons per minute).
SG = Specific gravity of fluid (Water = 1).
ΔP = Pressure drop across valve (psi).



What is the advantages to use DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2SCW series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.



What is ED 100% Coil Duty?

ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.
