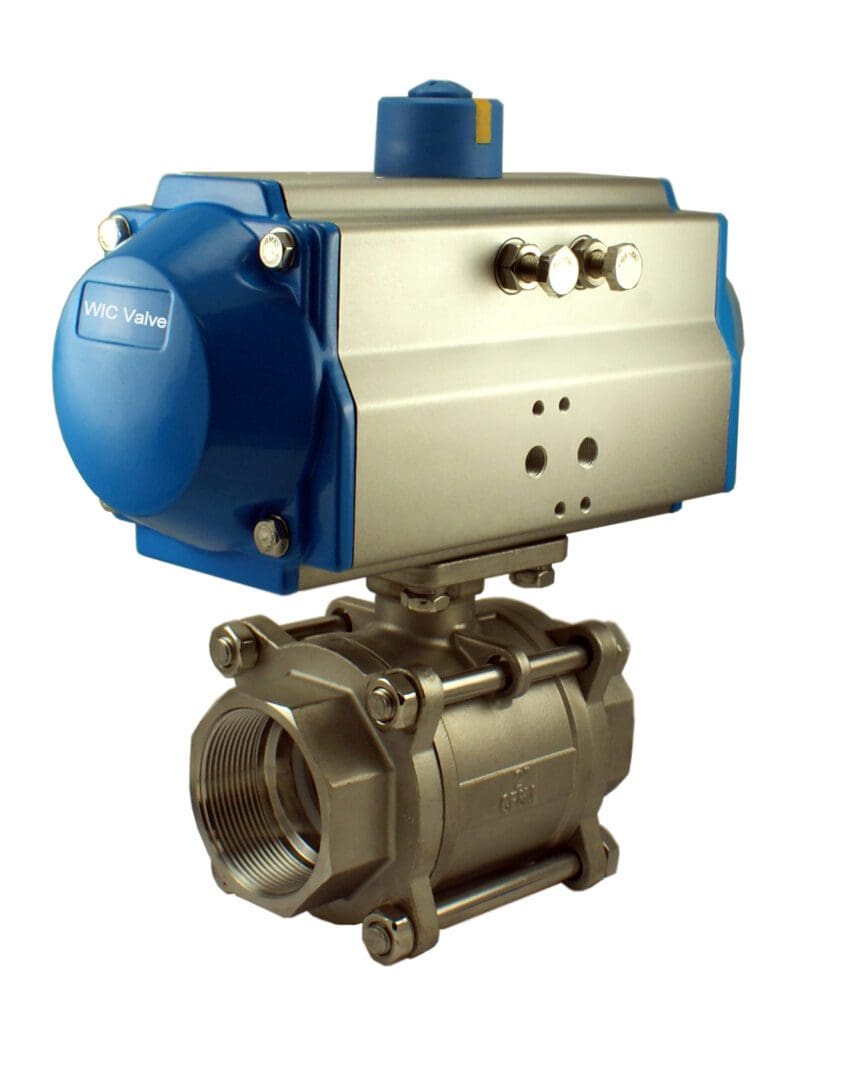

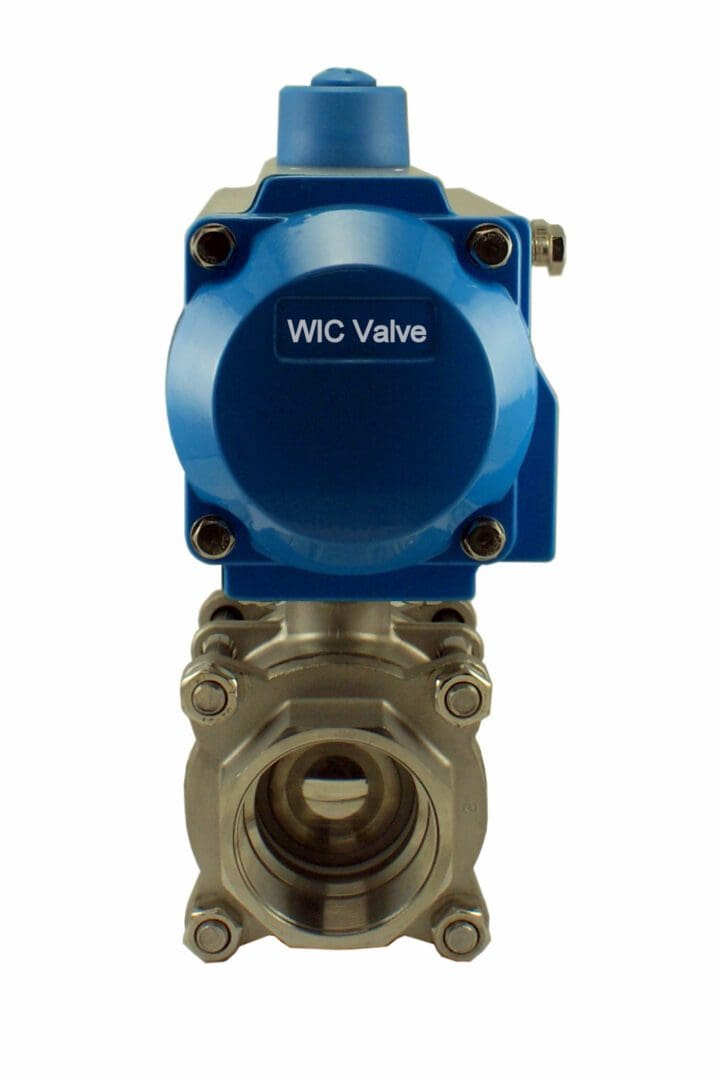

1.5″ Inch Pneumatic Air Actuated Ball Valve Single Acting

PVS series pneumatic air actuated valve ball valve comes with a stainless steel 3-piece ball valve body, it provides a easy installation and maintenance through the slide out body method.  This industrial air actuated valve is used to control the on and off of the valve for media such as air, gas, liquid, water and steam.  PVS Series air actuated ball valve can be installed with a Tri-clamp end connections for easy line removal and it is ideal for sanitary applications.

PVS series single acting air actuated ball valve use air pressure to open the valve and springs to close the valve. The characteristic of the air actuated ball valve is that it has a higher flow rate, temperature and pressure compare with the direct acting valve.  Also it is ideal for the hazardous environments.



PVS Series Air Actuator Ball Valve Specifications:

Model Number: PVS-1 1/2-T

Valve Type: 2 Way Normally Closed Standard (Option: Normally Open)

Service Media: Air, Gas, Liquid, Water, Steam

Operation Model: Air Actuated Single Acting Spring Return (Use Air Pressure to Open and Springs to Close)

Actuator Operating Pressure: 100 PSI Standard

Actuator Operating Pressure Range: 45 – 120 PSI

Body Material: 316 Stainless Steel / CF8M

Seal Material: PTFE

Operating Pressure: 0 to 1000 PSI at 100 °F

Media Temperature: -51 to 230 °C (-60 to 450 °F)

Ambient Temperature: -20 to 80 °C (-4 to 176 °F)

Port Size: 1-1/2″ NPT Female Port Standard (Option: Tri-Clamp, Flange)

Installation Hardware: 1 Piece Tube OD 1/4″ X Thread 1/8″ Male Straight Connector Fittings and 1 Piece of Brass Silencer Included



Pneumatic Air Actuator Specifications:

Pneumatic Actuator Specifications
Actuator Standard	ISO 5211, NAMUR, DIN 3337
Operating Pressure Range	Min: 45 PSI – Max:120 PSI
Operating Media	Pressurized Filter Air
Operating Temperature	–20 to 80°C



3 Pieces Stainless Steel Ball Valve Specification:

Operating Pressure: 3/8″ to 2″ : 1000 PSI @ 100°F WOG

Operating Temperature: -60 to 450°F

Port Style: Full Port

Port Connection: FNPT (Option: Tri-Clamp, Flange)

Mounting Standard: ISO 5211, DIN 3203-M3



Ball Valve Parts and Materials
Part Name	Material	Quantity
Ball	SS 316	1
Body Connector	SS 316 / CF8M	1
Body Connector Bolt	SS 304	4
Body Connector Nut	SS 304	4
Body Connector Washer	SS 304	4
CAP	SS 316	1
Gland Nut	SS 304	1
Joint Gasket	PTFE	1
Seat	PTFE	2
Stem	SS 316	1
Stem Nut	SS 304	1
Stem Packing	PTFE	1
Stem Washer	SS 304	1
Thrust Washer	PTFE	1





Pneumatic Air Actuator Internal Structure:

1. Indicator: Position indicator with NAMUR mounting standard.

2. Pinion: High precision pinion is made by nickelled alloy steel.  Fully conform with ISO5211, DIN3337 and Namur.

3. Actuator Body: Extruded aluminum alloy ASTM6005 body.

4. O-Rings: High quality NBR (Buna-N)

5. Pistons: Die-casting aluminum twin rack pistons are treated with hard anodized.  Symmetric mounting position that ensure a fast operation and long cycle life.

6. Travel Adjustment bolts: Two independent external travel adjustment bolts allow ±5° adjustment for both open and close directions.

7. End Caps: Die-casting aluminum powder polyester.

8. High Performance Springs: Preloaded coating springs are made by high quality material for corrosion resistant.

9. Bearing & Guides: Made by low friction compound material to minimize the direct contact between metals.



PVS Series Pneumatic Air Actuator Component Drawing:

No.	Name	Qty	Material
1	Indicator Screw	1	Plastic
2	Indicator	1	Plastic
3	Spring Clip	1	Stainless Steel
4	Washer	1	Stainless Steel
5	Outside Washer	1	PTFE
6	Body	1	Extruded Aluminum Alloy
7	Inside Washer	1	PTFE
8	Cam	1	Alloy Steel
9	O-ring (Pinion Top)	1	NBR
10	Bearing (Pinion Top)	1	Engineering Plastics
11	Pinion	1	Alloy Steel
12	O-ring (Pinion Bottom)	1	Engineering Plastics
13	Bearing (Pinion Bottom)	1	NBR
14	Plug	2	NBR
15	O-ring (Adjust Screw)	2	NBR
16	Washer (Adjust Screw)	2	Stainless Steel
17	Nut (Adjust Screw)	2	Stainless Steel
18	Adjust Screw	2	Stainless Steel
19	Piston	2	Cast Aluminum
20	Guide (Piston)	2	Engineering Plastics
21	Bearing (Piston)	2	Engineering Plastics
22	O-ring (Piston)	2	NBR
23	Spring-Integrated	0~12	Spring Steel
24	O-ring (End Cap)	2	NBR
25	End Cap	2	Cast Aluminum
26	Cap Screw	8	Stainless Steel
27	Stop Screw	2	Stainless Steel
28	Nut ( Stop Screw)	2	Stainless Steel



PVS Series Air Actuator Operating Principle:

Pressurized air is introduced to Port A that forces the pistons outward.  It causes the springs to compress and the piston turns counterclockwise which opens the valve.  Meanwhile air is being exhausted from port B (See Drawing 1)

When the pressurized air is not applied to Port A, the air pressure loss.  The compressed springs extend and forces the pistons inward.  As the springs extend, it rotate the actuator and the pinion turns clockwise which closes the valve.  (See Drawing 2)

Pneumatic Air Actuator Dimension & Mounting Connection:

WIC Valve Air Actuator Accessory:

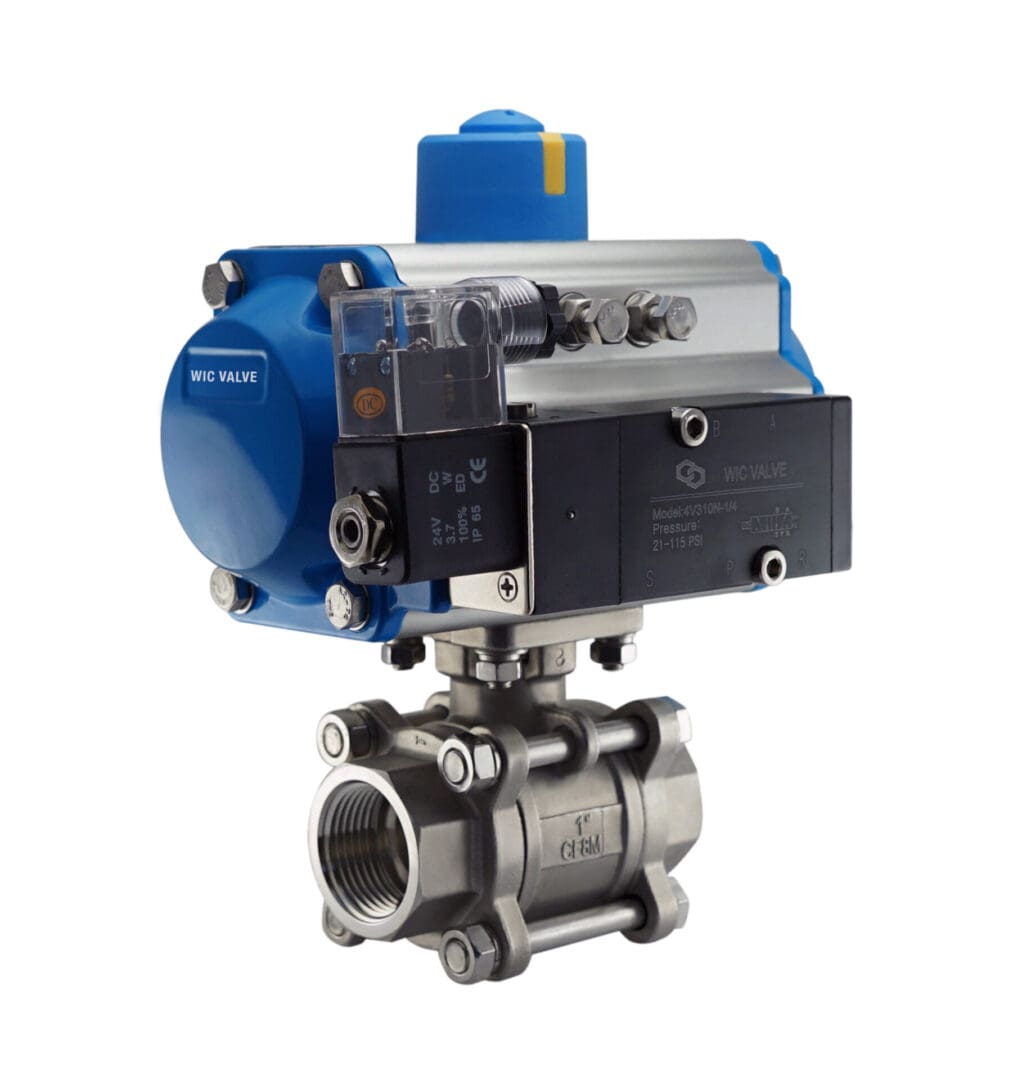

WIC Valve 4V310N-1/4-D Series directional control Namur actuator mount pilot air solenoid valve works with PVS seriesair actuator.  4V310N-1/4-D can be mounted directly onto the PVS Series air actuator.  4V310N-1/4-D comes with 5 different coil voltage options.  To add this valve, please click the Add 4V310N-1/4-D Pilot Solenoid Valve box, then choose the desire coil voltage from the select box.

Model Number: 4V310N-1/4-D

Valve Type: 4 Way, 2 Position, 1 Single Solenoid

Working Medium: 40 Micron Filtered Air

Operation Model: Air Pilot

Action Model: Spool Design Inner Guide Type

Port & Mounting: Body Ported, Air Actuator Mount

For Use With: PVS Series Air Actuated Ball Valve

Flow Rate: 1.68 Cv (80 SCFM at 100 PSI)

Response Time: Less than 20 ms

Body Material: Anodized Aluminum

Seal Material: NBR (Buna N)

Armature Tube Material: Brass

Coil Power: DC: 3.7W / AC: 3.2VA

Coil Class: F Class IP 65

Certification: CE Certification

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 21 PSI to 115 PSI

Operating Temperature: 14 to 140 °F

Port Size: 1/4″ Inch NPT Female Port

Coil Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650 Form B (PG9) Connector with LED Indicator

Mounting Hardware: 2 Socket Head Screw and Washer Included

Lubrication: Not Required



4V310N Series Installation Guide:

1. Connect the source to port P.

2. Connect the first outlet to port A.

3. Connect the first exhaust to port R.

4. Connect the second outlet to port B.

5. Connect the second exhaust to port S.



4V310N Series Namur Mount Valve Dimensions (Unit=mm):
