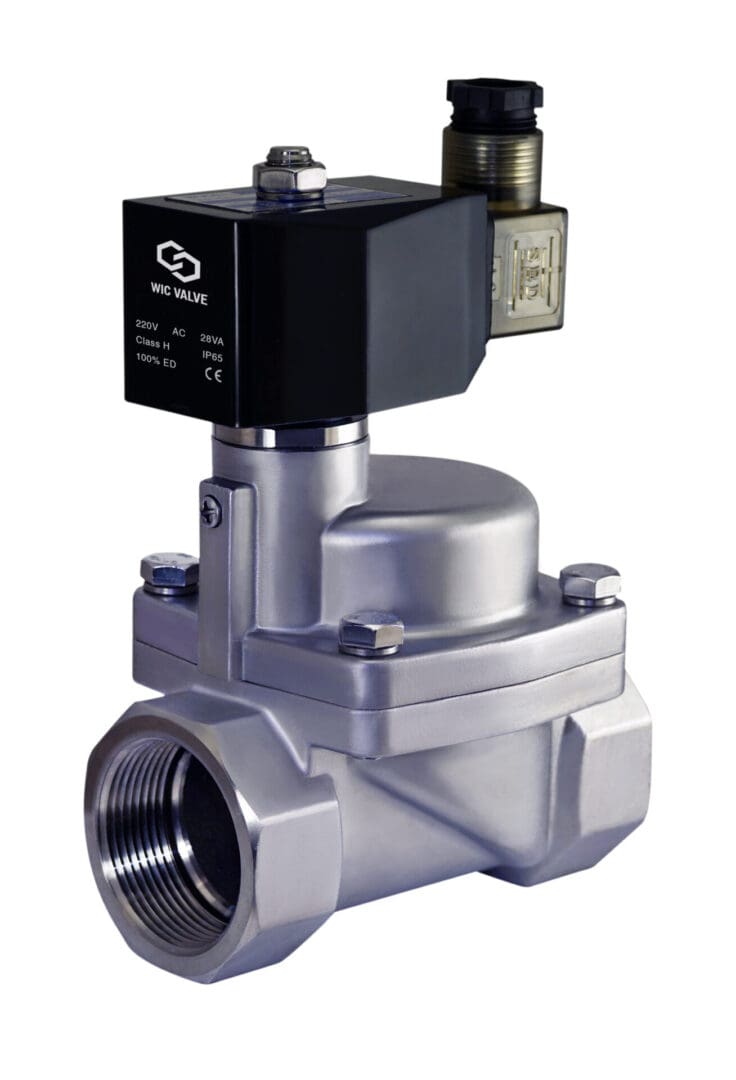

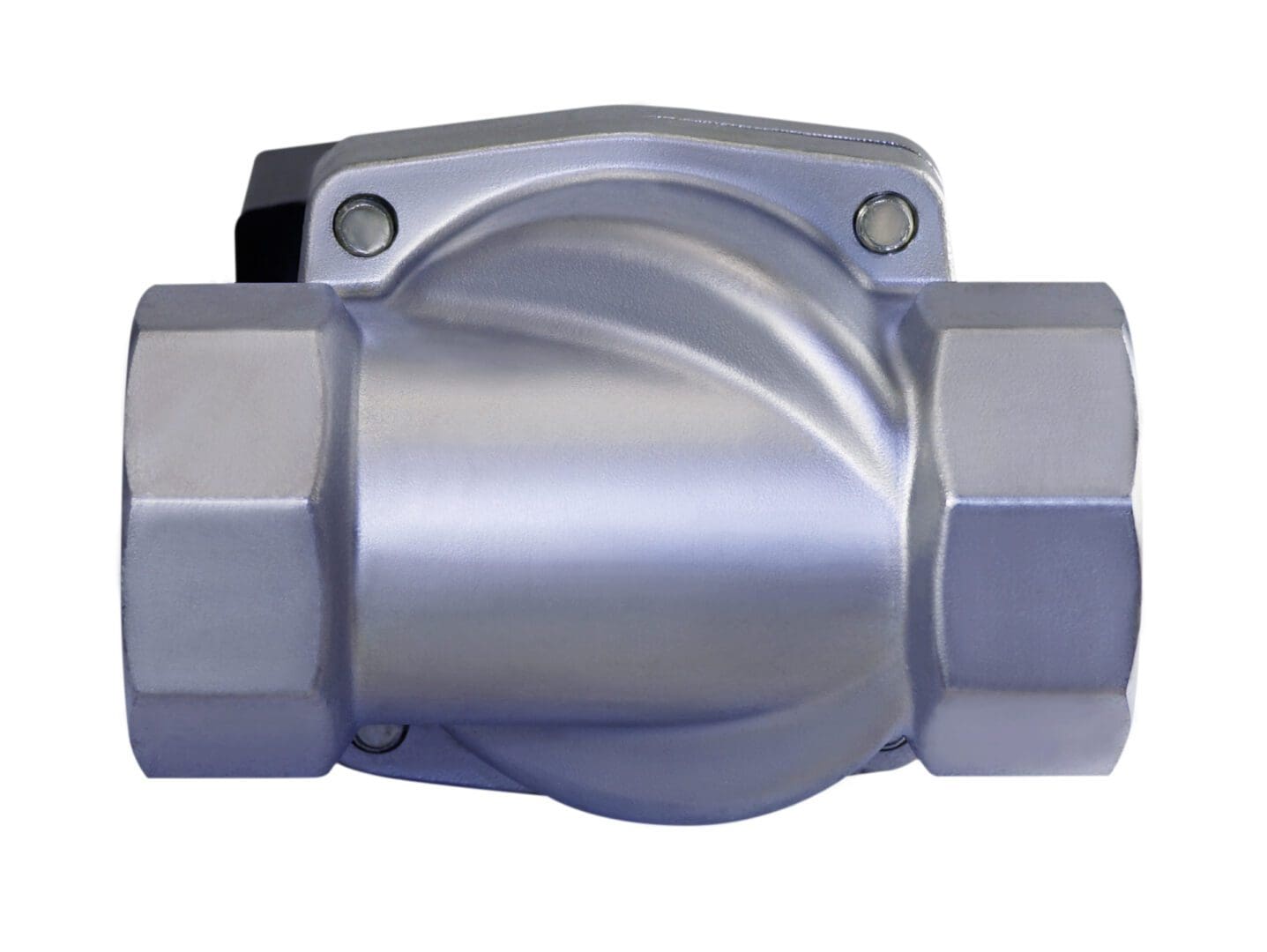

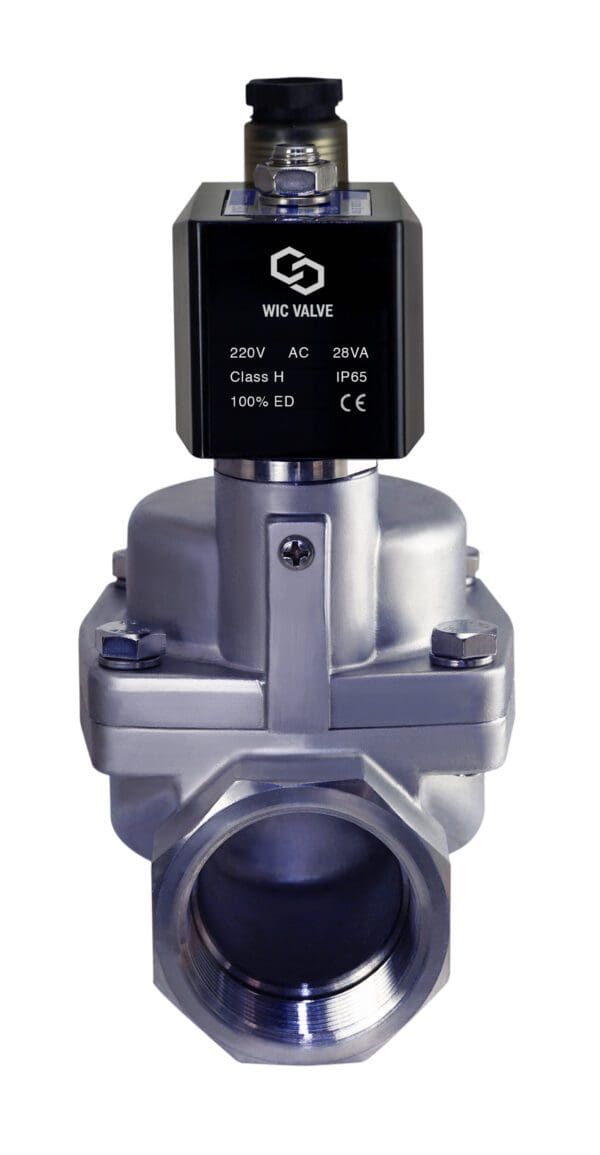

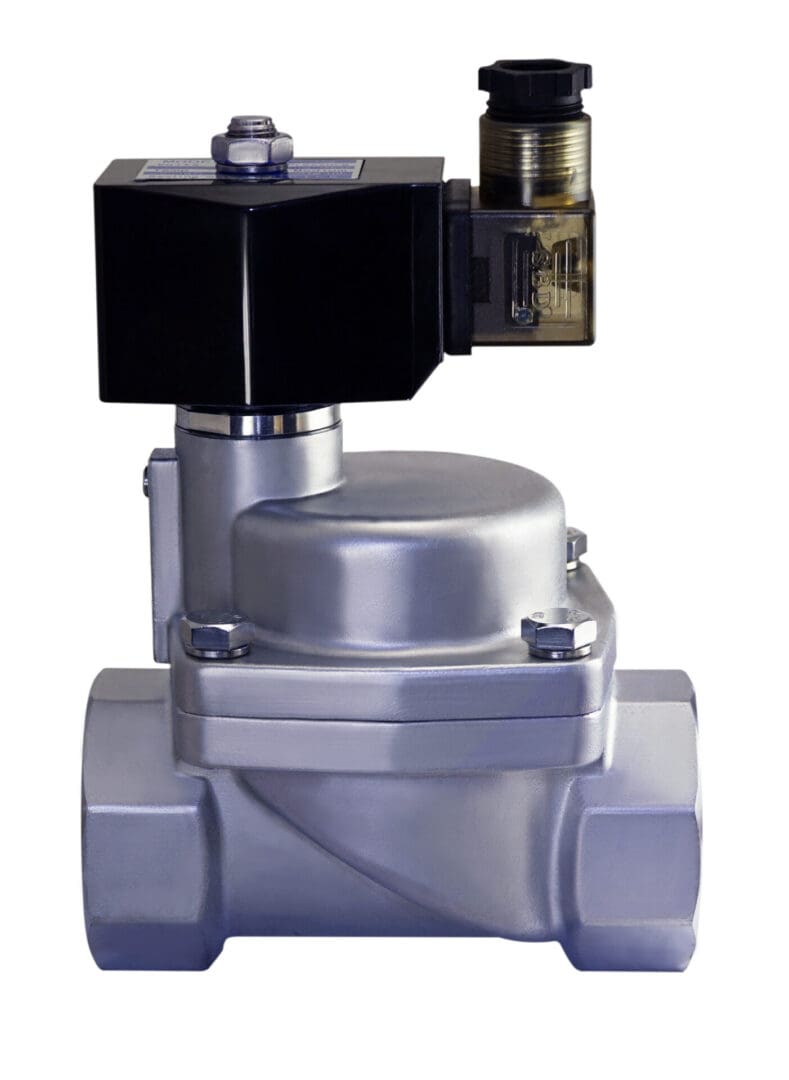

1.25″ Inch High Pressure Electric Steam Solenoid Process Valve NC



WIC Valve 2SCM Series 2-way normally closed solenoid process valve is to control On/Off of air, inert gas, liquid, hot water, and steam. This industrial steam solenoid valve has 1-1/4″ inch NPT one 1-1/4″ inch NPT inlet and one outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve can be mounted in any position.  2SCM Series high pressure steam valve requires minimum of 7 PSI to operate and maximum pressure up to 230PSI.  This steam solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service for constantly energized.



2SCM Series High Pressure Electric Steam Solenoid Valve Specification:

Model Number: 2SCM-1 1/4-D

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Hot Water, Steam

Operation Model: Pilot Piston

Flow Model: Uni-Directional

Body Material: 304 Stainless Steel

Seal Material: Teflon (PTFE)

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC: 30W / AC: 50/60Hz 28VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 7 to 230 PSI

Operating Temperature: -20 to 180 °C

Port Size: 1.25″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator



2SCM Series Stainless High Pressure Electric Steam Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D
2SCM-3/8-D	3/8″	4.8	15	53	122	135	70
2SCM-1/2-D	1/2″	4.8	15	53	122	135	70
2SCM-3/4-D	3/4″	7.6	20	57	126	142	75
2SCM-1-D	1″	12	25	69	130	152	94
2SCM-1 1/4-D	1-1/4″	24	32	85	139	163	110
2SCM-1 1/2-D	1-1/2″	29	40	90	140	170	122
2SCM-2-D	2″	48	50	117	153	175	165



2SCM Series Stainless Steel Electric High Pressure Steam Solenoid Valve Component Drawing:
