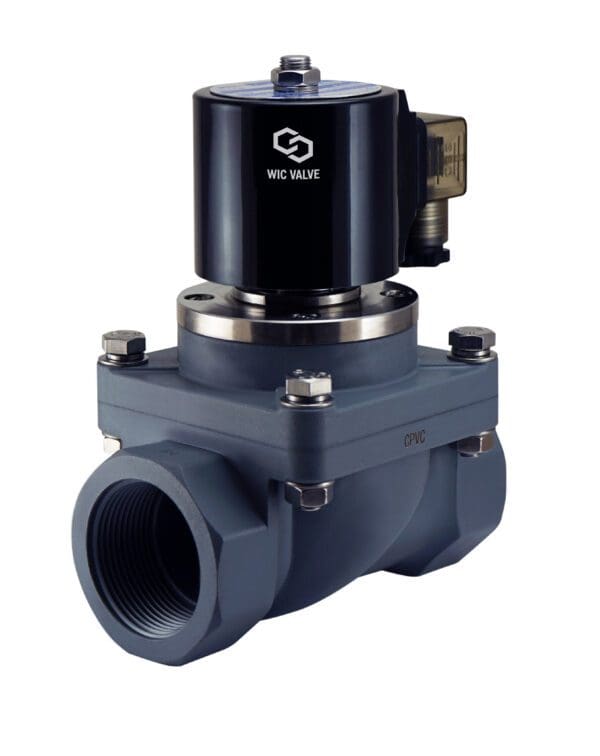

1.25″ Acid Salt Water Low Power Anti Corrosion Electric Valve



WIC Valve 2PCZ Series 2-way normally closed anti corrosion electric solenoid process valve is to control On/Off of acid, salt water, alkali, liquid and water.  This anti-corrosion electric solenoid valve has one 1.25″ Inch NPT inlet and one 1.25″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  The 2PCZ series electric valve equips with the low power consumption continuous duty encapsulated coil that provide energy savings, reliability and performance.  Our unique piston design allows the fluid completely separate with the valve metal components.  No corrosive fluid contacts the metal parts.  2PCZ Series acid resistant solenoid valve can be mounted in any position.



2PCZ Series CPVC Anti Corrosion Salt Water, Acid Electric Solenoid Water Valve Specification:

Model Number: 2PCZ-1 1/4-D-L

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Corrosive Fluid – Acid ≤ 15%, Alkali, Salt Water, Air

Operation Model: Piston

Flow Model: Uni-Directional

Body Material: CPVC (Chlorinated polyvinyl chloride)

Seal Material: Viton

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Class: H Class IP 65

Operating Pressure: 2 PSI to 80 PSI

Operating Temperature: -5 to 60 °C

Port Size: 1.25″ Inch NPT Female Port

Coil Voltage Option: 24V DC, 110V AC, 220V AC

Coil Power: 24V DC – 8W, 110V AC – 50/60Hz 7VA, 220V AC – 50/60Hz 9VA

Inrush Current: 24V DC – 75W, 110V AC – 50/60Hz 82VA, 220V AC – 50/60Hz 170VA

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector With LED Indicator

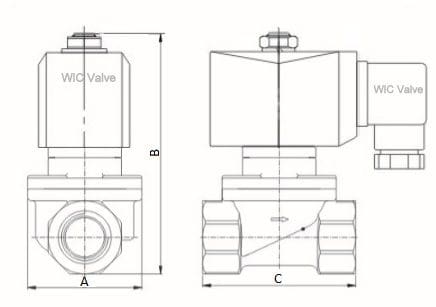

2PCZ Series CPVC Anti Corrosion Electric Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate	Orifice Size	A	B	C	D	E	F
2PCZ-1/2-D-L	1/2″	4 Cv	15	92	70	132	16	63.5	63.5
2PCZ-3/4-D-L	3/4″	5.6 Cv	20	92	80	137	19	63.5	63.5
2PCZ-1-D-L	1″	9.5 Cv	25	92	100	147	26	74	74
2PCZ-1 1/4-D-L	1-1/4″	14.5 Cv	32	94	120	171	30	94	94
2PCZ-1 1/2-D-L	1-1/2″	20.1 Cv	40	94	130	180	32.5	94	94
2PCZ-2-D-L	2″	33.5 Cv	50	94	155	225	42	155	155





Frequently Asked Questions:



What is the advantages of DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2PCZ series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.
