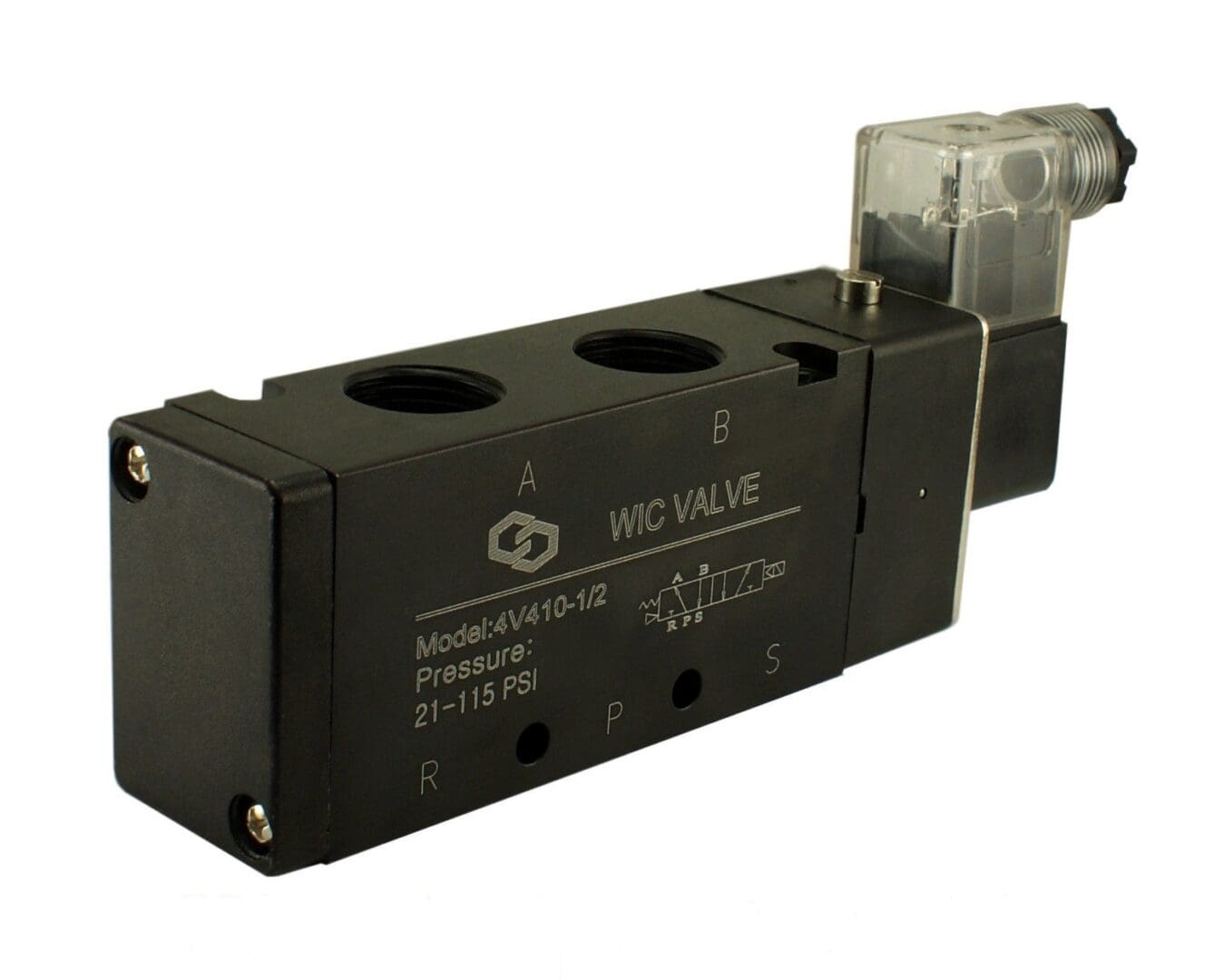

1/2 Inch 4 Way 2 Position Air Directional Control Solenoid Valve

$64.60

Description

1/2″ Inch 4 Way 2 Position Electric Directional Control ElectricSolenoid Valve



WIC Valve 4V410 Series pneumatic in-line directional control solenoid valves are body ported spool valve. 4V410 Series solenoid valve is a 4 way, 2 position, single solenoid valve.  This pneumatic electric solenoid valve is operated by a ED 100% continuous duty solenoid.  4V410 Series directional control valves is a body ported mounting type and valve can be surface mounted. 4V410 Series is equipped with a manual override button.  4V410 Series directional control valve is commonly use to operate linear motion control components such as double acting air cylinder.



4V410 Series Air Directional Control Electric Solenoid Valve Specification:

Valve Type: 4 Way, 2 Position, 1 Single Solenoid

Working Medium: 40 Micron Filtered Air

Operation Model: Air Pilot

Action Model: Spool Design Inner Guide Type

Port & Mounting: Body Ported

Flow Rate: 2.79 Cv

Response Time: Less than 20 ms

Body Material: Anodized Aluminum

Seal Material: NBR (Buna N)

Armature Tube Material: Brass

Coil Power: DC: 3.7W / AC: 3.2VA

Coil Class: F Class IP 65

Certification: CE Certification

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 21 PSI to 115 PSI

Operating Temperature: 14 to 140 °F

Port Size: 1/2″ NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Electrical Connection: DIN 43650 Form B (PG9) Connector with LED Indicator

Lubrication: Not Required

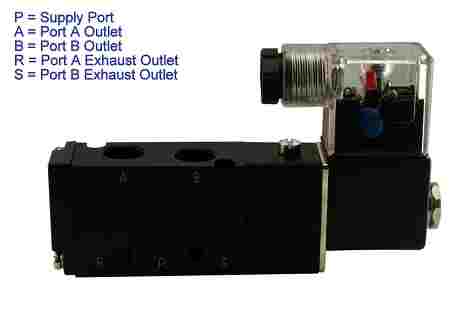

4V410 Series Electric Air Solenoid Valve Installation Guide:

1. Connect the source to port P.

2. Connect the first outlet to port A.

3. Connect the first exhaust to port R.

4. Connect the second outlet to port B.

5. Connect the second exhaust to port S.

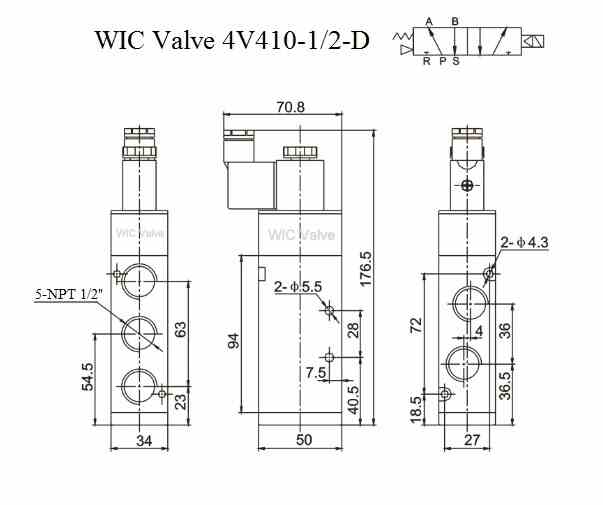

4V410 Series Directional Control Air Electric Solenoid Valve Dimensions (Unit=mm):

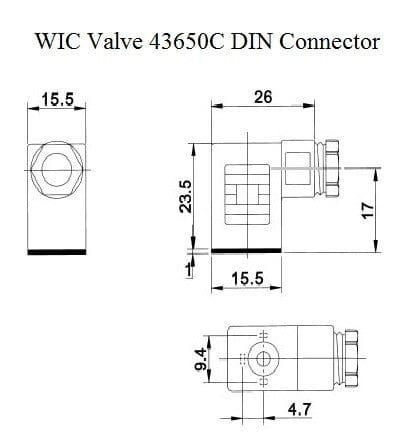

DIN 43650 Form B (PG9) Connector Dimensions (Unit=mm):

Additional information

Weight 1.50 lbs
Dimensions 6.00 × 3.00 × 2.00 in
Coil Voltage

12V DC, 24V DC, 24V AC, 110V AC, 220V AC
