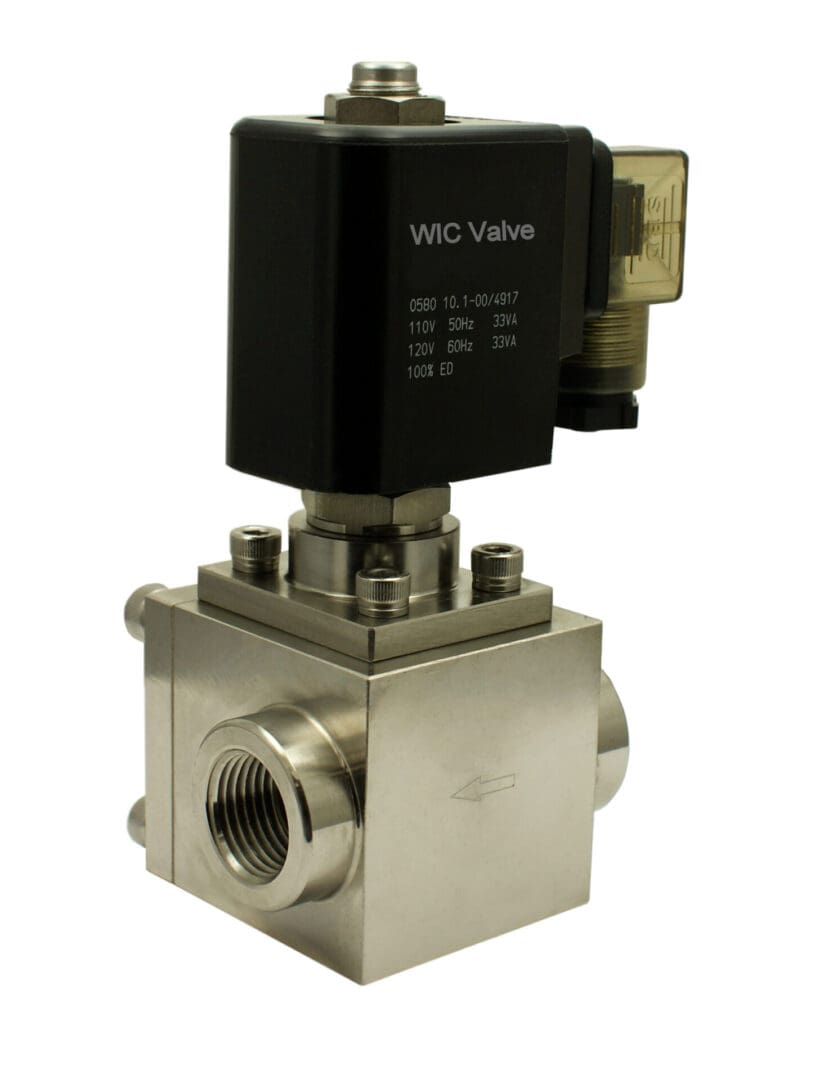

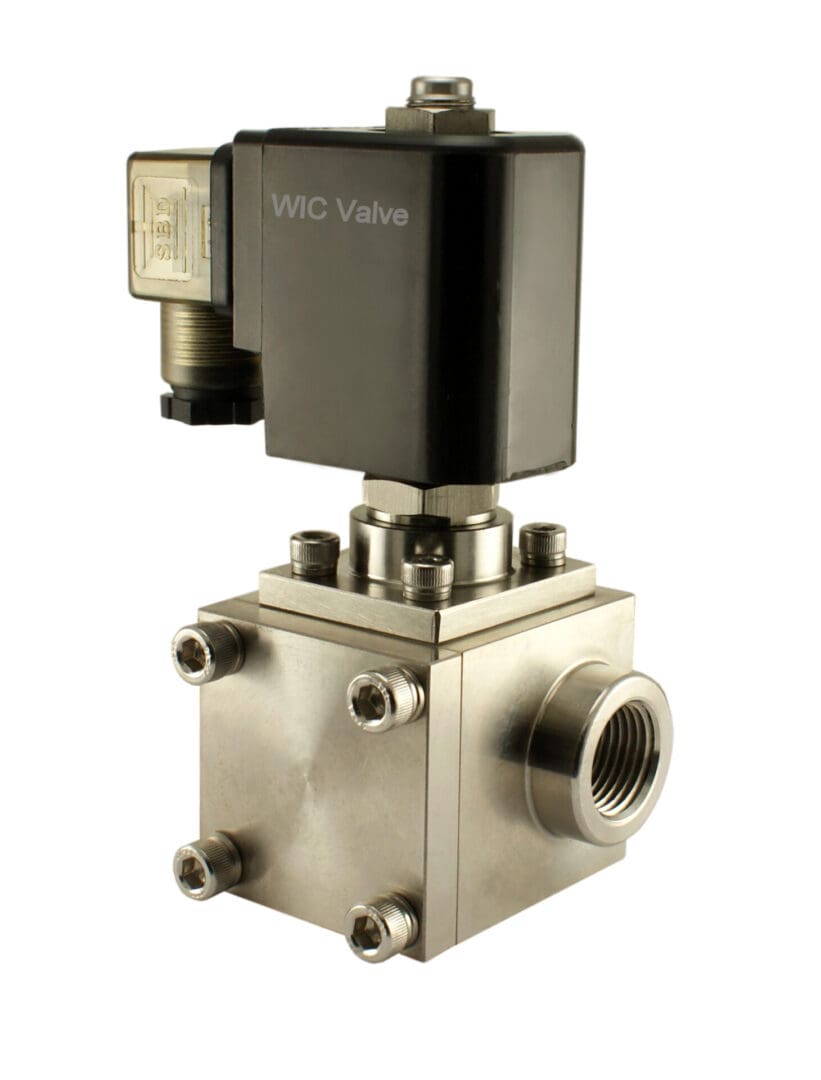

1/2″ High Pressure 1450 PSI Electric Solenoid Process Valve

WIC Valve 2SCE Series 2-way normally closed solenoid process valve is to control On/Off of air, inert gas, liquid, and water. This industrial process solenoid valve has one 1/2″ inch NPT inlet and one 1/2″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve can be mounted in any position.  2SCE Series high pressure pilot piston steam valve requires minimum of 90 PSI to operate and maximum pressure up to 1450 PSI.  2SCE Series high pressure solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service for constantly energized.



2SCE Series Half Inch High Pressure Electric Solenoid Process Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Inert Gas, Liquid, Water, Steam

Operation Model: Pilot Piston

Flow Model: Uni-Directional

Body Material: 304 Stainless Steel

Seal Material: Teflon (PTFE)

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC -25W ; AC – 50/60Hz 33VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 90 – 1450 PSI

Operating Temperature: -40 to 180 °C

Port Size: 1/2″ Inch NPT Female Port

Coil Voltage Option: 24V DC, 110V AC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator

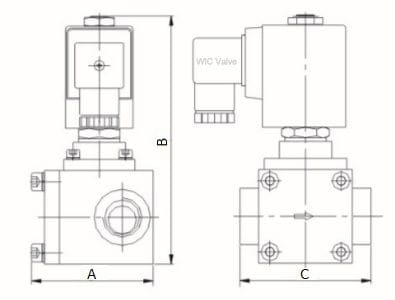

2SCE Series High Pressure Electric Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice (mm)	A	B	C
2SCE-1/2-D	1/2″	4.7	15	65	138	70



2SCE Series Stainless Steel Electric High Pressure Steam Electric Solenoid Valve Components Drawing:
