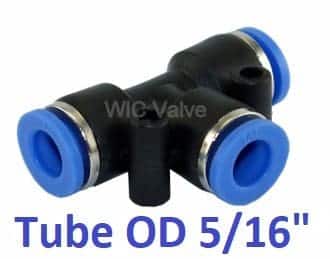

Tee Union Connector Tube OD 5/16″ Air Quick Release Fitting

$2.11

WIC Valve Tee Union push in fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections.

In stock (can be backordered)

SKU: PTU-T5/16 Categories: , Tags: , , ,
Tee Union Push In Fitting
Wisdom International Corporation WIC Valve

Description

Tee Union Connector Tube OD 5/16″ One Touch Push In To Connect Fitting

PTU Series Tee Union push in fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required.  Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow.



PTU Series Tee Union Fitting Specifications
Operating Pressure 0 – 150 PSI 0 – 990 kpa
Vacuum 0 – 29.5 in Hg 750 mm Hg
Operating Temperature 0 – 60 °C 32 to 140°F
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene.



Material of Construction
Plastic Body PBT (Polybutylene terephthalate)
Release Button POM (Poly oxy methylene copolymer)
Grip Ring Stainless Steel
Thread Sealant Teflon
O-ring NBR (Buna-N)



Schematic of Composite Push In Fitting Construction:

Pneumatic Push In Fitting Construction

PTU Series Tee Union Connector
Part No. Tube OD (Inch) Price
PTU-T1/8 1/8″ $1.98
PTU-T5/32 5/32″ $2.02
PTU-T3/16 3/16″ $2.07
PTU-T1/4 1/4″ $2.09
PTU-T5/16 5/16″ $2.11
PTU-T3/8 3/8″ $2.13
PTU-T1/2 1/2″ $2.97


Fitting Installation and Removal Guide:

To install the tubing into fitting

1) Cut the tubing square ensure the outside diameter is free of score marks and no burrs.

2) Simply push tubing past the O-ring to the internal tube dead stop by hand.

3) Pull the tubing back gently to ensure it is secure for leakproof connections.



To remove the tubing from fitting

1) Press evenly on both sides of the release button against fitting body, keep the release button (collet) depressed and held in this position

2) Pull the tubing to slide out.

Additional information

Weight 0.07 lbs
Dimensions 1.00 × 1.00 × 1.00 in
