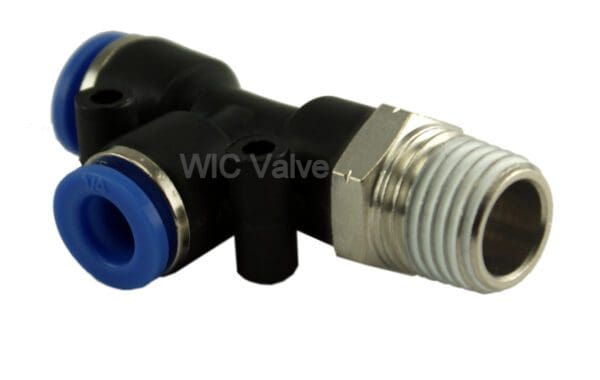

Run Tee Fitting Tube OD 1/2 X NPT 1/4 Pneumatic Tube Connector
$4.56
”
WIC Valve pneumatic Run Tee Fitting equipped with one touch release button that provides a easy and quick tubing connections with no special tools required.
“
Description
”
Run Tee Swivel Connector Tube OD 1/2″” X NPT 1/4″” Quick Release One Touch Push In To Connect Air Fitting
WIC Valve PRT Series pneumatic run tee connector one touch push in fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required. Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow. The strong nickel-plated brass threaded bodies ensure anti-corrosion. Threaded fittings come with pre-coated Telfon sealant for quick installation with no additional sealing needed.
| WIC Valve PRT Series Run Tee Connector Fitting Specifications | ||
| Operating Pressure | 0 – 150 PSI | 0 – 990 kpa |
| Vacuum | 0 – 29.5 in Hg | 750 mm Hg |
| Operating Temperature | 0 – 60 °C | 32 to 140°F |
| Elbows | Swivel (rotate 360°) | |
| Application | Air | |
| Recommended Tubing Material | Polyurethane, Nylon, Polyethylene, Polypropylene. |
| Material of Construction | |
| Plastic Body | PBT (Polybutylene terephthalate) |
| Metal Body | Nickel Plated Brass |
| Release Button | POM (Poly oxy methylene copolymer) |
| Grip Ring | Stainless Steel |
| Thread Sealant | Teflon |
| O-ring | NBR (Buna-N) |
Schematic of Composite Push In Fitting Construction:
“
Additional information
| Weight | 0.08 lbs |
|---|---|
| Dimensions | 1.00 × 1.00 × 0.50 in |
