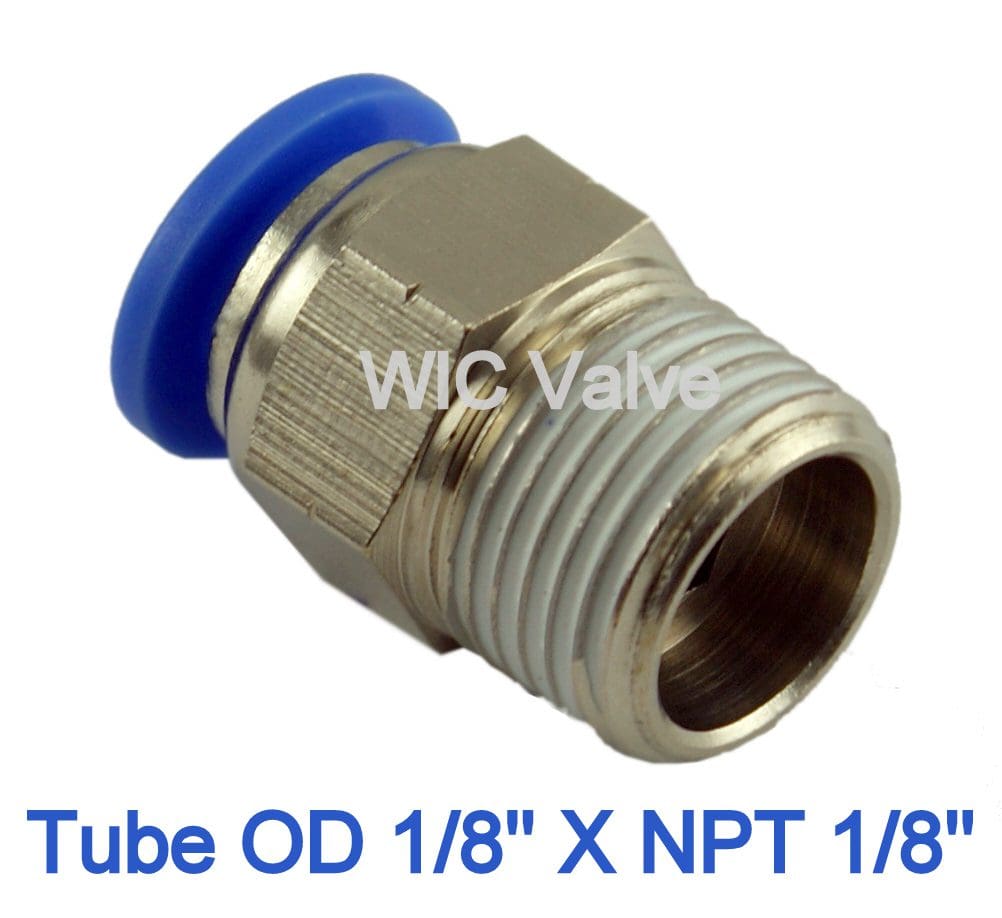

Male Connector Tube OD 1/8 X NPT 1/8 Quick Release Fitting

WIC Valve PMC Series male straight connector one touch push in fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required.  Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow. The strong nickel-plated brass threaded bodies ensure anti-corrosion.  Threaded fittings come with pre-coated Telfon sealant for quick installation with no additional sealing needed.



Pneumatic Male Connector Specifications
Operating Pressure	0 – 150 PSI	0 – 990 kpa
Vacuum	0 – 29.5 in Hg	750 mm Hg
Operating Temperature	0 – 60 °C	32 to 140°F
Elbows	Swivel (rotate 360°)
Application	Air
Recommended Tubing Material	Polyurethane, Nylon, Polyethylene, and Polypropylene.



Material of Construction
Plastic Body	PBT (Polybutylene terephthalate)
Metal Body	Nickel Plated Brass
Release Button	POM (Poly oxy methylene copolymer)
Grip Ring	Stainless Steel
Thread Sealant	Teflon
O-ring	NBR (Buna-N)



Schematic of Composite Push In Fitting Construction:

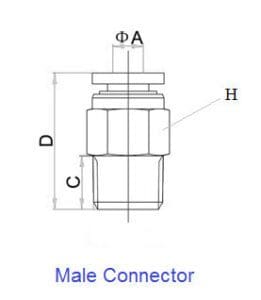

WIC Valve Male Straight Connector Dimensions

Part No.	Tube OD	Pipe Size (NPT)	A	H	C	D	Price
PMC-T1/8-N1/8	1/8″	1/8″	Ø1/8″	11.1	0.3	0.84	$0.94
PMC-T1/8-N1/4	1/8″	1/4″	Ø1/8″	14.3	0.41	0.91	$0.94
PMC-T1/4-N1/8	1/4″	1/8″	Ø1/4″	12.7	0.3	0.91	$0.94
PMC-T1/4-N1/4	1/4″	1/4″	Ø1/4″	14.3	0.41	0.97	$1.05
PMC-T1/4-N3/8	1/4″	3/8″	Ø1/4″	17.4	0.41	0.97	$1.35
PMC-T3/8-N1/8	3/8″	1/8″	Ø3/8″	17.4	0.3	1.28	$1.39
PMC-T3/8-N1/4	3/8″	1/4″	Ø3/8″	17.4	0.42	1.34	$1.67
PMC-T3/8-N3/8	3/8″	3/8″	Ø3/8″	17.4	0.44	1.24	$2.42
PMC-T3/8-N1/2	3/8″	1/2″	Ø3/8″	22.2	0.52	1.24	$2.47
PMC-T1/2-N1/4	1/2″	1/4″	Ø1/2″	22.2	0.38	1.38	$2.43
PMC-T1/2-N3/8	1/2″	3/8″	Ø1/2″	22.2	0.46	1.32	$2.43
PMC-T1/2-N1/2	1/2″	1/2″	Ø1/2″	22.2	0.56	1.32	$2.88





Push in Fitting Frequently Asked Questions:

What is the different between NPT, BSPT, and BSPP?



NPT Connections

NPT (National Pipe Thread) seals are the most popular type of seal in the U.S. and Canada. NPT male adapters have a taper thread that wedges into the female NPT adapter. The angle across the flanks of threads is 60 degrees.

BSPT Connections

BSPT (British Standard Pipe Thread) are popular type of seal in China and Japan. It is not commonly used in North America. BSPY is similar to NPT except the angle across the flanks of threads is 55 degrees instead of the 60 degrees in NPT.

BSPP Connections

BSPP (British Standard Parallel Pipe) is commonly used in the UK, Europe, Asia, Australia, New Zealand and South Africa. It is a parallel thread fitting that uses a seal ring for sealing. The seal ring is placed in-between a shoulder on the male fitting and the face of the female fitting and is squeezed in place.

Fitting Installation and Removal Guide:

To install the tubing into fitting

1) Cut the tubing square ensure the outside diameter is free of score marks and no burrs.

2) Simply push tubing past the O-ring to the internal tube dead stop by hand.

3) Pull the tubing back gently to ensure it is secure for leakproof connections.

To remove the tubing from fitting

1) Press evenly on both sides of the release button against fitting body, keep the release button (collet) depressed and held in this position

2) Pull the tubing to slide out.
