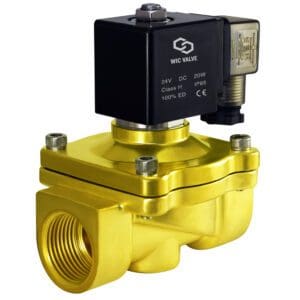

3/8″ Inch Zero Differential Electric Solenoid Process Valve

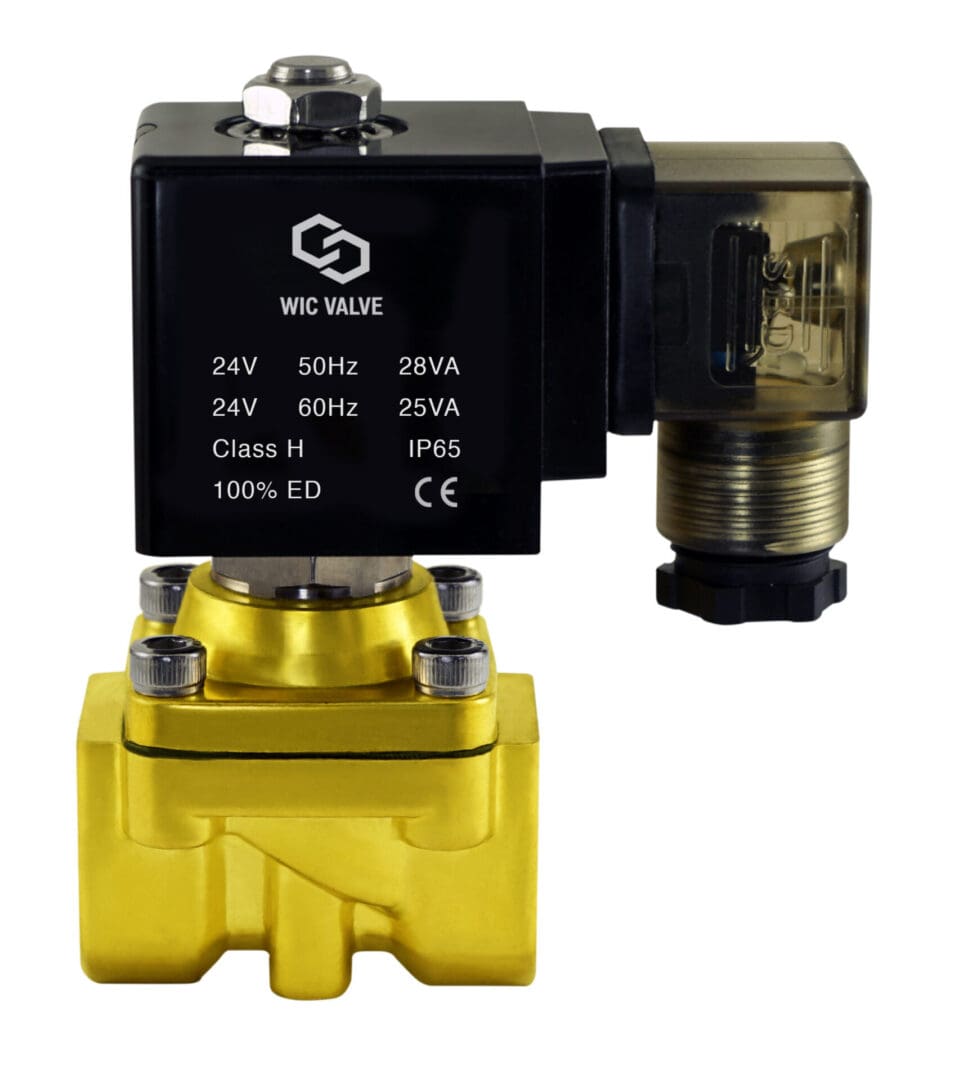

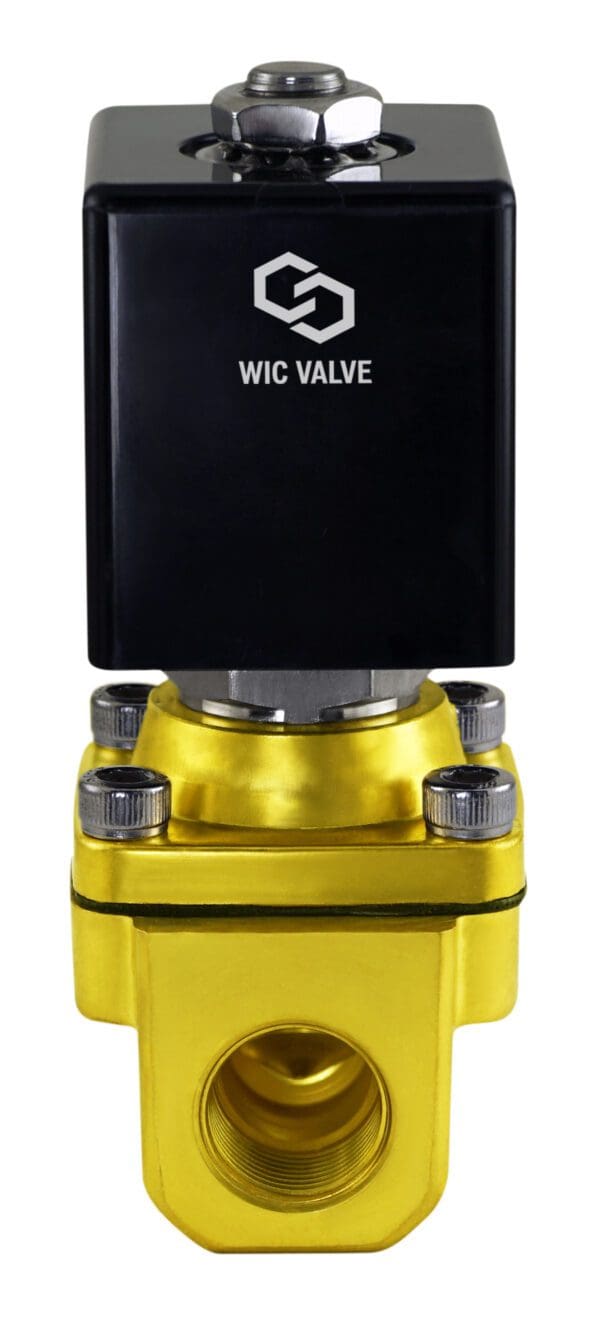

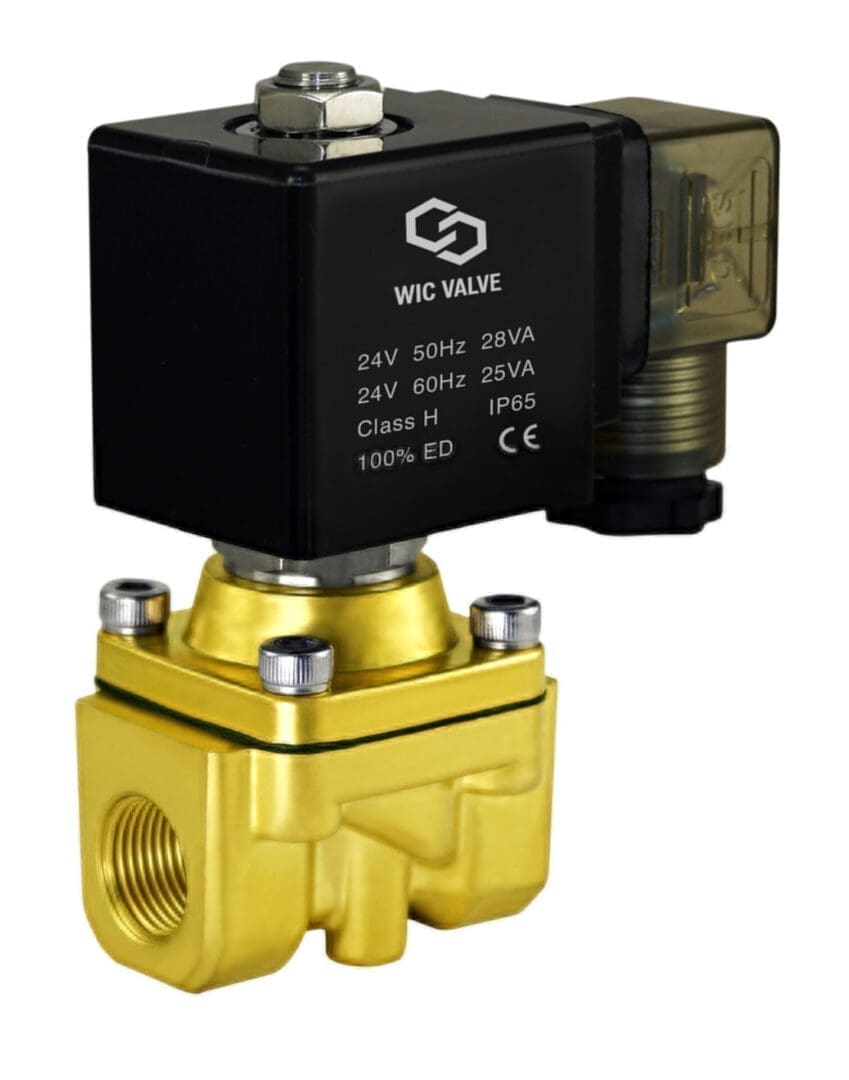

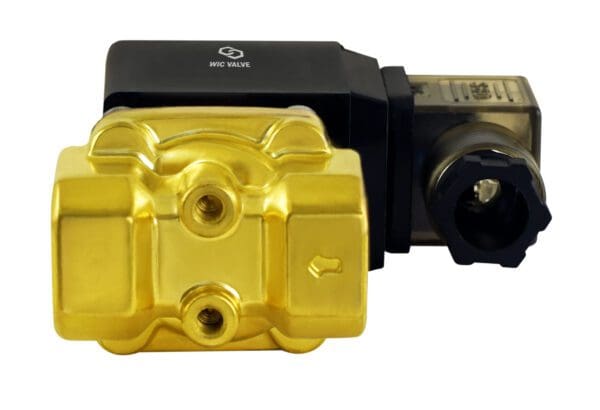

WIC Valve 2BCA Series 2-way normally closed general purpose electric solenoid process valve is to control On/Off of air, inert gas, liquid and oil. This industrial high pressure electric solenoid valve has one 3/8″ inch NPT inlet and one 3/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2BCA Series high flow electric valve is a zero differential valve which no minimum pressure is require.  2BCA Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  This compact high flow electric process valve features with 2 of the M5 size convenient mounting holes and valve can be mounted in any position.



2BCA Series Normally Closed Electric Solenoid Process Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water, Light Oil

Operation Model: Semi Direct Lift Diaphragm

Flow Model: Uni-Directional

Body Material: Brass

Seal Material: NBR (Buna N) Diaphragm & Plunger Tip

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA

Coil Insulation Class: H Class

Ingress Protection: IP65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 0 to 290 PSI with AC Coil; 0 PSI to 230 PSI with DC Coil

Operating Temperature: NBR -10 to 80 °C (14 to 176 °F)

Port Size:  3/8″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA

Low Power Coil Certification: CE Certification DC Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator



2BCA Series Brass High Flow Electric Solenoid Valve Dimensions (Unit=mm)

Model #	Port Size (NPT)	Flow Rate (Cv)	Orifice Size (mm)
2BCA-1/4-D	1/4″	2.1	10
2BCA-3/8-D	3/8″	2.1	10
2BCA-1/2-D	1/2″	2.1	10
