3/8″ Inch Direct Acting Electric Solenoid Process Valve NC

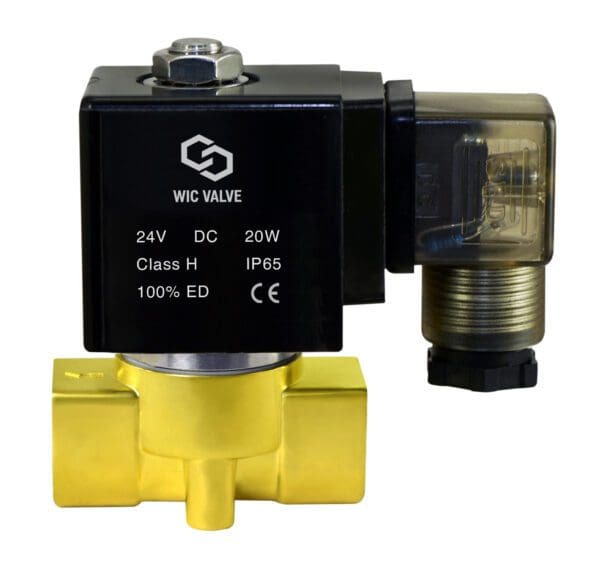

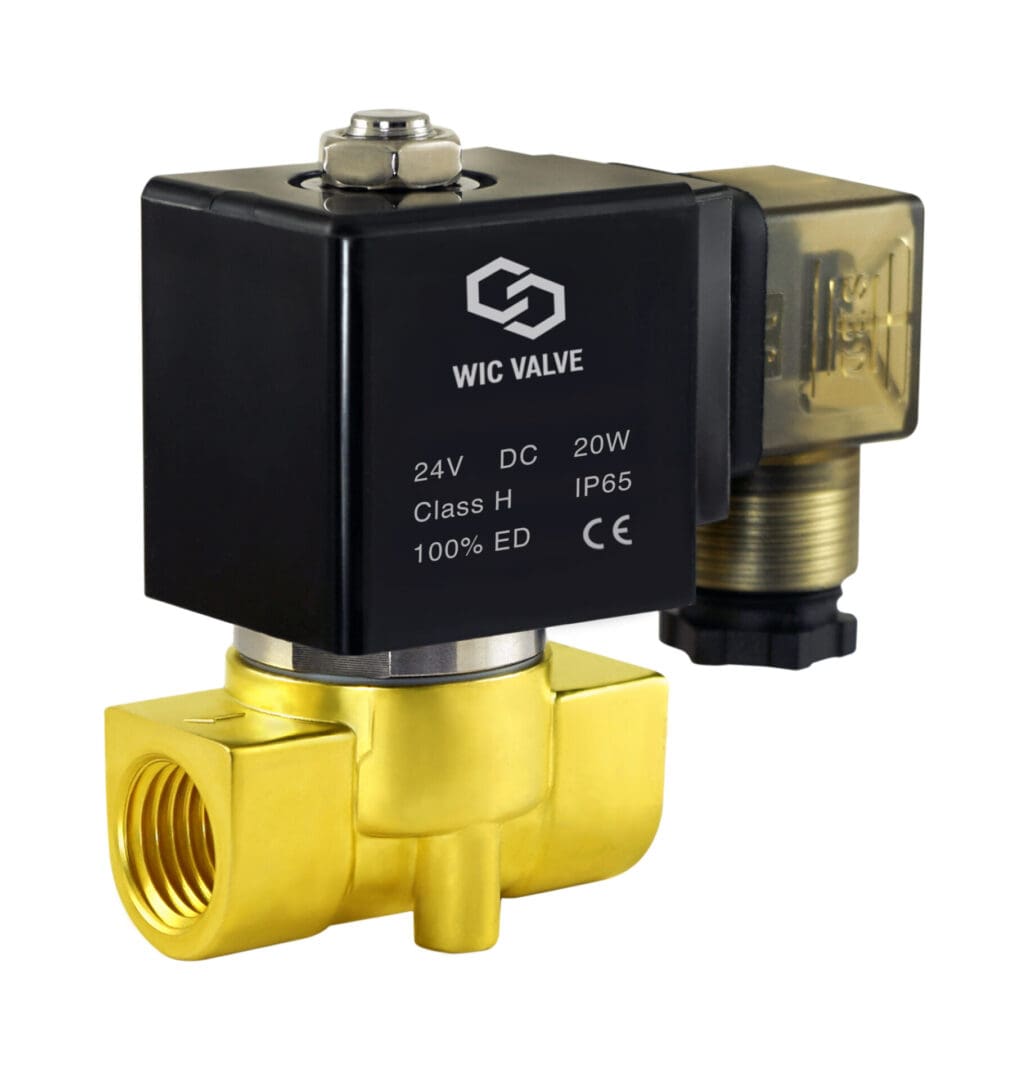

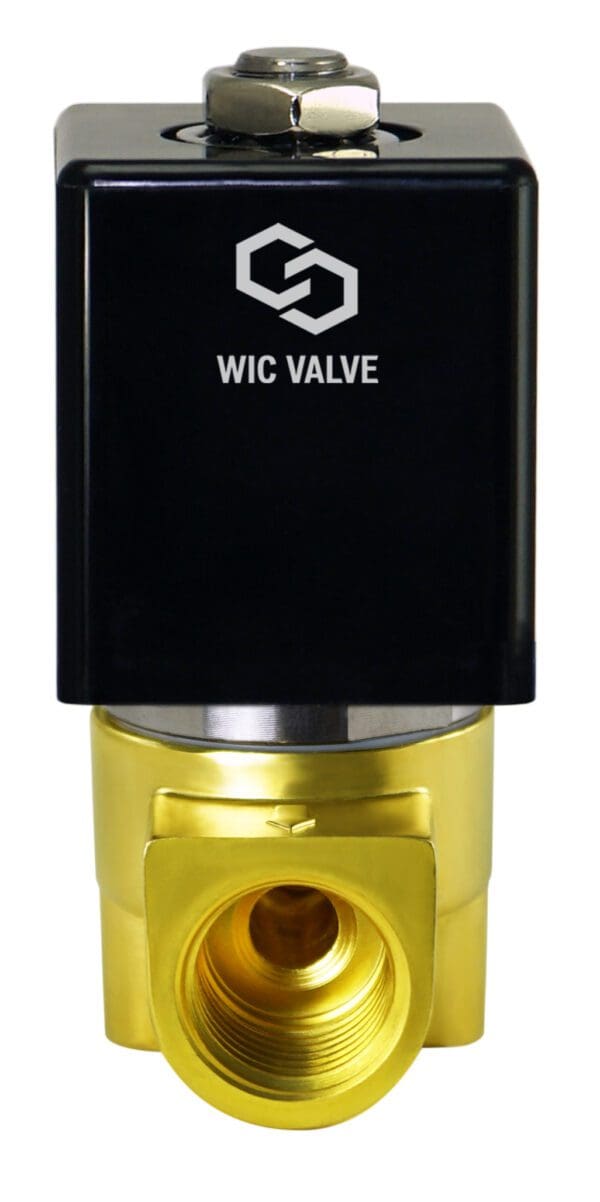

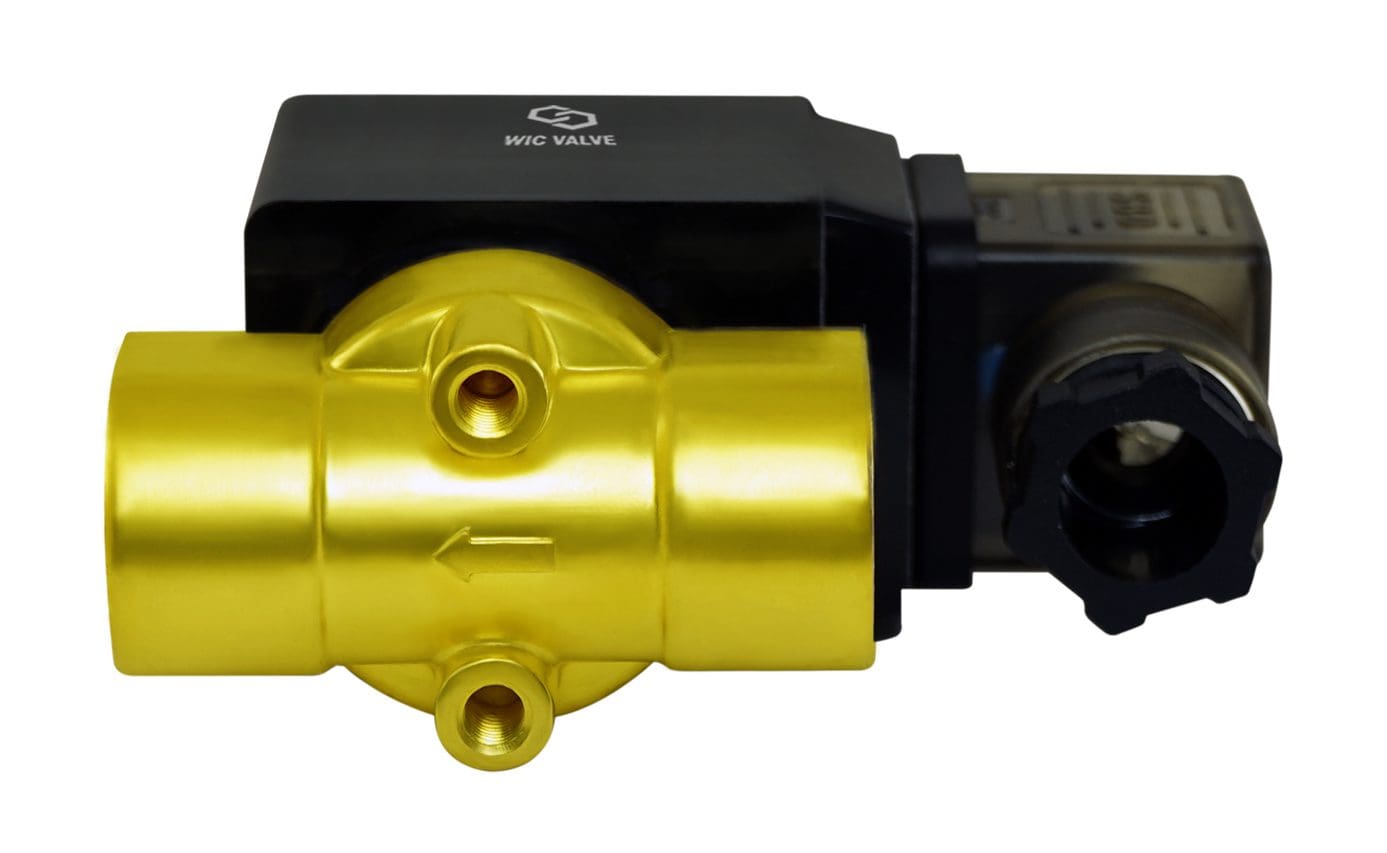

WIC Valve 2BCK Series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid and water. This industrial direct acting electric solenoid valve has one 3/8″ inch NPT inlet and one 3/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve has two holes in the bottom and can be mounted in any position.  2BCK Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service or in other words constantly energized.  This compact electric solenoid process valve features with 2 of the M5 size convenient mounting holes, valve can be mounted in any position.



2BCK Series Direct Acting Fast Response Electric Solenoid Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Model Number: 2BCK-3/8-D

Service Media: Air, Inert Gas, Liquid, Vacuum, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Flow Rate: 0.6 Cv (Fluid Flow)

Response Time: Less than 20 ms

Body Material: Brass

Seal Material: NBR (Buna N)

Armature Tube Material: Stainless Steel

Plunger & Spring Material: Stainless Steel

Coil Certification: CE Certification

Coil Power:  DC – 20W ; AC -50Hz 28VA / 60Hz 25VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: Vacuum 0 to 150 PSI

Operating Temperature: -10 to 80 °C

Port Size: 3/8″ NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

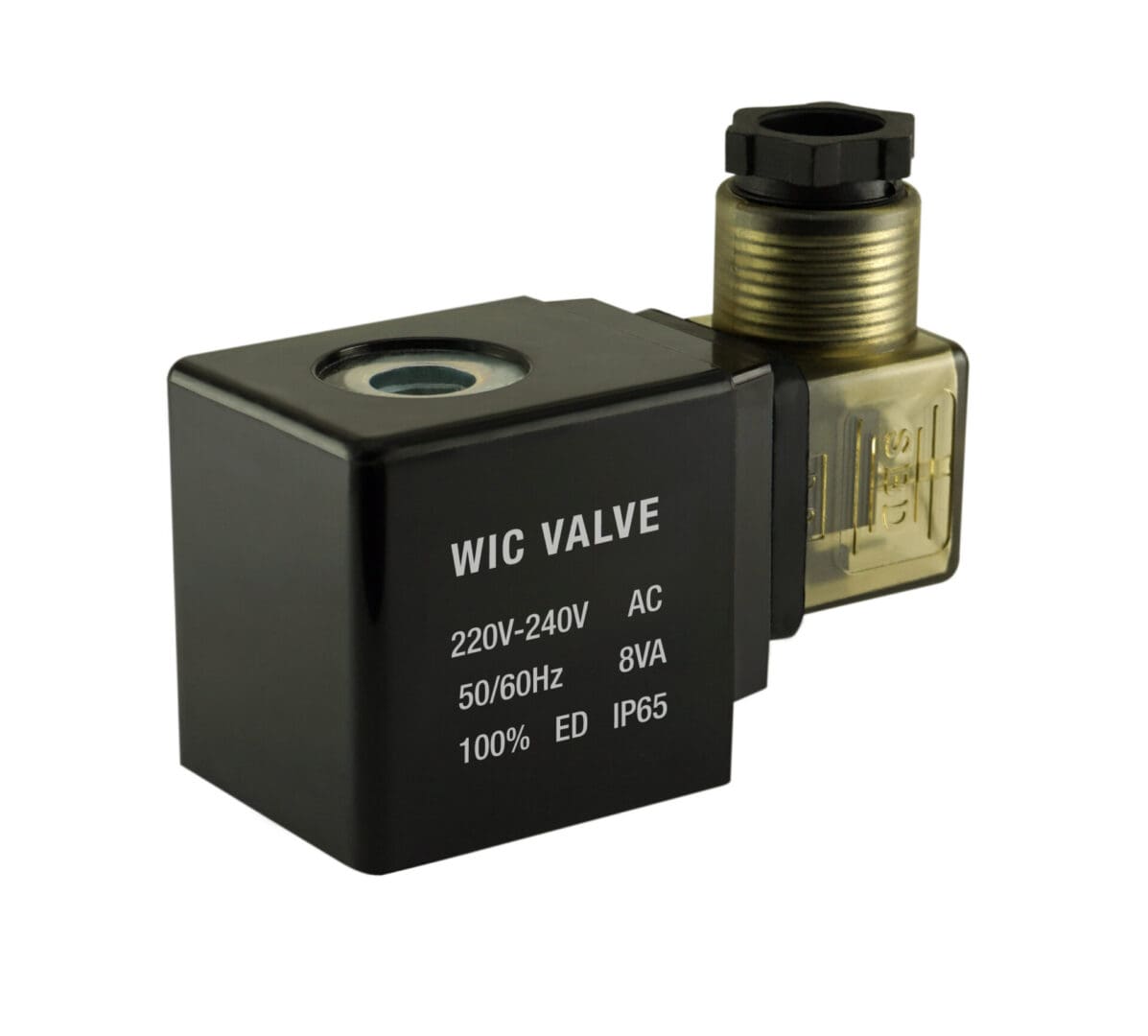

Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA

Low Power Coil Certification: CE Certification DC Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Coil Connector with LED Indicator



2BCK Series Fast Response Direct Acting Electric Solenoid Valve Dimensions:

Model #	Port Size (NPT)	Flow Rate (Cv)	Orifice Size (mm)
2BCK-1/4-D	1/4″	0.23	2
2BCK-3/8-D	3/8″	0.6	4





Valve Frequently Asked Questions:

How to connect DIN connector with wire?

To connect the wire to DIN connector is simple and easy, shown below is the 4 easy steps:

1. Remove the Philip screw from the plastic housing protector.

2. Unplug the plastic housing from the DIN coil.

3. Remove the terminal block from the plastic housing.  Use the Philip screw to push the terminal block out from the plastic housing.

4. On the back of the terminal block, it makes 1, 2 and Ground.

For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required.

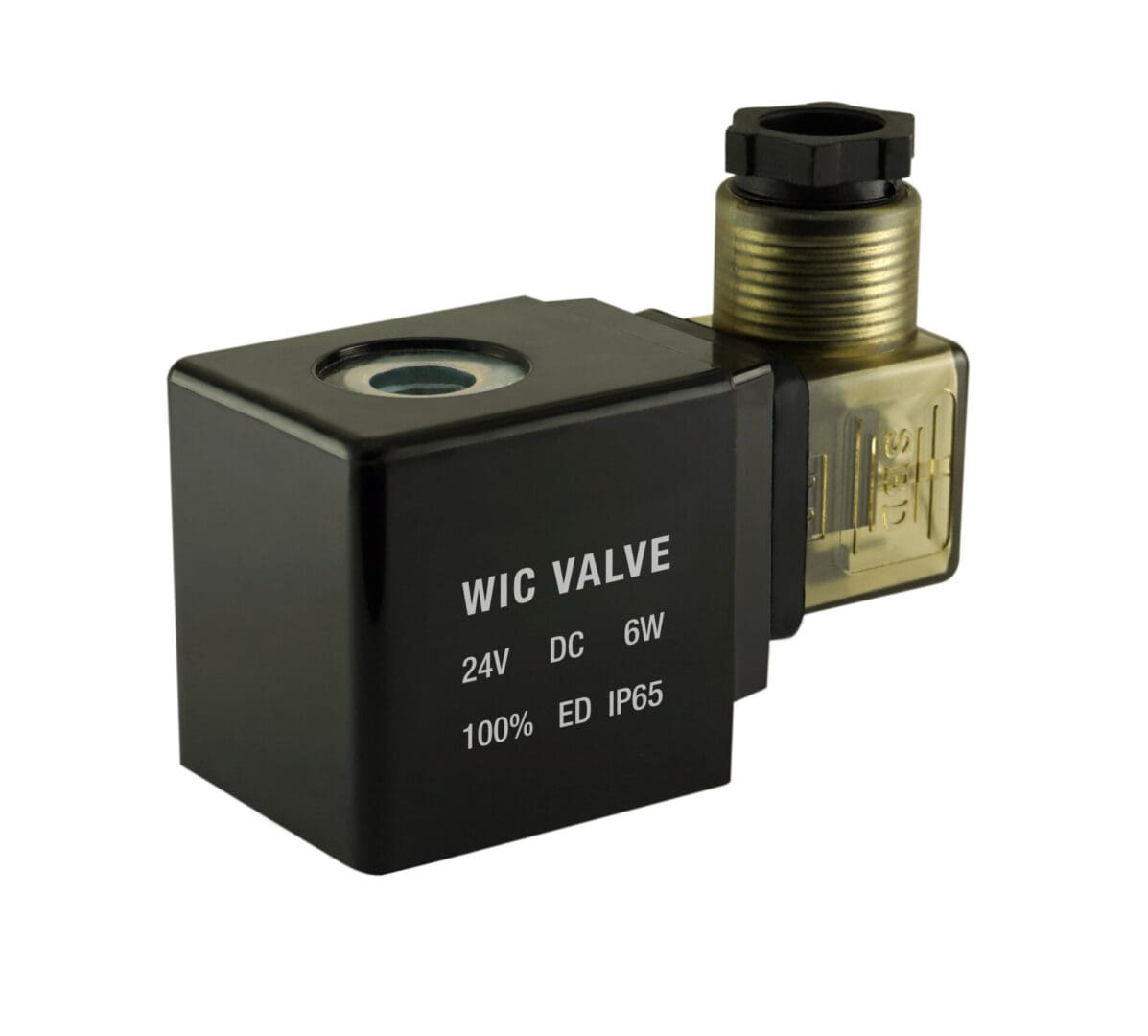

What is ED 100% Coil Duty?

ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.



What is IP65?

Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures – IP Code), specifying the environmental protection the enclosure provides.

The IP rating normally has two (or three) numbers:

1) Protection from solid objects or materials

2) Protection from liquids (water)

3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)



IP First number – Protection against solid objects

IP Second number – Protection against liquids
