3/8″ High Pressure 230 PSI Air Water Electric Solenoid Valve NC

$74.25

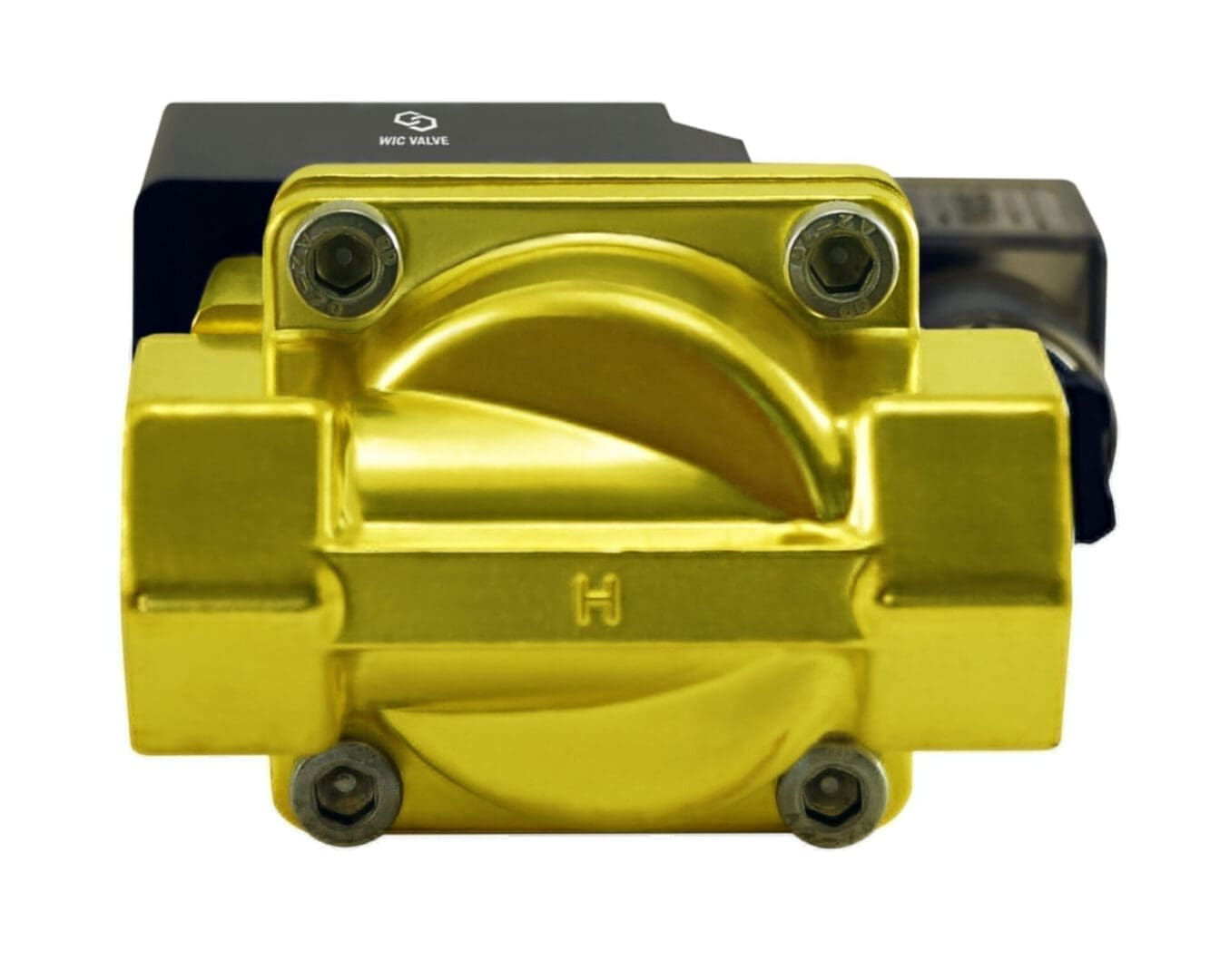

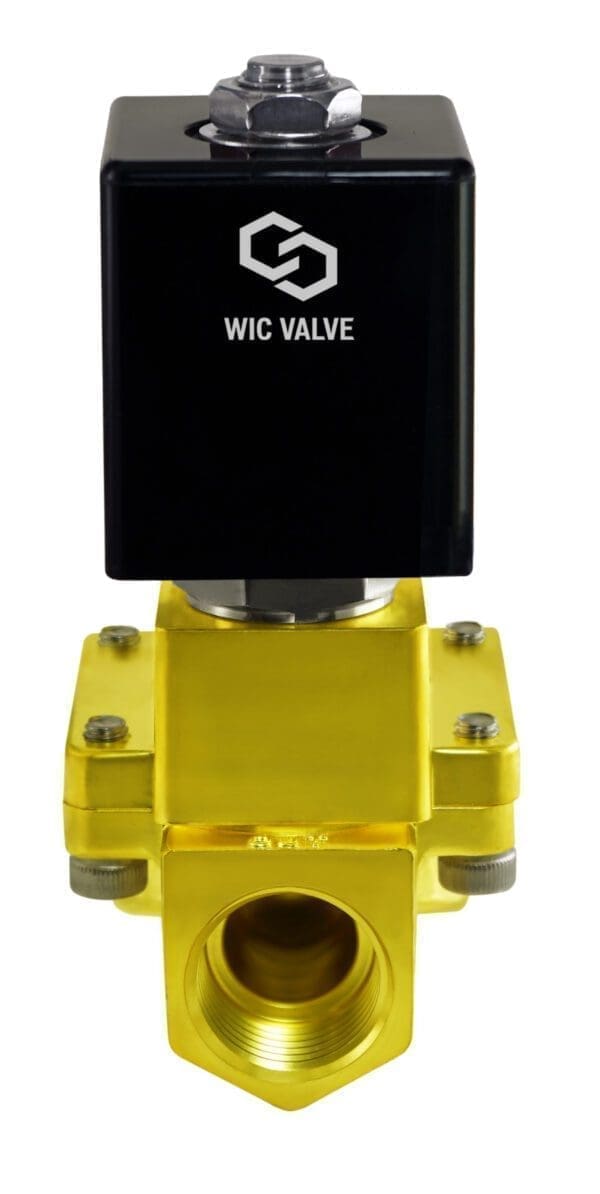

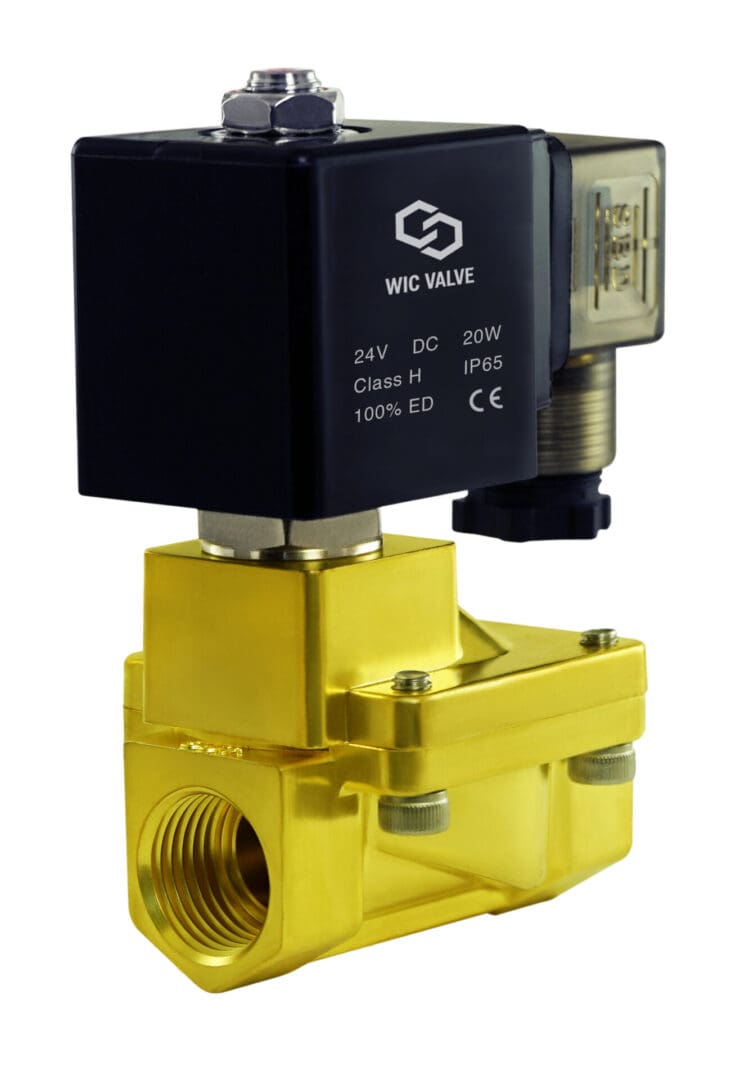

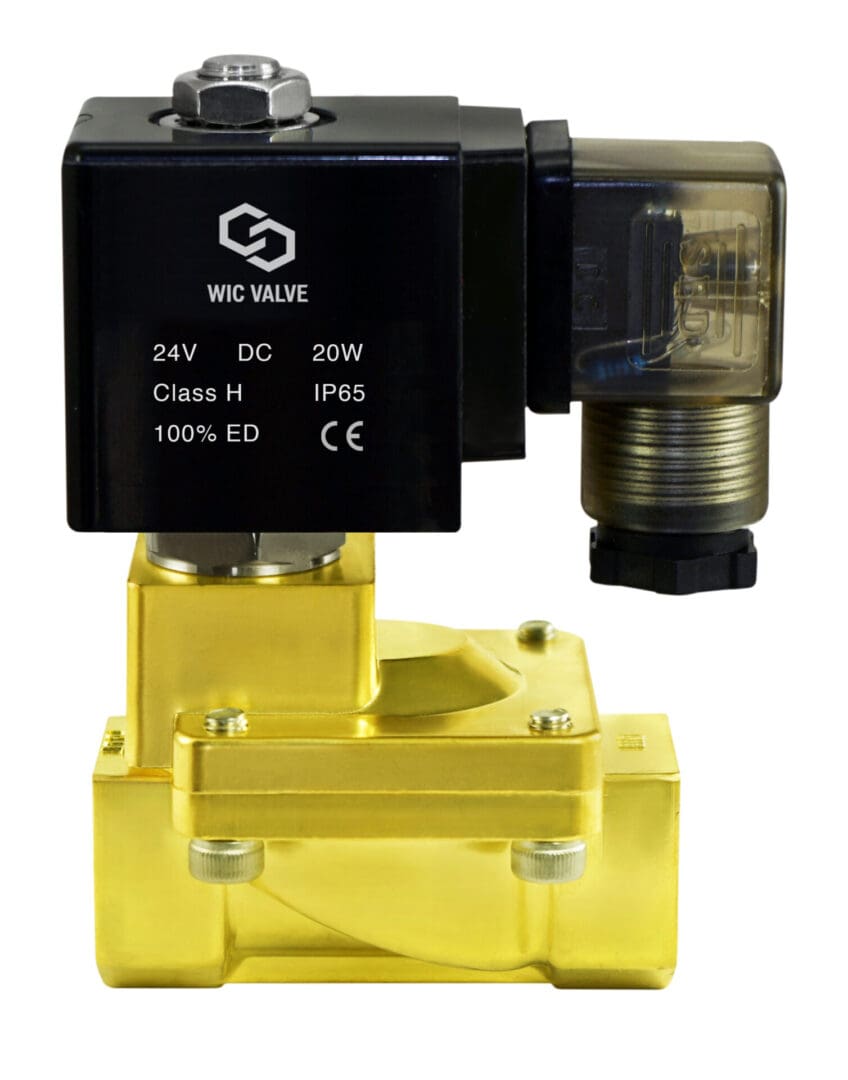

Description

3/8” Inch High Pressure General Purpose Brass Electric Solenoid Process Valve Normally Closed



WIC Valve 2BCR Series 2-way normally closed general purpose electric solenoid process valve is to control On/Off of air, inert gas and liquid. This industrial electric solenoid valve has one 3/8″ inch NPT inlet and one 3/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2BCR Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  Valve can be mounted in any position.



2BCR Series High Pressure Electric Solenoid Process Valve Specification:

Model Number: 2BCR-3/8-D

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water

Operation Model: Pilot Diaphragm

Flow Model: Uni-Directional

Body Material: Brass

Seal Material: NBR (Buna N) Diaphragm & Plunger Tip

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA

Insulation Class: H Class

Ingress Protection: IP65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 4.5 PSI to 230 PSI

Operating Temperature: NBR -10 to 80 °C (14 to 176 °F)

Port Size:  3/8″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

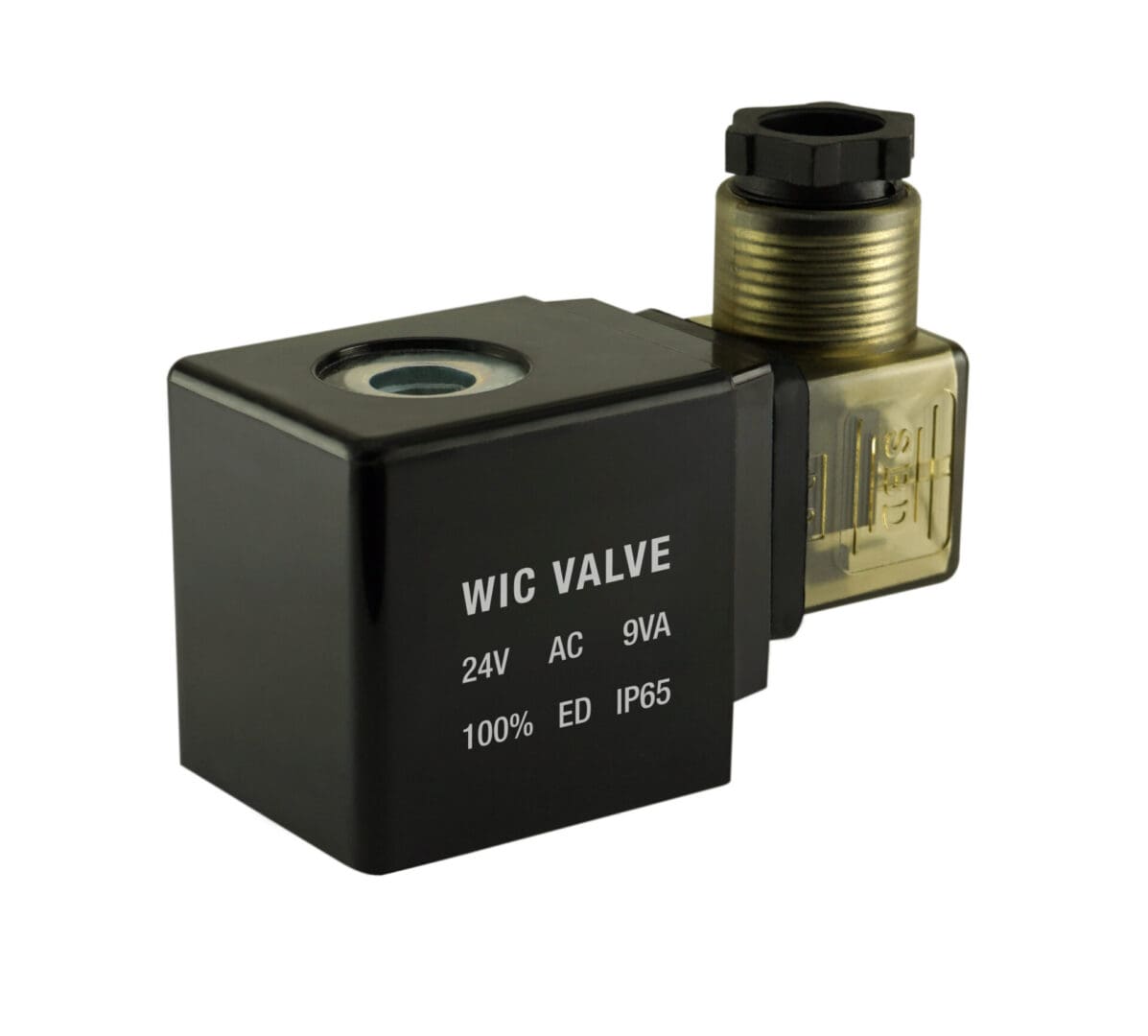

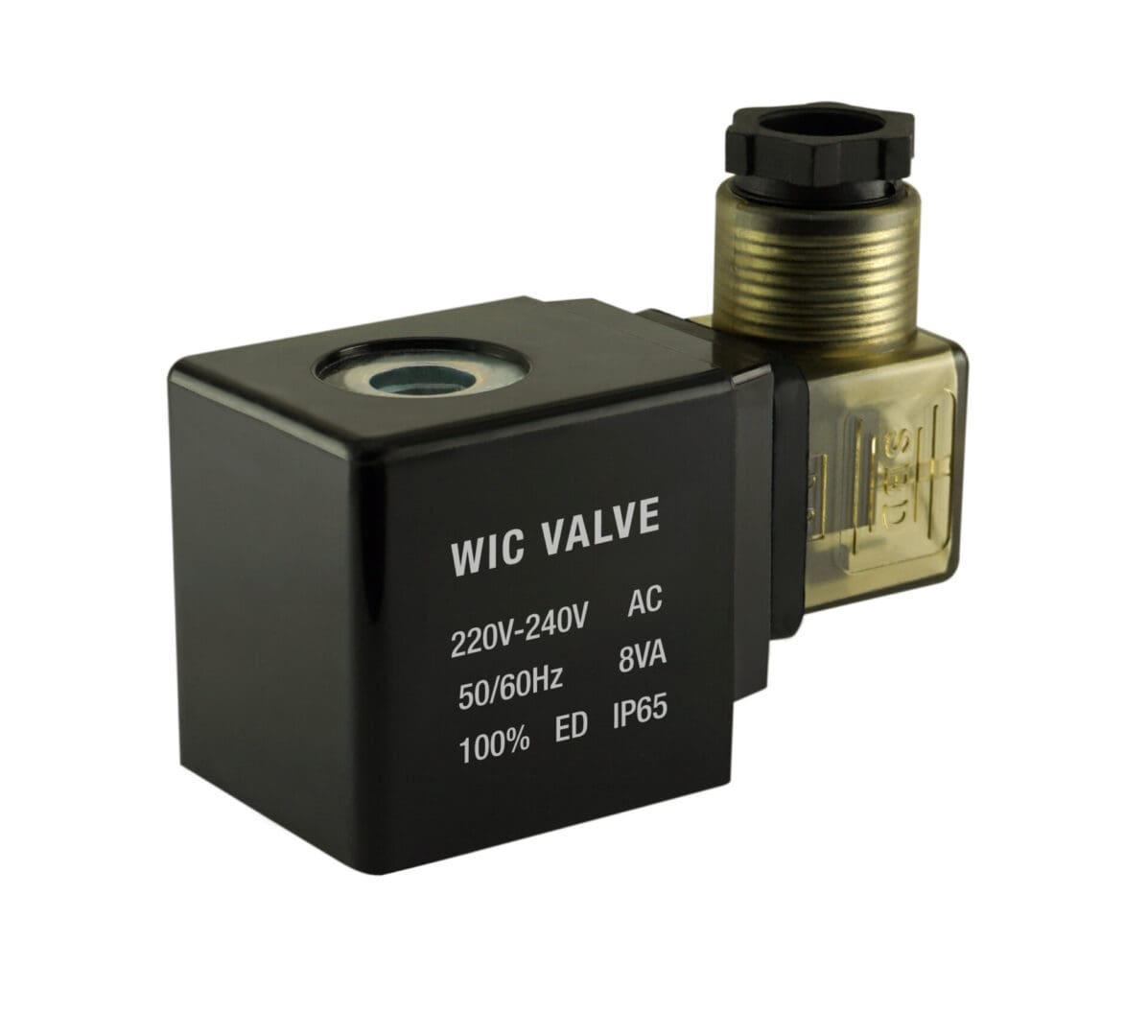

Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA

Low Power Coil Certification: CE Certification DC Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator



2BCR Series High Pressure Normally Closed Electric Process Valve Dimensions (Unit=mm)

Model # Port Size (NPT) Flow Rate (Cv) Orifice Size  A B C D Weight (lbs)
2BCR-3/8-D 3/8″ 4.5 13 48 66 97 112 2
2BCR-1/2-D 1/2″ 4.5 13 48 66 97 112 2
2BCR-3/4-D 3/4″ 7.6 20 58 75 100 118 2.3
2BCR-1-D 1″ 12 25 69 96 101 125 3.5
2BCR-1 1/4-D 1-1/4″ 24 32 96 131 120 150 7.2
2BCR-1 1/2-D 1-1/2″ 30 40 96 131 120 150 7.2
2BCR-2-D 2″ 48 50 120 165 130 165 9.5



2BCR Series Normally Closed High Pressure Electric Solenoid Valve Component Drawing:

What is Coil with DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2BCR series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.



What is ED 100% Coil Duty?

ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.

Additional information

Weight 2.00 lbs
Dimensions 5.00 × 4.00 × 3.00 in
Coil Voltage

12V DC, 24V DC, 24V AC, 110V AC, 220V AC
