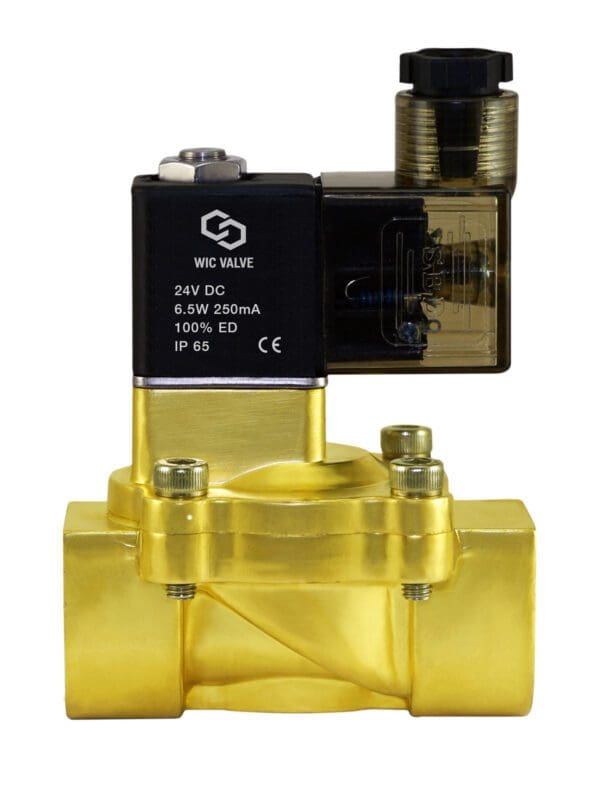

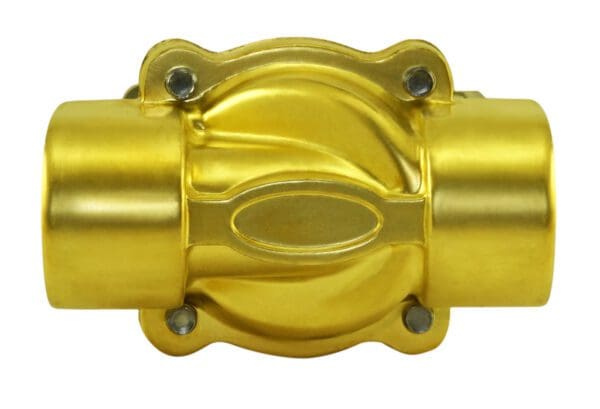

3/8″ Brass Low Power Electric Air Water Solenoid Process Valve

WIC Valve 2BCV Series 2-way normally closed low power consumption electric solenoid process valve is to control On/Off of air, inert gas, liquid, and water. This electric solenoid operated valve has one 3/8″ inch NPT inlet and one 3/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2BCV Series solenoid valve comes with a low power consumption ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized, valve can be mounted in any position.



2BCV Series Low Power Consumption Electric Solenoid Process Valve Specification:

Model Number: 2BCV-3/8-D

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water

Operation Model: Pilot Lift Diaphragm

Flow Model: Uni-Directional

Body Material: Brass

Seal Material: NBR (Buna N)

Armature Tube Material: Stainless Steel

Plunger & Spring Material: Stainless Steel

Coil Power: DC: 6 – 6.5W; AC: 6 – 6.5VA

Coil Class: F Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 5 to 115 PSI

Operating Temperature: NBR Seal -10 to 80°C

Port Size:  3/8″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650B Connector with LED Indicator



2BCV Series Low Power Consumption Electric Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D
2BCV-3/8-D	3/8″	4.8	13	48	88	100	72
2BCV-1/2-D	1/2″	4.8	13	48	88	100	72
2BCV-3/4-D	3/4″	20	25	70	95	105	100
2BCV-1-D	1″	20	25	70	95	105	100



2BCV Series Power Save Electric Solenoid Valve Component Drawing:
