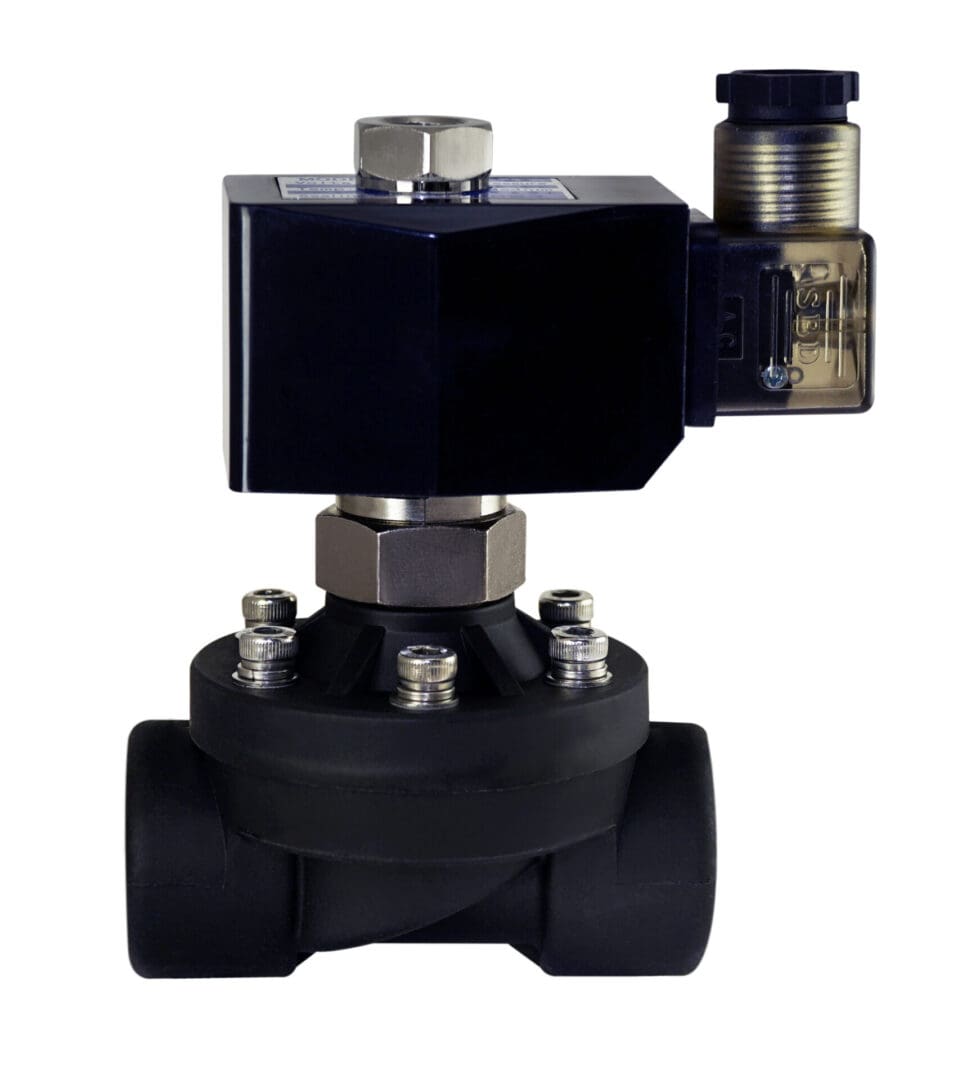

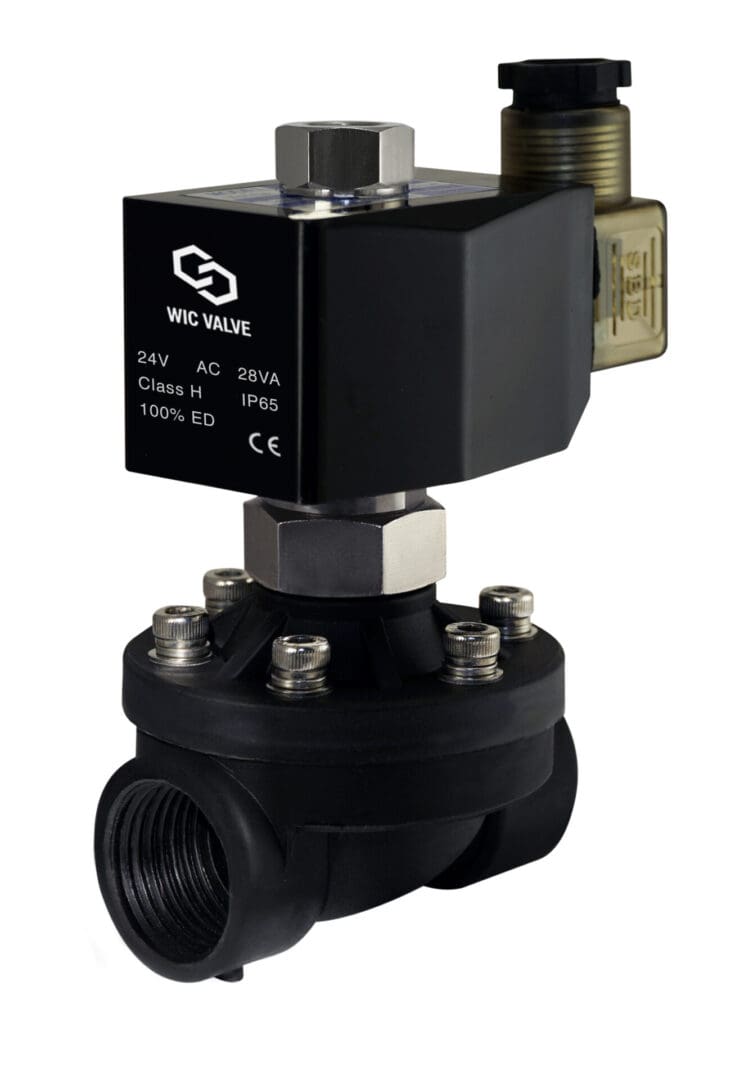

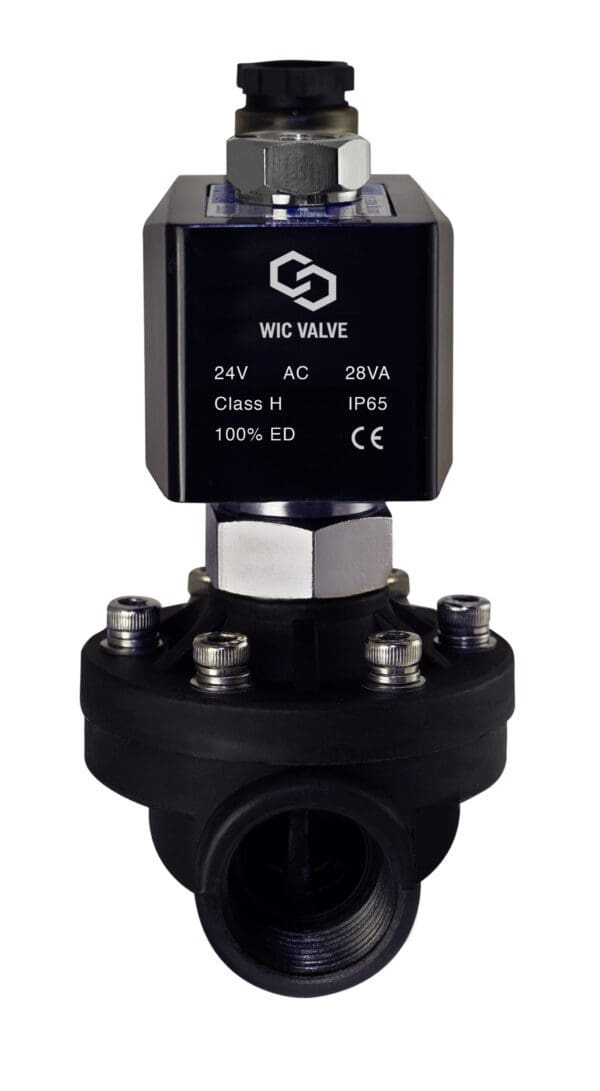

3/4″ Inch Normally Open Electric Plastic Water Solenoid Valve

WIC Valve 2POG Series 2-way normally open solenoid process valve is to control On/Off of air, inert gas, liquid, and vacuum. This solenoid valve has one 3/4″ inch NPT inlet and one 3/4″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized. Valve can be mounted in any position.



2POG Series Normally Open Plastic Electric Water Solenoid Valve Specification:

Valve Type: 2 Way Normally Open (Valve closes with energized)

Service Media: Air, Gas, Liquid, Vacuum

Operation Model: Direct Lift Diaphragm

Body Material: PA Plastic Valve Body

Seal Material: NBR (Buna N) Diaphragm & Plunger Tip

Coil Power: DC – 30W ; AC – 50/60Hz 28VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: Vacuum 0 PSI to 90 PSI

Operating Temperature: 0 to 50 °C

Port Size: 3/4″ NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

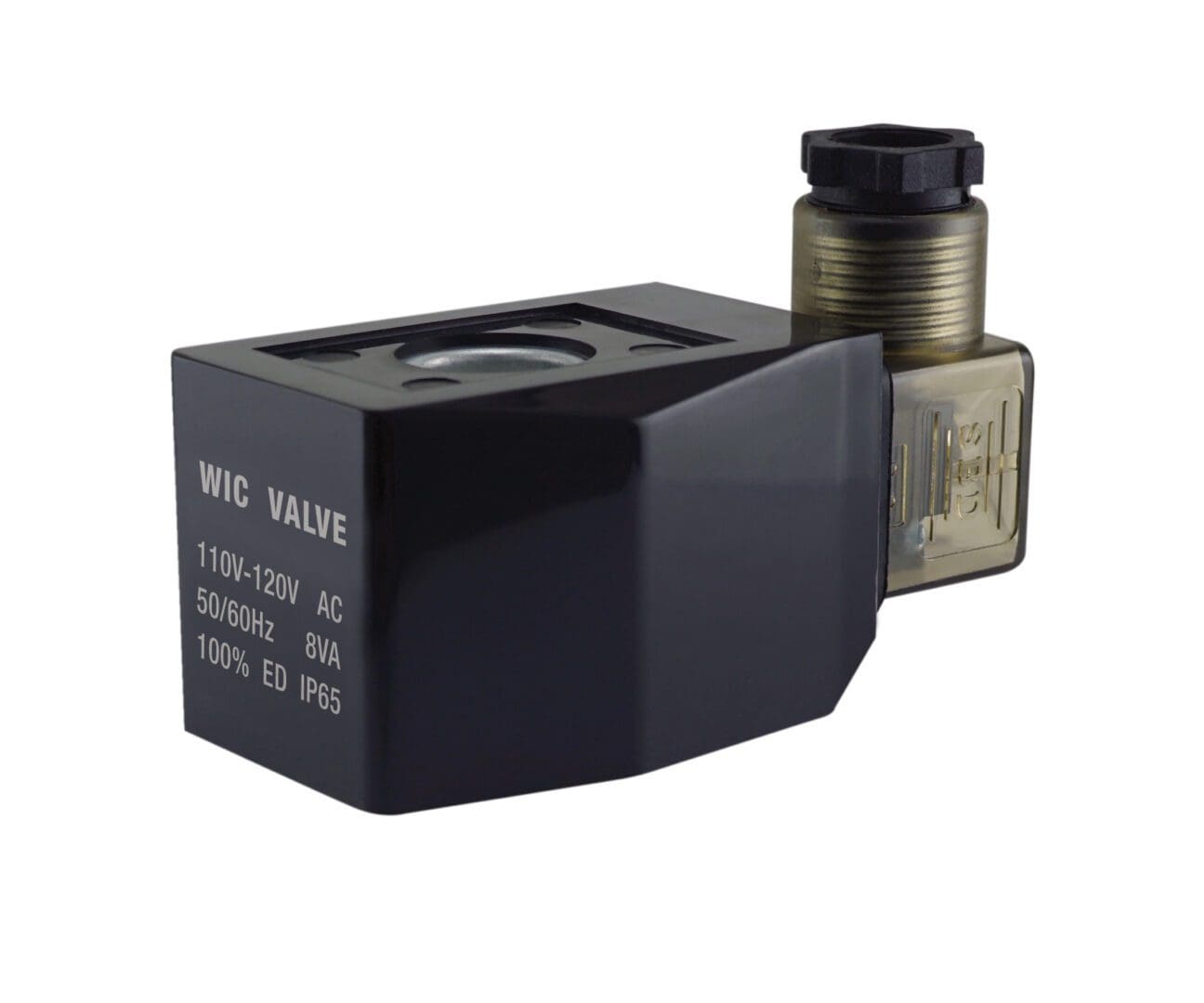

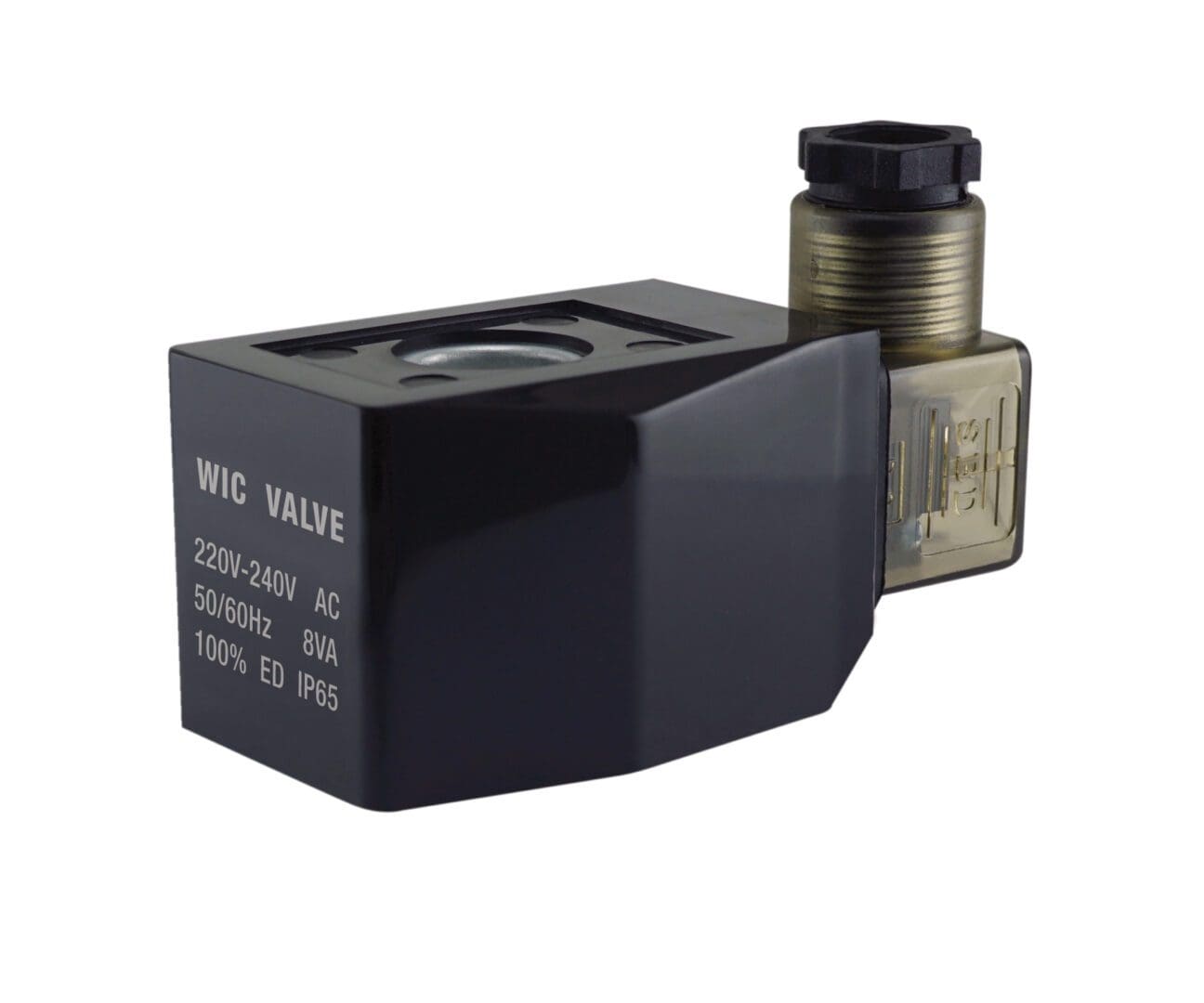

Low Power Consumption Coil: Upgrade Optional 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 50W, 110V AC – 50/60Hz 85VA, 220V AC – 50/60Hz 154VA

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator



2POG Series Normally Open PA66 Plastic Solenoid Valve Dimensions (Unit=mm):



Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C
2POG-1/2-D	1/2″	4.8	16	68	121	76
2POG-3/4-D	3/4″	7.6	20	68	125	80
2POG-1-D	1″	12	25	82	130	107



2POG Series PA 66 Plastic Normally Open Electric Solenoid Valve Component Drawing:



Frequently Asked Questions:



What is Coil with DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2POG series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.



What is ED 100% Coil Duty?

ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energised.
