3/4″ Inch Normally Open Brass Electric Solenoid Process Valve

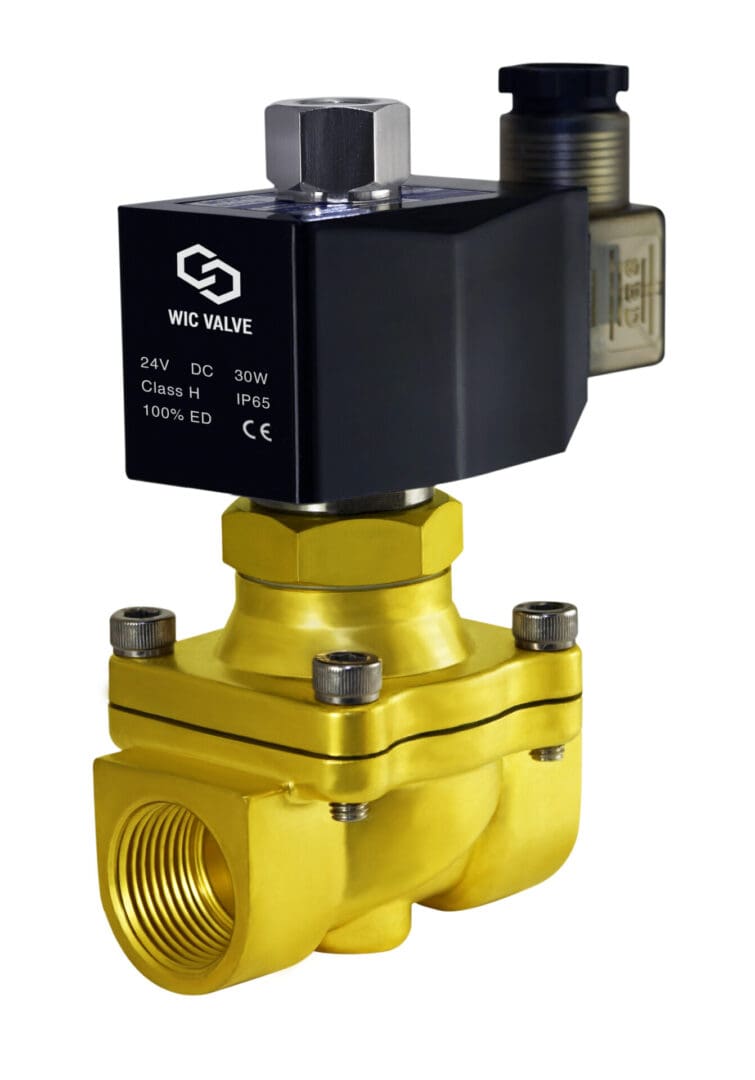

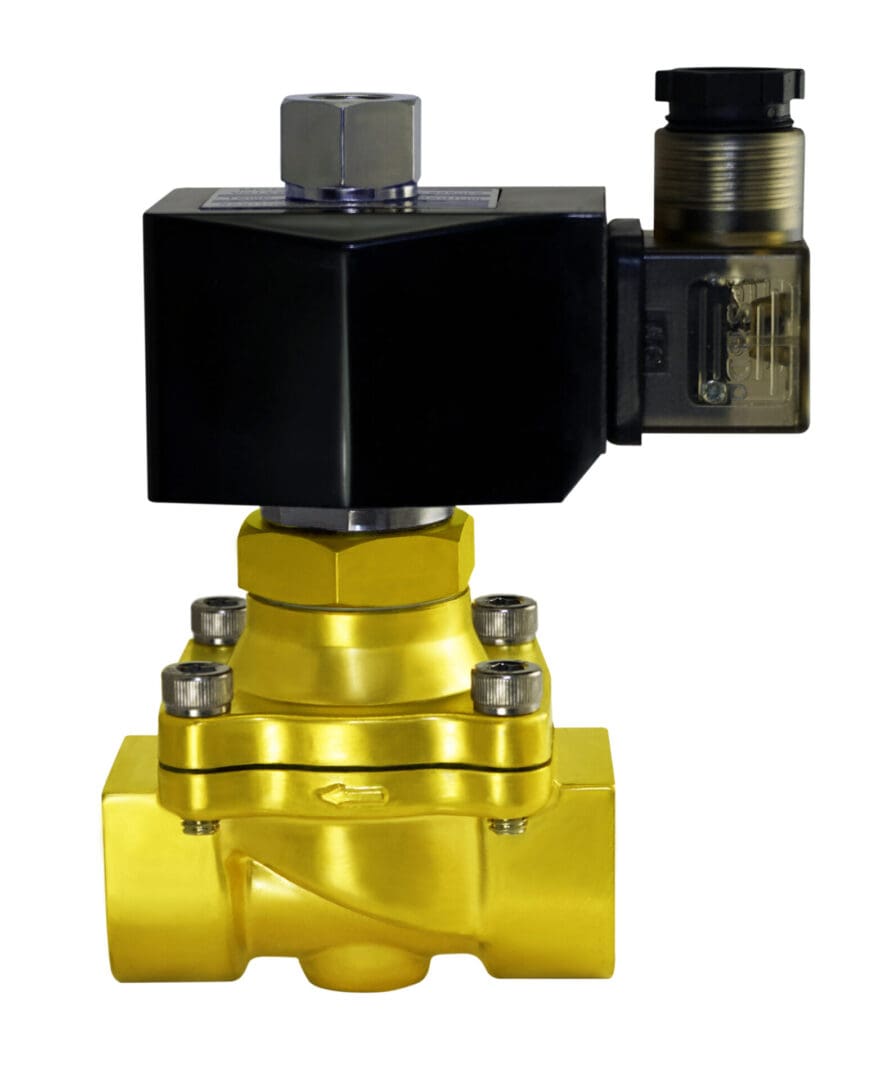

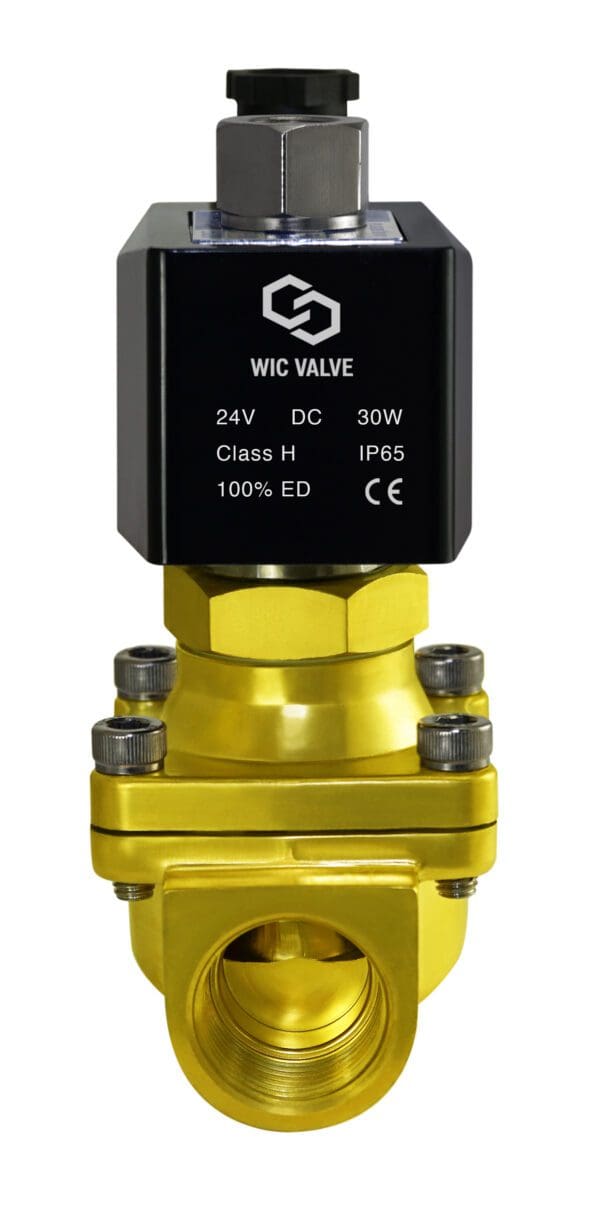

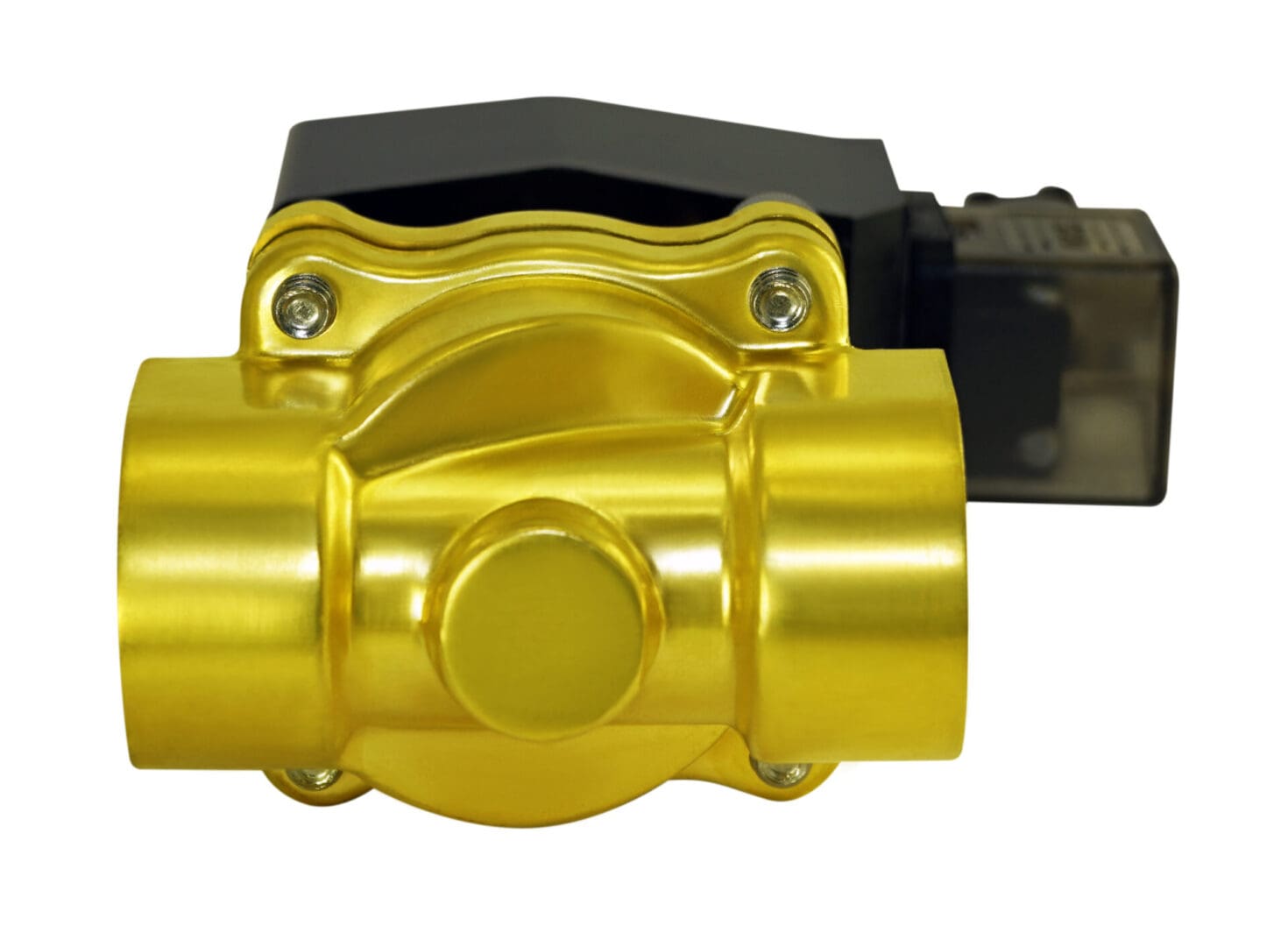

WIC Valve 2BOW Series 2-way normally open general purpose electric solenoid process valve is to control On/Off of air, inert gas, liquid and vacuum. This industrial electric solenoid valve has one inlet 3/4″ three quarter inch NPT and one 3/4″ three quarter inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized.  2BOW Series solenoid valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum) and mounted at any position.  2BOW Series industrial brass solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.



2BOW Series Normally Open Electric Solenoid Process Valve Specification:

Valve Type: 2 Way Normally Open (Valve closes with energized)

Service Media: Air, Gas, Liquid, Water, Vacuum

Operation Model: Direct Lift Diaphragm

Body Material: Brass

Seal Material: NBR (Buna N) Diaphragm & Plunger Tip

Coil Power: DC – 30W ; AC -50Hz 28VA / 60Hz 25VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: Vacuum to 90 PSI – AC Coil / Vacuum to 80 PSI – DC Coil

Operating Temperature: -10 to 80 °C

Port Size: 3/4″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

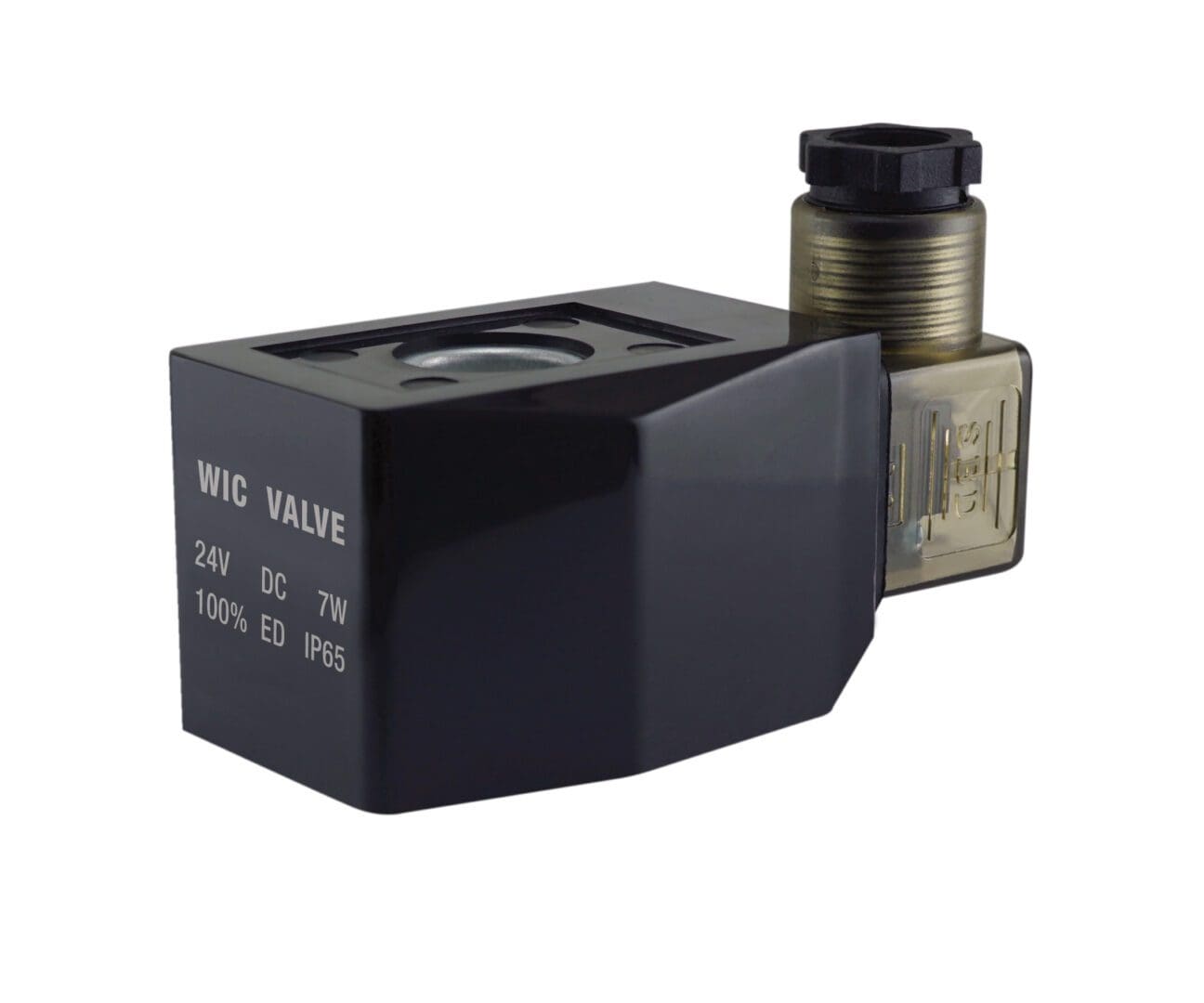

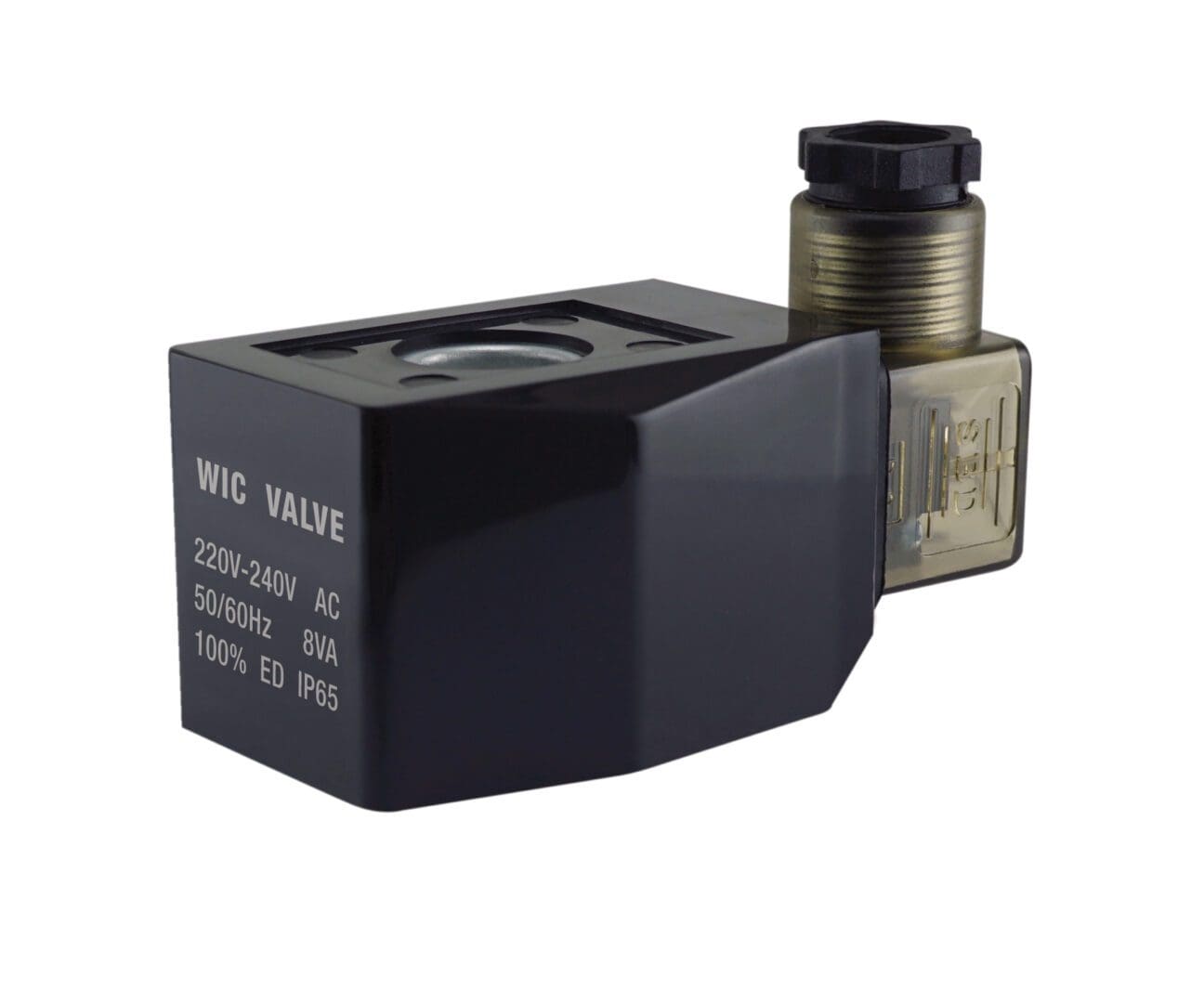

Low Power Consumption Coil: Upgrade Optional 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 50W, 110V AC – 50/60Hz 85VA, 220V AC – 50/60Hz 154VA

Low Power Coil Certification: CE Certification DC Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator



2BOW Series Normally Open Electric Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D
2BOW-3/8-D	3/8″	4.8	16	56	118	131	68
2BOW-1/2-D	1/2″	4.8	16	56	118	131	68
2BOW-3/4-D	3/4″	7.6	20	56	123	140	73
2BOW-1-D	1″	12	25	74	147	168	100
2BOW-1 1/4-D	1-1/4″	24	35	85	160	185	110
2BOW-1 1/2-D	1-1/2″	29	40	90	165	193	120
2BOW-2-D	2″	48	50	115	176	210	155
