3/4 High Pressure Normally Open 725 PSI Electric Solenoid Valve

$534.70

Description

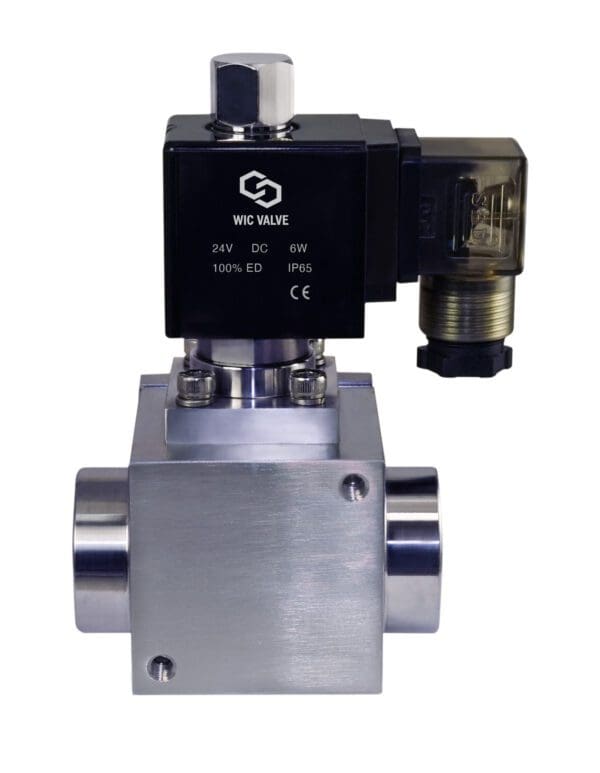

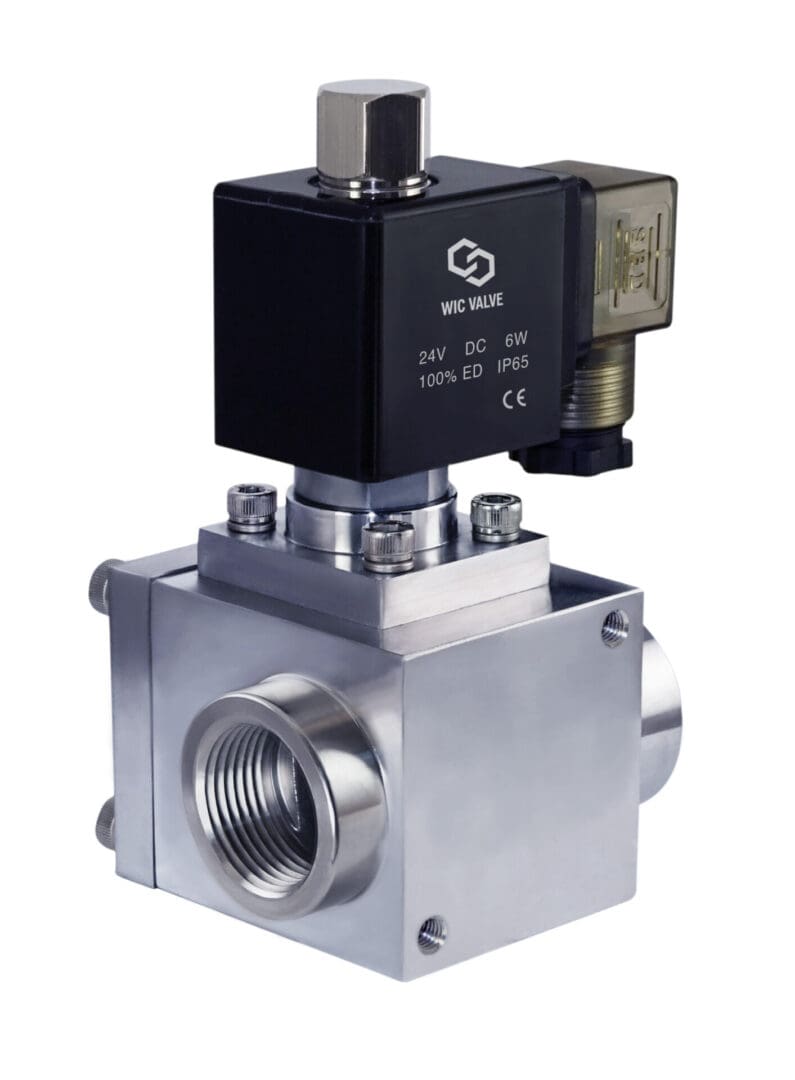

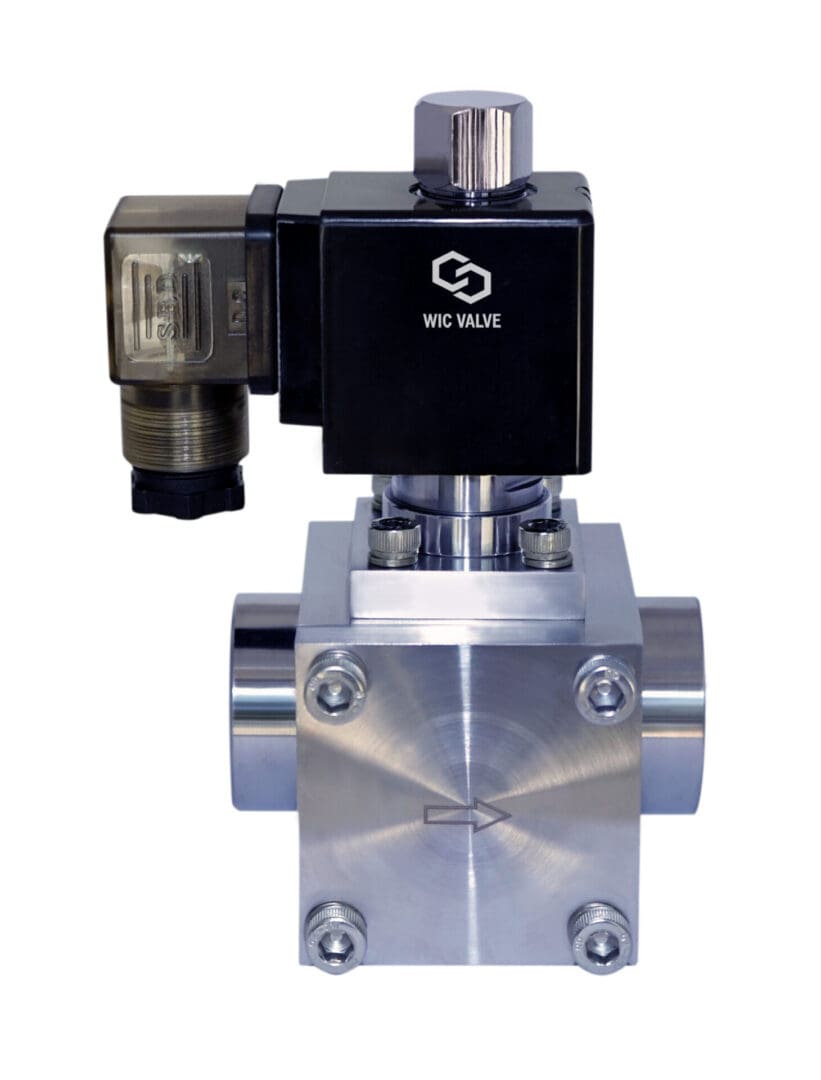

3/4″ Inch Normally Open High Pressure 725 PSI Stainless Steel Electric Solenoid Process Valve Teflon PTFE Seal



WIC Valve 2SOE Series 2-way normally open solenoid process valve is to control On/Off of air, inert gas, liquid, and water. This industrial normally open process solenoid valve has one 3/4″ inch NPT inlet and one 3/4″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized. Valve can be mounted in any position.  2SOE Series high pressure pilot piston electric valve requires minimum of 90 PSI to operate and maximum pressure up to 725 PSI.  2SOE Series high pressure electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service for constantly energized.  This industrial high pressure normally open electric solenoid valve features with 2 of M6 threads convenient mounting holes that provide easy and secure installation.



2SOE Series Normally Open Stainless High Pressure Electric Solenoid Process Valve Specification:

Model Number: 2SOE-3/4-D-L

Valve Type: 2 Way Normally Open (Valve closes with energized)

Service Media: Air, Gas, Liquid, Water

Operation Model: Pilot Piston

Flow Model: Uni-Directional

Body Material: 304 Stainless Steel

Seal Material: Teflon (PTFE)

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Low Power Consumption Coil power: 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA

Low Power Coil Certification: CE Certification DC Coil

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 90 – 725 PSI

Operating Temperature: -5 to 80 °C

Port Size: 3/4″ Inch NPT Female Port

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator

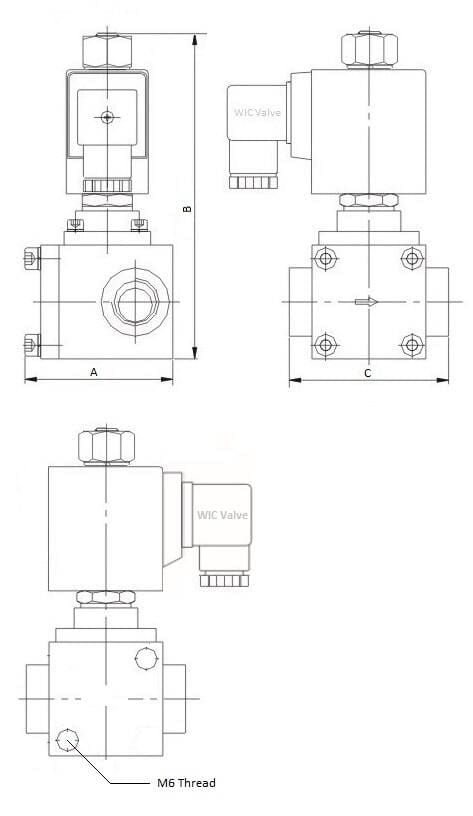

2SOE Series Normally Open High Pressure Electric Solenoid Valve Dimensions (Unit=mm):

Model # Port Size (NPT) Flow Rate (Cv) Orifice Size  A B C Weight (lbs)
2SOE-1/2-D-L 1/2″ 4.7 15 65 138 70 3.5
2SOE-3/4-D-L 3/4″ 7 20 74 142 80 4.3
2SOE-1-D-L 1″ 11 25 87 152 90 5.8



Additional information

Weight 4.50 lbs
Dimensions 6.00 × 5.00 × 4.00 in
Coil Voltage

12V DC, 24V DC, 24V AC, 110V AC, 220V AC
