3/16″ Inch Pneumatic Straight Union Air Push In Fitting

$1.33

WIC Valve pneumatic composite push in fitting equipped with one touch release button provides easy and quick tubing connections with no special tools required.



In stock (can be backordered)

Description

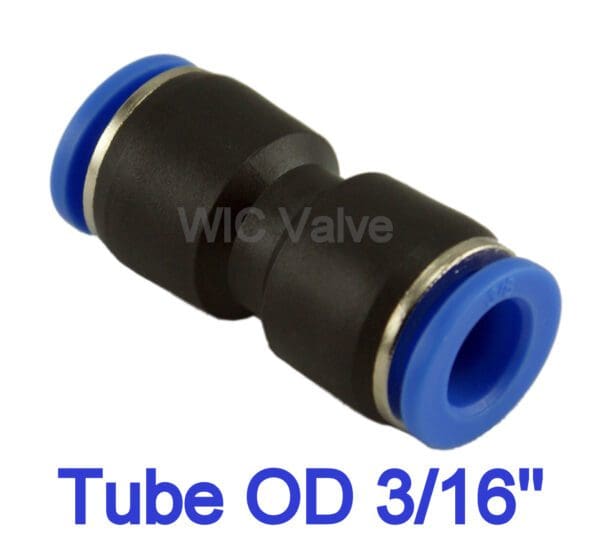

Straight Union Connector Tube OD 3/16″ Quick Release Push In To Connect Fitting

WIC Valve PSU Series composite one touch push in to connect fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required.  Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow.



Pneumatic Straight Union Air Fitting Specifications
Operating Pressure 0 – 150 PSI 0 – 990 kpa
Vacuum 0 – 29.5 in Hg 750 mm Hg
Operating Temperature 0 – 60 °C 32 to 140°F
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene.



Material of Construction
Plastic Body PBT (Polybutylene terephthalate)
Metal Body Nickel Plated Brass
Release Button POM (Poly oxy methylene copolymer)
Grip Ring Stainless Steel
Thread Sealant Teflon
O-ring NBR (Buna-N)



Schematic of Composite Push In Fitting Construction:

Pneumatic Push In Fitting Construction

Straight Union Connector Dimensions:
Straight Union Connector Fitting Dimension

PSU Series Straight Union Connector
Part No. Tube OD (Inch) D E Price
PSU-T1/8 1/8″ 1.24 0.41 $1.17
PSU-T5/32 5/32″ 1.24 0.41 $1.24
PSU-T3/16 3/16″ 1.36 0.44 $1.33
PSU-T1/4 1/4″ 1.50 0.52 $1.47
PSU-T5/16 5/16″ 1.54 o.58 $1.51
PSU-T3/8 3/8″ 1.85 0.72 $1.54
PSU-T1/2 1/2″ 1.82 0.85 $1.81


Fitting Installation and Removal Guide:

To install the tubing into fitting

1) Cut the tubing square ensure the outside diameter is free of score marks and no burrs.

2) Simply push tubing past the O-ring to the internal tube dead stop by hand.

3) Pull the tubing back gently to ensure it is secure for leakproof connections.

To remove the tubing from fitting

1) Press evenly on both sides of the release button against fitting body, keep the release button (collet) depressed and held in this position

2) Pull the tubing to slide out.

Additional information

Weight 0.05 lbs
Dimensions 1.00 × 0.50 × 0.50 in
