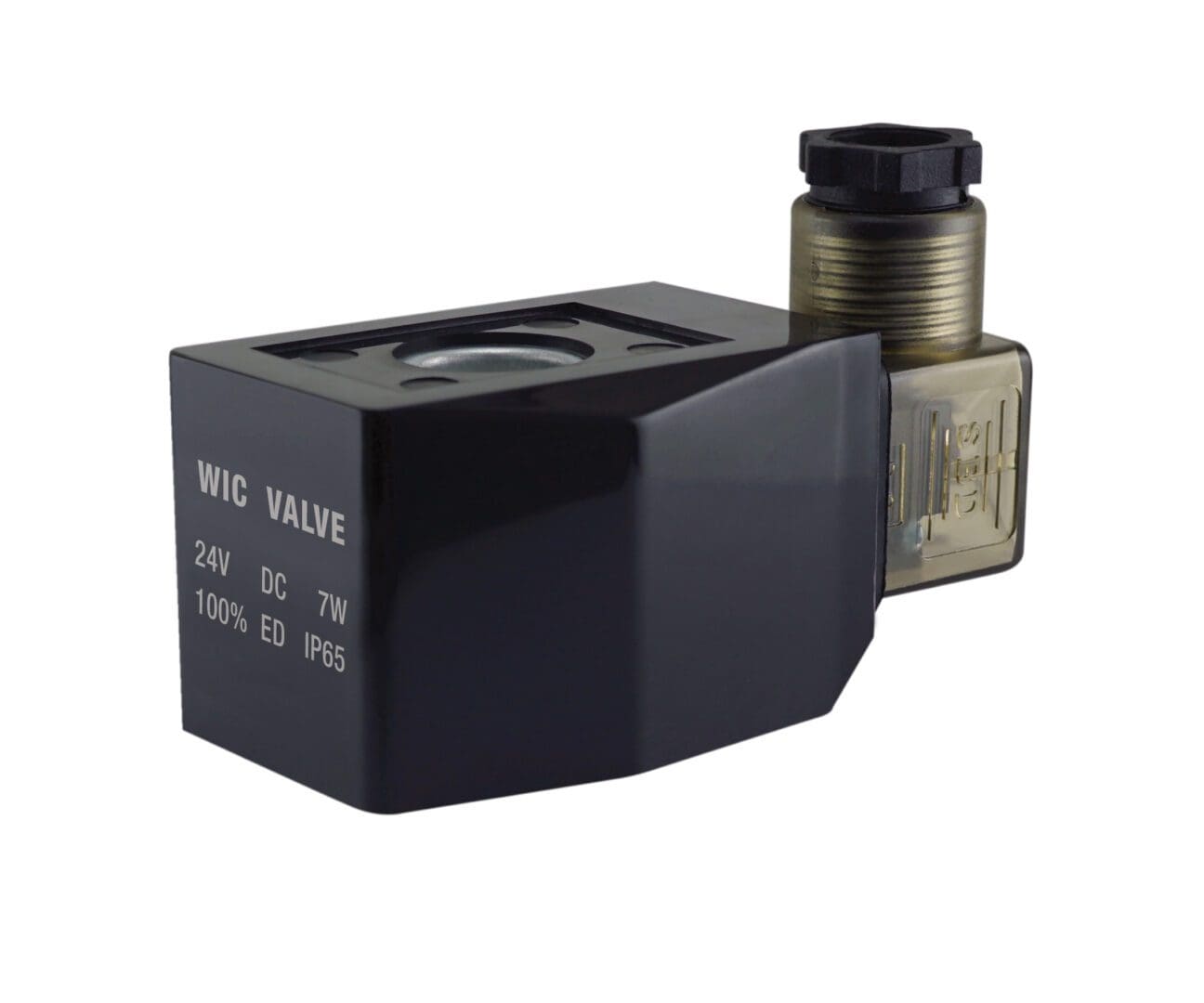

2P Series 24V DC Low Power Consumption Solenoid Valve Coil

$38.00

WIC Valve 2P Series 24 Volt DC Low Power Consumption Solenoid Coil with DIN 43650AConnector and LED Indicator Class H IP 65 Continuous Duty Coil.



In stock (can be backordered)

SKU: 2P-24VDC-D-L Categories: ,
24V DC Low Power Consumption Energy Efficient Continuous Duty Valve
Wisdom International Corporation WIC Valve

Description

24V DC Low Power Consumption Electric Solenoid Valve Continuous Duty Coil



2P Series Low Power Consumption Electric Solenoid Coil Specification:

Model Number: 2P-24VDC-D-L

Coil Power: 7W

Coil Class: H Class IP 65 (CE Certification)

Coil Duty: 100% ED (Continuous Duty)

Coil Voltage: 24V DC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator



2P Series Energy Efficient Solenoid Coil Dimensions:

WIC Valve 2P Series Continuous Duty Solenoid Valve Coil Dimensions

DIN 43650A Connector Dimensions:

DIN 43650A Connector Dimensions

What is the advantages to use DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector.  The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.



What is IP65?

Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures – IP Code), specifying the environmental protection the enclosure provides.

The IP rating normally has two (or three) numbers:

1) Protection from solid objects or materials

2) Protection from liquids (water)

3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)

IP First number – Protection against solid objects

0 No special protection
1 Protected against solid objects over 50 mm, e.g. accidental touch by persons hands.
2 Protected against solid objects over 12 mm, e.g. persons fingers.
3 Protected against solid objects over 2.5 mm (tools and wires).
4 Protected against solid objects over 1 mm (tools, wires, and small wires).
5 Protected against dust limited ingress (no harmful deposit).
6 Totally protected against dust.

IP Second number – Protection against liquids

0 No protection.
1 Protection against vertically falling drops of water e.g. condensation.
2 Protection against direct sprays of water up to 15o from the vertical.
3 Protected against direct sprays of water up to 60o from the vertical.
4 Protection against water sprayed from all directions – limited ingress permitted.
5 Protected against low pressure jets of water from all directions – limited ingress.
6 Protected against temporary flooding of water, e.g. for use on ship decks – limited ingress permitted.
7 Protected against the effect of immersion between 15 cm and 1 m.
8 Protects against long periods of immersion under pressure.

Additional information

Weight 0.90 lbs
Dimensions 3.00 × 3.00 × 2.00 in
