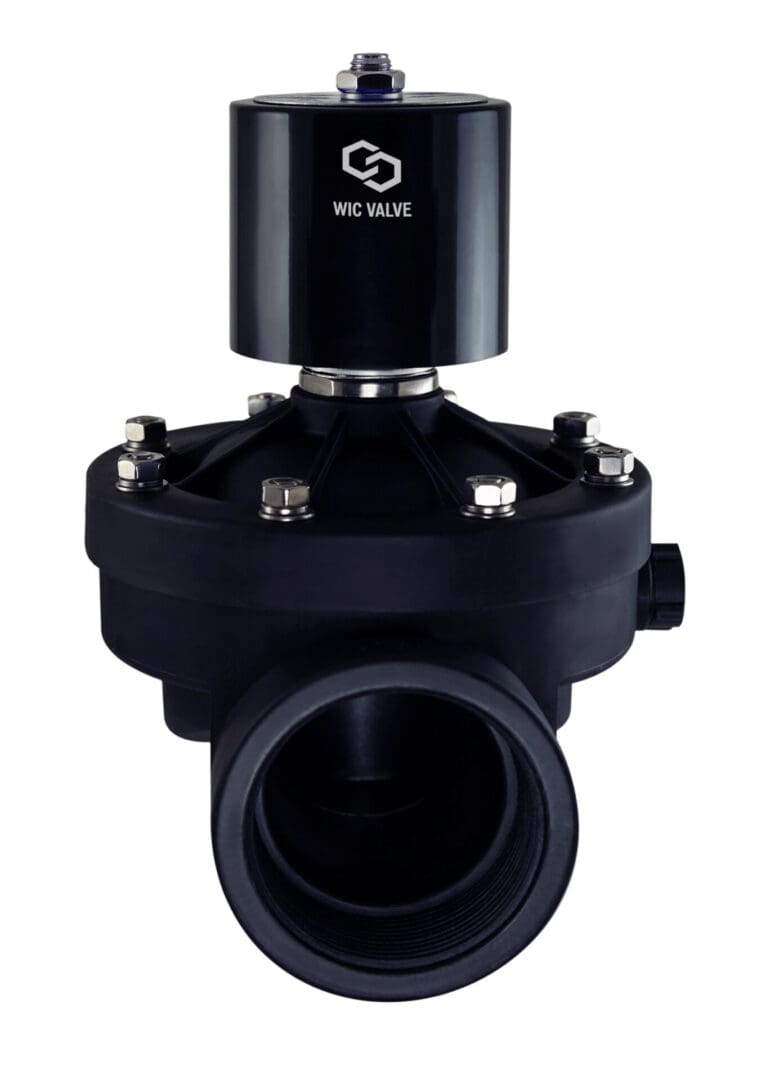

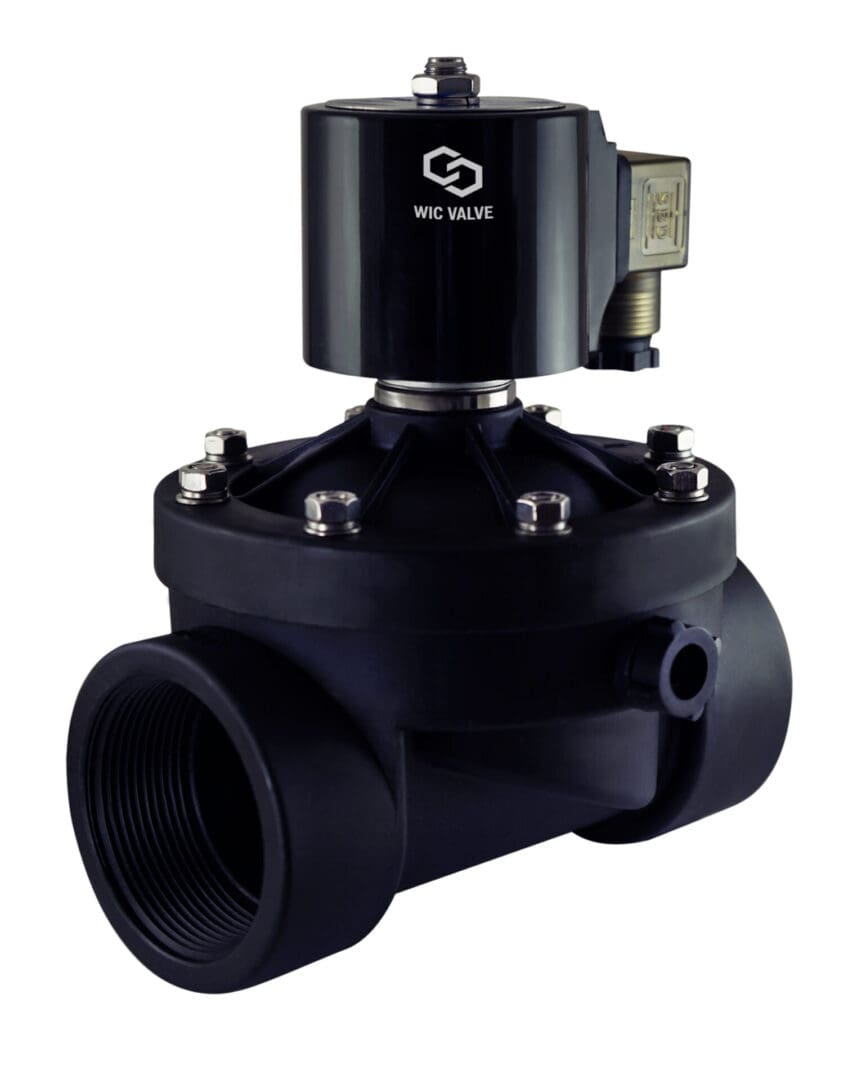

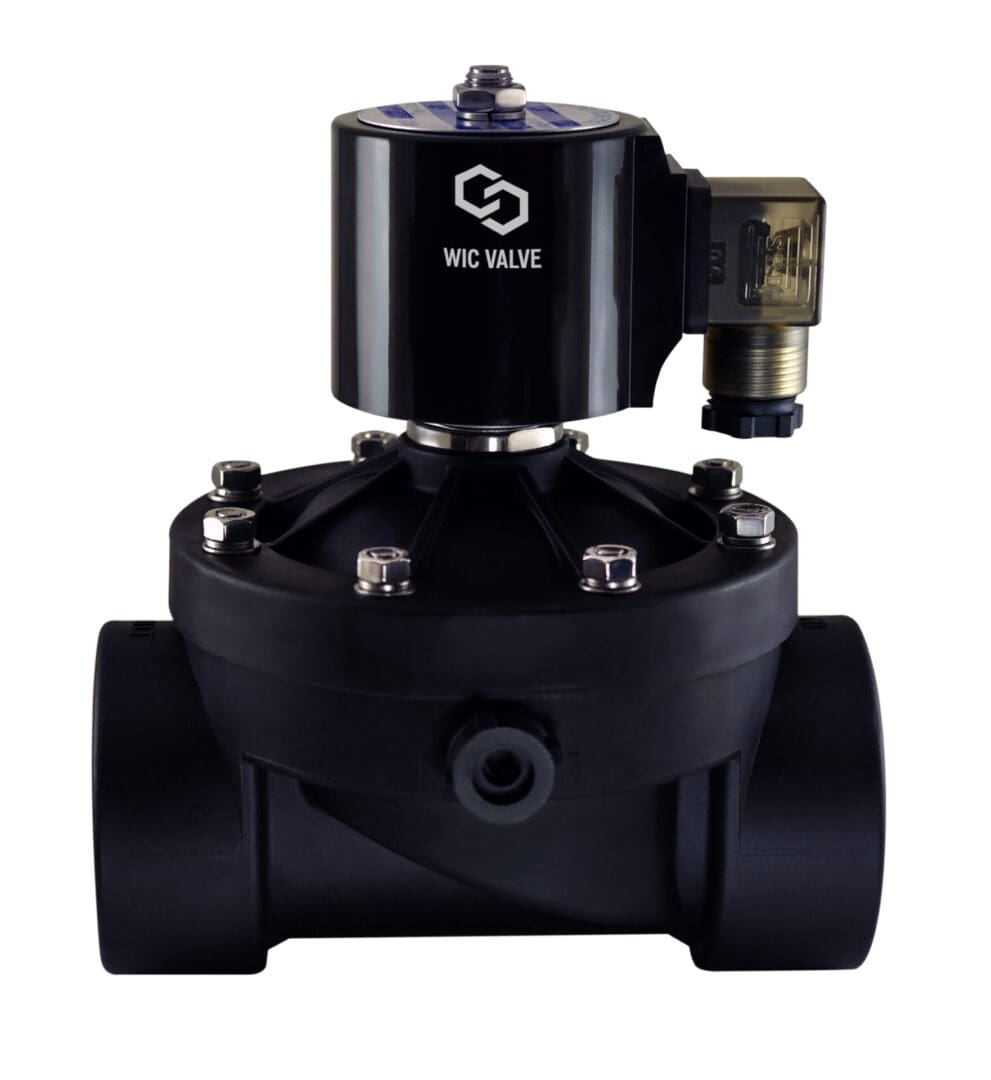

2″ Inch PA66 Plastic Zero Differential Electric Solenoid Valve



WIC Valve 2PCG Series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid and vacuum. This PA66 high flow electric solenoid valve has one 2″ inlet and one 2″ outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2PCG Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  2PCG series high flow electric valve is a zero differential solenoid valve which can be operated at 0 PSI (Vacuum), no minimum pressure is required.  Valve can be mounted in any position.



2PCG Series Two Inch Plastic Electric Solenoid Valve Specification:

Model Number: 2PCG-2-D

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water, Vacuum

Operation Model: Direct Lift Diaphragm

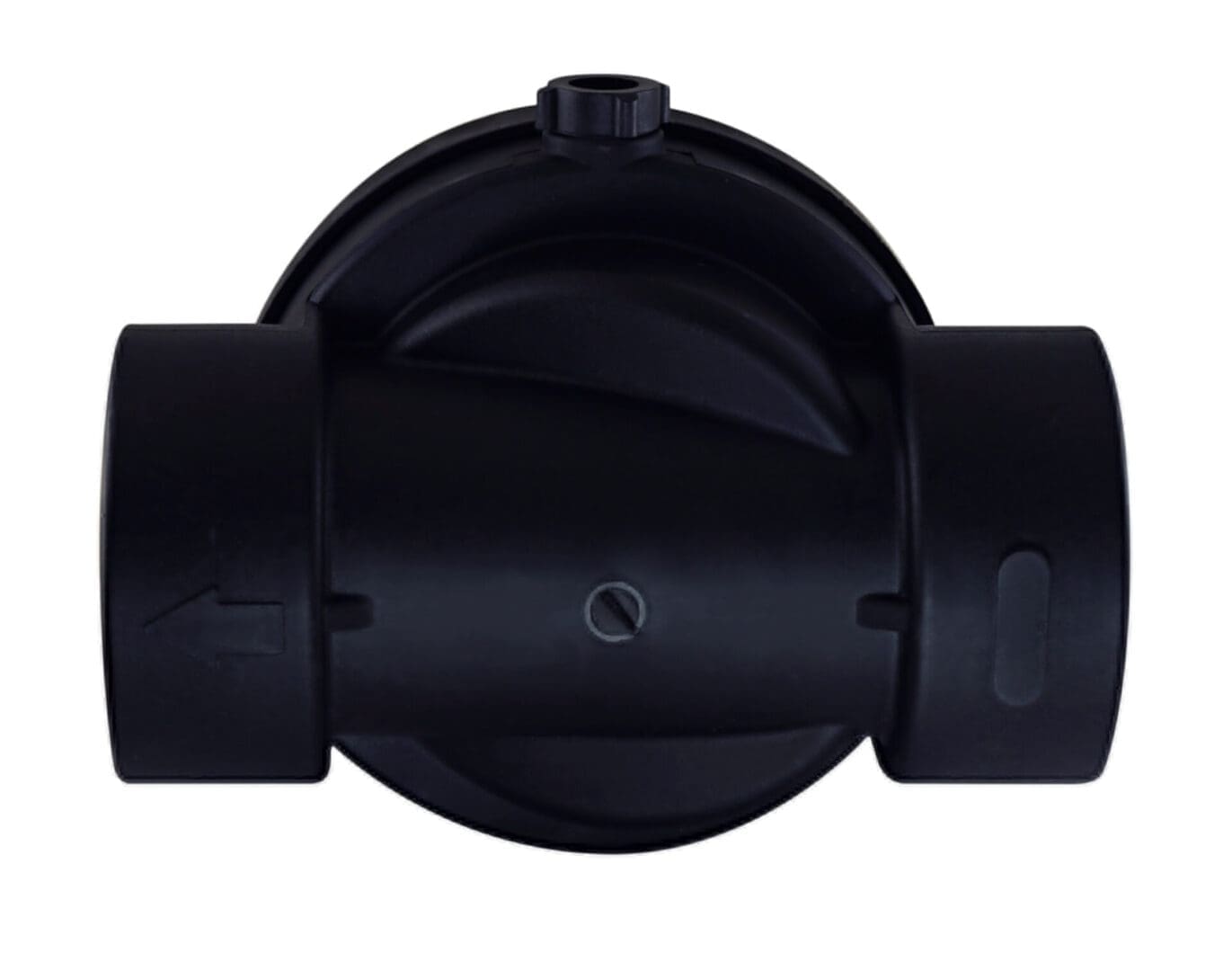

Flow Model: Uni-Directional

Body Material: PA66 Plastic Valve Body

Seal Material: NBR (Buna N) Diaphragm & Plunger Tip

Coil Power: DC: 30-40W, AC: 35VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: Vacuum 0 PSI to 90 PSI

Operating Temperature: 0 to 50 °C or 32 to 122 °F

Port Size: 2″ Inch NPT Female Port

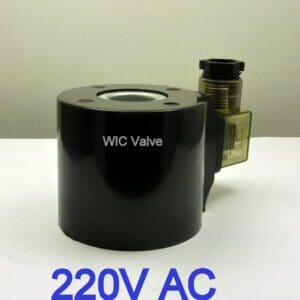

Coil Voltage Option: 12V DC, 24V DC, 110V AC, 220V AC

Low Power Consumption Coil: Upgrade Optional: 24V DC – 8W, 24V AC – 7VA, 110V AC – 7VA, 220V AC – 9VA

Low Power Consumption Inrush Current: 24V DC – 75W, 24V AC – 121VA, 110V AC – 50/60Hz 82VA, 220V AC – 50/60Hz 170VA

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator

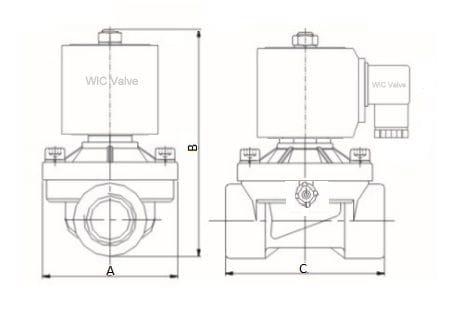

2PCG Series PA66 Plastic Solenoid Process Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C
2PCG-1/2-D	1/2″	4.8	17	68	107	76
2PCG-3/4-D	3/4″	7.6	17	68	111	80
2PCG-1-D	1″	12	20	82	117	107
2PCG-1 1/4-D	1-1/4″	24	22	112	160	140
2PCG-1 1/2-D	1-1/2″	29	22	112	170	140
2PCG-2-D	2″	48	48	130	190	159

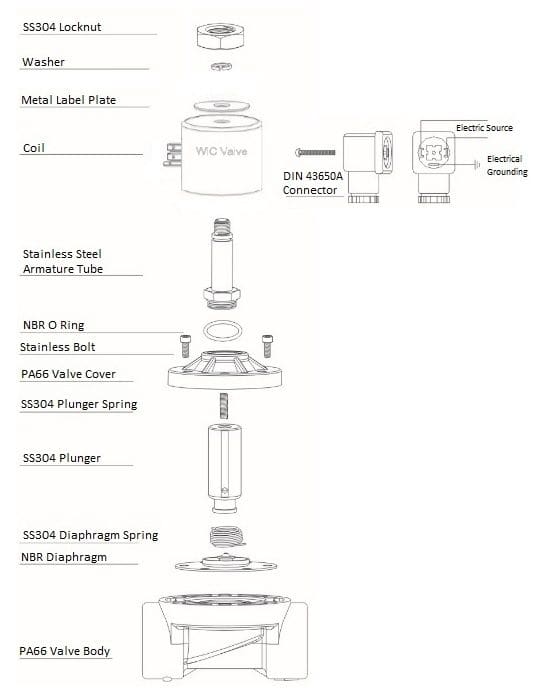

2PCG Series Plastic Electric Solenoid Valve Component Drawing:
