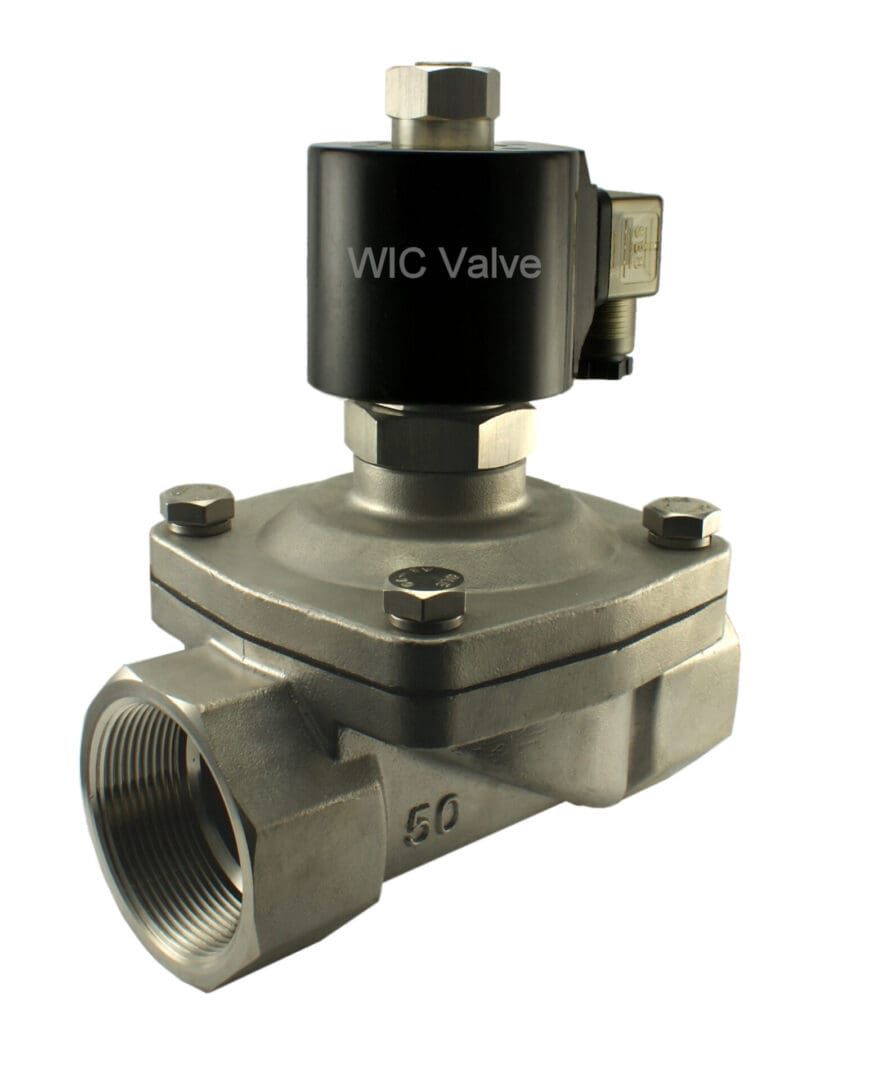

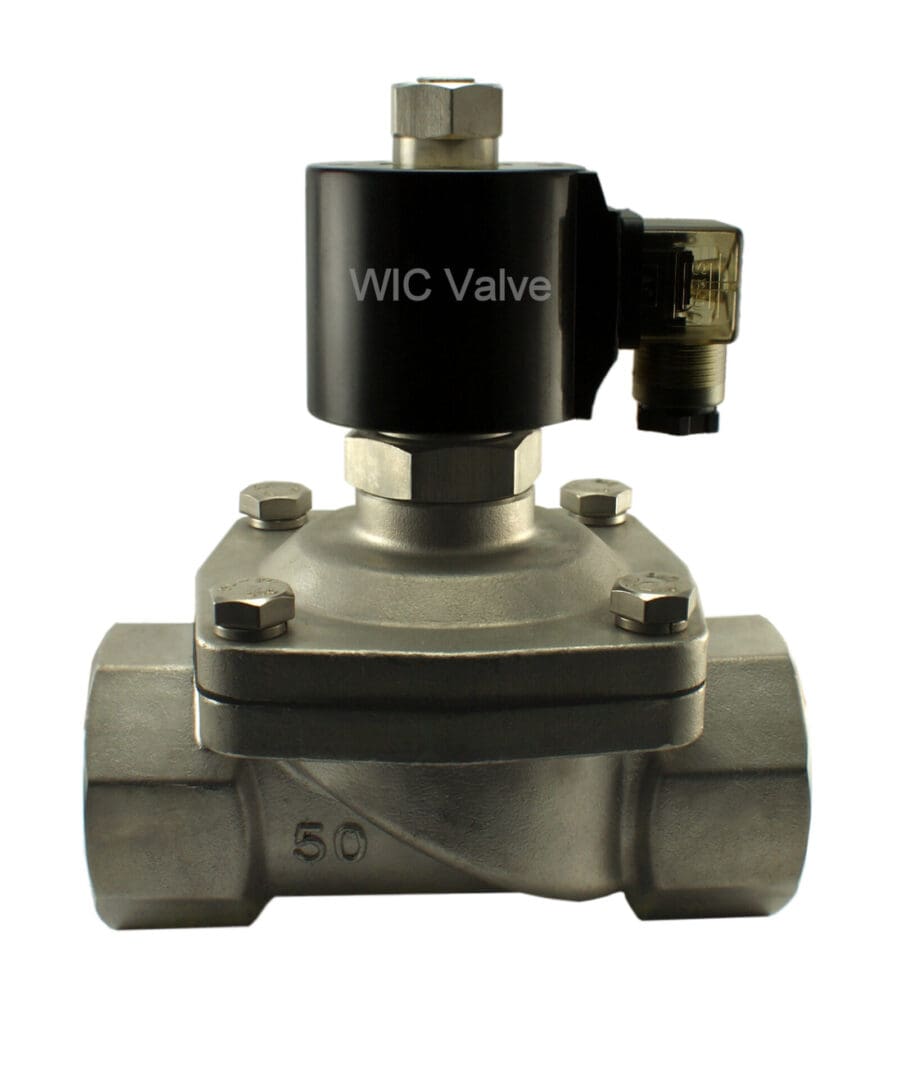

2″ Inch Normally Open Zero Differential Electric Solenoid Valve

WIC Valve 2SOW Series 2-way normally open general purpose electric solenoid process valve is to control On/Off of air, inert gas, liquid, water and vacuum. This industrial electric solenoid valve has one 2″ inch NPT inlet and one 2″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized.  2SOW Series solenoid valve is a Zero differential solenoid valve, it can be operated at 0 PSI (Vacuum) and mounted at any position.  2SOW Series normally open stainless steel electric process valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.



2SOW Series 2 Inch Normally Open Electric Solenoid Process Valve Specification:

Valve Type: 2 Way Normally Open (Valve closes with energized)

Service Media: Air, Gas, Liquid, Vacuum, Water

Operation Model: Direct Lift Diaphragm

Flow Model: Uni-Directional

Body Material: Stainless Steel Valve Body

Seal Material: Viton on Diaphragm & Plunger Tip

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC -40W ; AC – 50Hz 35VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: Vacuum 0 PSI to 90 PSI with AC Coil / Vacuum 0 PSI to 80 PSI with DC Coil

Operating Temperature: -15 to 120 °C

Port Size: 2″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Low Power Consumption Coil: Upgrade Optional: 24V DC – 8W, 24V AC – 7VA, 110V AC – 7VA, 220V AC – 9VA

Low Power Consumption Inrush Current: 24V DC – 75W, 24V AC – 121VA, 110V AC – 50/60Hz 82VA, 220V AC – 50/60Hz 170VA

Low Power Coil Certification: CE Certification DC Coil

Operating Temperature: -15 to 80 °C (5 to 176 °F) With Low Power Consumption Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator



2SOW Series Normally Open Stainless Steel Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D
2SOW-3/8-D-V	3/8″	4.8	16	56	118	131	68
2SOW-1/2-D-V	1/2″	4.8	16	56	118	131	68
2SOW-3/4-D-V	3/4″	7.6	20	56	123	140	73
2SOW-1-D-V	1″	12	25	74	147	168	100
2SOW-1 1/4-D-V	1-1/4″	24	35	85	160	185	110
2SOW-1 1/2-D-V	1-1/2″	29	40	90	165	193	120
2SOW-2-D-V	2″	48	50	115	176	210	155



2SOW Series Normally Open Stainless Steel Electric Solenoid Valve Component Drawing:
