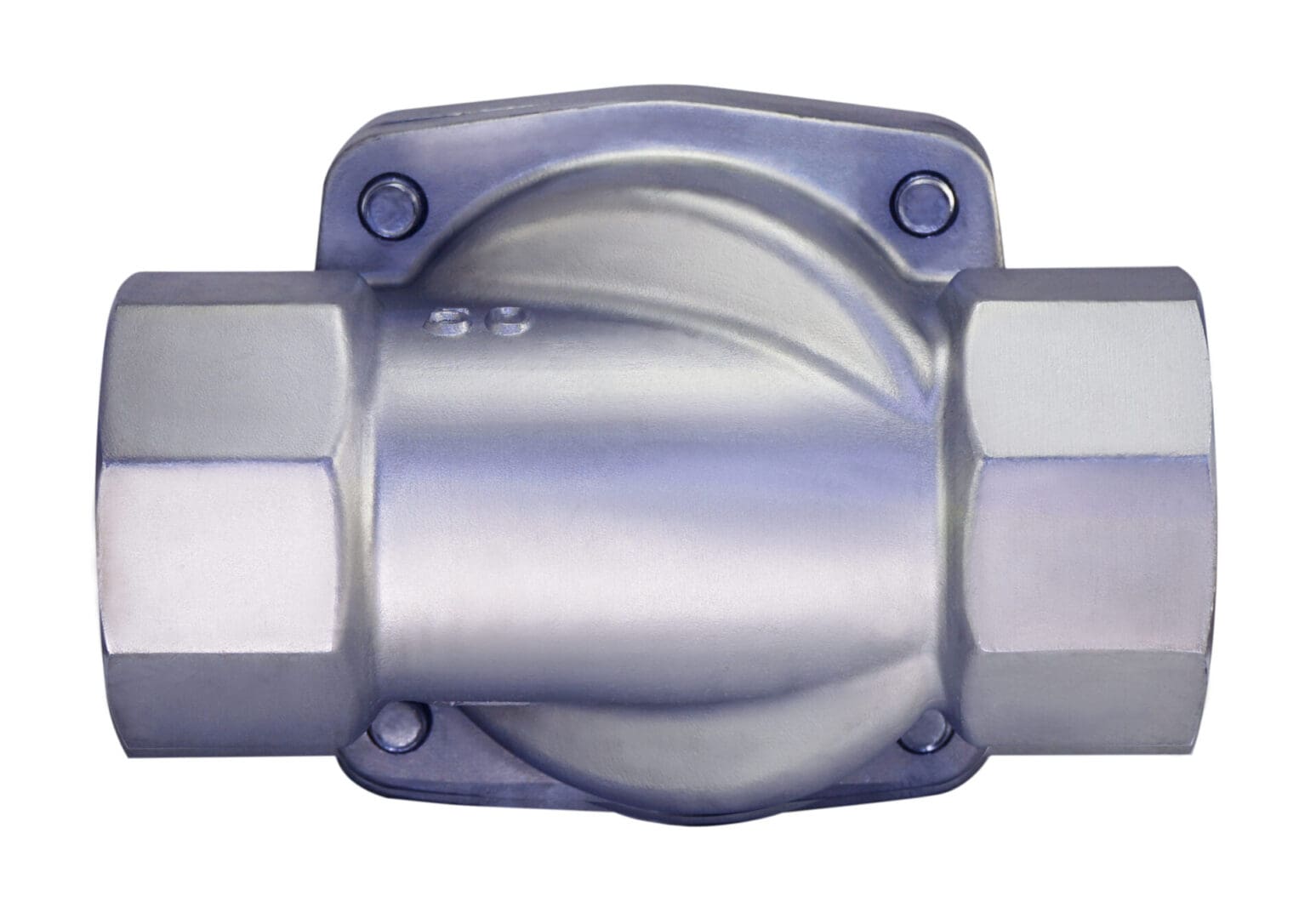

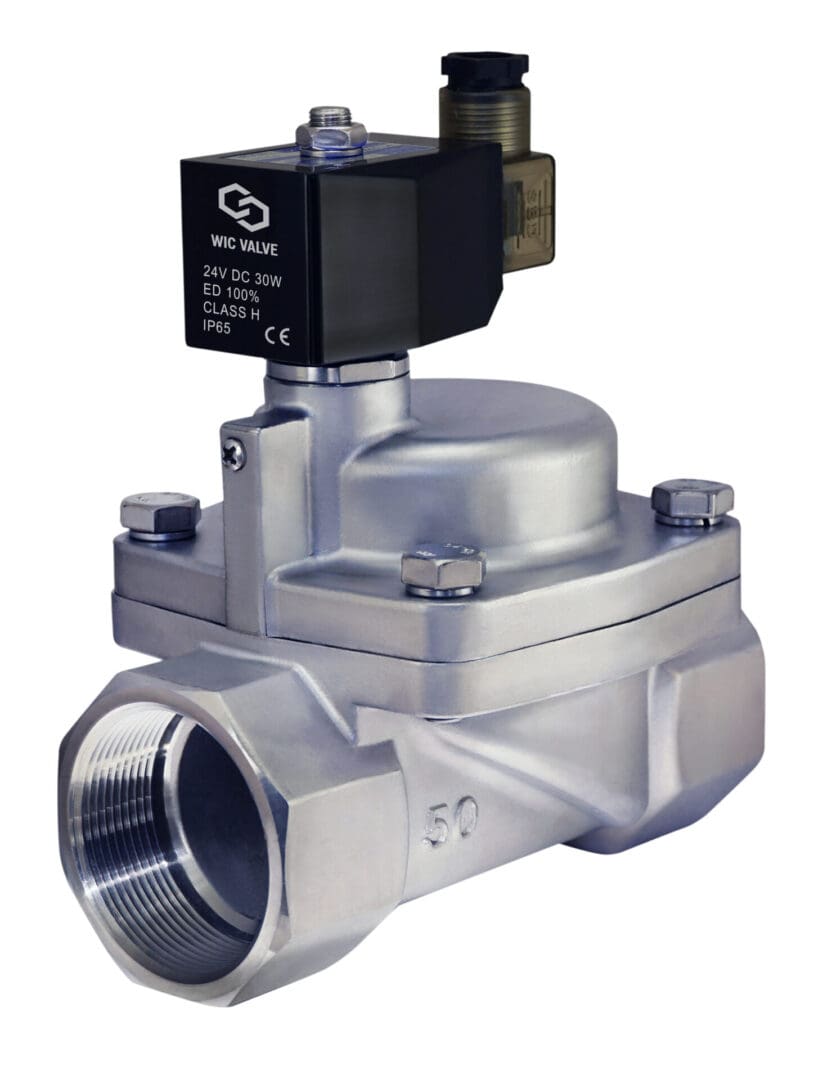

2″ Inch High Pressure Electric Solenoid Steam Process Valve NC

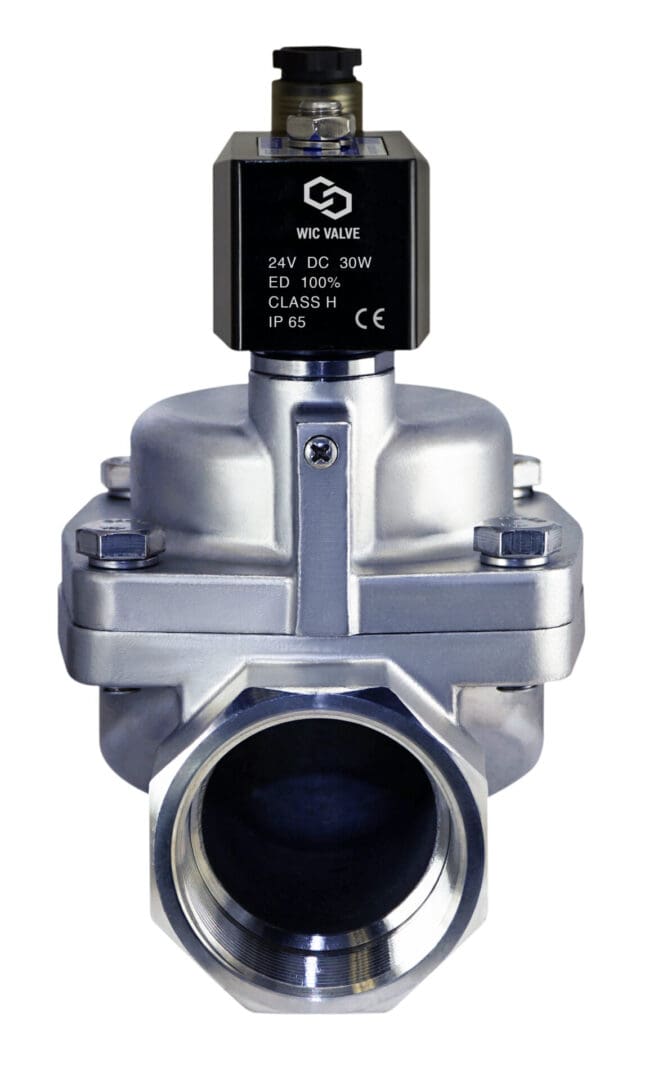

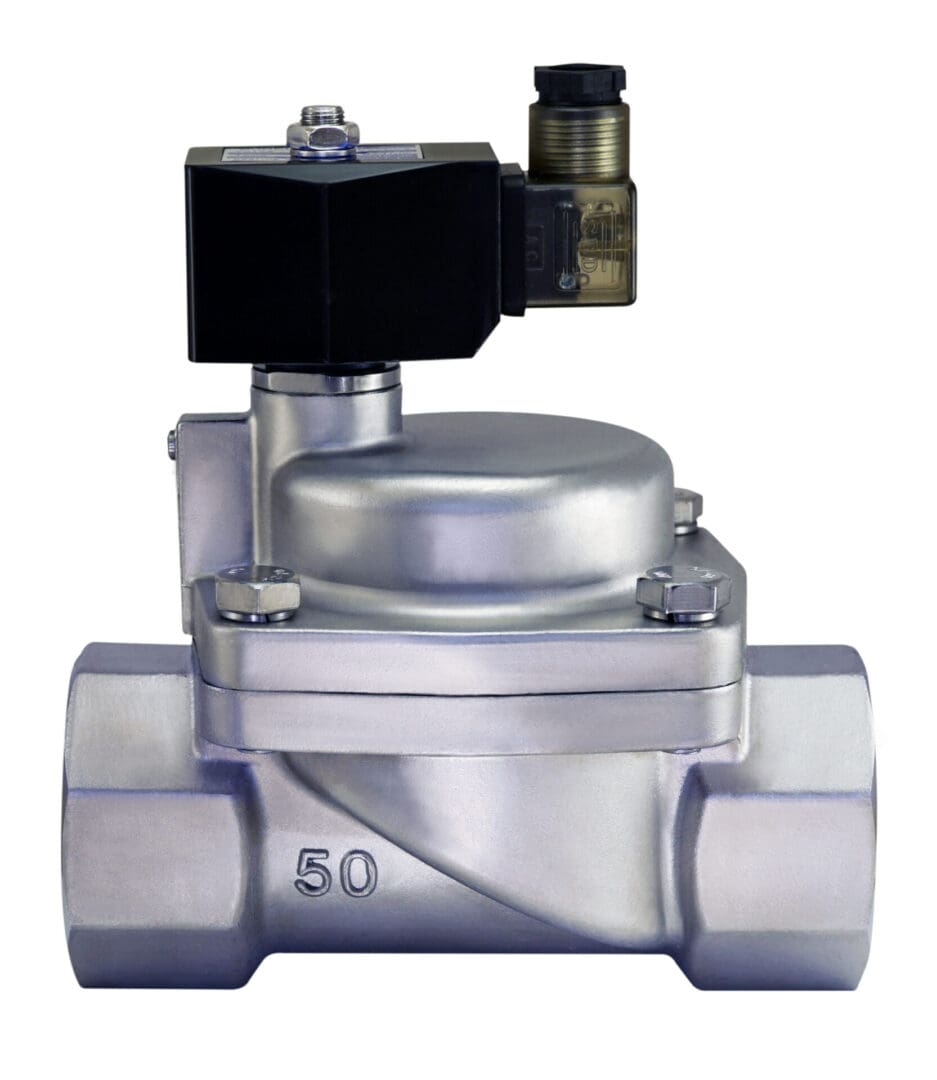

WIC Valve 2SCM Series 2-way normally closed high pressure electric solenoid steam process valve is to control On/Off of air, inert gas, liquid, hot water and steam. This industrial electric solenoid steam valve has one 2″ inch NPT inlet and one 2″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve can be mounted in any position.  2SCM Series high pressure pilot piston steam valve requires minimum of 7 PSI to operate and maximum pressure up to 230 PSI.  This steam solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service for constantly energized.



2SCM Series Electric High Pressure Steam Solenoid Process Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, hot Water, Steam

Operation Model: Pilot Piston

Flow Model: Uni-Directional

Body Material: Stainless Steel

Seal Material: Teflon (PTFE)

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC – 30W ; AC – 50/60Hz 28VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 7 to 230 PSI

Operating Temperature: -20 to 180 °C

Port Size: 2″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator



2SCM Series High Pressure Steam Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D
2SCM-3/8-D	3/8″	4.8	15	53	122	135	70
2SCM-1/2-D	1/2″	4.8	15	53	122	135	70
2SCM-3/4-D	3/4″	7.6	20	57	126	142	75
2SCM-1-D	1″	12	25	69	130	152	94
2SCM-1 1/4-D	1-1/4″	24	32	85	139	163	110
2SCM-1 1/2-D	1-1/2″	29	40	90	140	170	122
2SCM-2-D	2″	48	50	117	153	175	165

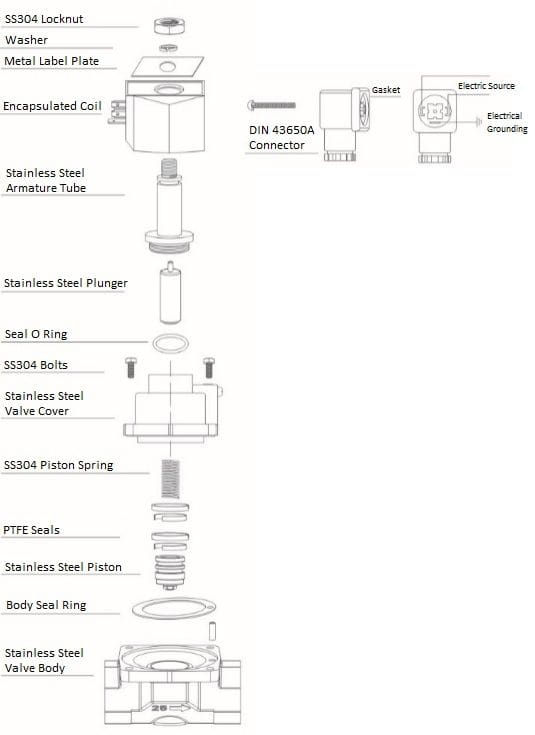

2SCM Series Stainless Steel Electric High Pressure Steam Solenoid Valve Component Drawing:
