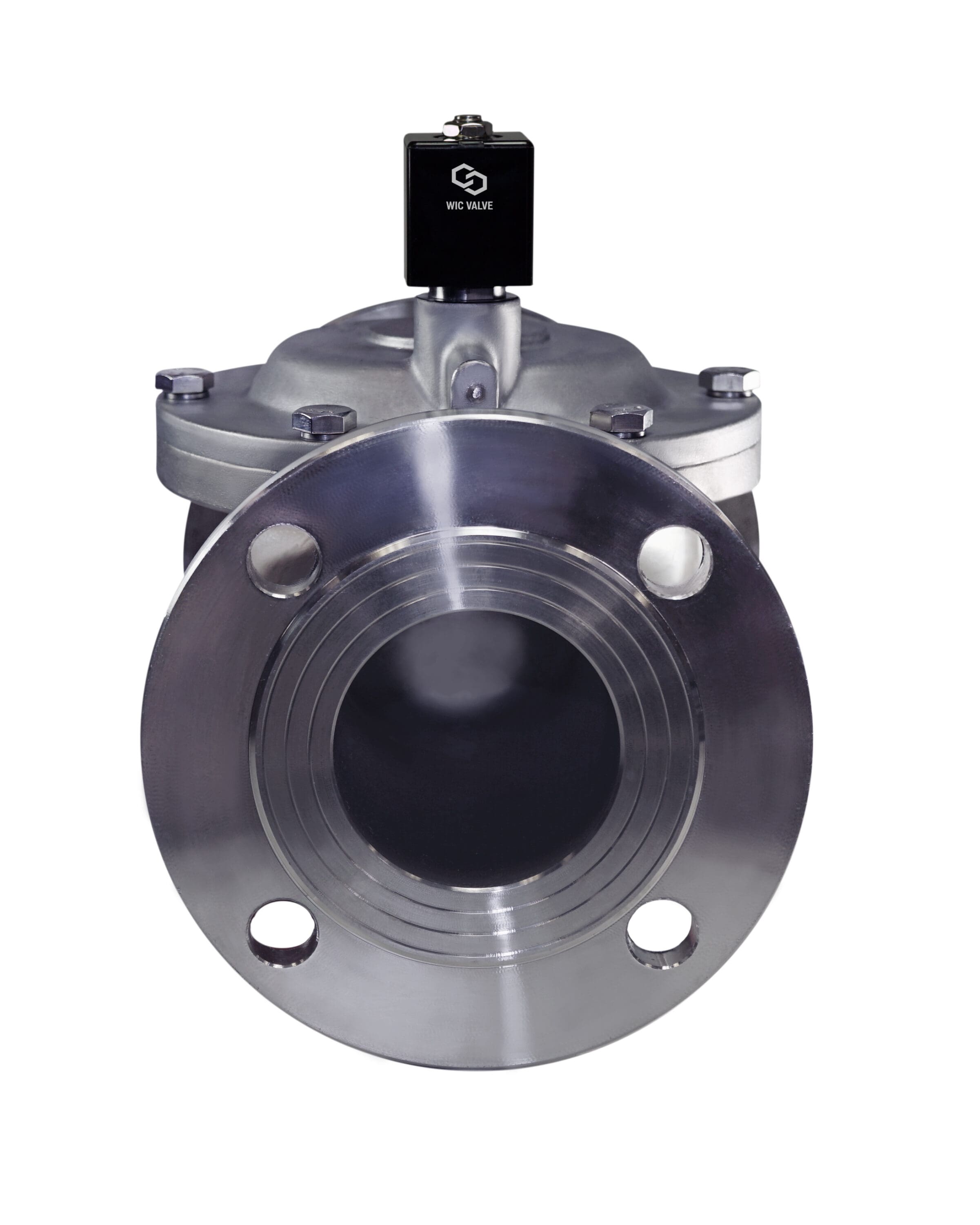

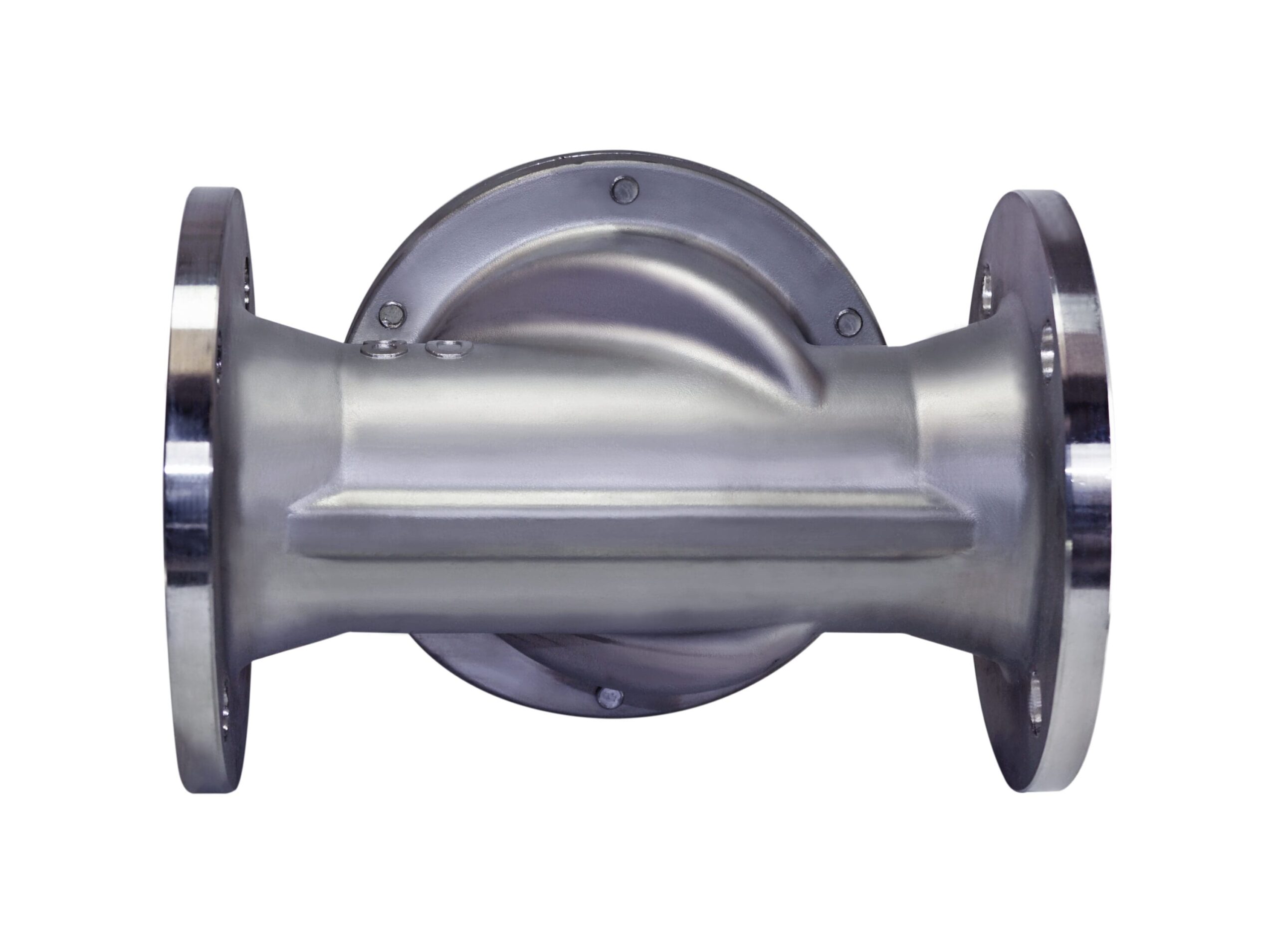

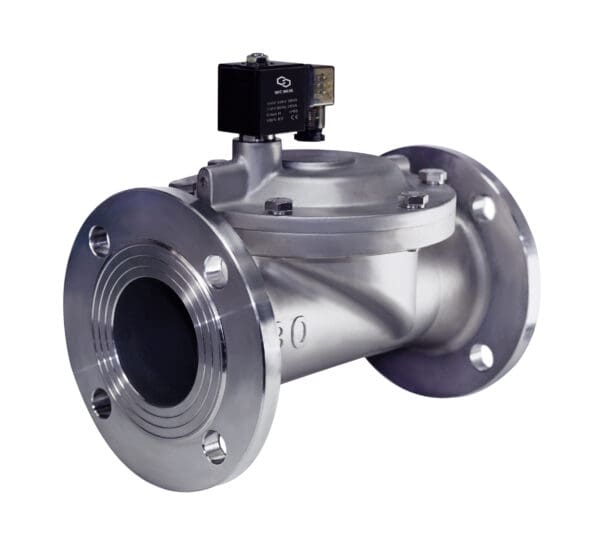

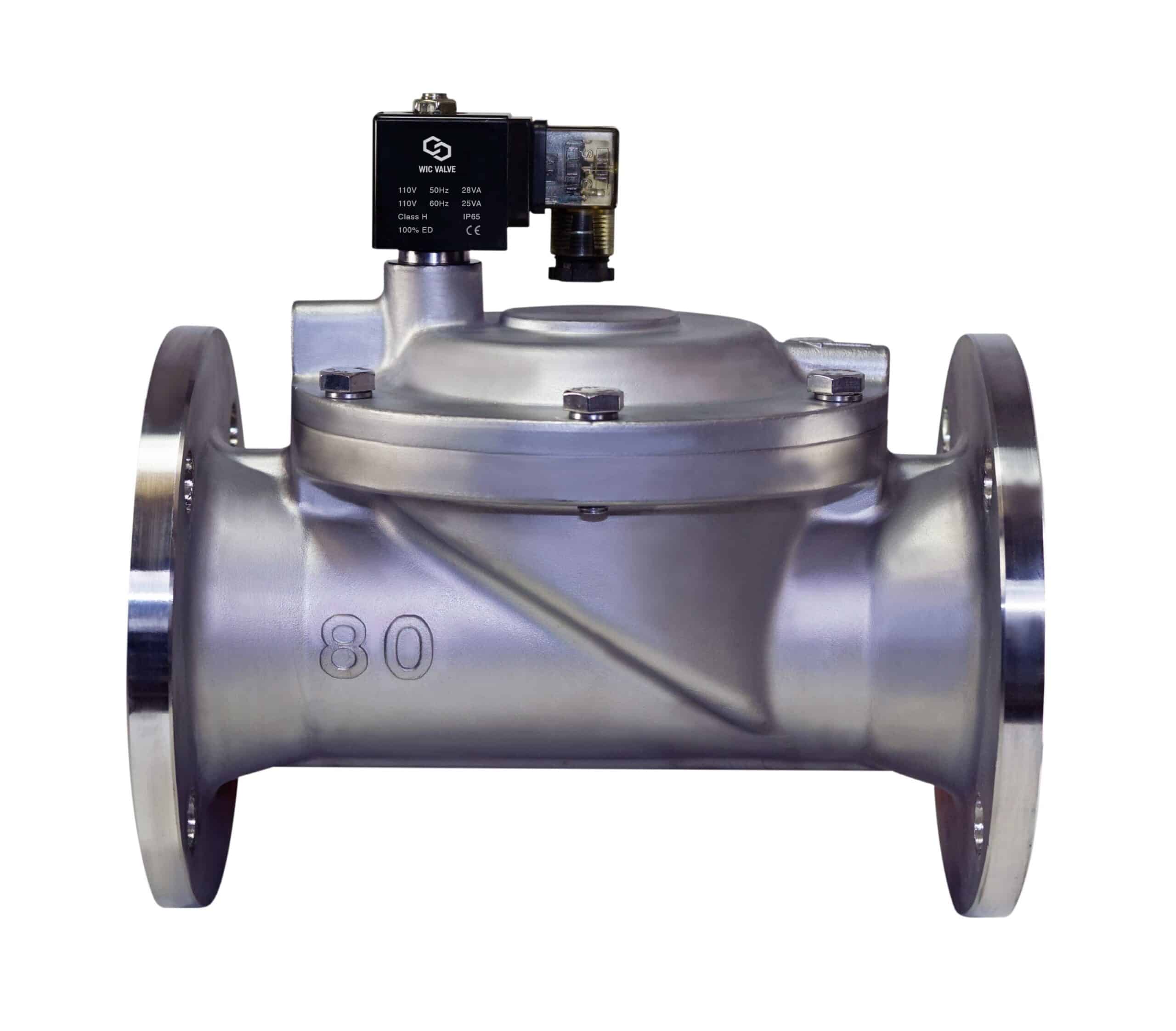

2.5″ Inch Electric Water Solenoid Flange Valve Normally Closed



WIC Valve 2SCD-F Series 2-way normally closed solenoid valve is to control On/Off of air, inert gas, liquid, water. This industrial solenoid valve has one 2-1/2″ flange connection inlet and one 2-1/2″ flange connection outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve can be mounted in any position.



2SCD-F Series Normally Closed Solenoid Valve Specification:

Valve Type: 2 Way Normally Closed (Valve Opens with energized)

Service Media: Air, Gas, Liquid, Water (≤ 20CST)

Operation Model: Pilot Piston

Flow Model: Uni-Directional

Body Material: Stainless Steel

Seal Material: Viton

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC – 20W / AC: 50Hz 28VA ; 60Hz 25VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: DC: 5 – 115 PSI / AC: 5 – 170 PSI

Operating Temperature:  -15 to 120 °C (5 to 248 °F)

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator



2SCD-F Series Normally Closed Solenoid Valve Flange Connection Dimensions:

Model	2SCD-1 1/2-F	2SCD-2-F	2SCD-2 1/2-F	2SCD-3-F	2SCD-4-F	2SCD-5-F	2SCD-6-F	2SCD-8-F
Orifice Size (mm)	40	50	65	80	100	125	150	200
CV	21	30	52	81.7	128.4	221.7	291.7	513.5
Dimensions
L (mm)	182	215	260	277	350	425	450	560
H (mm)	196	200	280	287	330	437	460	547
H1 (mm)	125	120	185	190	230	310	318	380



Flange Connection Dimensions:

Model	D (mm)	D1 (mm)	D2 (mm)
2SCD-1 1/2-D-F	150	110	4 – Ø 18
2SCD-2-D-F	165	125	4 – Ø 18
2SCD-2 1/2-D-F	185	145	4 – Ø 18
2SCD-3-D-F	200	160	8 – Ø 18
2SCD-4-D-F	220	180	8 – Ø 18
2SCD-5-D-F	250	210	8 – Ø 18
2SCD-6-D-F	285	240	8 – Ø 18
2SCD-8-D-F	340	295	12 – Ø 18
