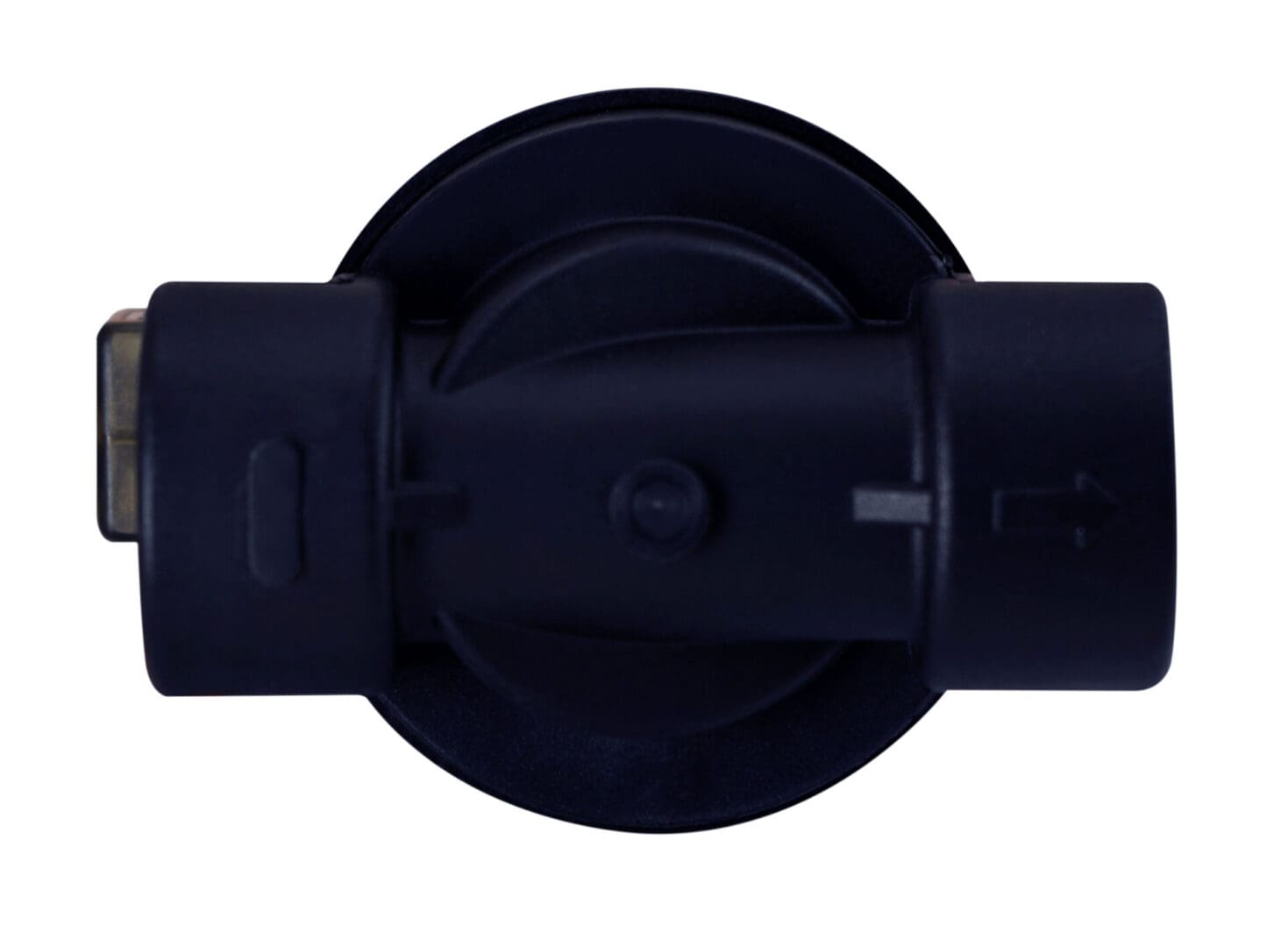

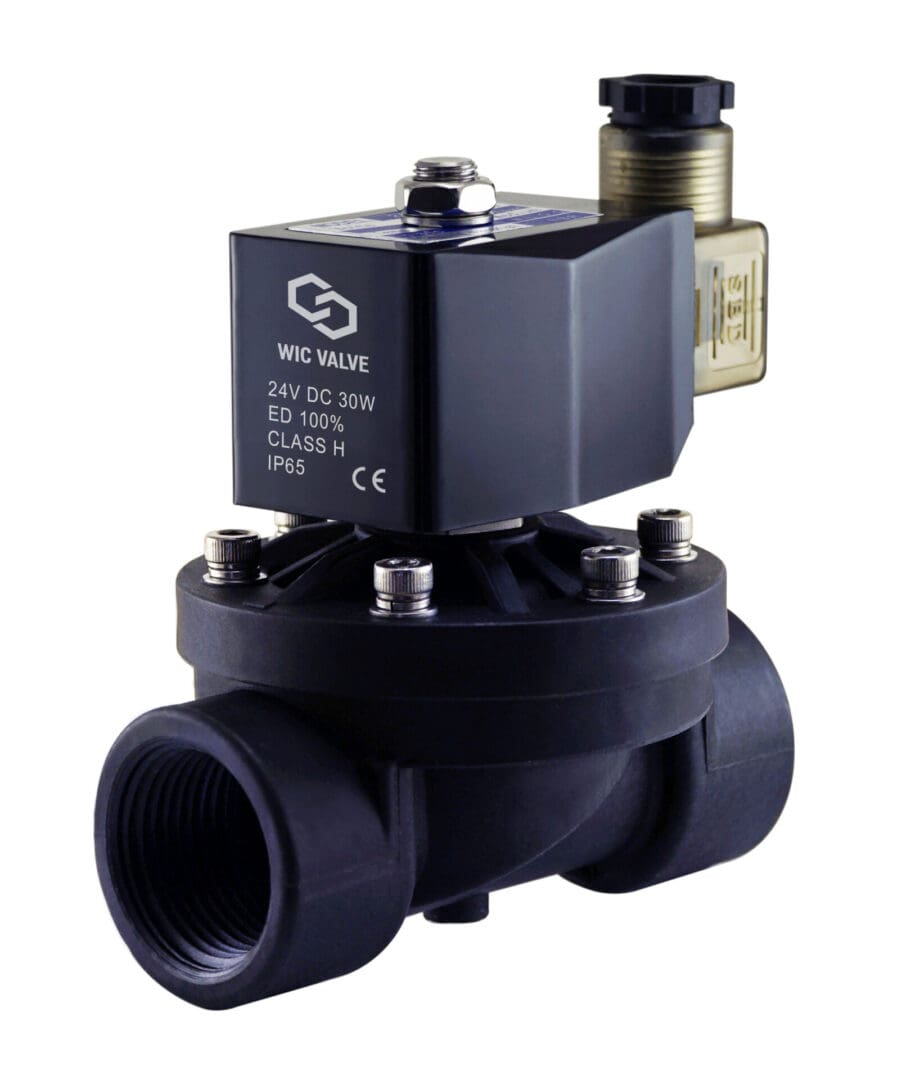

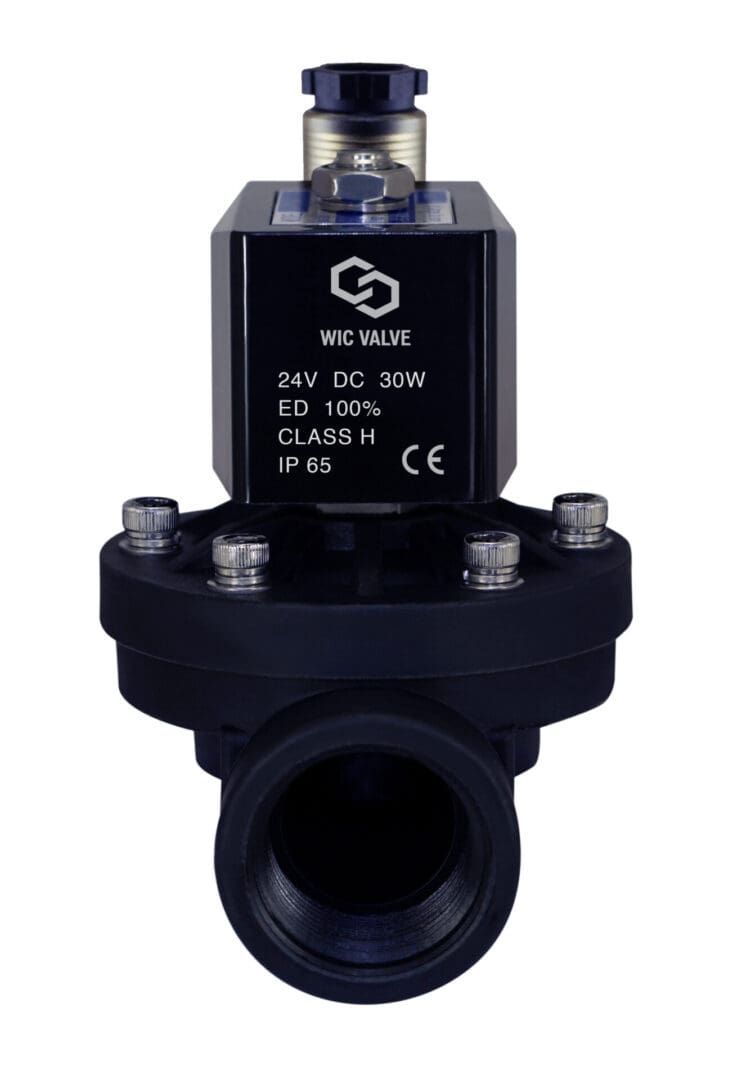

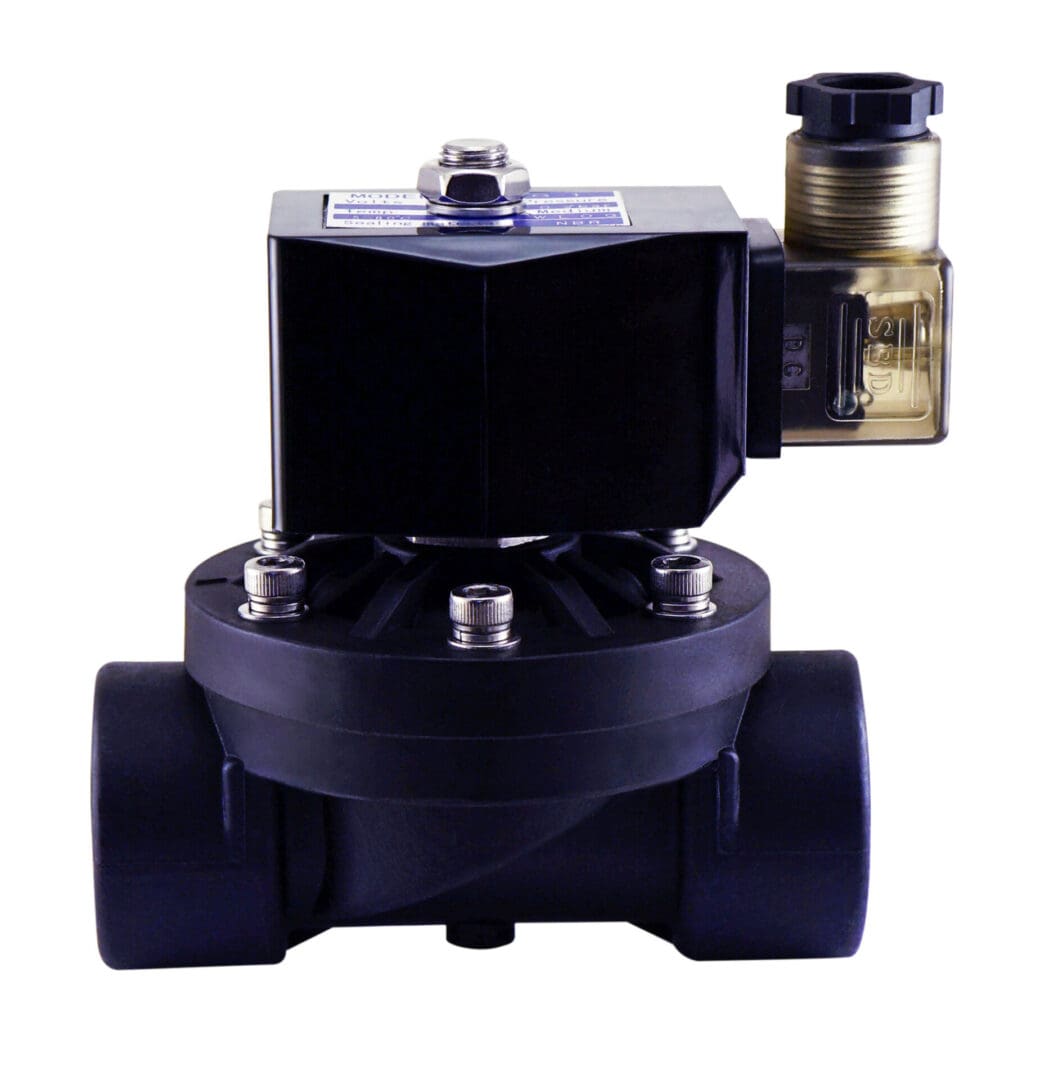

1″ Inch PA66 Plastic Zero Differential Electric Solenoid Valve

WIC Valve 2PCG Series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid, water and vacuum. This electric solenoid valve has one 1″ inlet and one 1″ outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2PCG Series electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  Valve can be mounted in any position.



2PCG Series One Inch Plastic Electric Solenoid Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water, Vacuum

Operation Model: Direct Lift Diaphragm

Flow Model: Uni-Directional

Body Material: PA66 Plastic Valve Body

Seal Material: NBR (Buna N) Diaphragm & Plunger Tip

Coil Power: DC -30W ; AC – 50/60Hz 28VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: Vacuum 0 PSI to 90 PSI

Operating Temperature: 0 to 50 °C or 32 to 122 °F

Port Size: 1″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

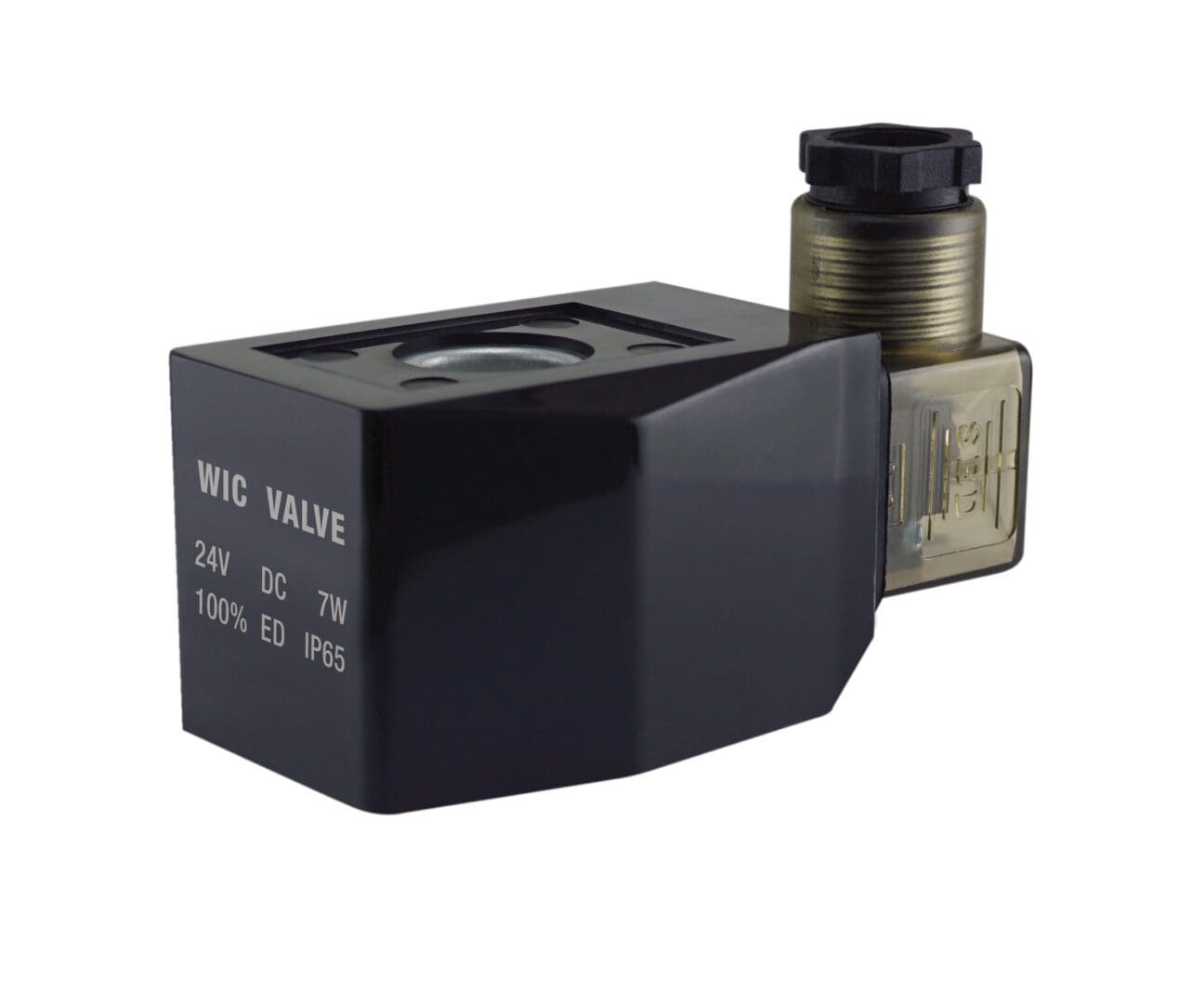

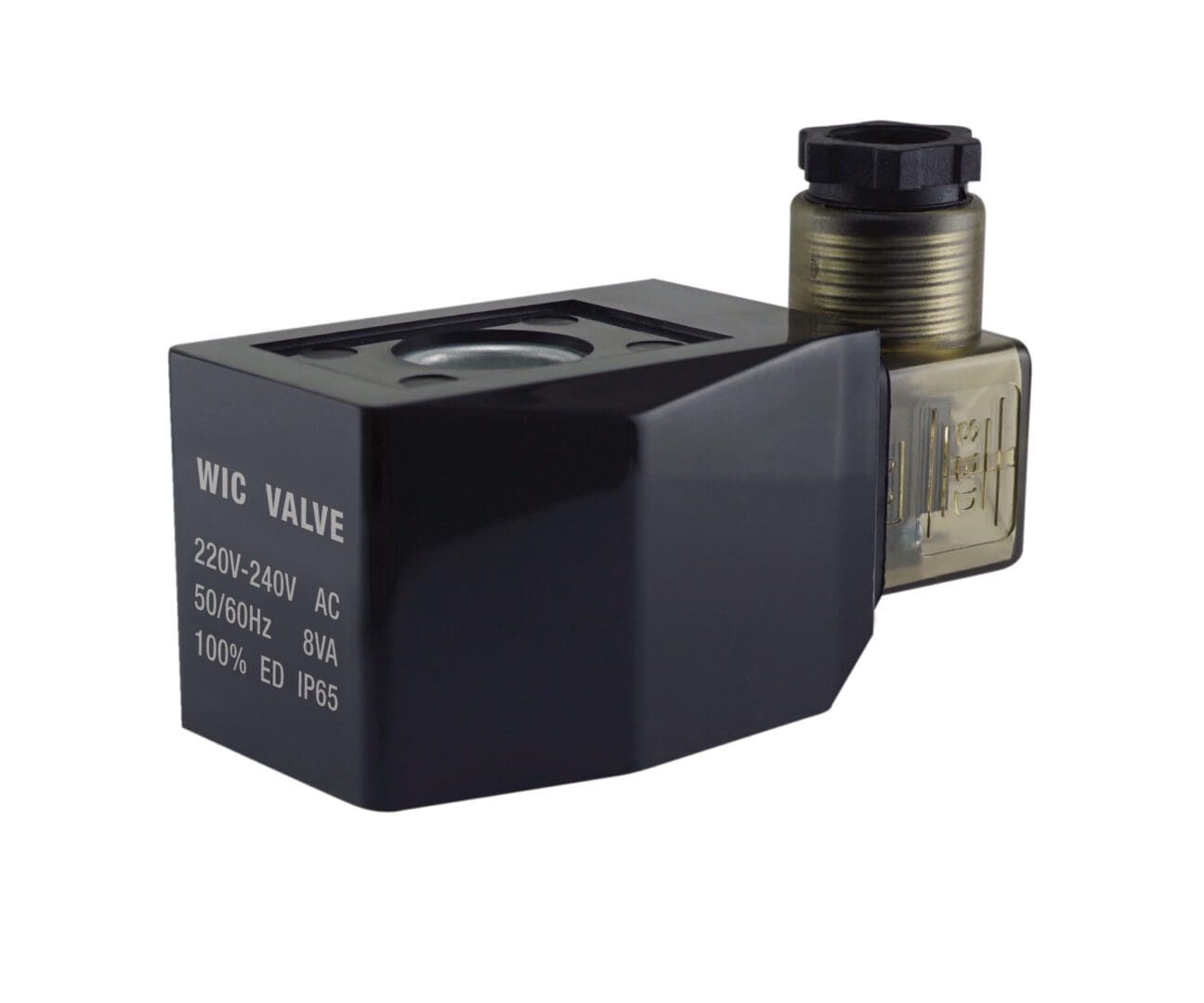

Low Power Consumption Coil: Upgrade Optional 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 50W, 110V AC – 50/60Hz 85VA, 220V AC – 50/60Hz 154VA

Low Power Coil Certification: CE Certification DC Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator



2PCG Series PA66 Plastic Solenoid Process Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C
2PCG-1/2-D	1/2″	4.8	17	68	107	76
2PCG-3/4-D	3/4″	7.6	17	68	111	80
2PCG-1-D	1″	12	20	82	117	107
2PCG-1 1/4-D	1-1/4″	24	22	112	160	140
2PCG-1 1/2-D	1-1/2″	29	22	112	170	140
2PCG-2-D	2″	48	48	130	190	159



2PCG Series Plastic Electric Solenoid Valve Component Drawing:
