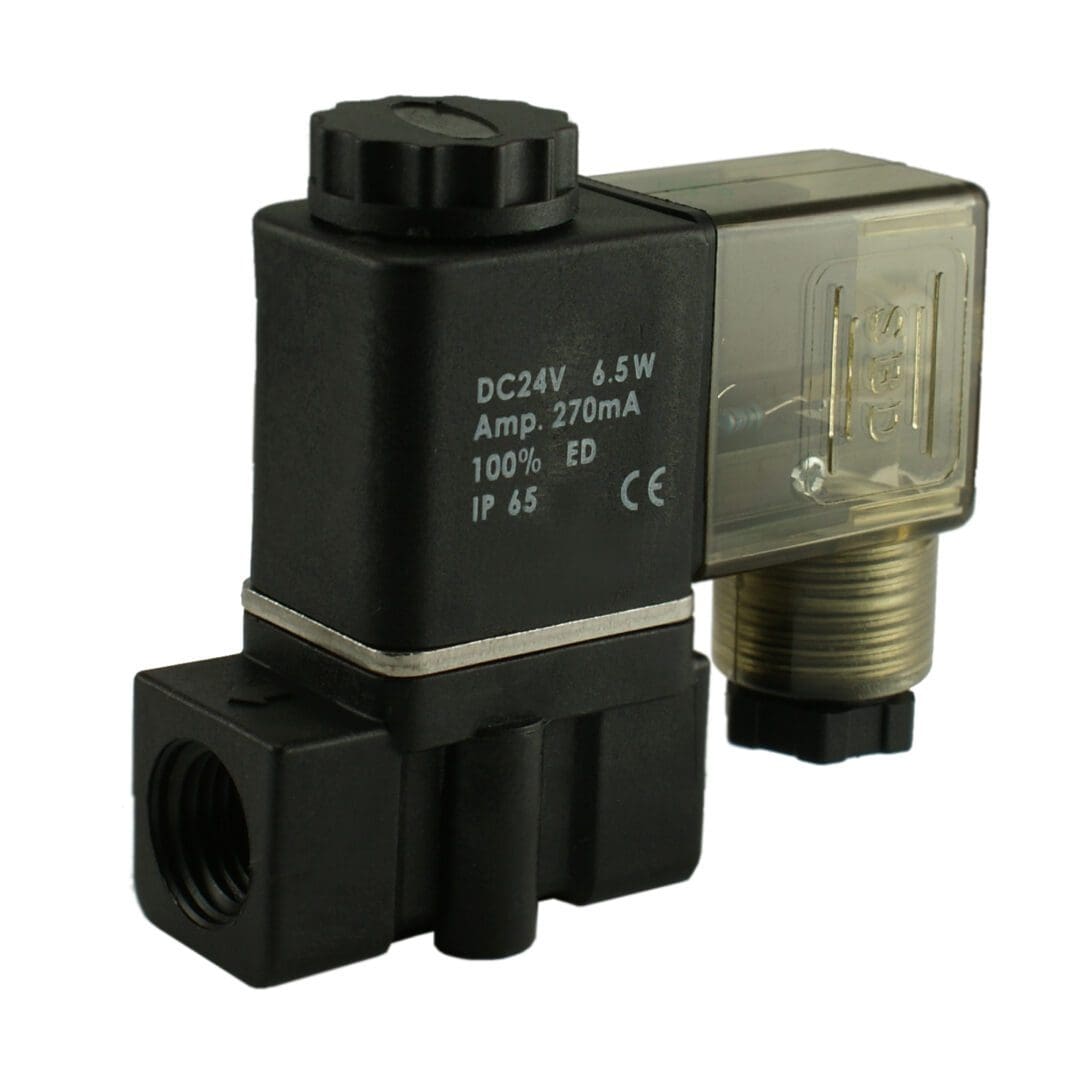

1/8 Inch Plastic Fast RespoElectric Solenoid Air Valve DIN



WIC Valve 2PCK Series 2-way normally closed solenoid water valve is to control On/Off of air, inert gas, liquid, and water. This solenoid valve has one 1/8″ inch NPT inlet and one 1/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2PCK Series solenoid valve is a Zero differential valve which can be operated at 0PSI (Vacuum) and mounted in any position.



2PCK Series Electric Solenoid Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Flow Rate: 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow)

Response Time: Less than 20 ms

Body Material: Engineered Nylon Plastic (PA66)

Seal Material: NBR (Buna N)

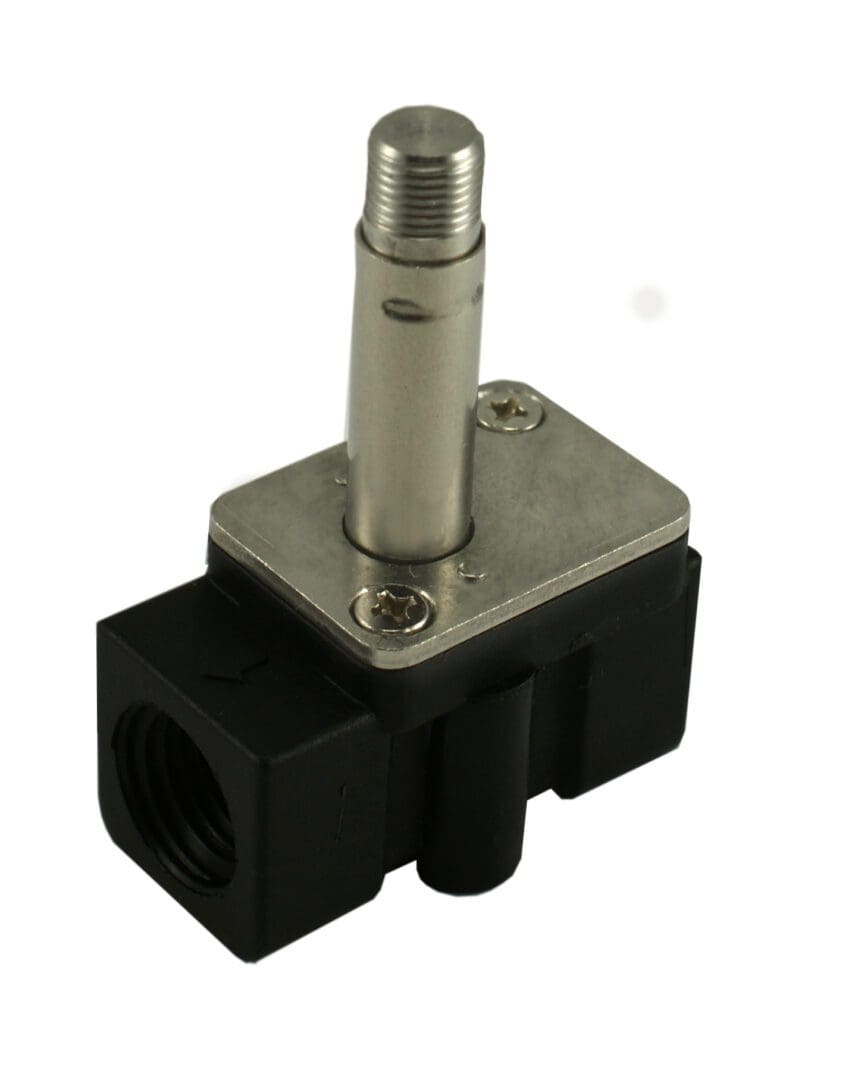

Armature Tube Material: Stainless Steel

Plunger & Spring Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC: 6-6.5W / AC: 6-6.5VA

Coil Class: F Class IP 65 (CE Certification)

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 28″” Hg to 115 PSI

Operating Temperature: -5 to 80 °C

Port Size: 1/8″ Inch NPT Female Port

Coil Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

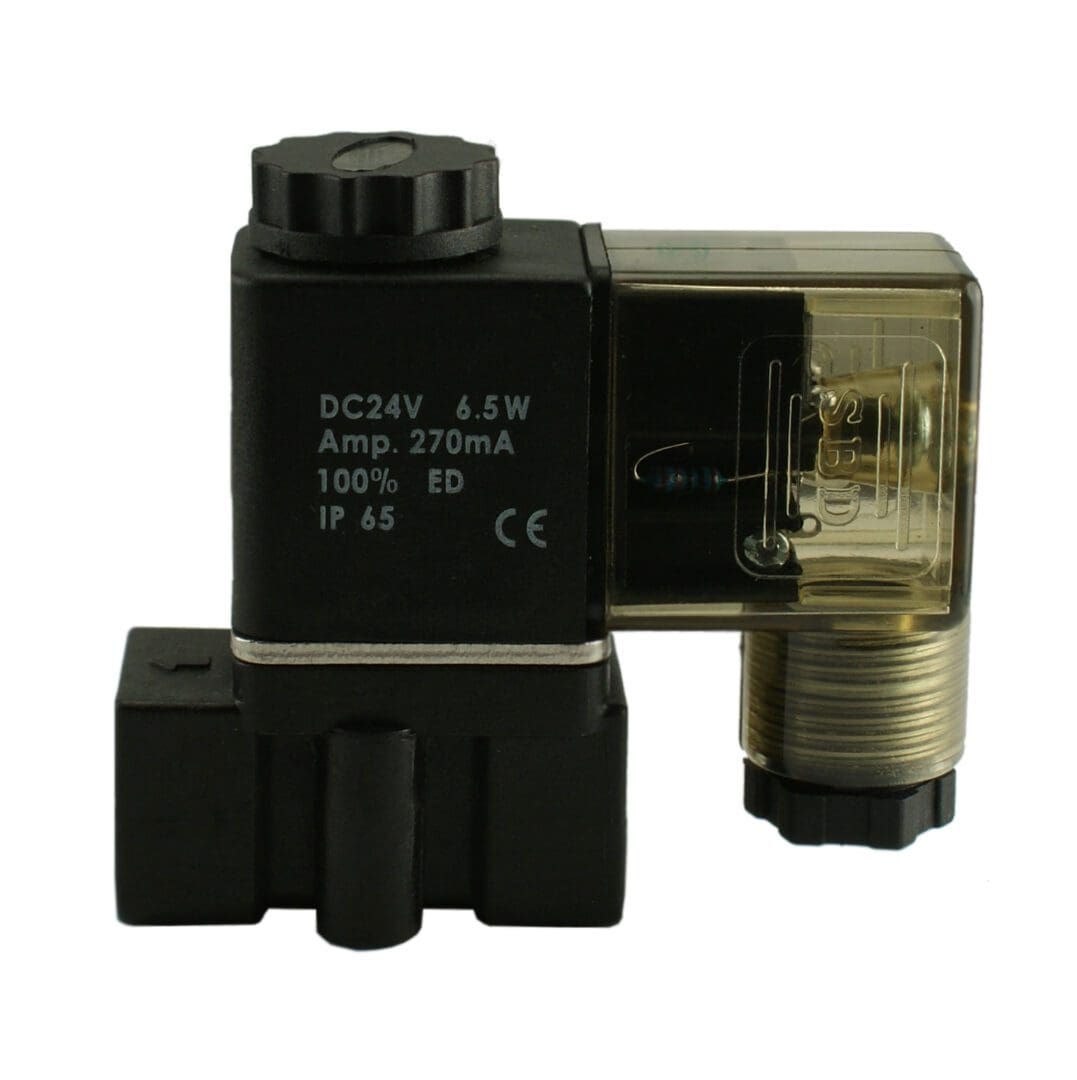

Electrical Connection: DIN Connector with LED Indicator



2PCK Series Normally Closed Zero Differential Plastic Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C
2PCK-1/8-D	1/8″	0.23	2.5	41	62	25
2PCK-1/4-D	1/4″	0.23	2.5	41	62	25



2PCK Series Direct Acting Zero Differential Plastic Solenoid Valve Component Drawing:

Frequently Asked Questions:



Grommet Coil Lead Wire Connections:

For the DC Coil, connect one of the two wires to Positive and the other wire to Negative.

For the AC Coil, connect one of the two wires to Hot wire and the other wire to Neutral wire.
