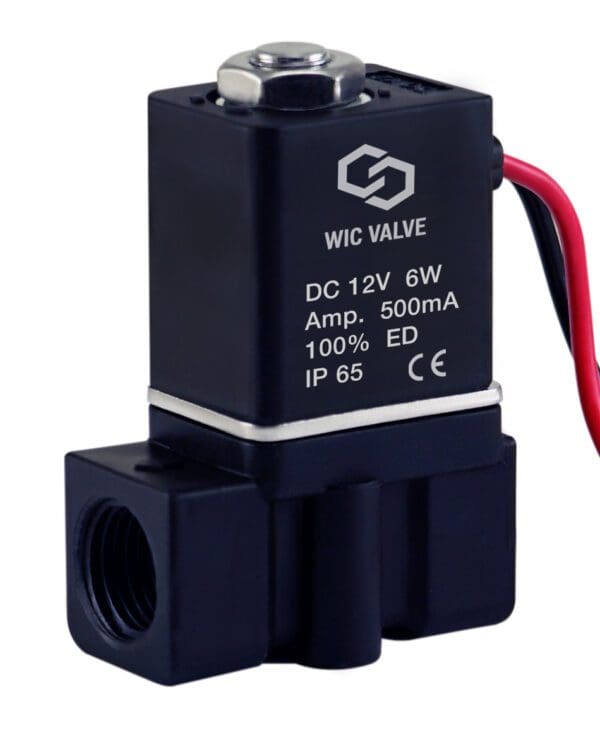

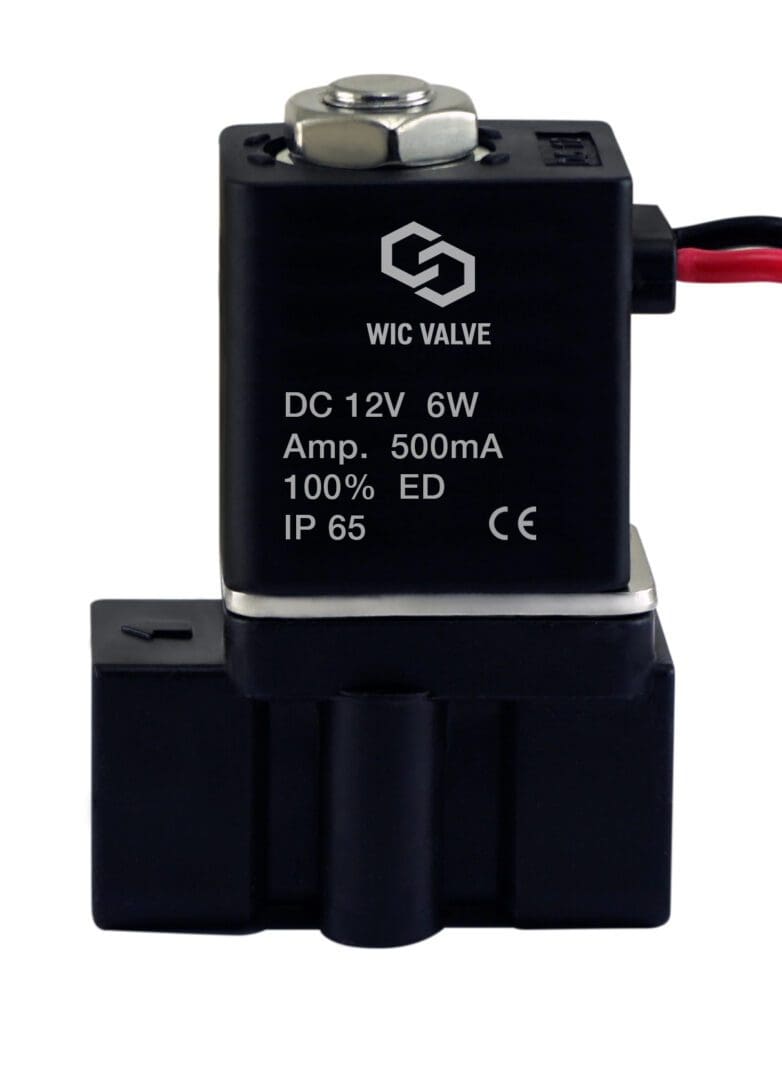

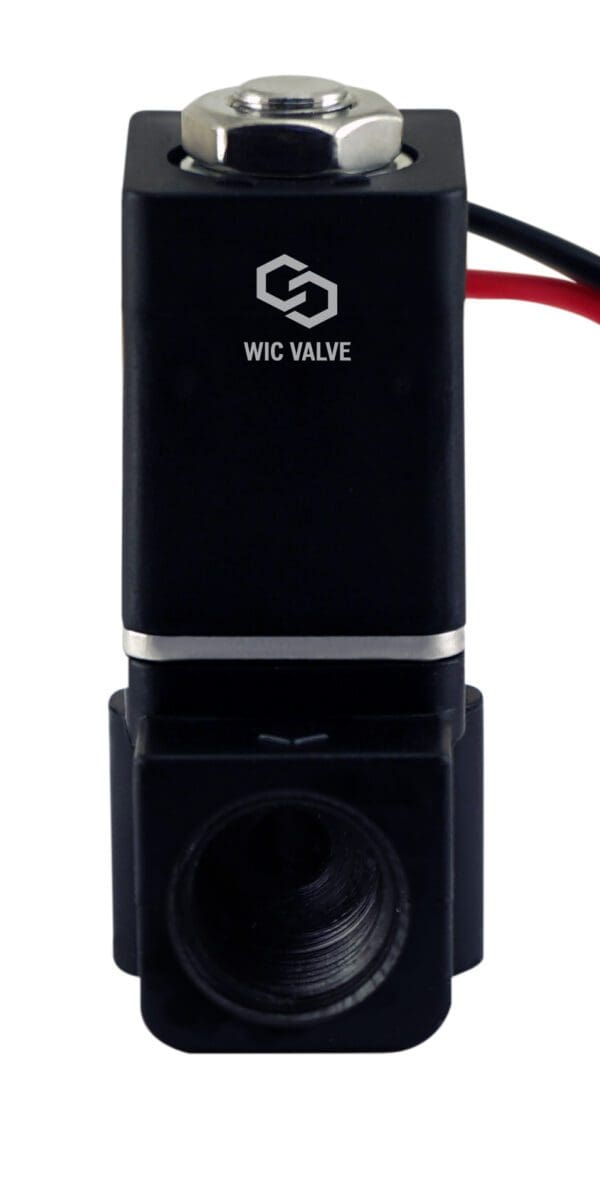

1/8 Inch Plastic Electric Direct Acting Water Solenoid Valve NC

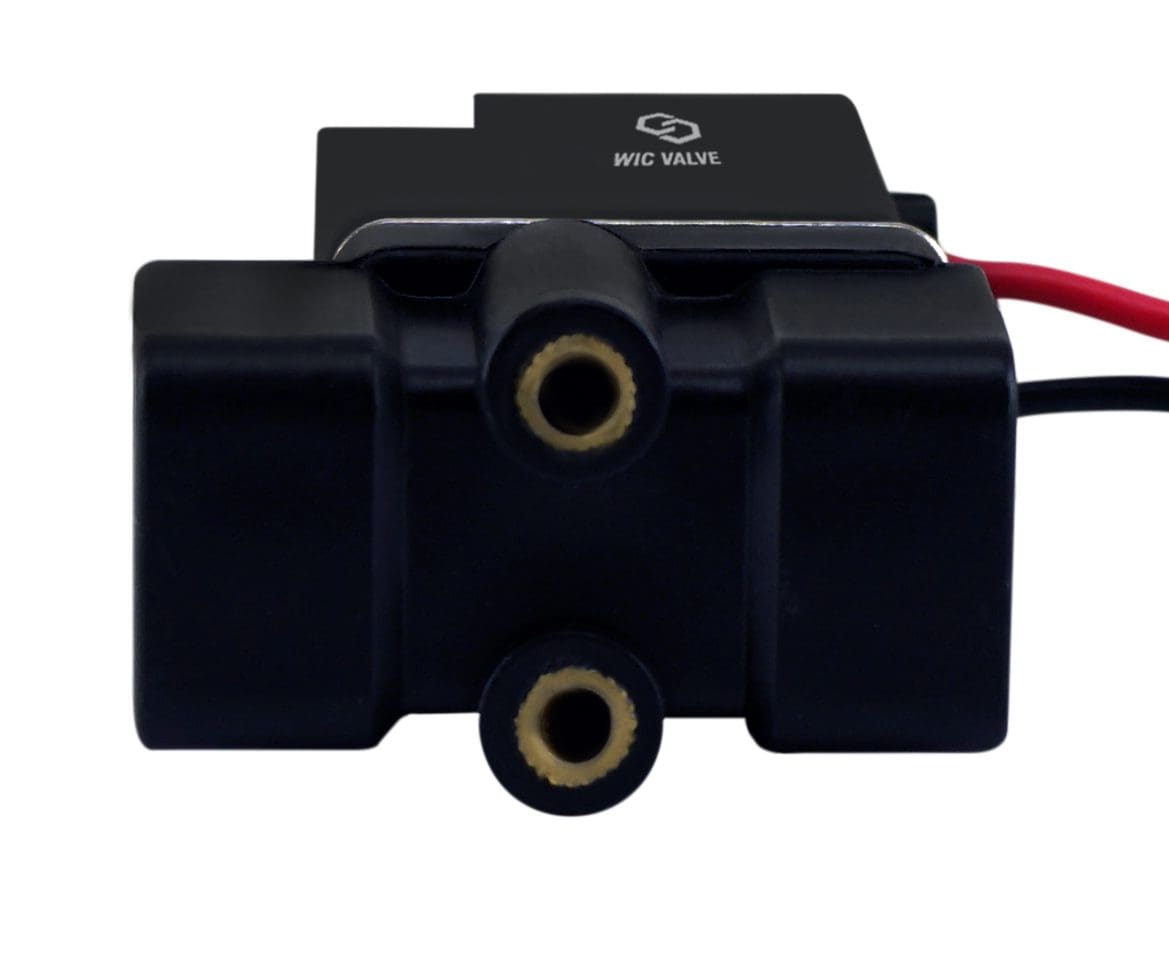

WIC Valve 2PCK Series 2-way normally closed general purpose solenoid valve is to control On/Off of air, inert gas, liquid, and water. This solenoid valve has one 1/8″ Inch NPT inlet and one 1/8″ Inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2PCK Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  This process solenoid valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum), valve is equipped with two holes in the bottom, it can be mounted in any position.



2PCK Series Fast Response Direct Acting Electric Solenoid Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Flow Rate: 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow)

Response Time: Less than 20 ms

Body Material: Engineered Nylon Plastic (PA66)

Seal Material: NBR (Buna N)

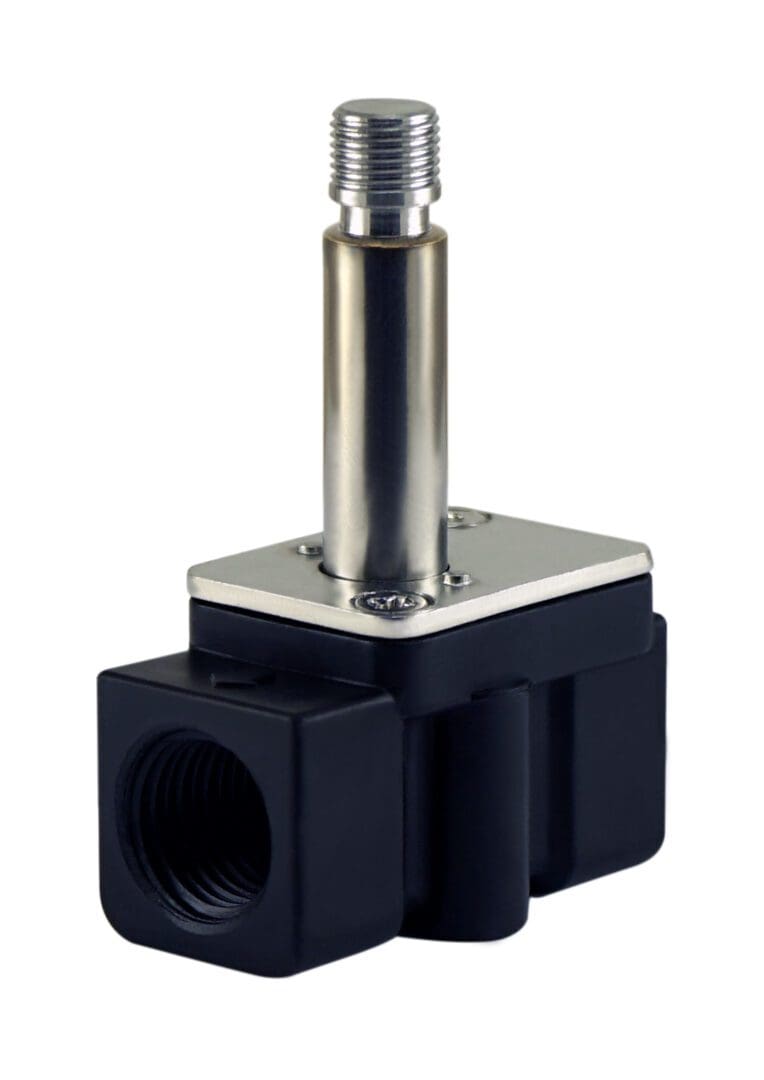

Armature Tube Material: Stainless Steel

Plunger & Spring Material: Stainless Steel

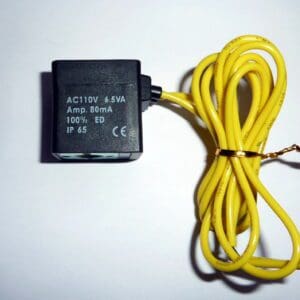

Coil Power: DC: 6-6.5W / AC: 6-6.5VA

Coil Class: F Class IP 65 (CE Certification)

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 28″” Hg to 115 PSI

Operating Temperature: -5 to 80 °C

Port Size: 1/8″ Inch NPT Female Port

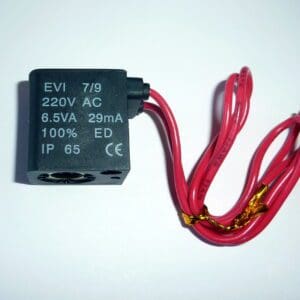

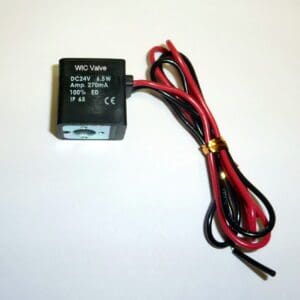

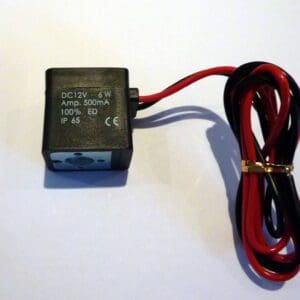

Coil Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Electrical Connection: Grommet Coil with 12″” Lead Wire



2PCK Series Normally Closed PA66 Plastic Electric Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	Length	Width	Height
2PCK-1/8-G	1/8″	0.23	2.5	41	25	62
2PCK-1/4-G	1/4″	0.23	2.5	41	25	62

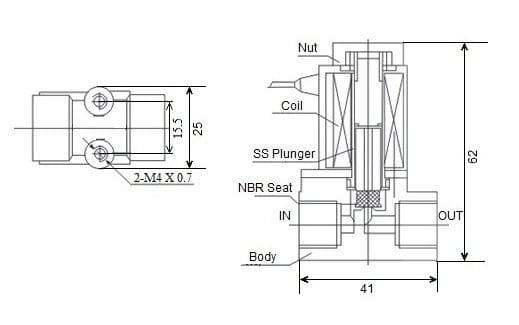

2PCK Series Normally Closed Zero Differential Electric Solenoid Valve Component Drawing:
