1.5" Inch High Pressure Brass Electric Solenoid Steam Valve

Description
Additional information

Description

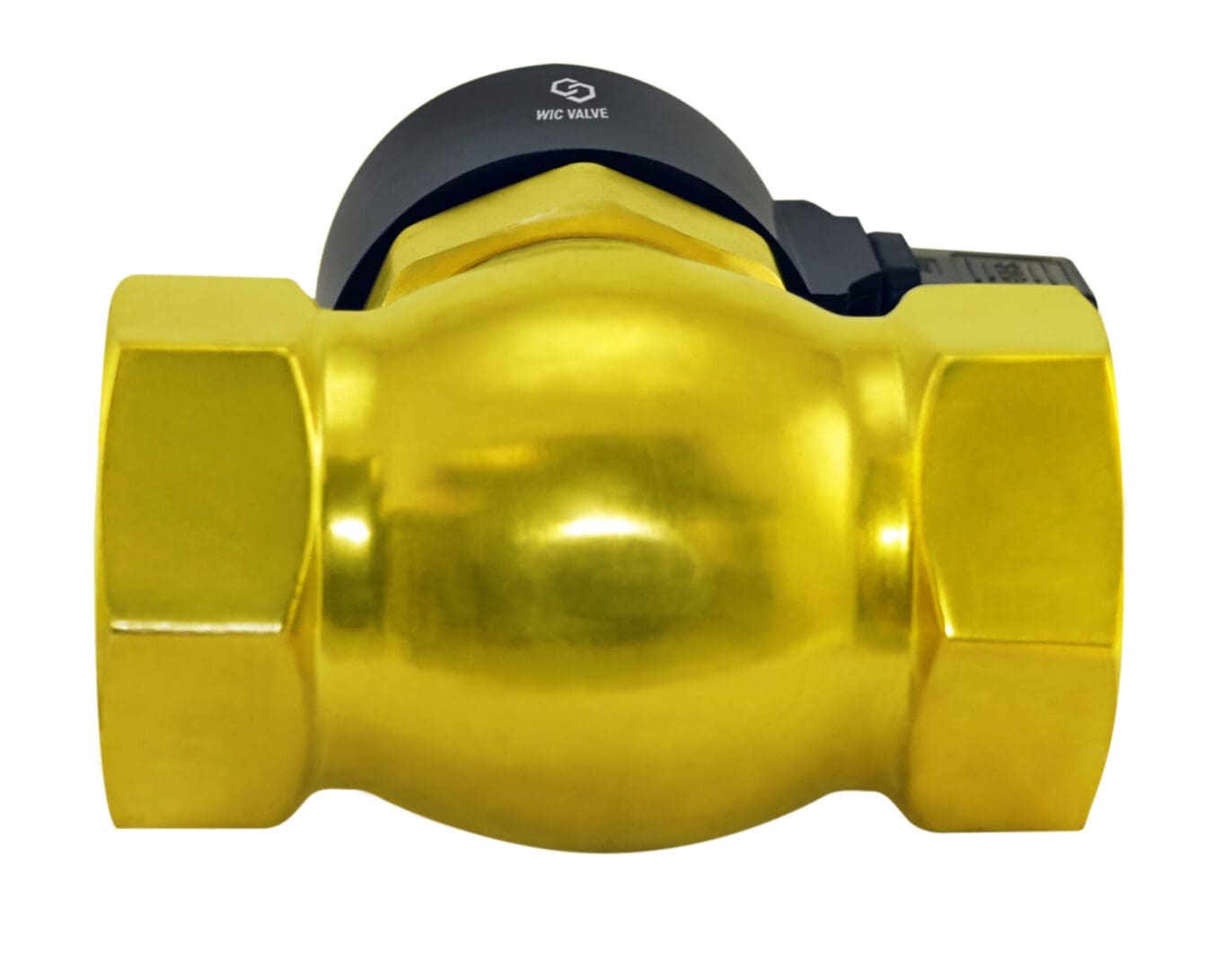

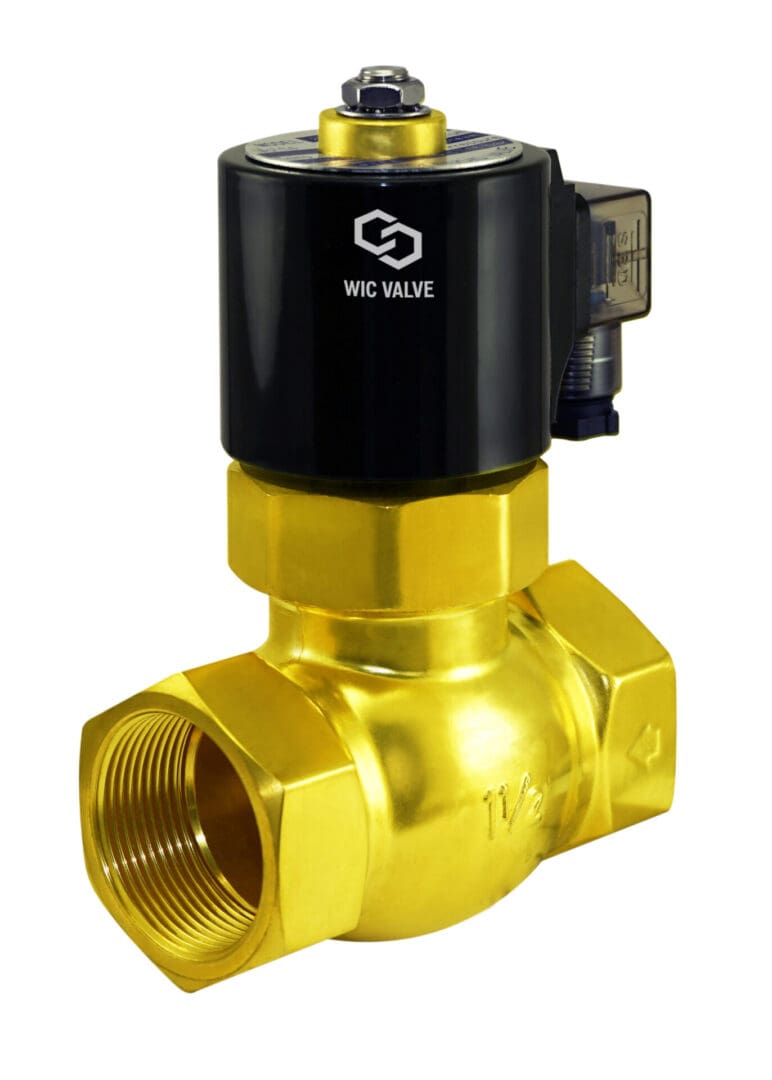

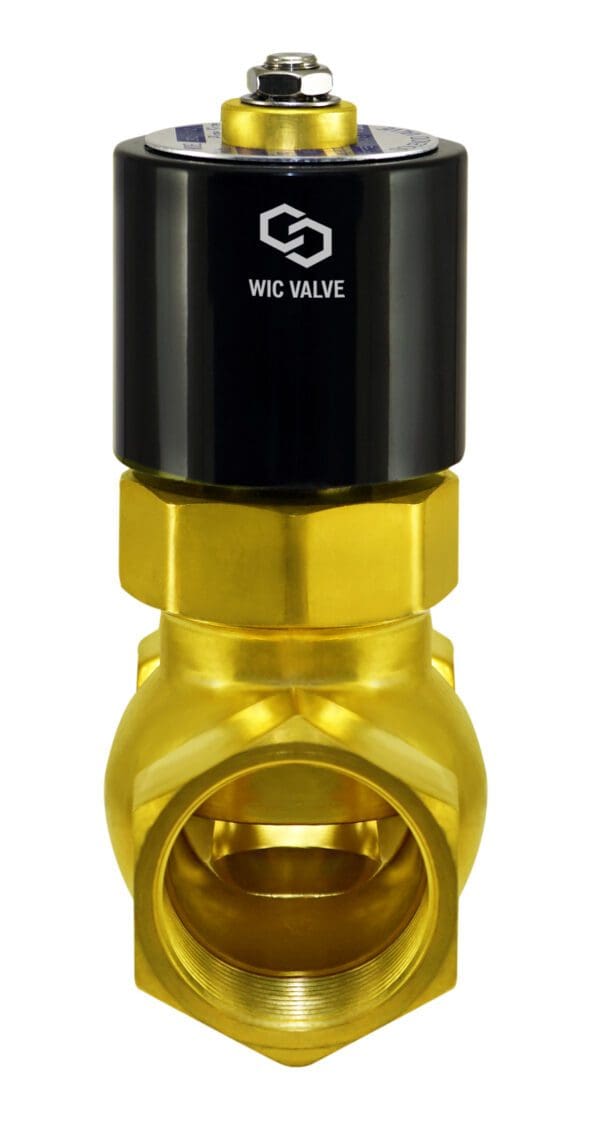

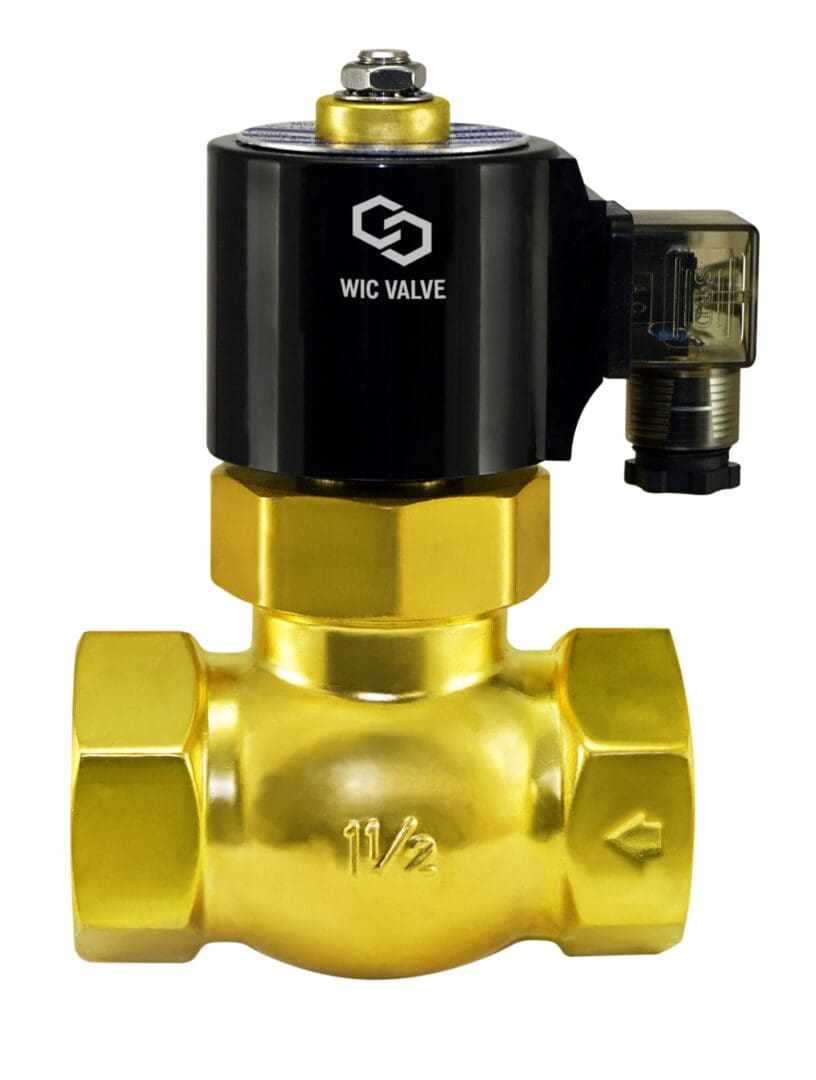

1.5″ Inch High Pressure Brass Electric Solenoid Steam Process Valve Normally Closed

WIC Valve 2BCL Series 2-way normally closed electric solenoid steam valve is to control On/Off of air, inert gas, liquid, hot water and steam. This industrial electric solenoid steam valve has one 1.5″ inch NPT inlet and one 1.5″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2BCL Series solenoid valve is a high pressure pilot piston solenoid valve, it requires a minimum of 7 PSI to operate. 2BCL Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. To ensure optimum flow performance, valve should be mounted in vertical position with the coil vertical and inlet/outlet ports horizontal.

2BCL Series High Pressure 1.5 Inch Electric Solenoid Steam Process Valve Specification:

Model Number: 2BCL-1 1/2-D

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Oil, Steam

Operation Model: Pilot Piston

Flow Model: Uni-Directional

Body Material: Brass

Seal Material: PTFE

Armature Tube Material: Stainless Steel

Coil Power: DC: 30-40W, AC: 35VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 7 to 230 PSI

Operating Temperature: -5 to 180°C or 23 to 356 °F

Port Size: 1.5″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Coil Connector with LED Indicator

2BCL Series High Pressure Electric Solenoid Steam Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D
2BCL-1/2-D	1/2″	4.8	17	69	42	146	82
2BCL-3/4-D	3/4″	4.8	17	69	42	146	82
2BCL-1-D	1″	12	20	69	52	162	90
2BCL-1 1/4-D	1-1/4″	24	22	69	74	185	110
2BCL-1 1/2-D	1-1/2″	29	22	69	74	185	110
2BCL-2-D	2″	48	48	69	86	195	120

2BCL Series Brass Steam Electric Solenoid Valve Component Drawing:

Frequently Asked Questions:

What is IP65?

Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures – IP Code), specifying the environmental protection the enclosure provides.

The IP rating normally has two (or three) numbers:

1) Protection from solid objects or materials

2) Protection from liquids (water)

3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)

IP First number – Protection against solid objects

0	No special protection
1	Protected against solid objects over 50 mm, e.g. accidental touch by persons hands.
2	Protected against solid objects over 12 mm, e.g. persons fingers.
3	Protected against solid objects over 2.5 mm (tools and wires).
4	Protected against solid objects over 1 mm (tools, wires, and small wires).
5	Protected against dust limited ingress (no harmful deposit).
6	Totally protected against dust.

IP Second number – Protection against liquids

0	No protection.
1	Protection against vertically falling drops of water e.g. condensation.
2	Protection against direct sprays of water up to 15^o from the vertical.
3	Protected against direct sprays of water up to 60^o from the vertical.
4	Protection against water sprayed from all directions – limited ingress permitted.
5	Protected against low pressure jets of water from all directions – limited ingress.
6	Protected against temporary flooding of water, e.g. for use on ship decks – limited ingress permitted.
7	Protected against the effect of immersion between 15 cm and 1 m.
8	Protects against long periods of immersion under pressure.
