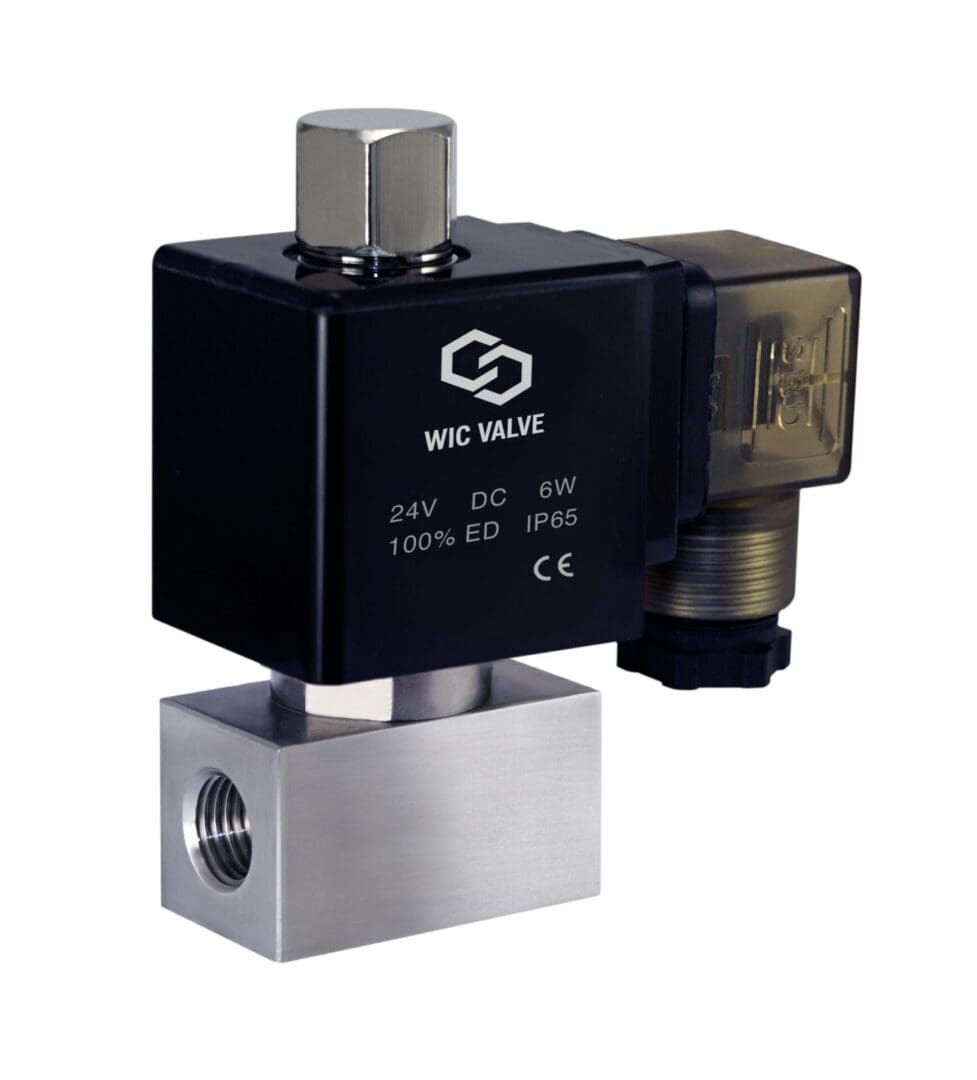

1/4″ Normally Open High Pressure 70 PSI Solenoid Valve

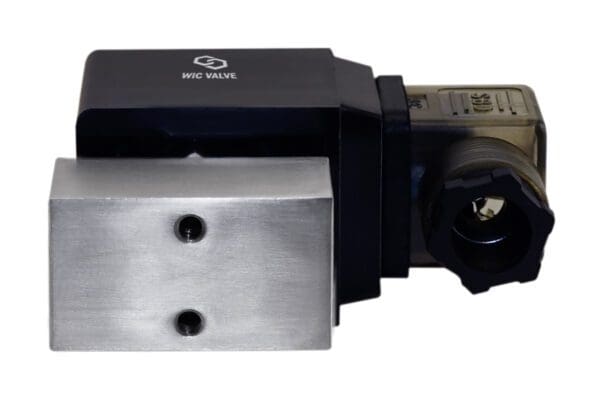

WIC Valve 2SOE Series 2-way normally open high pressure solenoid process valve is to control On/Off of air, inert gas, liquid and water. This industrial fast response electric solenoid process valve has one 1/4″ inch NPT inlet and one 1/4″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized.  2SOE series 1/4″ normally open electric valve is a zero differential valve which can be operated at 0 PSI, no mininum pressure is required.  2SOE Series high pressure solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service for constantly energized.  This compact high pressure electric process valve features with 2 of the M4 size convenient mounting holes, valve can be mounted in any position.



2SOE Series Stainless Steel High Pressure Normally Open Electric Solenoid Process Valve Specification:

Valve Type: 2 Way Normally Open  (Valve closes with energized)

Model Number: 2SOE-1/4-D-L-4

Service Media: Air, Gas, Liquid, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Body Material: 304 Stainless Steel

Seal Material: Teflon (PTFE)

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification DC Coil

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 0 – 70 PSI

Operating Temperature: -20 to 80 °C

Port Size: 1/4″ Inch NPT Female Port

Coil Voltage Option: 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator



2SOE Series Normally Open High Pressure Stainless Zero Differential Solenoid Valve Dimensions (Unit=mm)

Model #	Port Size (NPT)	Flow Rate (Cv)	Orifice Size (mm)
2SOE-1/4-D-L-4	1/4″	0.60	4mm
