1/4″ Inch Fast Closing Electricย Solenoid Process Valve DIN 43650B Connector with LED Indicatorย Normally Closed

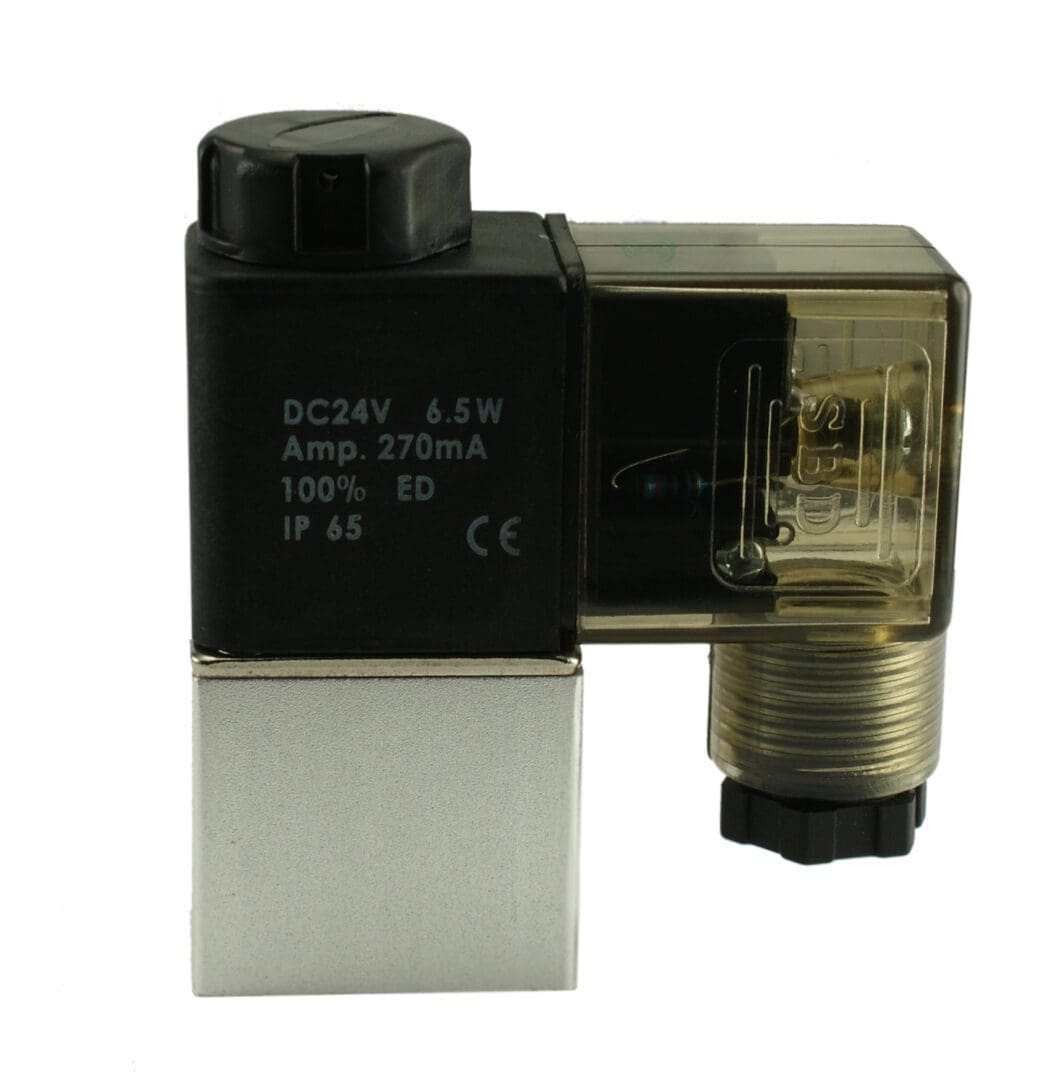

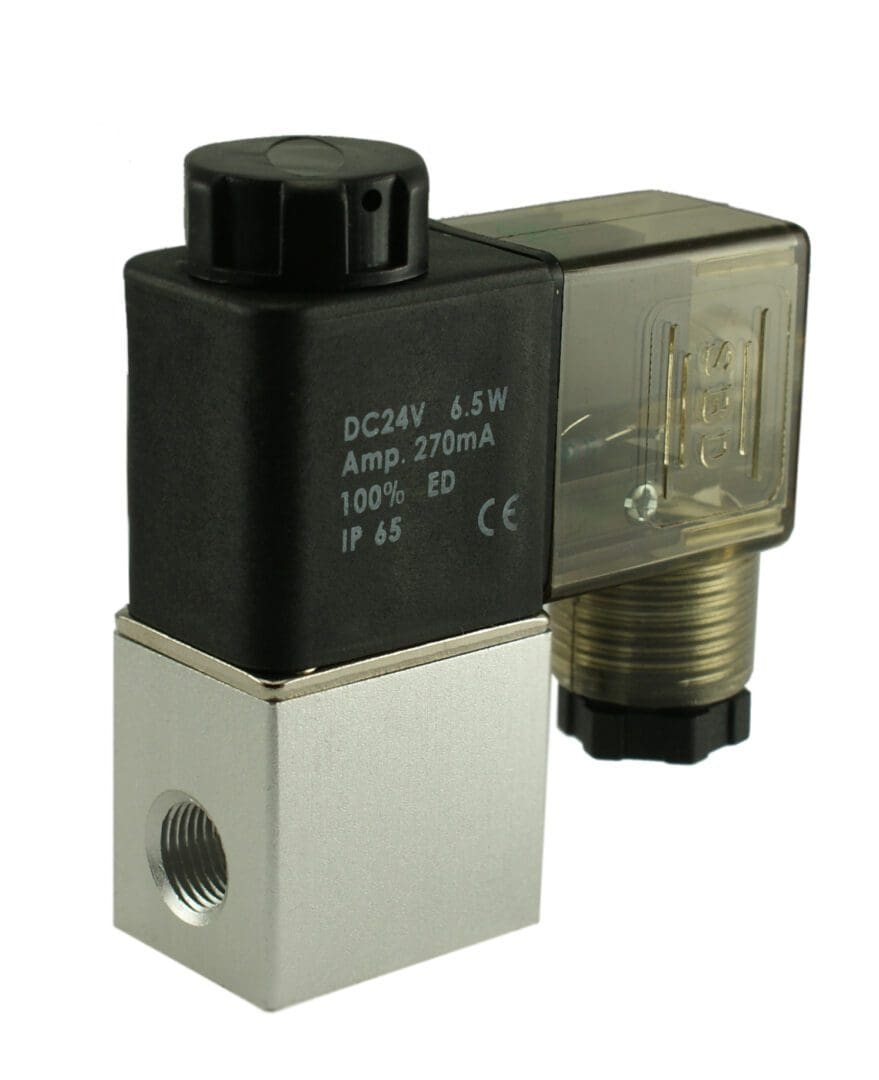

WIC Valve 2ACK Series 2-way normally closed electric solenoid valve is to control On/Off of air and inert gas. This direct acting electric solenoid valve has one 1/4″ inch NPT inlet and one 1/4″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. This compact fast response valve has two M4 size convenient mountiing holes on the valve bottom for easy installation.ย 2ACK series valve can be mounted in any position.ย 2ACK series electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.ย 2ACK Series is a zero differential solenoid valve which can be operated at 0 PSI (Vacuum), no minimum pressure is required.
2ACK Series Fast Response Electric Solenoid Process Valveย Specification:
Valve Type: 2 Way Normally Closed (Valve opens with energized)
Service Media: Air, Gas, Liquid, Water, Vacuum
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow) , 22 SCFM at 100 PSI (Air Flow)
Response Time: Less than 20 ms
Body Material: Anodized Aluminum
Seal Material:ย NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel
Coil Certification: CE Certification
Coil Power:ย DC: 6-6.5W / AC: 6-6.5VA
Coil Class:ย F Class IP 65 (CE Certification)
Coil Duty: 100% ED (Continuous Duty)
Operating Pressure:ย Vacuum to 115 PSI
Operating Temperature: -5 toย 80 ยฐC
Port Size Option: 1/4″ NPT Female Port
Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
Voltage Tolerances: DC: +10% โ5% ; AC: +10% -15%
Electrical Connection: DIN 43650B Connector with LED Indicator

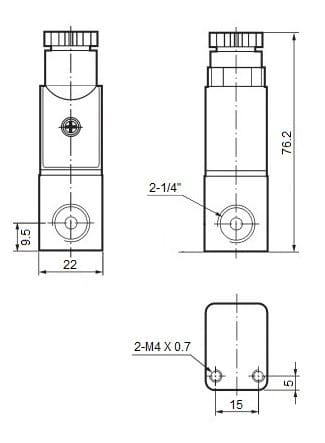

2ACK Series Fast Closing Electric Solenoid Valve Dimensions (Unit=mm):ย
Modelย | Port (NPT) | Flow Rate (Cv) | Orifice Size (mm) | Lengthย | Width | Heightย |
2ACK-1/8 | 1/8″ | 0.23 Cv | 2 | 30 | 22 | 66 |
2ACK-1/4 | 1/4″ | 0.23 Cv | 2 | 30 | 22 | 66 |
2ACK Series Normally Closed Direct Acting Solenoid Valve Component Drawing:
Valve Frequently Asked Questions:
What is the advantages to use DIN Connector?
Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector.ย The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.
How toย Rotate DIN Plastic Connector?
Shown below is the 4ย easy steps to rotate the DIN plastic housing:
1. Remove the Philip screw from the DIN plastic housing protector.
2. Unplug the plastic housing from the DIN coil.
3. Remove the terminal block from the plastic housing.ย Use the Philip screw to push the terminal block out from the plastic housing.
4. Rotate the DIN plastic housing to 180 degree, then plug into the terminal block andย put the Philip screw back.
5.ย Finish DIN plastic housing rotation.
What is IP65 Protection Class Mean?
Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures – IP Code), specifying the environmental protection the enclosure provides.
The IP rating normally has two (or three) numbers:
1) Protection from solid objects or materials
2) Protection from liquids (water)
3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)
IP First number – Protection against solid objects
0 | No special protection |
1 | Protected against solid objects over 50 mm, e.g. accidental touch by persons hands. |
2 | Protected against solid objects over 12 mm, e.g. persons fingers. |
3 | Protected against solid objects over 2.5 mm (tools and wires). |
4 | Protected against solid objects over 1 mm (tools, wires, and small wires). |
5 | Protected against dust limited ingress (no harmful deposit). |
6 | Totally protected against dust. |
IP Second number – Protection against liquids
0 | No protection. |
1 | Protection against vertically falling drops of water e.g. condensation. |
2 | Protection against direct sprays of water up to 15o from the vertical. |
3 | Protected against direct sprays of water up to 60o from the vertical. |
4 | Protection against water sprayed from all directions – limited ingress permitted. |
5 | Protected against low pressure jets of water from all directions – limited ingress. |
6 | Protected against temporary flooding of water, e.g. for use on ship decks – limited ingress permitted. |
7 | Protected against the effect of immersion between 15 cm and 1 m. |
8 | Protects against long periods of immersion under pressure. |
Additional information
Weight | 0.30 lbs |
---|---|
Dimensions | 3.00 × 3.00 × 1.00 in |
Coil Voltage | 12V DC, 24V DC, 24V AC, 110V AC, 220V AC |
