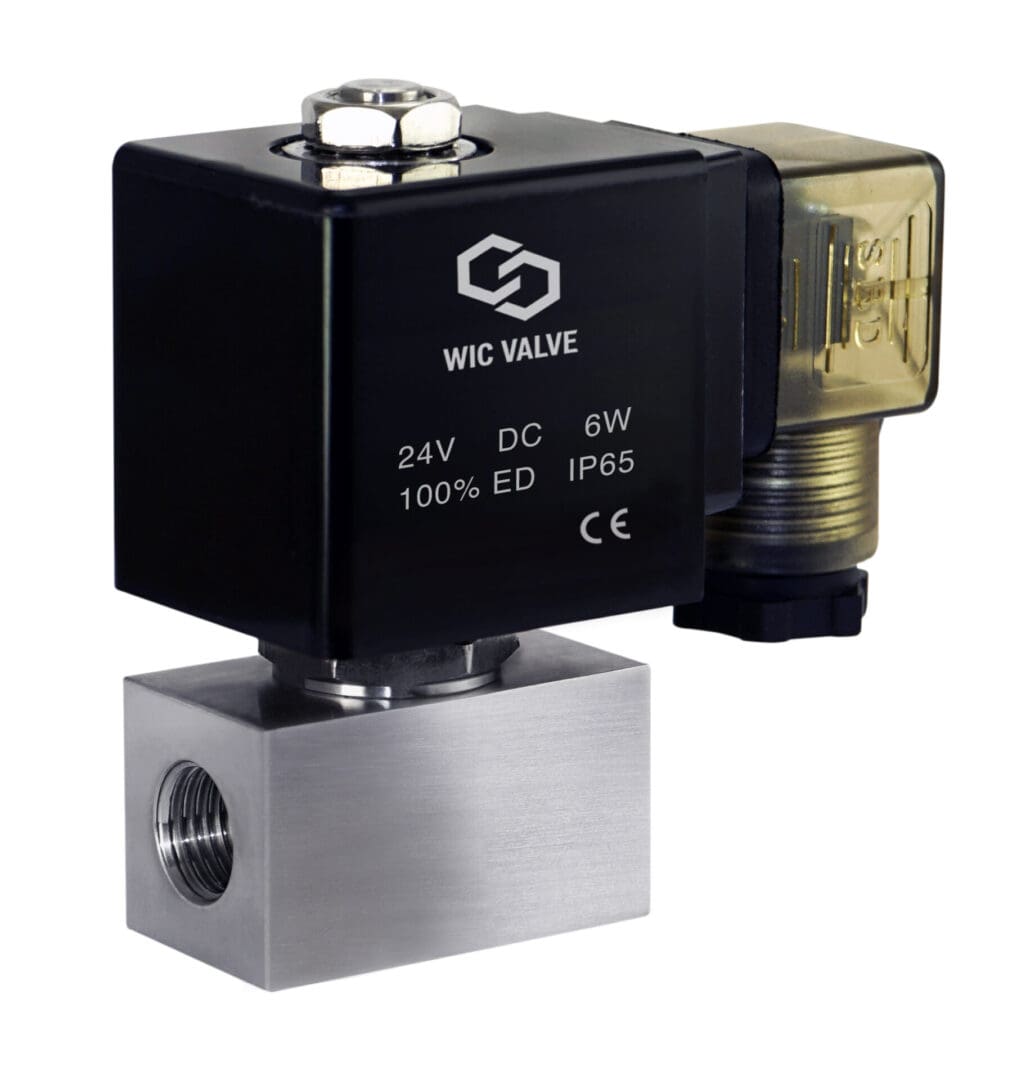

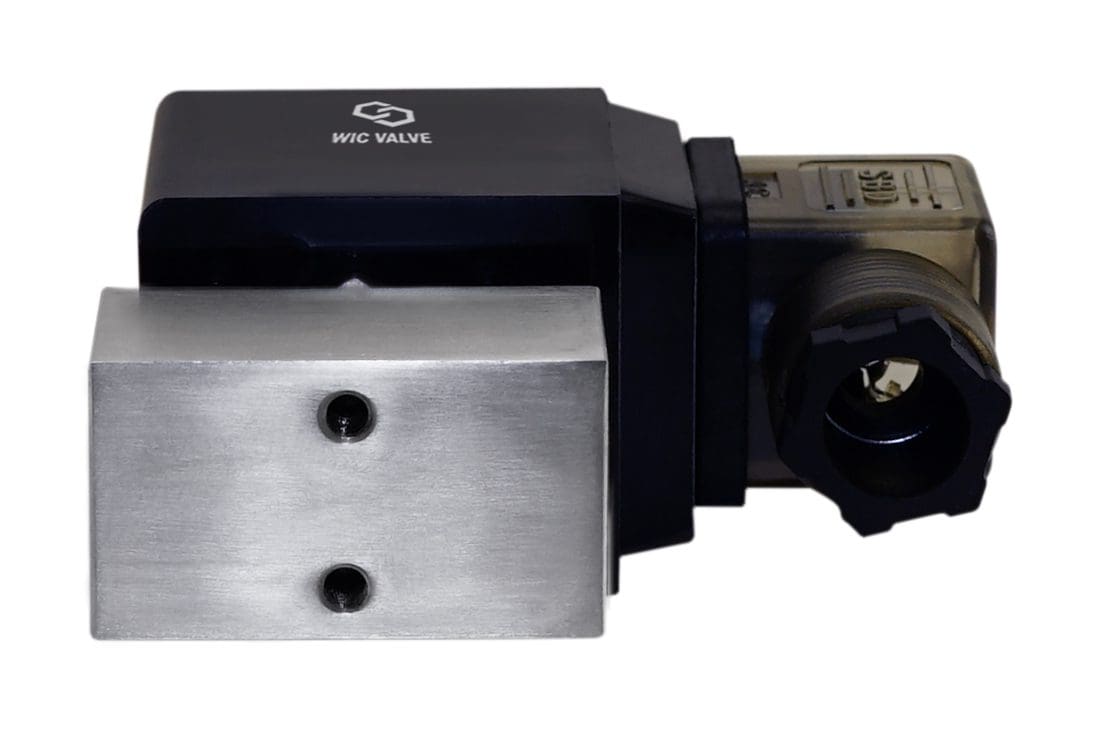

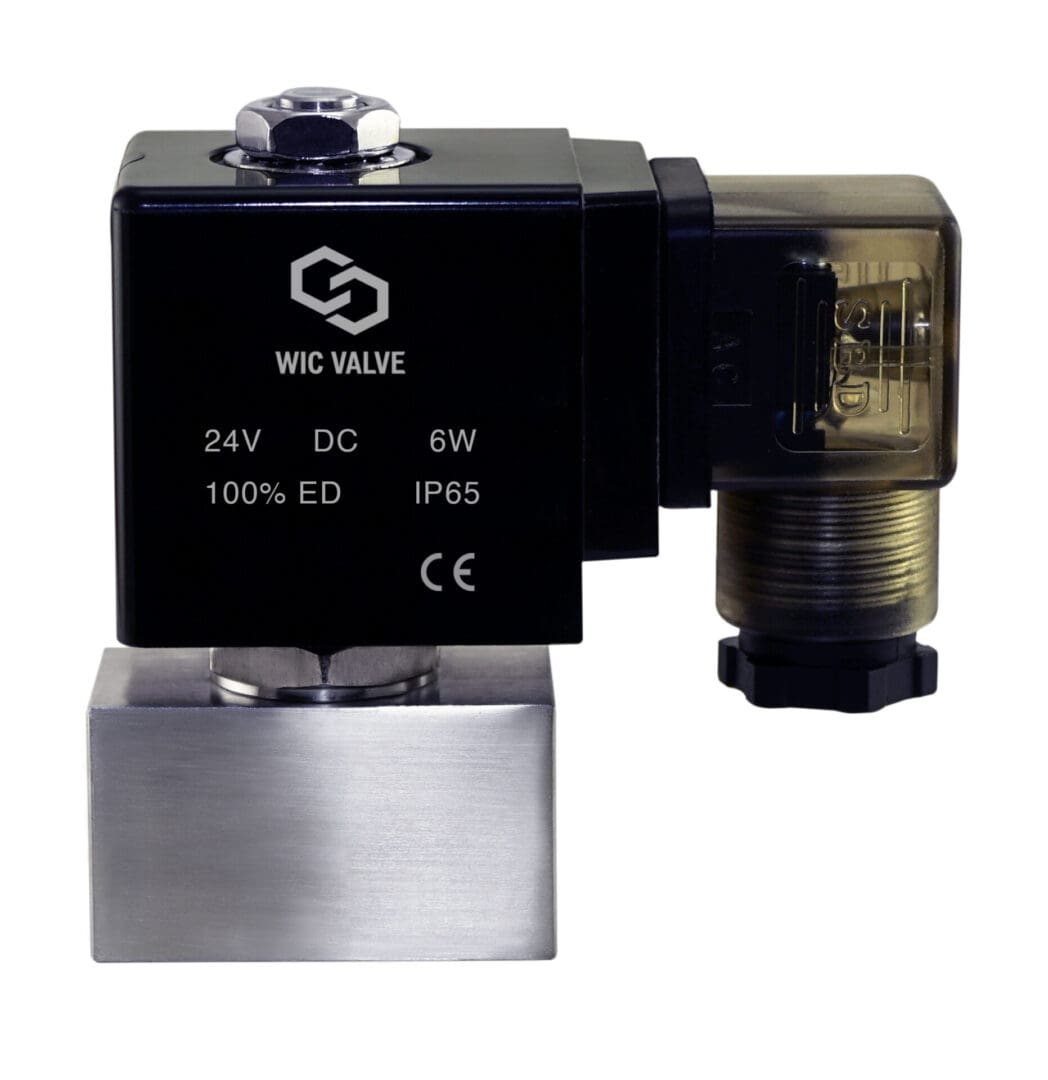

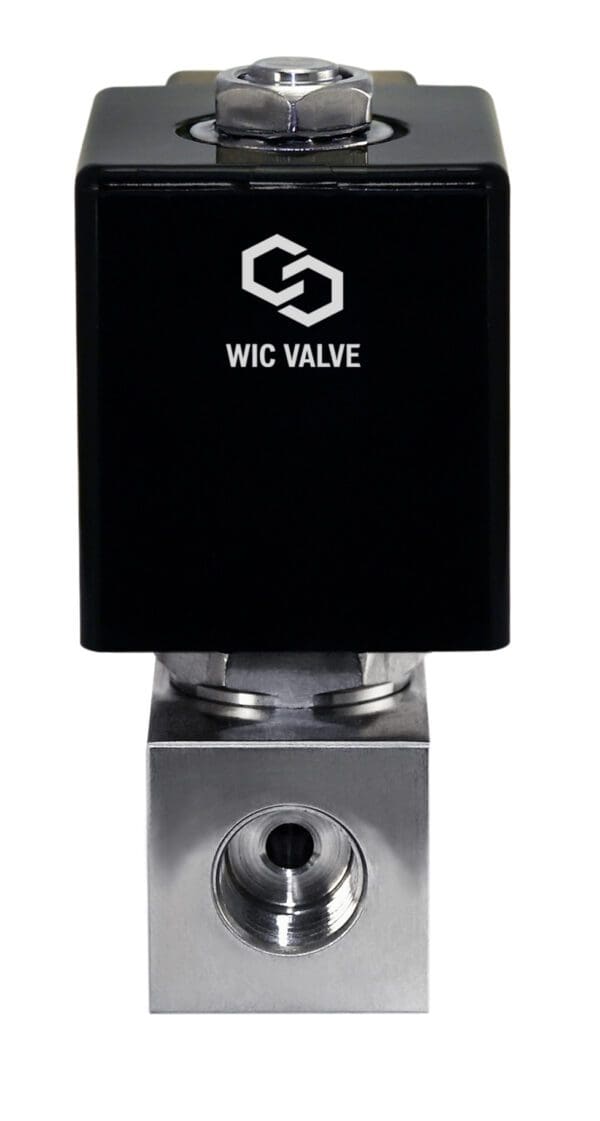

1/4″ High Pressure 4350/2900 PSI Electric Solenoid Valve

$108.90

Description

1/4″ High Pressure Stainless Steel Zero Differential Electric Solenoid Process Valve Teflon PTFE Seal Normally Closed



WIC Valve 2SCE Series 2-way normally closed high pressure electric solenoid process valve is to control On/Off of air, inert gas, liquid and water. This industrial fast response electric solenoid valve has one 1/4″ inch NPT inlet and one 1/4″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve can be mounted in any position.  2SCE series 1/4″” valve is a zero differential valve which can be operated at 0 PSI, no mininum pressure is required.  2SCE series high pressure stainless steel electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service for constantly energized.





2SCE Series Stainless Steel High Pressure Electric Solenoid Process Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Model Number: 2SCE-1/4-D-L-1

Service Media: Air, Gas, Liquid, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Body Material: 304 Stainless Steel

Seal Material: Teflon (PTFE)

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification DC Coil

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 0 – 4350 PSI with AC Coil; 0 – 2900 PSI with DC Coil

Operating Temperature: -20 to 80 °C

Port Size: 1/4″ Inch NPT Female Port

Coil Voltage Option: 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator





2SCE Series 1/4″ High Pressure Stainless Steel Zero Differential Solenoid Process Valve Dimensions (Unit=mm)


Model # Port Size (NPT) Flow Rate (Cv) Orifice Size (mm)
2SCE-1/4-D-L-1 1/4″ 0.04 1mm
2SCE-1/4-D-L-1.5 1/4″ 0.08 1.5mm
2SCE-1/4-D-L-2 1/4″ 0.15 2mm
2SCE-1/4-D-L-2.5 1/4″ 0.20 2.5mm
2SCE-1/4-D-L-3 1/4″ 0.25 3mm
2SCE-1/4-D-L-4 1/4″ 0.60 4mm



Additional information

Weight 1.00 lbs
Dimensions 4.00 × 4.00 × 3.00 in
Coil Voltage

12V DC, 24V DC, 24V AC, 110V AC, 220V AC
