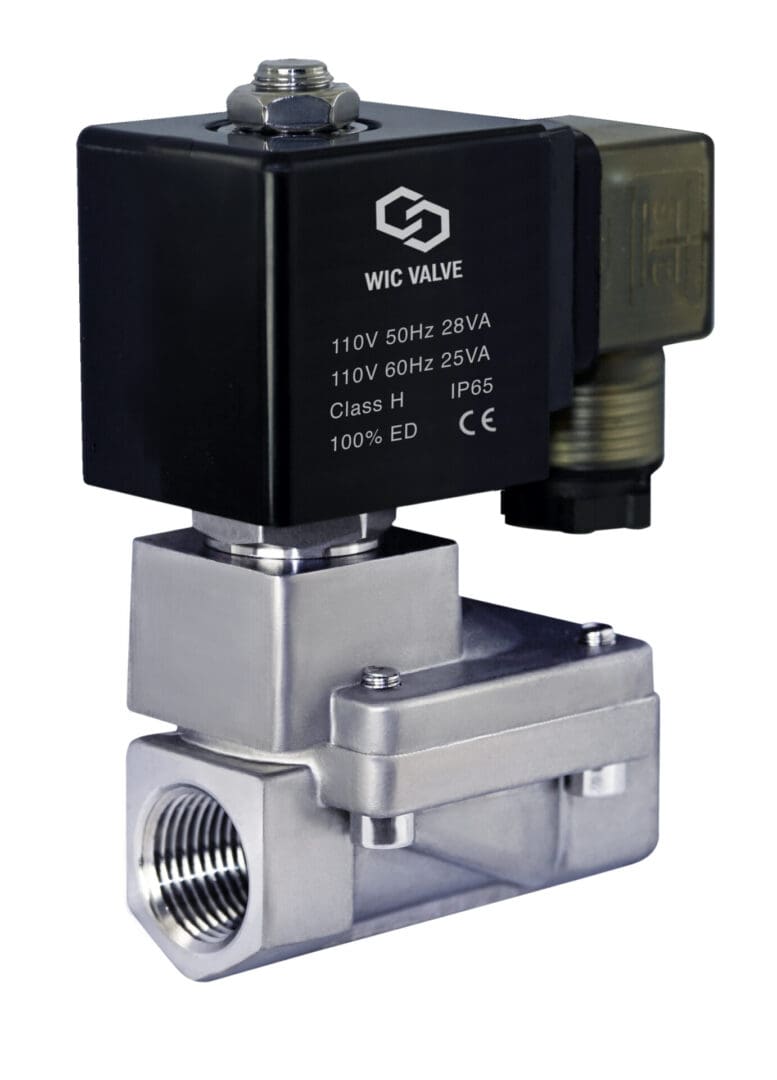

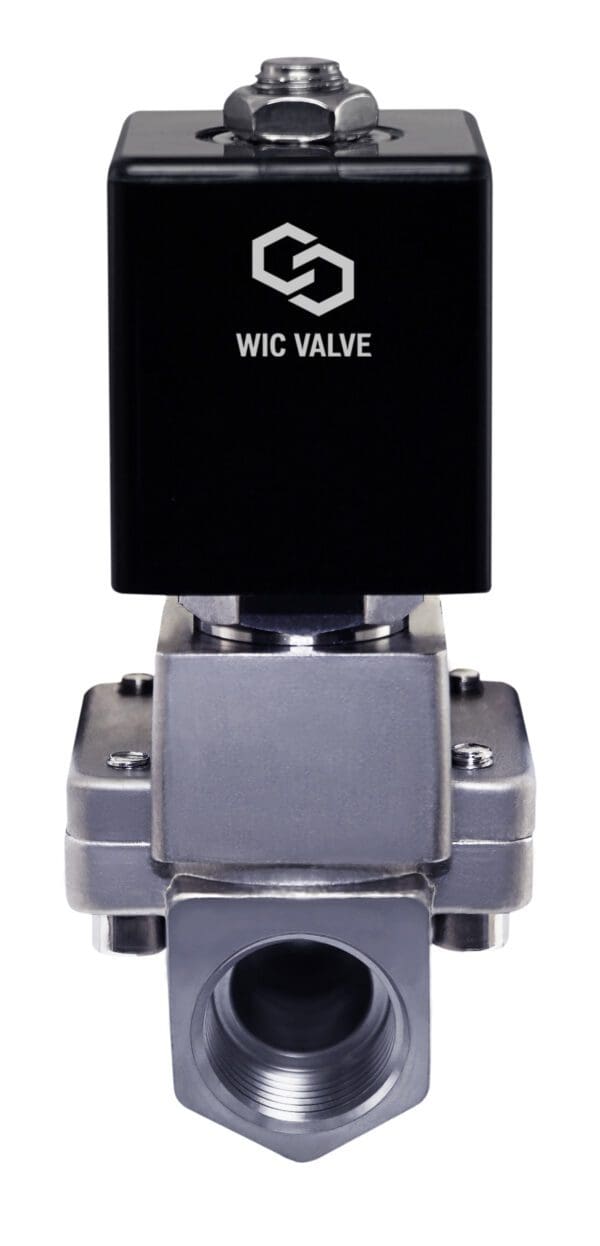

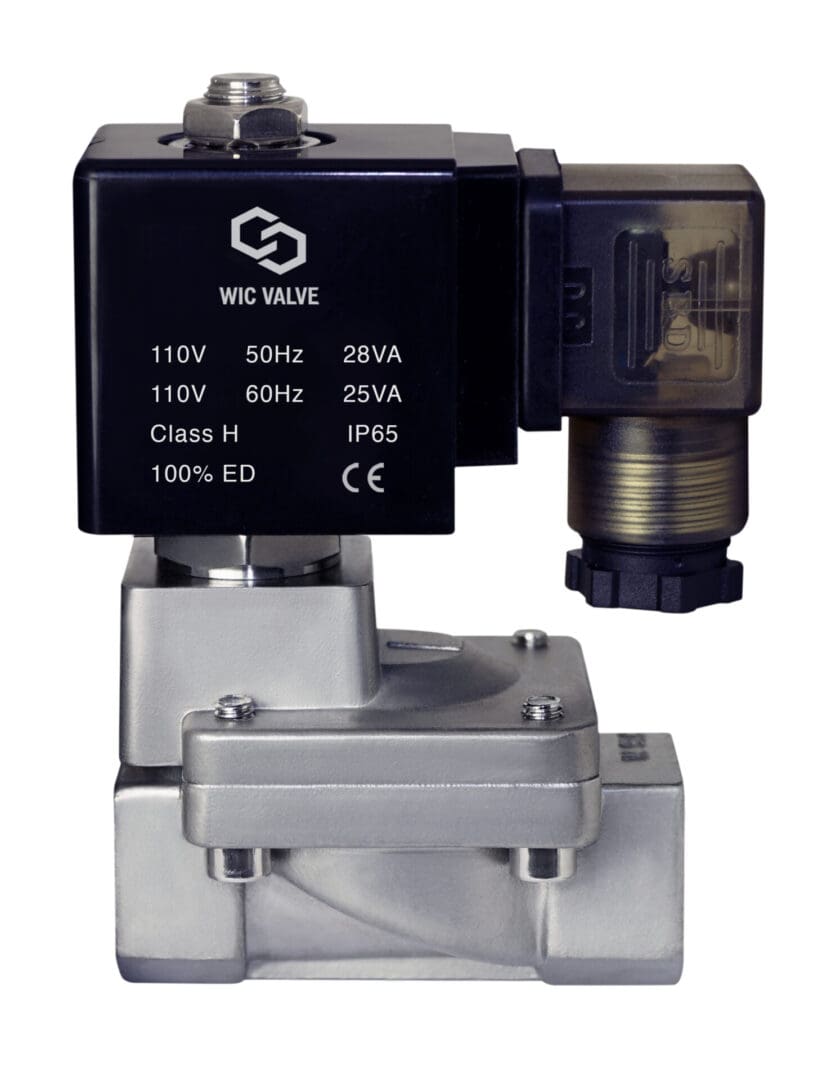

1.25″ S316 Stainless High Pressure Electric Solenoid Valve



WIC Valve 2SCR Series 2-way normally closed general purpose process solenoid valve is to control On/Off of air, inert gas, liquid. This industrial solenoid valve has one 1.25″ inch NPT inlet and one 1.25″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2SCR Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  Valve can be mounted in any position.



2SCR Series High Pressure Electric Solenoid Process Valve Specification:

Model Number: 2SCR-1 1/4-D-V

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water

Operation Model: Pilot Diaphragm

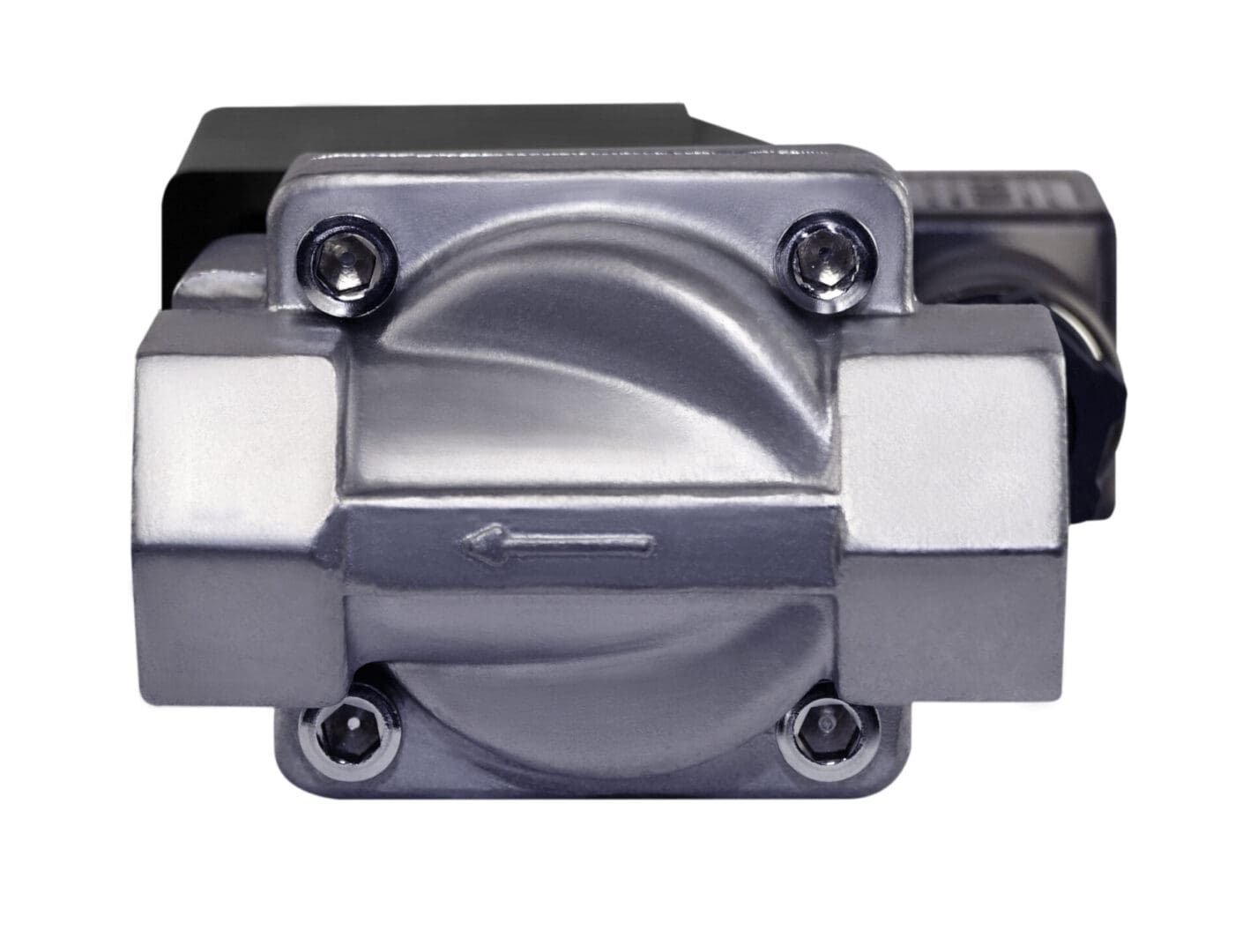

Flow Model: Uni-Directional

Body Material: SS316 Stainless Steel

Seal Material: Viton Diaphragm & Plunger Tip

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA

Insulation Class: H Class

Ingress Protection: IP65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 4.5 PSI to 230 PSI

Operating Temperature: -15 to 120 °C (5 to 248 °F)

Port Size:  1.25″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

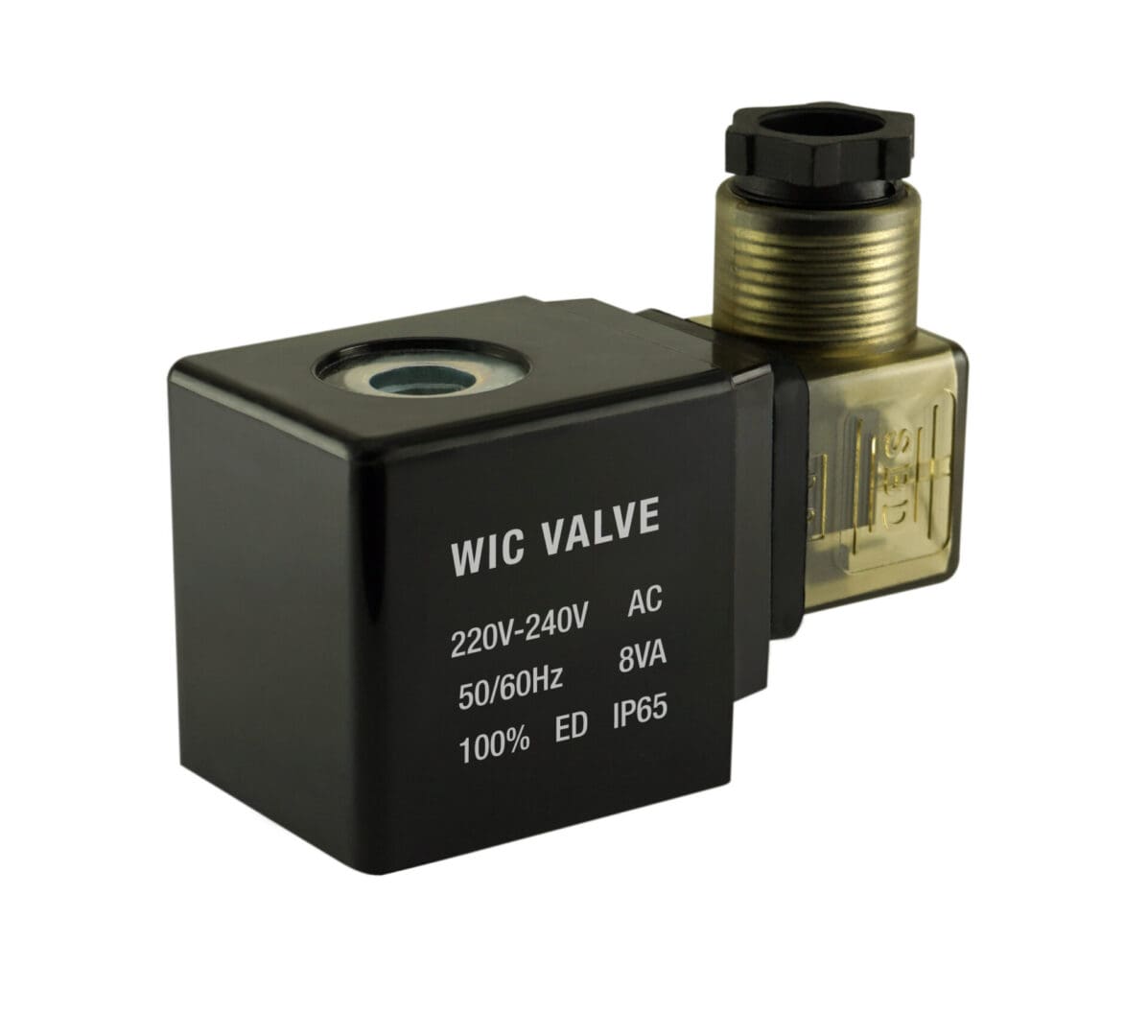

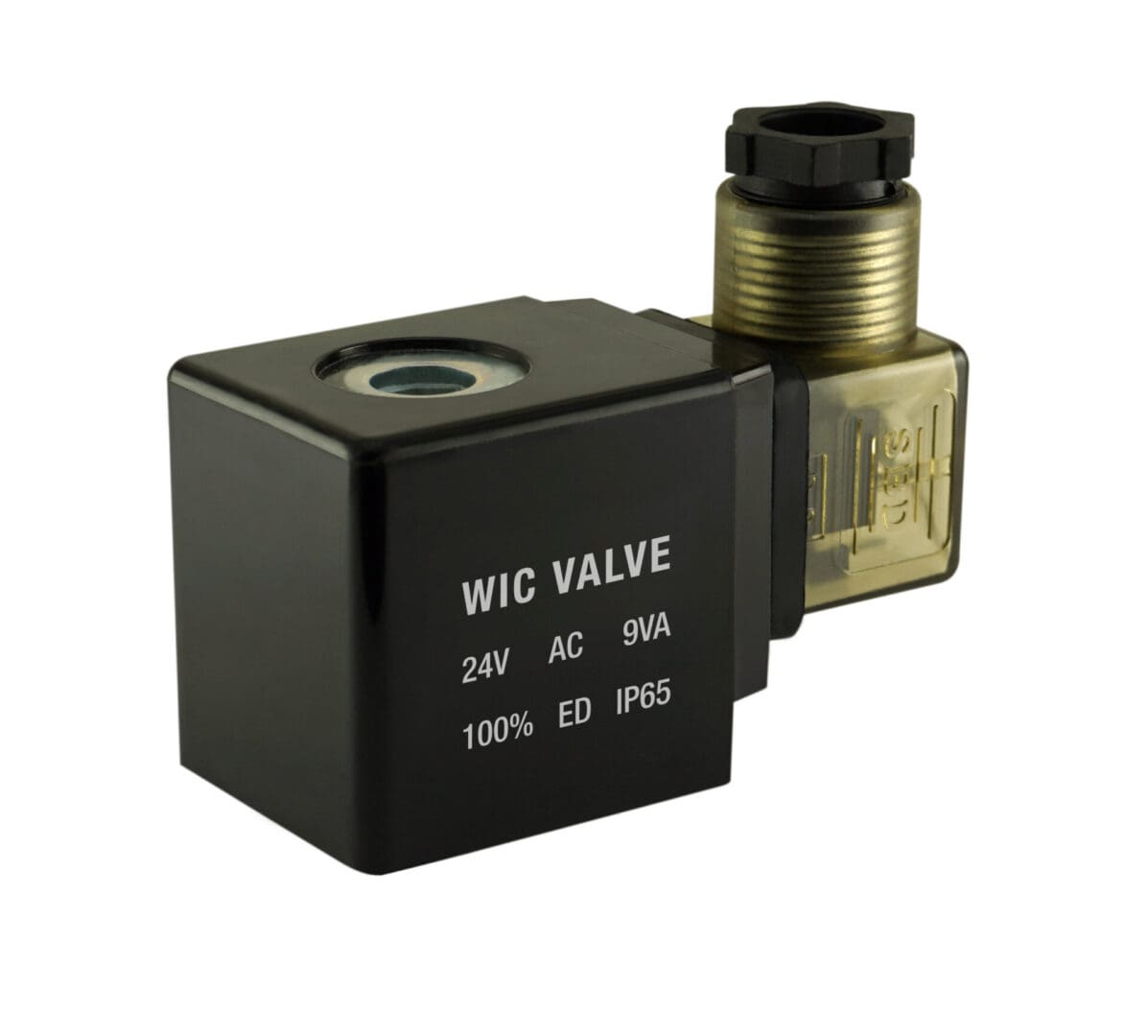

Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA

Low Power Coil Certification: CE Certification DC Coil

Operating Temperature: -15 to 80 °C (5 to 176 °F) With Low Power Consumption Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator



2SCR Series S316 High Pressure Normally Closed Electric Process Valve Dimensions (Unit=mm)
