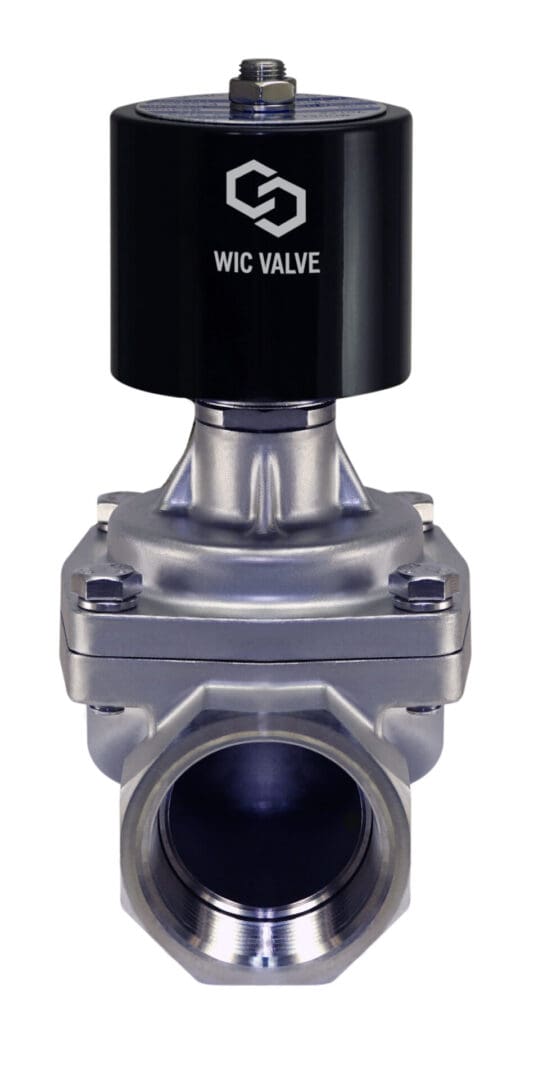

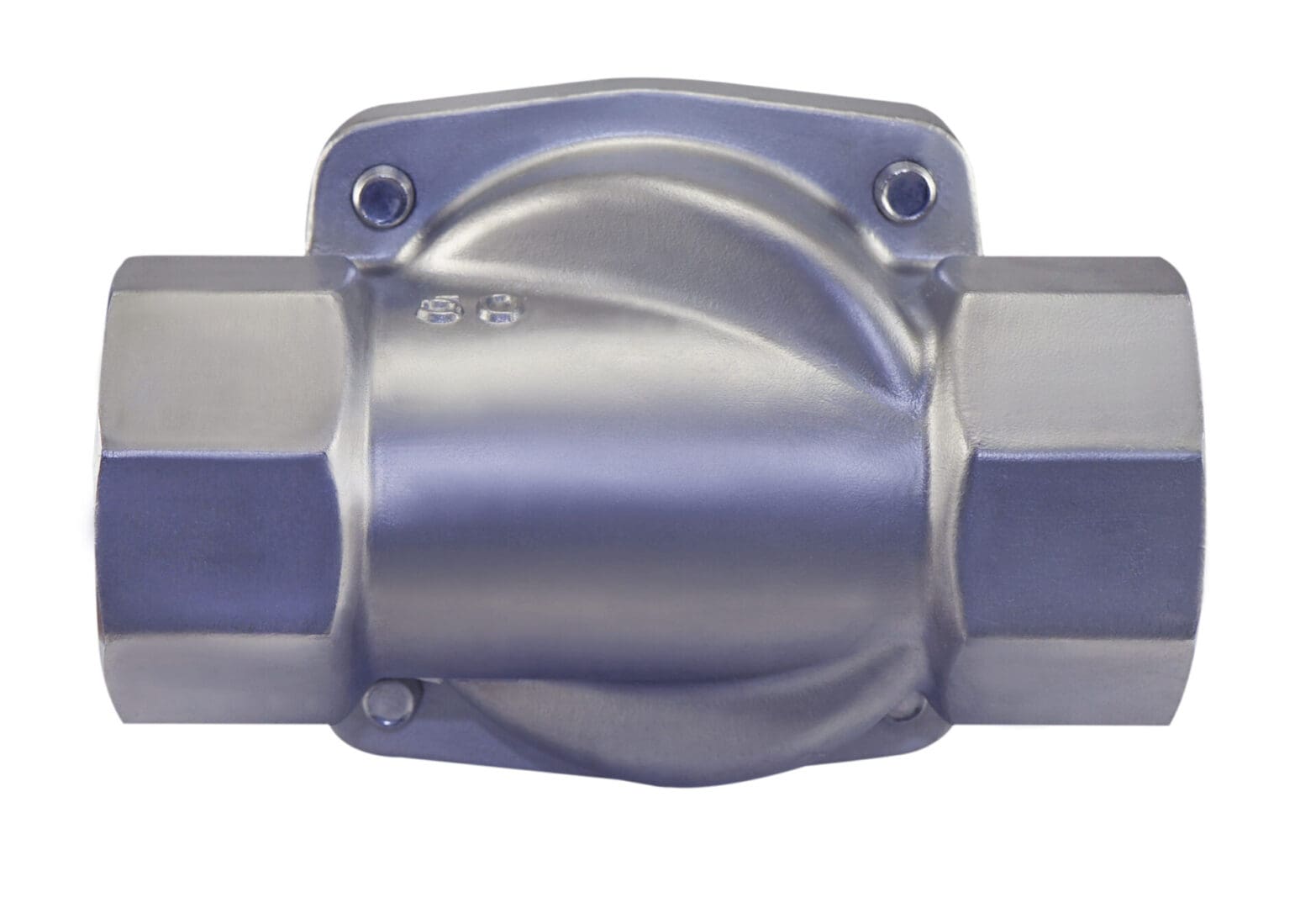

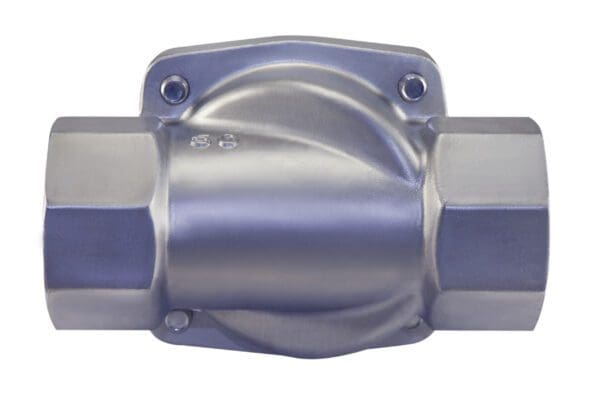

1.25″ Inch Zero Differential Electric Steam Solenoid Valve NC

WIC Valve 2SCL series 2-way normally closed steam solenoid valve is to control On/Off of air, inert gas, liquid, hot water, and steam. This industrial steam solenoid valve has one 1 1/4″ inlet and one 1 1/4″ outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2SCL Series stainless steel solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  Valve can be mounted in any position.  2SCL Series steam solenoid valve is a zero differential valve which can be operated at 0 PSI, no minimum pressure is required.



WIC Valve 2SCL Series Electric Steam Solenoid Valve Specification:

Model Number: 2SCL-1 1/4-D

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Hot Water, Steam

Operation Model: Direct Lift Piston

Flow Model: Uni-Directional

Body Material: 304 Stainless Steel

Seal Material: PTFE

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC: 35W – 40W / AC: 30VA – 35VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 0 PSI to 120 PSI

Operating Temperature: Media: -5 to 180°C ; Ambient -5 to 45 °C

Port Size: 1.25″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Coil Connector with LED Indicator



2SCL Series Stainless Steel Zero Differential Steam Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D
2SCL-1/2-D	1/2″	4.8	15	56	107	122	67
2SCL-3/4-D	3/4″	8.5	20	60	123	140	80
2SCL-1-D	1″	14	25	72	129	151	92
2SCL-1 1/4-D	1-1/4″	20	32	75	149	175	96
2SCL-1 1/2-D	1-1/2″	31	40	93	153	183	118
2SCL-2-D	2″	51	50	116	167	202	150



2SCL Series Stainless Steel Normally Closed Zero Differential Steam Solenoid Valve Component Drawing:

Valve Frequently Asked Questions:



How to connect DIN connector with wire?

1. Remove the Philip screw from the plastic housing protector.

2. Unplug the plastic housing from the DIN coil.

3. Remove the terminal block from the plastic housing.

4. On the back of the terminal block, it makes 1, 2 and Ground. For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required.



What is ED 100% Coil Duty?

ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.
