1.25″ Inch Normally Open Electric Solenoid Water Process Valve

WIC Valve 2BOW Series 2-way normally open general purpose electric solenoid process valve is to control On/Off of air, inert gas, liquid, and vacuum. This industrial solenoid valve has one 1.25″ inch NPT inlet and one 1.25″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized.  2BOW Series Solenoid valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum) and mounted at any position. 2BOW series normally open electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.



2BOW Series 1.25″ Inch Normally Open Electric Solenoid Process Valve Specification:

Model Number: 2BOW-1 1/4-D

Valve Type: 2 Way Normally Open (Valve closes with energized)

Service Media: Air, Gas, Liquid, Water, Vacuum

Operation Model: Direct Lift Diaphragm

Flow Model: Uni-Directional

Body Material: Brass

Seal Material: NBR (Buna N) Diaphragm & Plunger Tip

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC – 40W ; AC – 50/60Hz 35VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: Vacuum to 90 PSI – AC Coil / Vacuum to 80 PSI – DC Coil

Operating Temperature: NBR -10 to 80 °C

Port Size: 1.25″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Low Power Consumption Coil: Upgrade Optional: 24V DC – 8W, 24V AC – 7VA, 110V AC – 7VA, 220V AC – 9VA

Low Power Consumption Inrush Current: 24V DC – 75W, 24V AC – 121VA, 110V AC – 50/60Hz 82VA, 220V AC – 50/60Hz 170VA

Low Power Coil Certification: CE Certification DC Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator

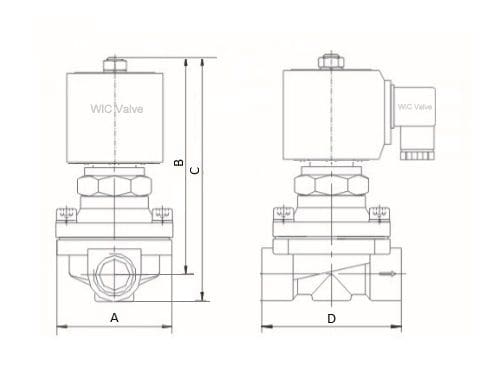

2BOW Series 1.25″ Inch Normally Open Electric Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D
2BOW-3/8-D	3/8″	4.8	16	56	118	131	68
2BOW-1/2-D	1/2″	4.8	16	56	118	131	68
2BOW-3/4-D	3/4″	7.6	20	56	123	140	73
2BOW-1-D	1″	12	25	74	147	168	100
2BOW-1 1/4-D	1-1/4″	24	35	85	160	185	110
2BOW-1 1/2-D	1-1/2″	29	40	90	165	193	120
2BOW-2-D	2″	48	50	115	176	210	155

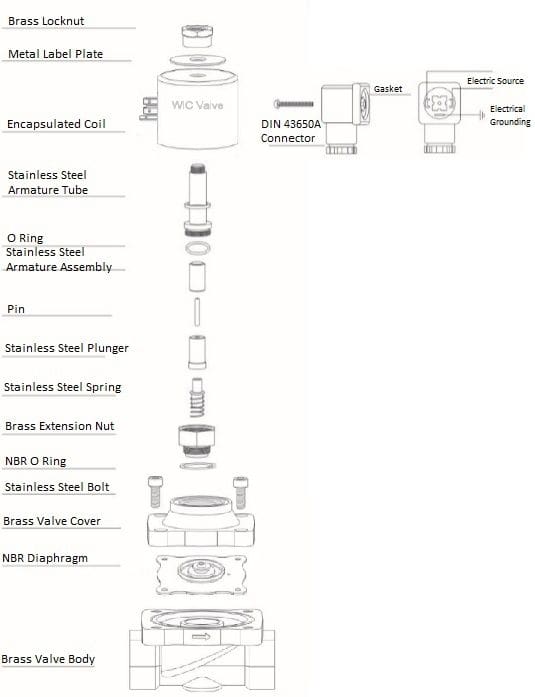

2BOW Series Brass Normally Open Electric Solenoid Valve Component Drawing:
