1.25″ Inch High Pressure 230 PSI Electric Solenoid Valve NC



WIC Valve 2BCR Series 2-way normally closed general purpose process solenoid valve is to control On/Off of air, inert gas, liquid. This industrial solenoid valve has one 1.25″ inch NPT inlet and one 1.25″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2BCR Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  Valve can be mounted in any position.



2BCR Series High Pressure Electric Solenoid Process Valve Specification:

Model Number: 2BCR-1 1/4-D

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water

Operation Model: Pilot Diaphragm

Flow Model: Uni-Directional

Body Material: Brass

Seal Material: NBR (Buna N) Diaphragm & Plunger Tip

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA

Insulation Class: H Class

Ingress Protection: IP65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 4.5 PSI to 230 PSI

Operating Temperature: NBR -10 to 80 °C (14 to 176 °F)

Port Size:  1.25″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA

Low Power Coil Certification: CE Certification DC Coil

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator



2BCR Series High Pressure Normally Closed Electric Process Valve Dimensions (Unit=mm)

Model #	Port Size (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C	D	Weight (lbs)
2BCR-3/8-D	3/8″	4.5	13	48	66	97	112	2
2BCR-1/2-D	1/2″	4.5	13	48	66	97	112	2
2BCR-3/4-D	3/4″	7.6	20	58	75	100	118	2.3
2BCR-1-D	1″	12	25	69	96	101	125	3.5
2BCR-1 1/4-D	1-1/4″	24	32	96	131	120	150	7.2
2BCR-1 1/2-D	1-1/2″	30	40	96	131	120	150	7.2
2BCR-2-D	2″	48	50	120	165	130	165	9.5

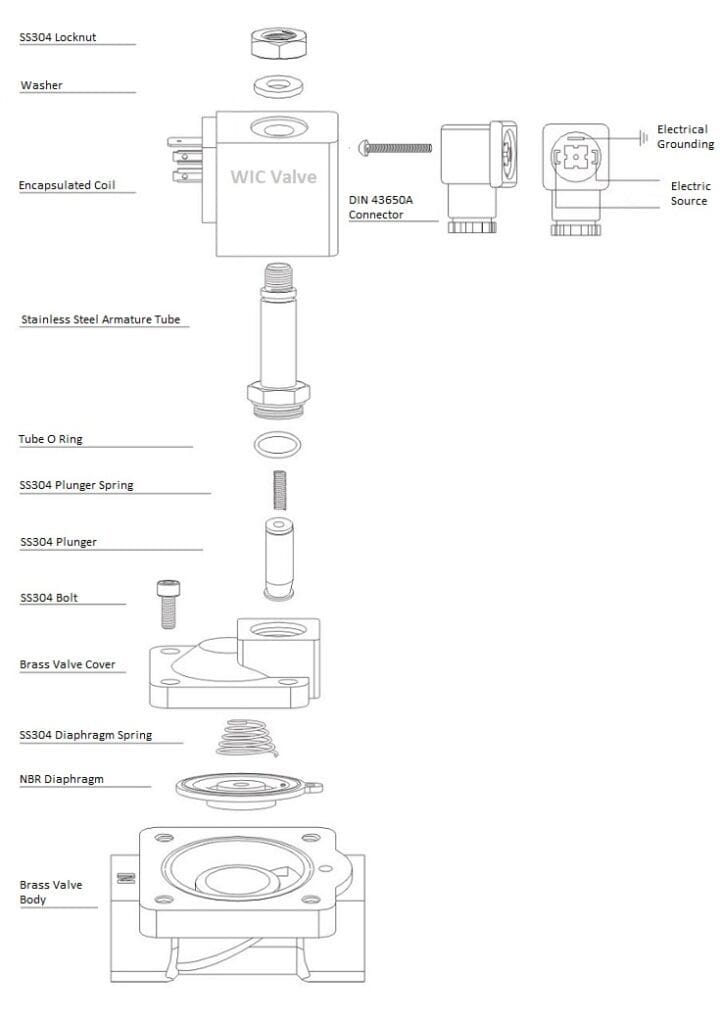

2BCR Series Normally Closed High Pressure Electric Solenoid Valve Component Drawing:

What is Coil with DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2BCR series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.



What is ED 100% Coil Duty?

ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.
