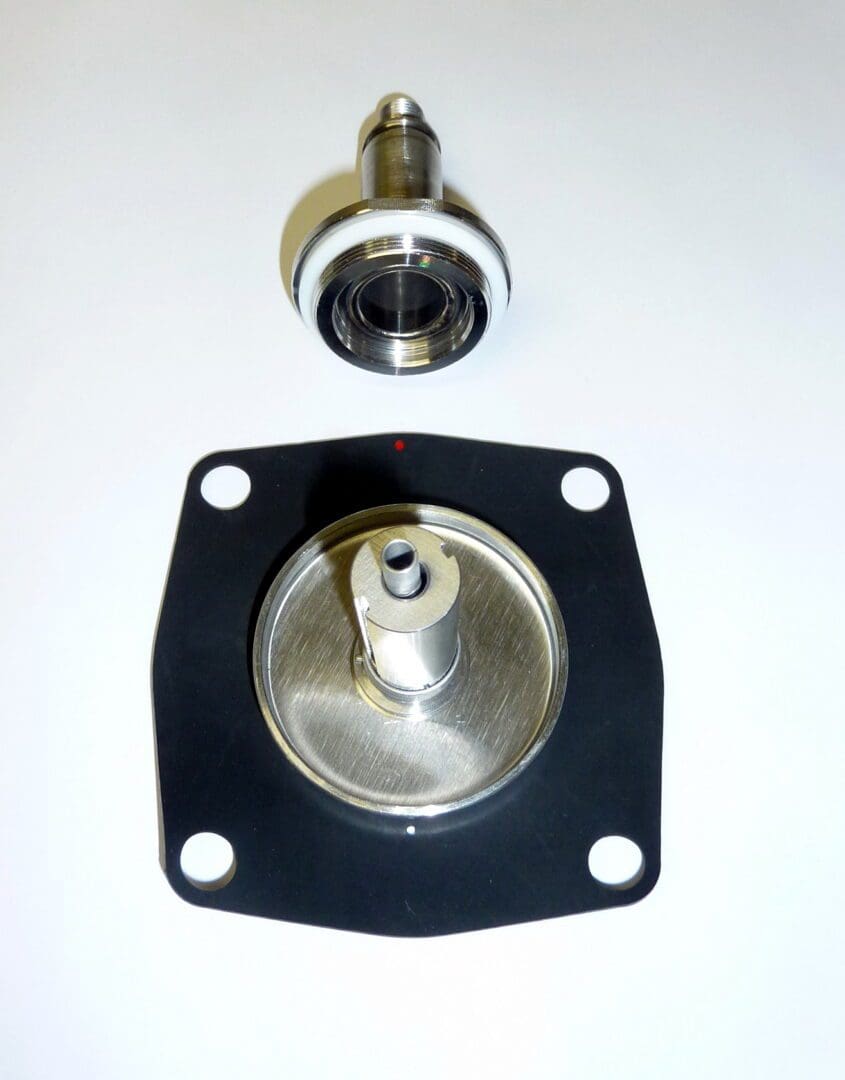

1.25″ 2SCW Series Water Solenoid Valve Diaphragm Rebuild Kit

2SCW Series Solenoid Valve Armature Tube Rebuild Kit Specification:

Model Number: 2SCW-1 1/4-V AT KIT

Operation Model: Direct Lift Diaphragm

Seal Material: Viton

Armature Tube Material: Stainless Steel

Spring & Plunger Material: Stainless Steel

Valve Frequently Asked Questions:

What is DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2SCW series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.

How to connect DIN connector with wire?

1. Remove the Philip screw from the plastic housing protector.

2. Unplug the plastic housing from the DIN coil.

3. Remove the terminal block from the plastic housing.

4. On the back of the terminal block, it makes 1, 2 and Ground. For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required.

What is ED 100% Coil Duty?

ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.
