1/2″ Inch Plastic Electric Water Process Valve Manual Override

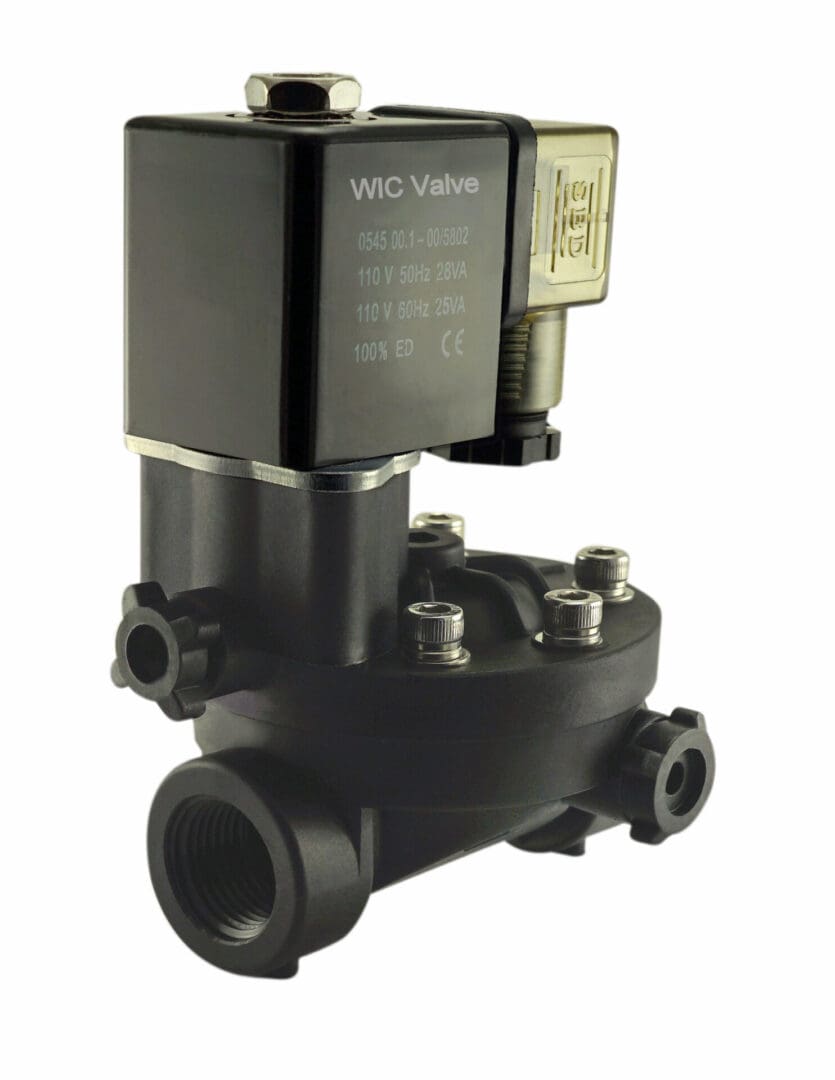

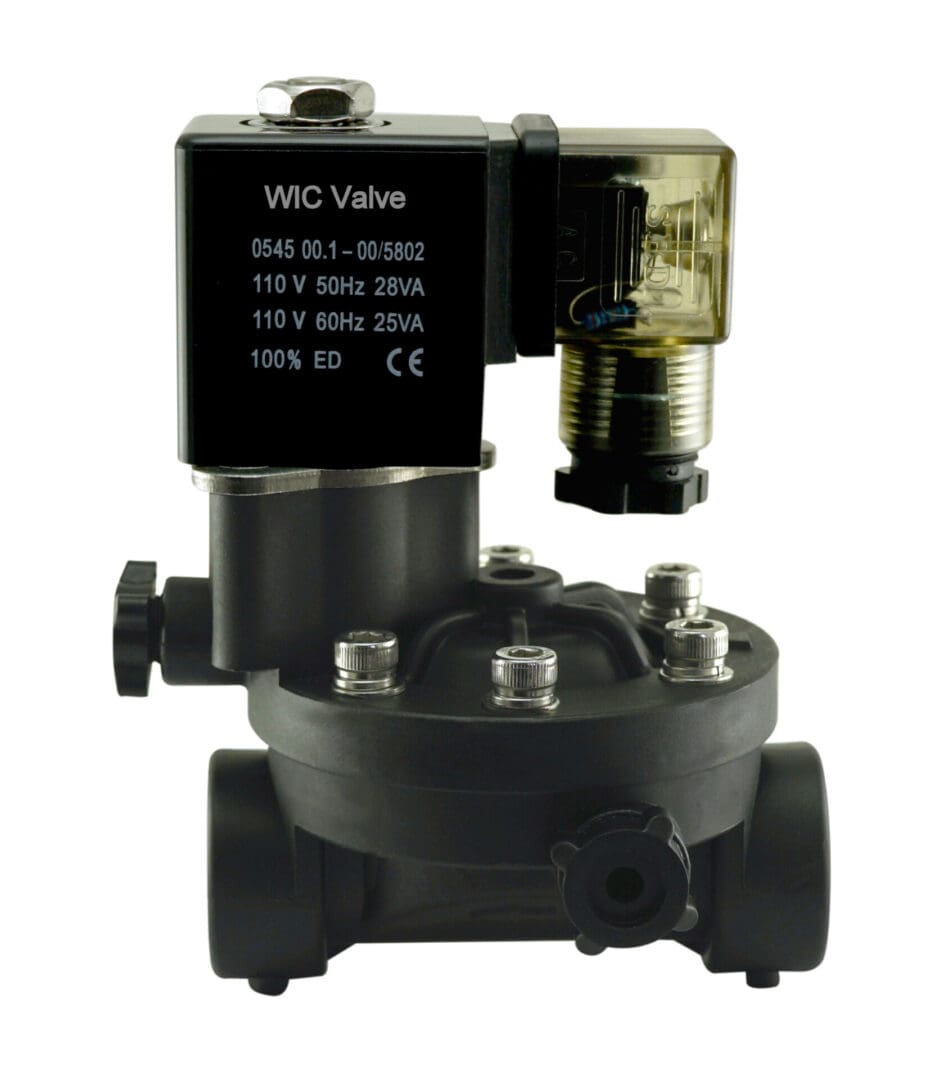

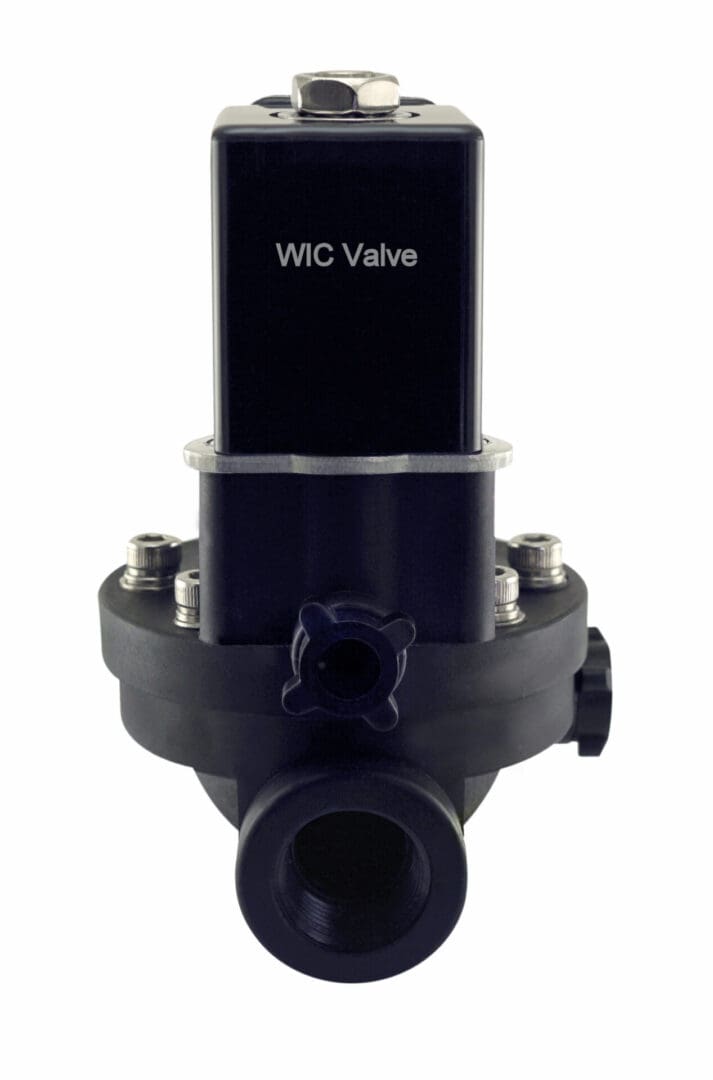

WIC Valve 2PCH Series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid, and water. This solenoid valve has one 1/2″ inlet and one 1/2″ outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2PCH Series solenoid valve comes with manual override switch, valve can be opened manually when no electricity supply.  Valve can be mounted in any position.



2PCH Series PA66 Plastic Electric Solenoid Valve Specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water

Operation Model: Pilot

Body Material: PA66 Plastic

Seal Material: NBR (Buna N)

Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 5 PSI to 110 PSI

Operating Temperature: 0 to 60°C

Port Size: 1/2″ Inch NPT Female Port

Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

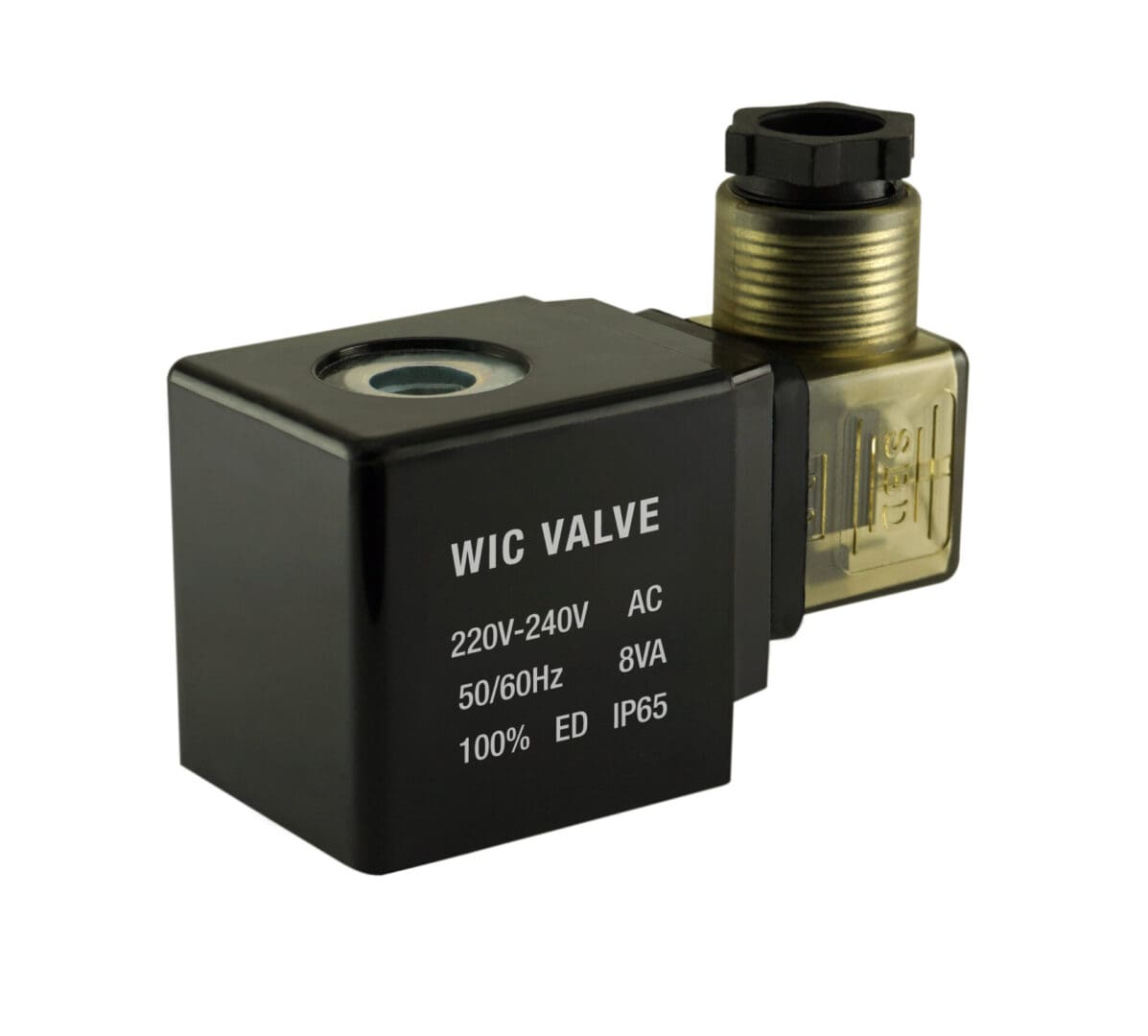

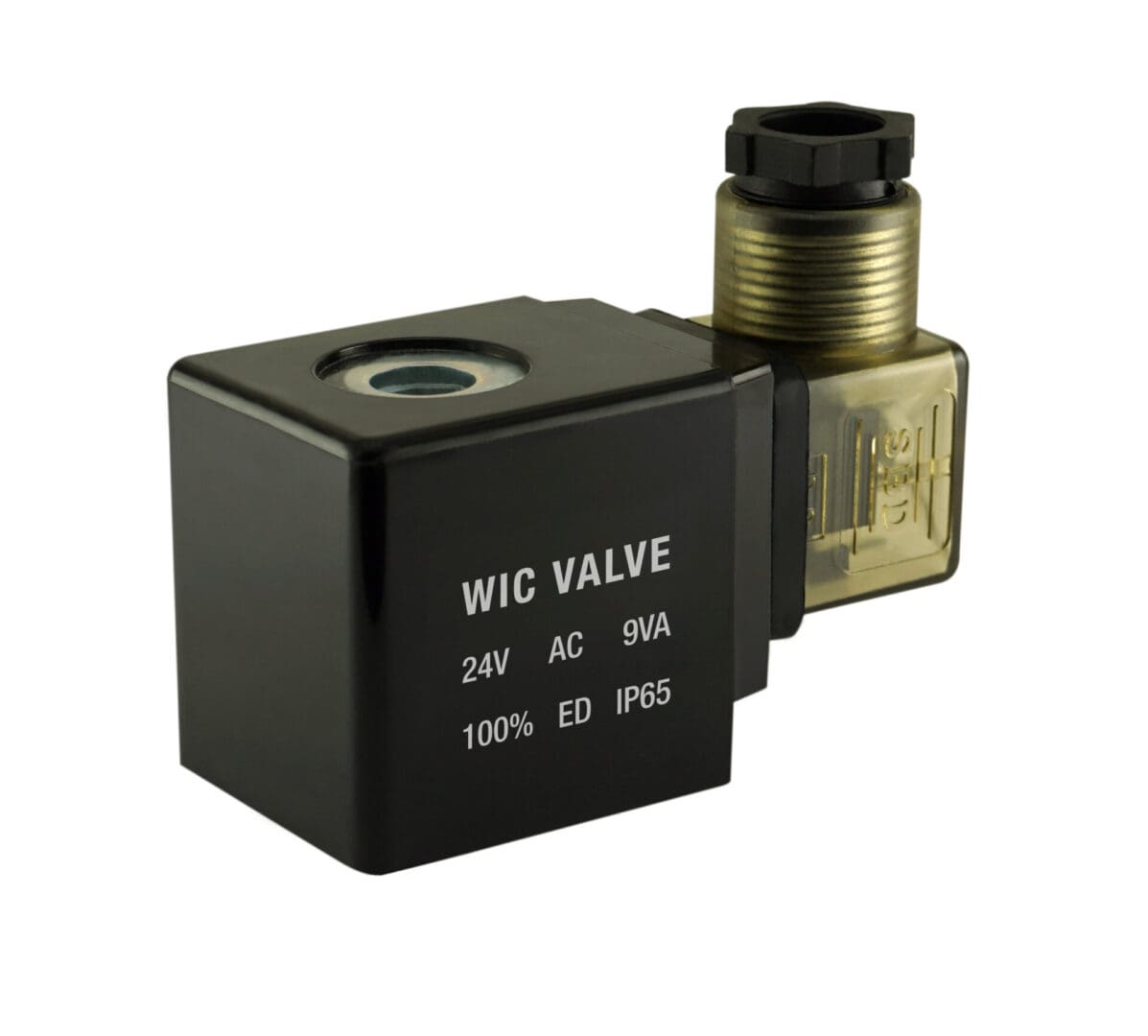

Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA

Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A Connector with LED Indicator



2PCH Series Manual Override PA66 Plastic Solenoid Valve Dimensions (Unit=mm):

Model	Port (NPT)	Flow Rate (Cv)	Orifice Size	A	B	C
2PCH-1/2-D	1/2″	3.5	15	73	126	85
2PCH-3/4-D	3/4″	7.6	20	73	128	90
2PCH-1-D	1″	12	25	90	148	125
2PCH-1 1/4-D	1-1/4″	20	32	128	173	150
2PCH-1 1/2-D	1-1/2″	30	40	128	176	152
2PCH-2-D	2″	48	50	140	190	170



2PCH Series PA 66 Electric Solenoid Valve Flow Control Manual Override Components:
